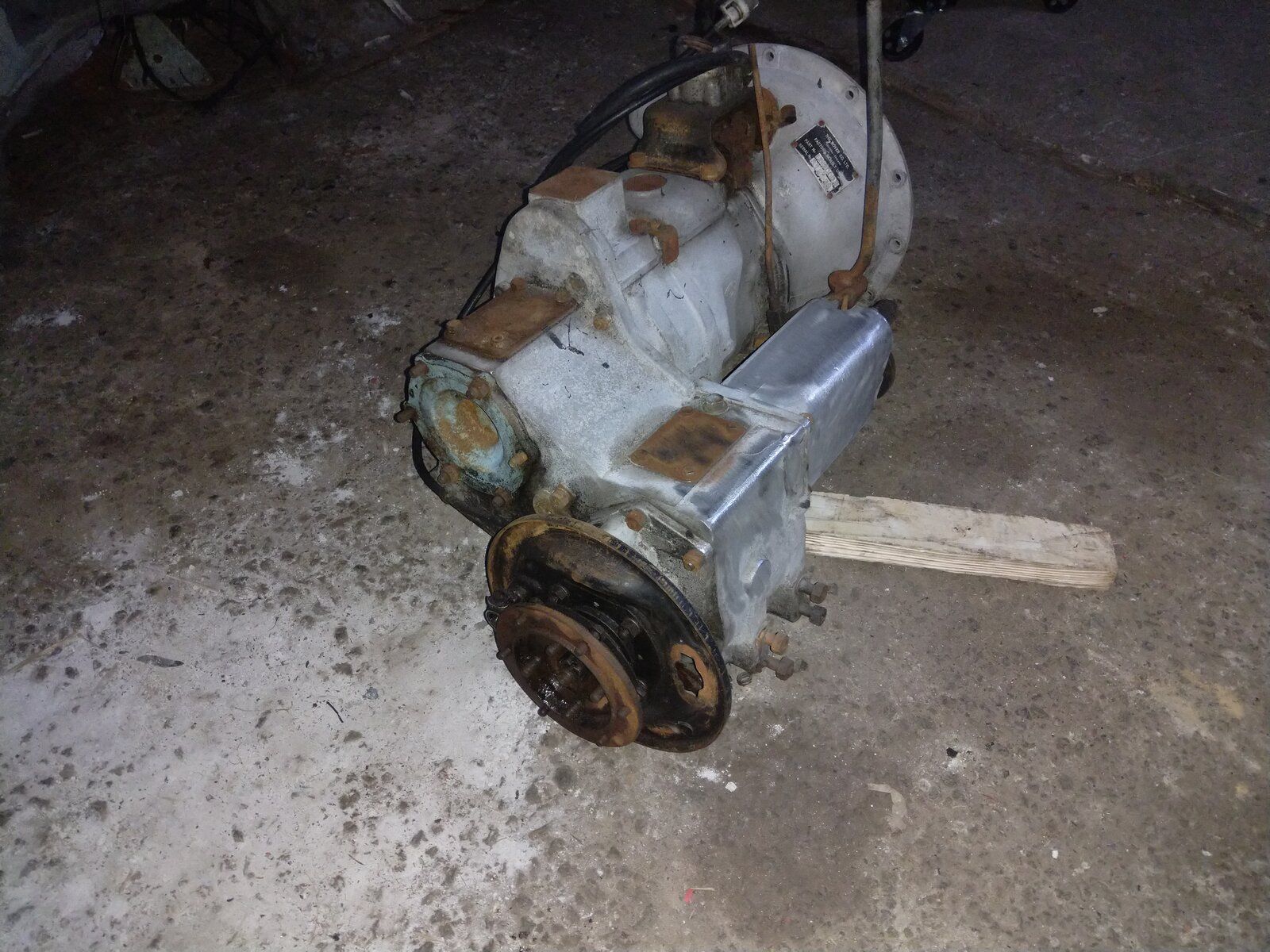

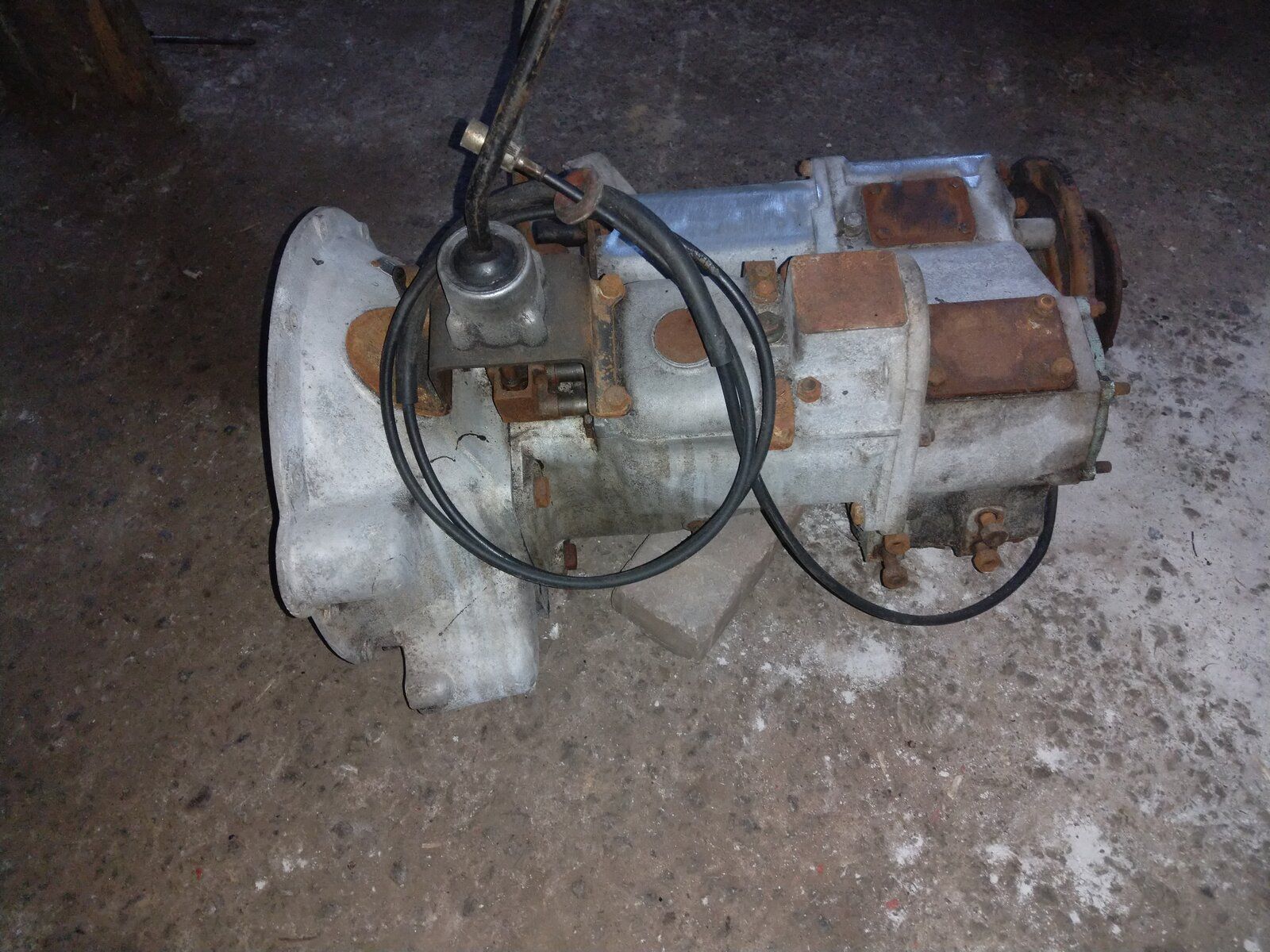

This is what Ive got for my rebuild, waiting on 2.25 petrol coming.
It has been stood in a shed for a few years now, doesnt look to bad and everything moves doesnt seem like anything is seized up.
Apart from cleaning it up and changing oils, what else should I be doing ? dont really want to start taking it apart as I have a habit of breaking things. ??
Thanks Really Appreciate all the help I get from everyone, couldn't do this with out yous lot.

tottot · Sep 26, 2021

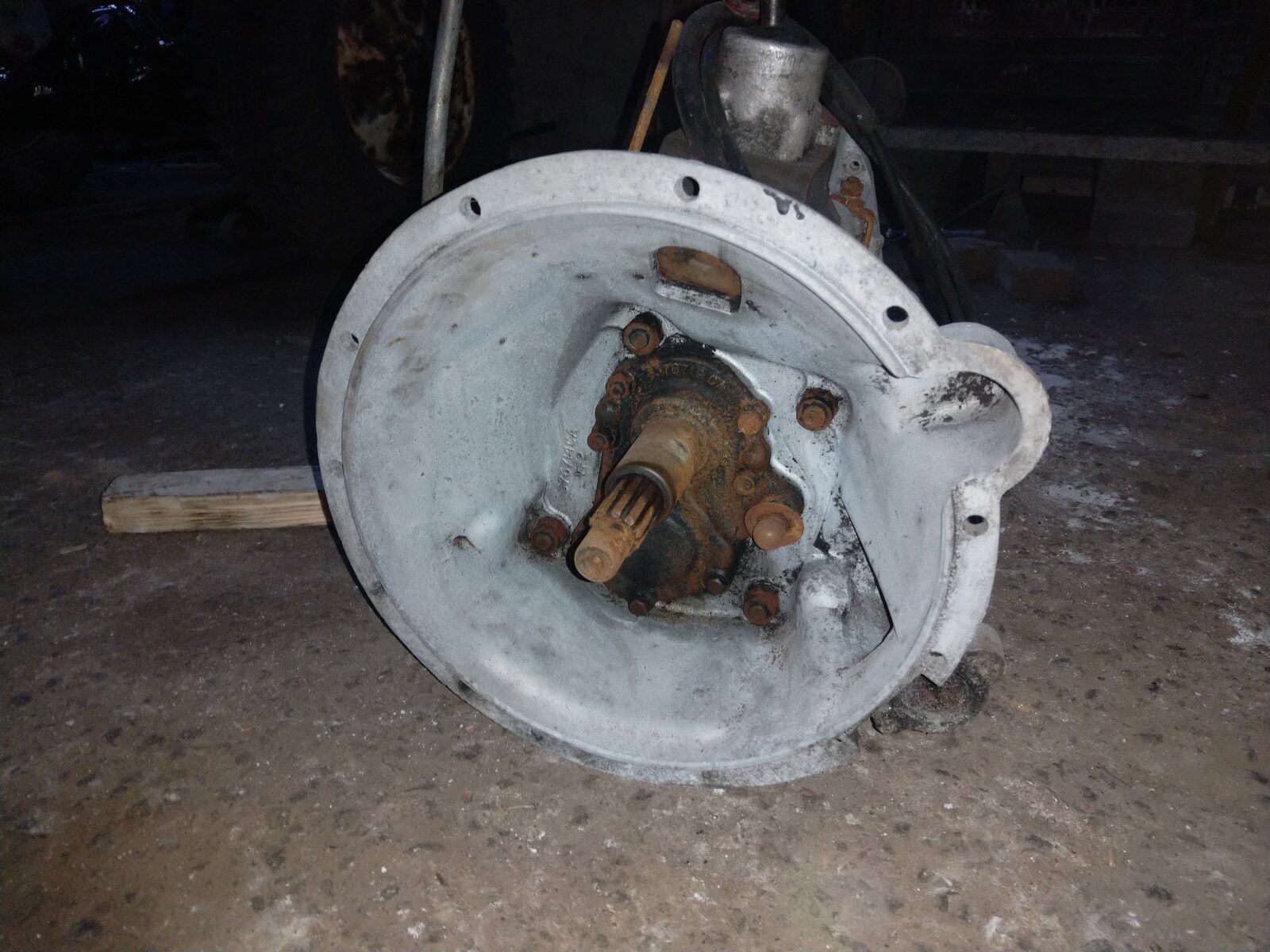

Clean up input splines and clutch arm pivot point and renew shaft output seals.

border · Sep 26, 2021

tottot said:
Clean up input splines and clutch arm pivot point and renew shaft output seals.

Thanks Mate. Will have to find a guide to see where seals are I aint got a clue

tottot · Sep 27, 2021

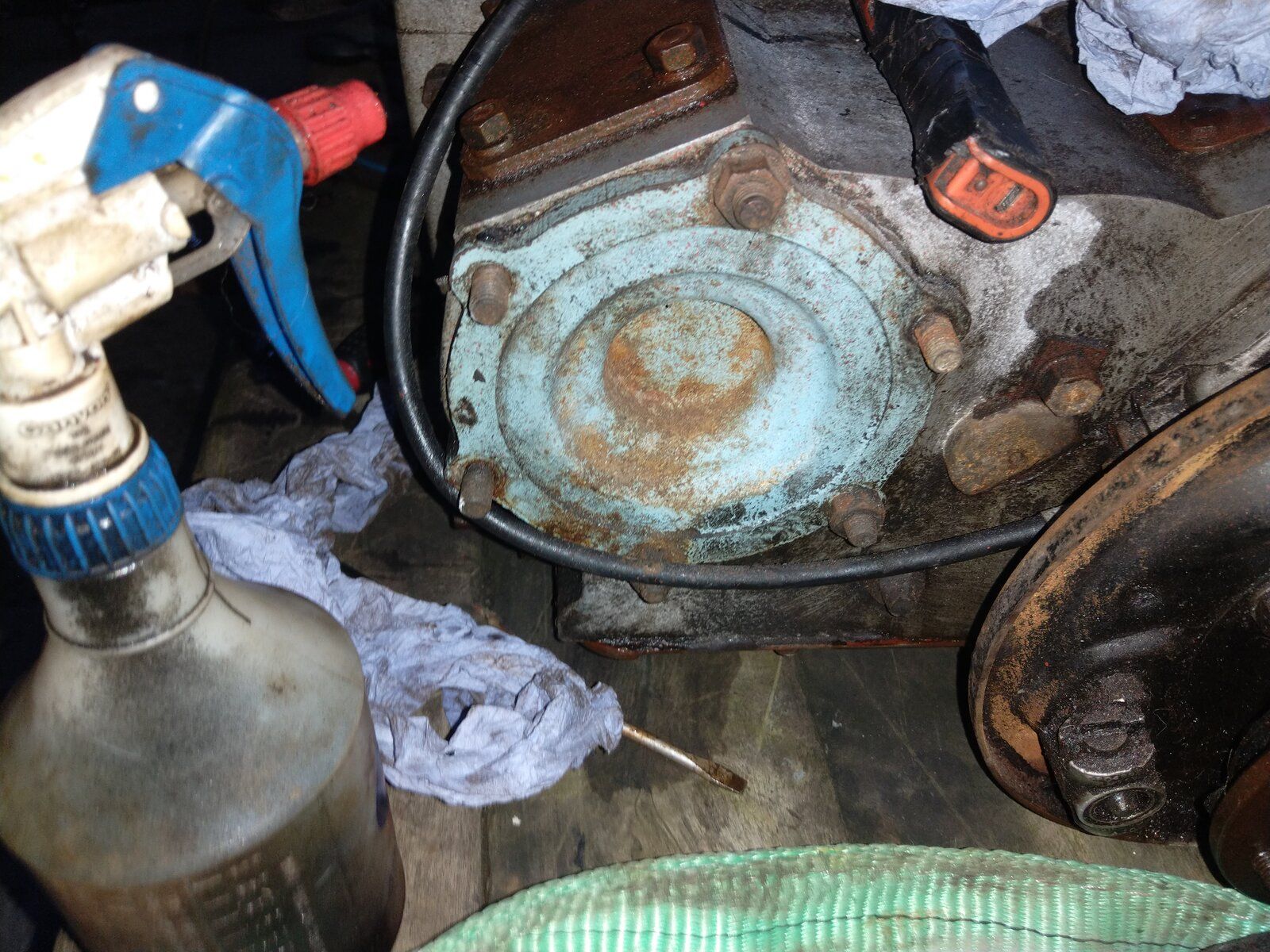

The seals are behind the drive flanges that connect to the prop shafts. large nut in the middle, undo to pull out the flange. On the rear you can remove hand brake back plate for better access. Seals can be pried out with large screwdriver but seal removal tool makes for an easy job. Careful to tap in new seal square, a tube, socket or old bearing outer race make tools for this.
Check out the You Tube, sure to be a good video on this.

border · Sep 27, 2021

tottot said:
The seals are behind the drive flanges that connect to the prop shafts. large nut in the middle, undo to pull out the flange. On the rear you can remove hand brake back plate for better access. Seals can be pried out with large screwdriver but seal removal tool makes for an easy job. Careful to tap in new seal square, a tube, socket or old bearing outer race make tools for this.
Check out the You Tube, sure to be a good video on this.

Thanks Mate, will find a guide

border · Sep 27, 2021

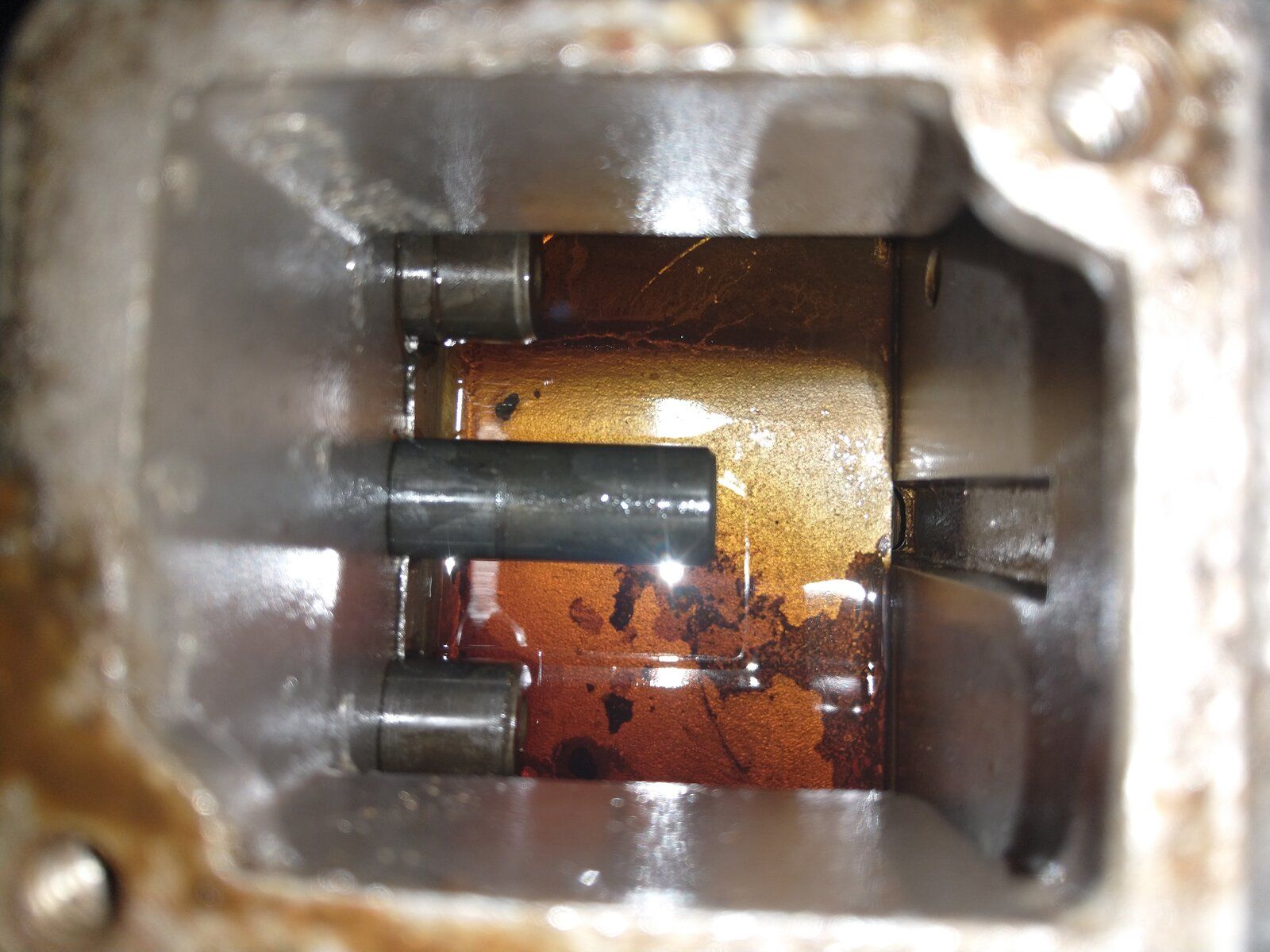

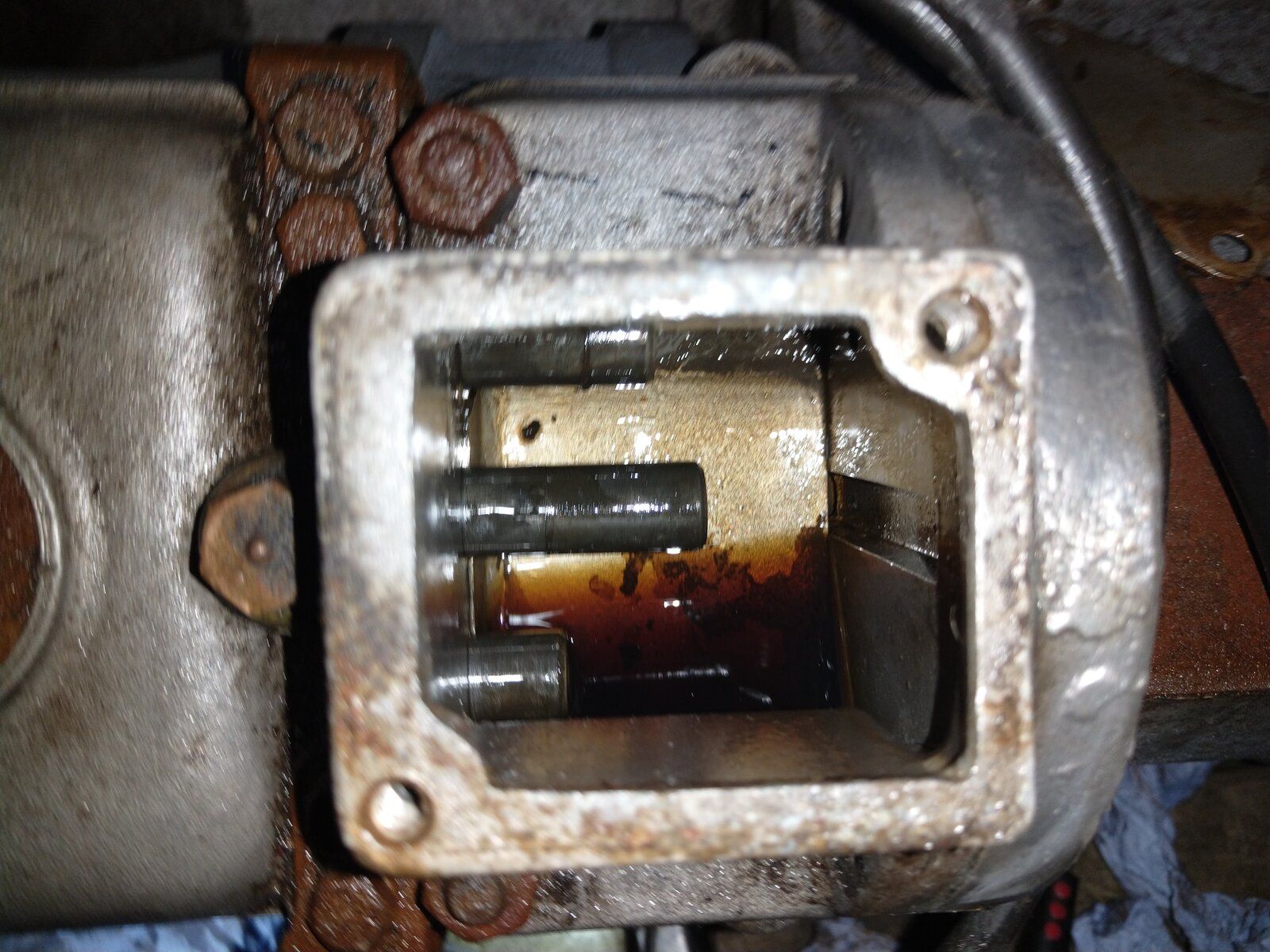

Lifted it up on bench tonight was upside down at one stage and discovered a leak coming from hole in one of top plates, is that supposed to be there ? couldnt see anymore leaks so not sure whether to change seals or not.
Oil in it doesnt seem to bad but I will change it anyway.

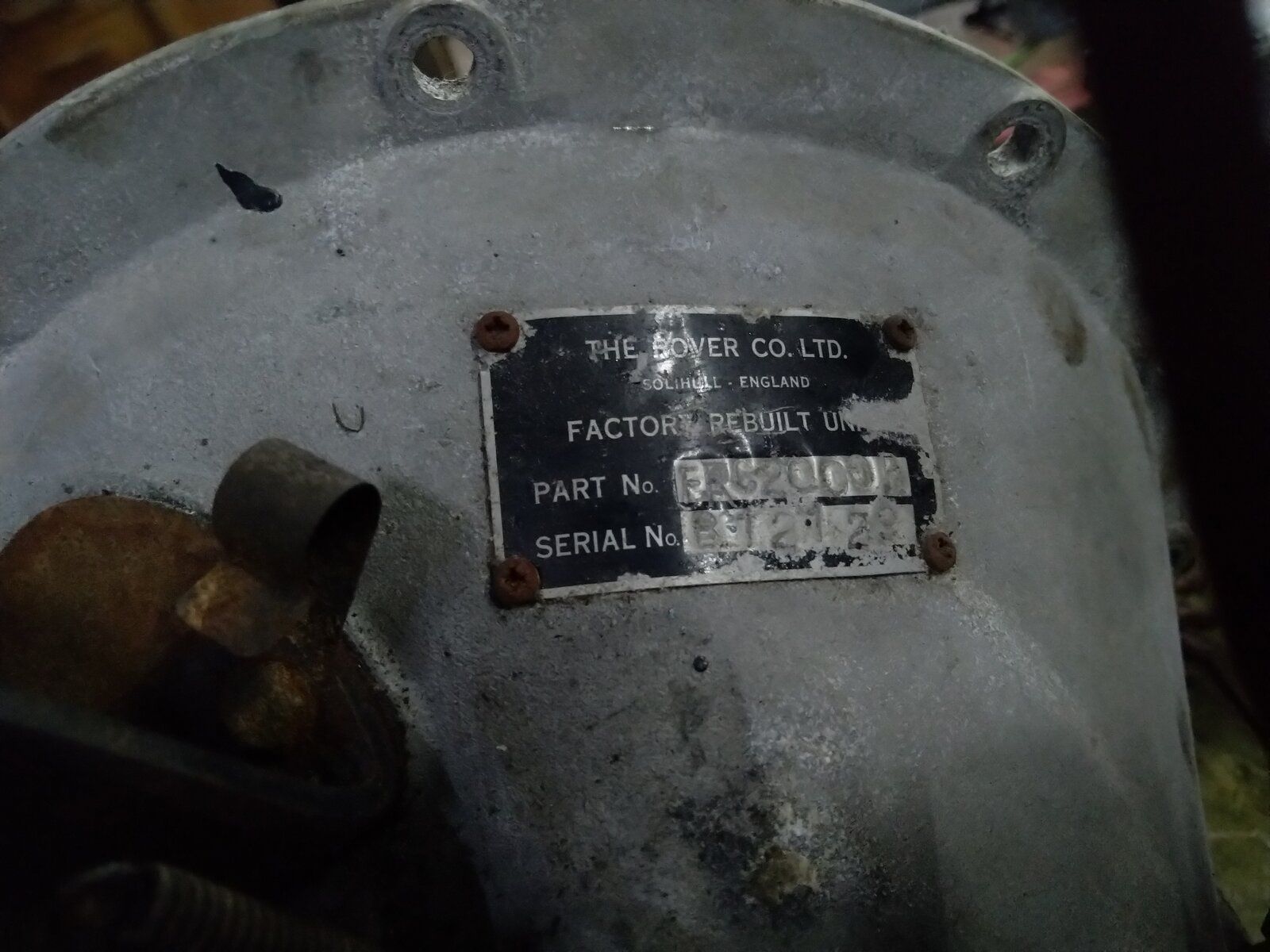

Not sure if it has been rebuilt at some stage or if it is military as there is still a trace of what looks like duckegg blue on it.

Blackburn · Sep 27, 2021

Hole is the vent for gearbox and transfer case.
If you look closely under the plate there is a groove cut in transfer case front that is its vent to same place as gearbox.

border · Sep 28, 2021

Blackburn said:
Hole is the vent for gearbox and transfer case.
If you look closely under the plate there is a groove cut in transfer case front that is its vent to same place as gearbox.

Thanks should I just leave hole open as it is ?

Blackburn · Sep 28, 2021

Some folks drill it larger and fit remote breather relevant if your going to take it into deep water I ford rivers but never to that depth.

border · Sep 28, 2021

Blackburn said:
Some folks drill it larger and fit remote breather relevant if your going to take it into deep water I ford rivers but never to that depth.

Will leave it as is, only water Ill be going through is the puddles up to my yard.

border · Sep 28, 2021

Another thing about this is the Oil, I know that the tbox takes ep90 and from what I have read so does gearbox, looking at the little bit in top on pic thats defiantly not ep90 it seems very thin and doesn't smell of it. I know that the later boxes take the ATF stuff, so what Oil I should be putting back in this one ?

lynall · Sep 28, 2021

Drain oil, if cleanish and no metal flakes fit it and see.

border · Sep 28, 2021

lynall said:
Drain oil, if cleanish and no metal flakes fit it and see.

Going to drain it but wont be fitted for a while as it is Rebuild still waiting on engine coming,
I can only see a fill plug on the side . Is there just one fill plug and one drain as cant see anymore ?

tottot · Sep 28, 2021

That may be a preservative oil put in after rebuild, to be drained before use. Only one fill/level and one drain. ep80/90

border · Sep 28, 2021

tottot said:
That may be a preservative oil put in after rebuild, to be drained before use. Only one fill/level and one drain. ep80/90

Thanks thats all I can find on mine but will have another look after finding this Land Rover Series 3 Gearbox Oil Change | (syncrogearboxes.com)
Think it is same box as mine.

lynall · Sep 29, 2021

The gearbox has a level and drain plug as does the transfer box i.e. it is not one unit

tottot · Sep 29, 2021

Your 4th pic shows gear box and transfer box joined together. Transfer fill/level is on the back plate, can see it in your pic just under speedo cable. Drain is on the bottom.

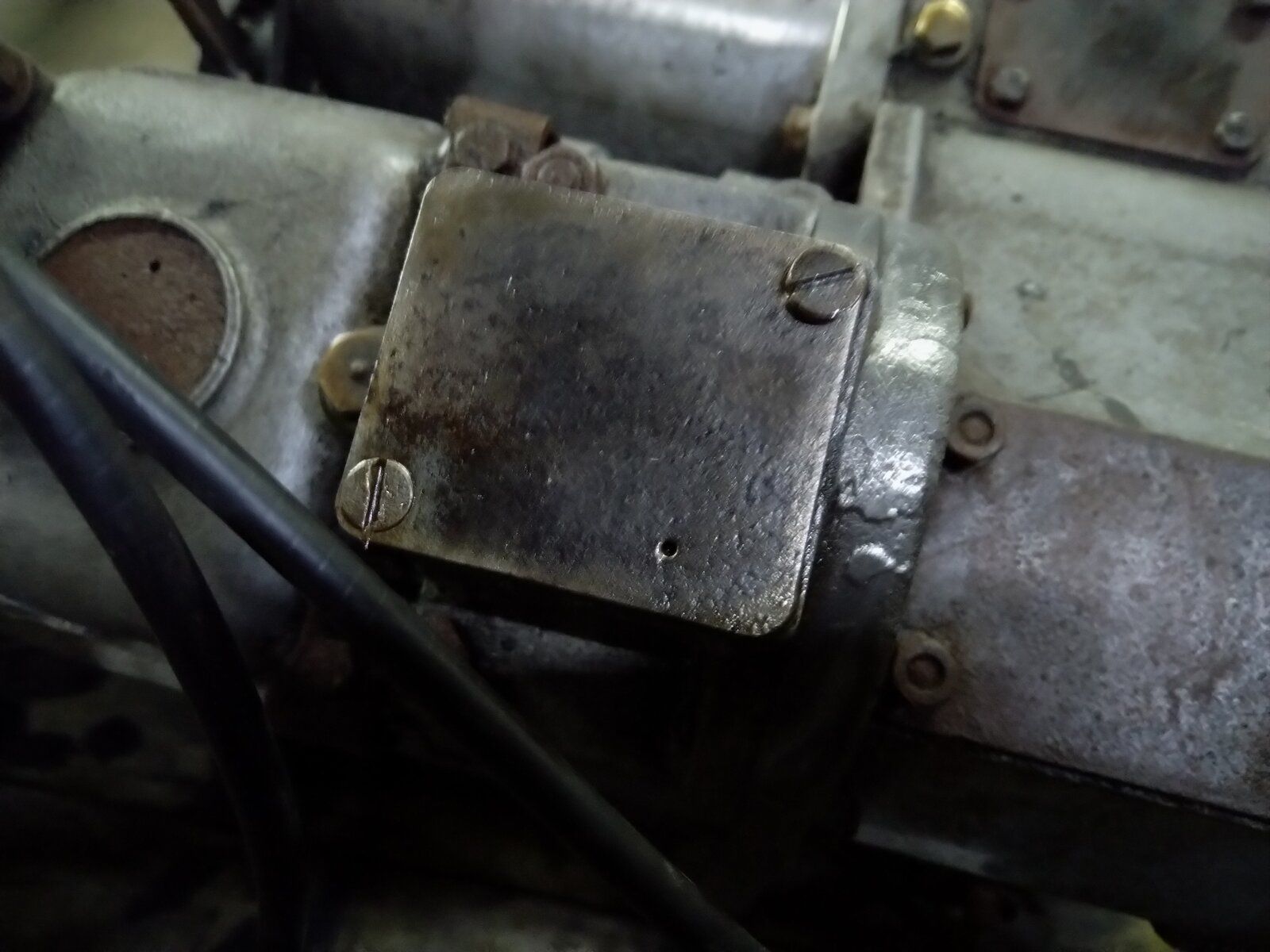

Also can see that 3 nuts are missing from the PTO cover plate.

border · Sep 29, 2021

tottot said:
Your 4th pic shows gear box and transfer box joined together. Transfer fill/level is on the back plate, can see it in your pic just under speedo cable. Drain is on the bottom.
Also can see that 3 nuts are missing from the PTO cover plate.

Thanks mate, Just found that is there a seal of somekind behind that, Everything turns smoothly no rattles or cluncks .

tottot · Sep 29, 2021

It is a paper gasket, just find some nuts to fit.

border · Sep 29, 2021

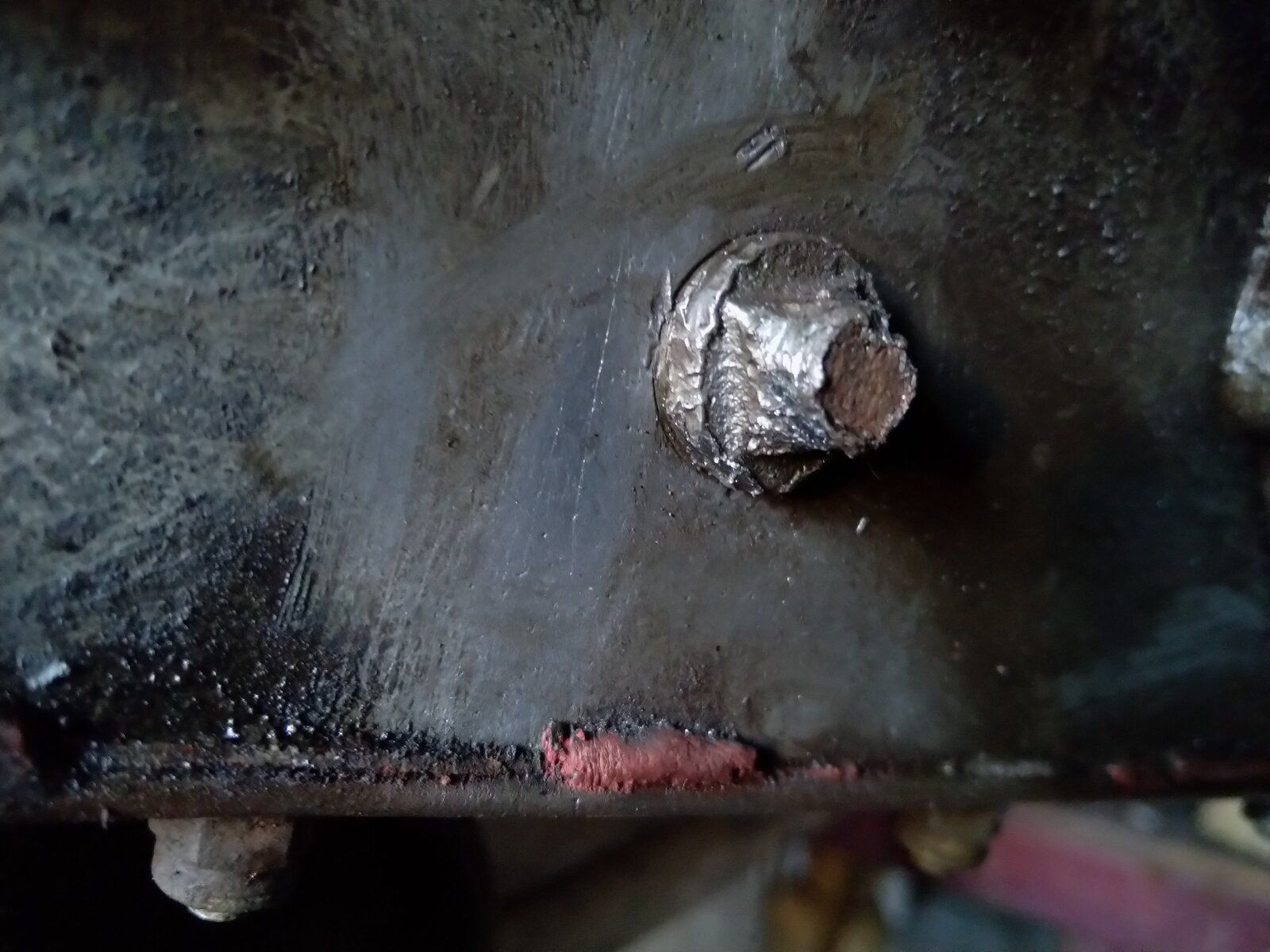

Well thought this gearbox was going well untill this, obviously I've gone and made it worse been to hap handed, looks like the dam thing has been welded on. Any ideas how to get it out, or is there somewhere else I can fill it ??
