Fuel sender wiring

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Rorie

Active Member
Posts
641

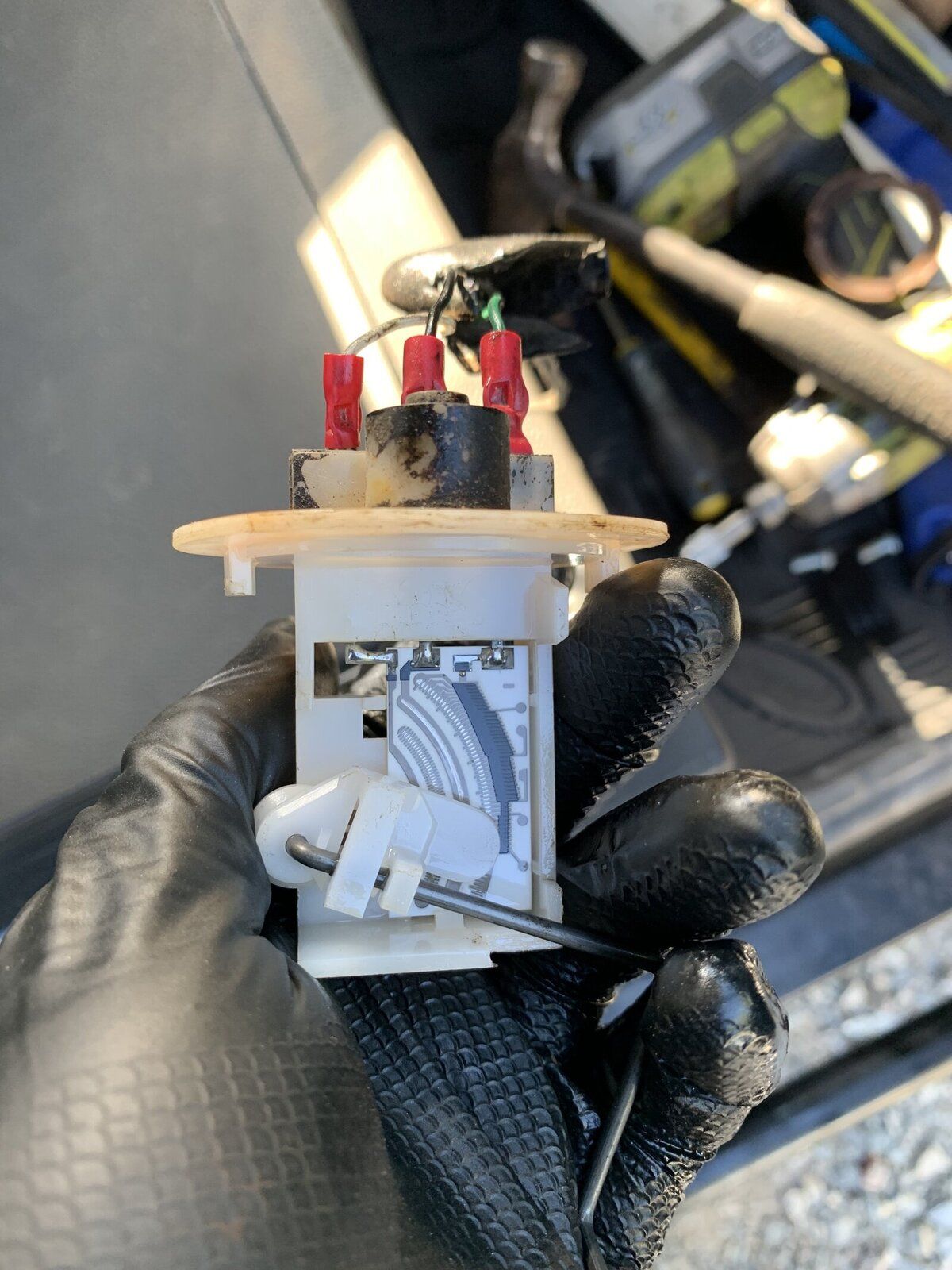

one is earth, one is for low fuel light and one for the gauge? But what way round?

Leaver at the bottom (empty) shows 3/4 tank on gauge. Move to full and gauge shows full. At empty position the low fuel light comes on as expected.

How do I identify if the issue is the gauge or the sender for the level issue?
