Hello,

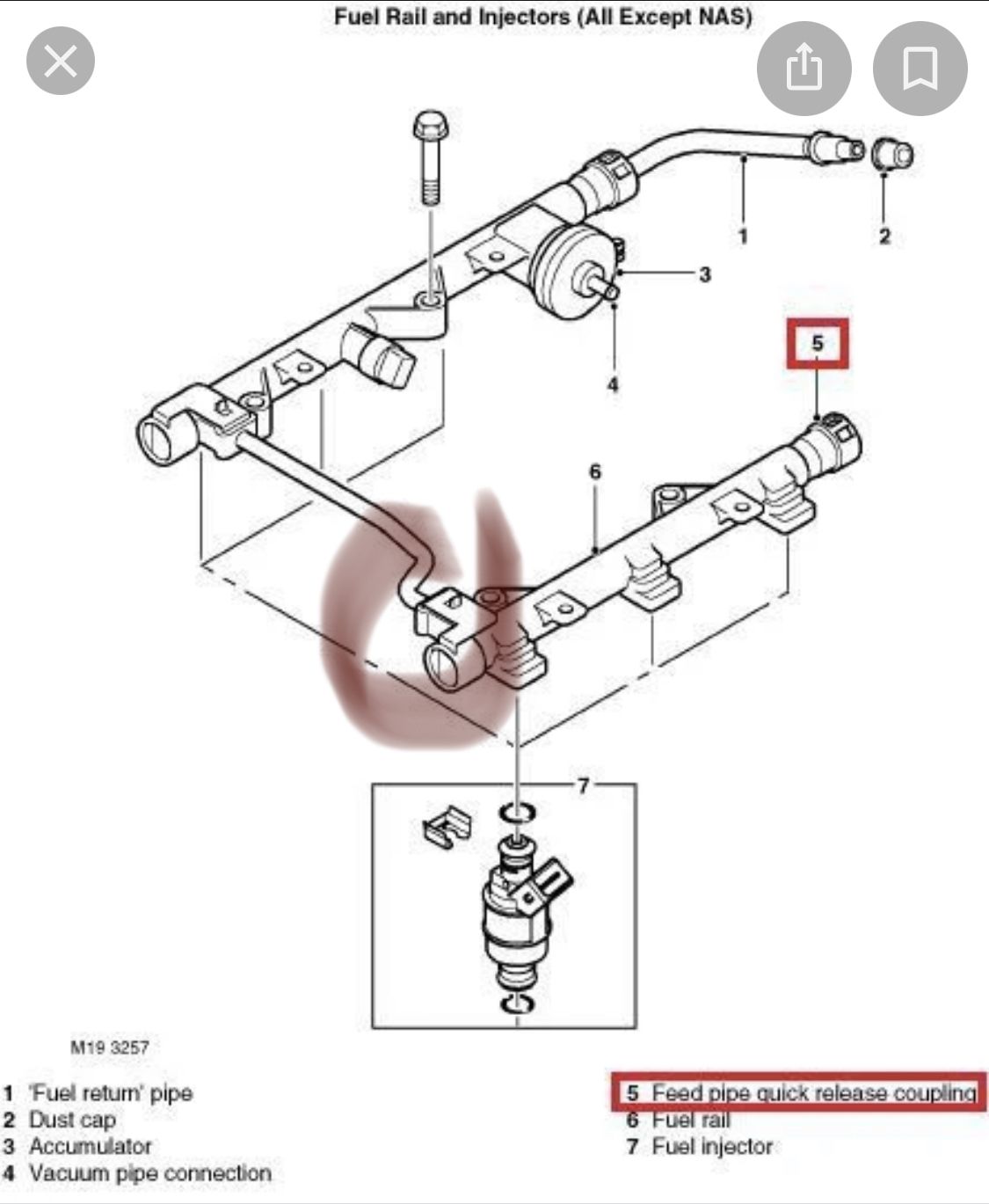

i have a leak in fuel rail and pin point the location as mention in pic down below. Problem gas/fuel tank have a pressure so i think it was normal.. always smell a fuel from engine bay, then I have replaced the cap thought it was defective , remained same problem, later replaced the purge valve located in intake manifold thinking that will solve the fuel leak... yesterday i was checking vis motor then I heard and saw a fuel leak from a naked eye leaks came from mentioned location. Then i opened fuel cap...leaks stopped!!! What is the problem guys ? What to check next ?
p.s No error codes founded.

Thanks in advance.



Attachments

•

  98.1 KB · Views: 89

Last edited: Nov 25, 2020

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Nov 25, 2020

• #2

There's an O ring (green iirc) in that location, which seals the metal pipe to the plastic rail. There a clip which gets lost too.



Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Nov 25, 2020

• #3

Hello Nodge68,

So nothing to do with pressure it self. So the problem only the O ring ? I will find out and will inform you . Thank u



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Nov 25, 2020

• #4

Freelander Kv6 Jordan said:

Hello Nodge68,

So nothing to do with pressure it self. So the problem only the O ring ? I will find out and will inform you . Thank u

Click to expand...

The fuel rail will be at about 60 Psi pressure, but it's designed for that, so any leaking is due to a sealing fault with the O ring.



Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Nov 25, 2020

• #5

Great , Thank u Sir



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Nov 25, 2020

• #6

Freelander Kv6 Jordan said:

Great , Thank u Sir

Click to expand...

DMGRS keep them in stock, and do international shipping.
https://www.dmgrs.co.uk/collections...o-ring-seal-kit-rover-75-mg-zt-rover-45-mg-zs



Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Nov 25, 2020

• #7

Yep, i think these things are really needed. But no need for an international shipping... i do have a UK shipping box direct dispatch to Jordan like an english people )

many Thanks
