Front Screen Wash Pump

M

MARKMAC

Member

Posts

24

• Dec 30, 2023

• #1

Hi

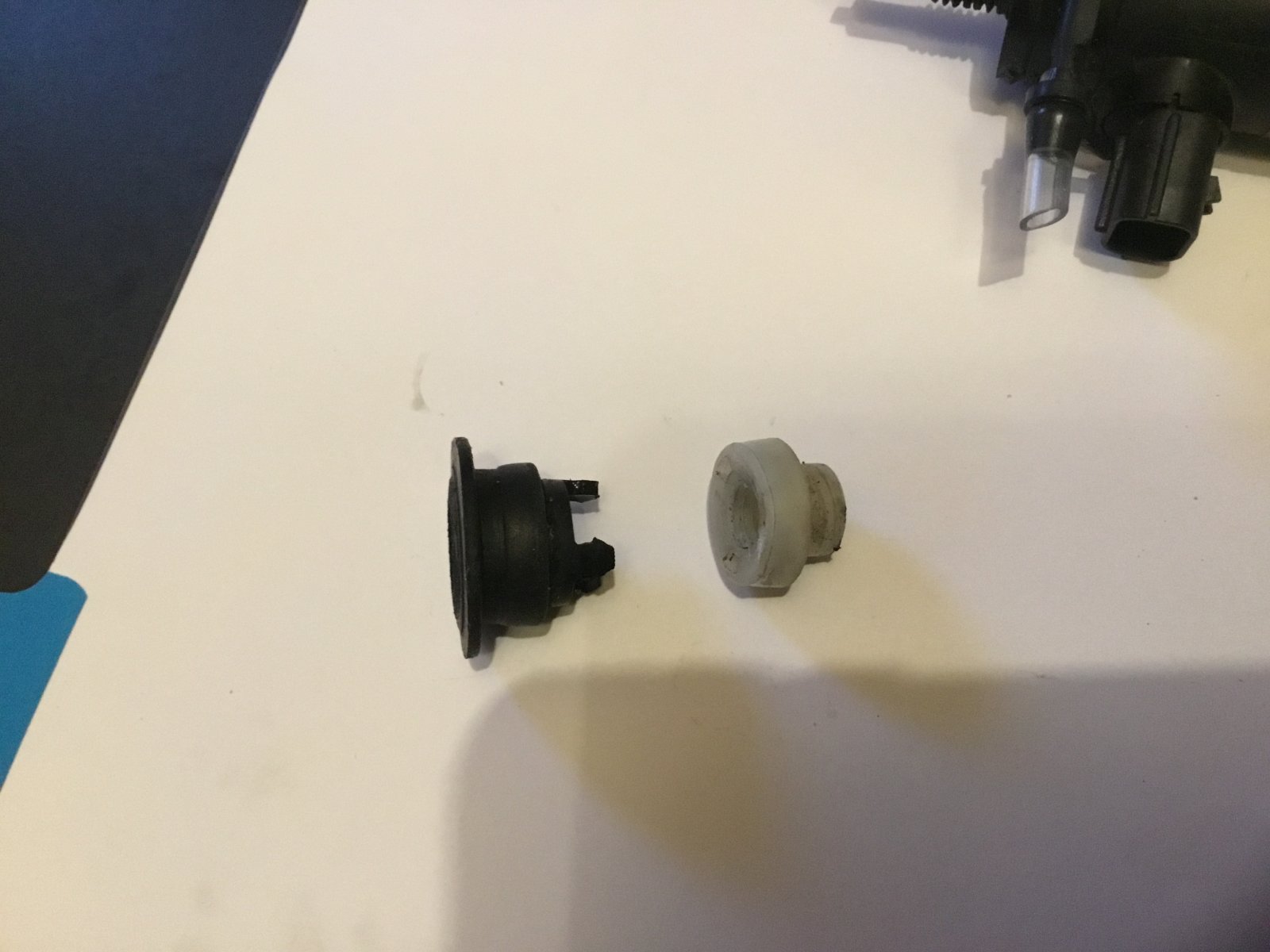

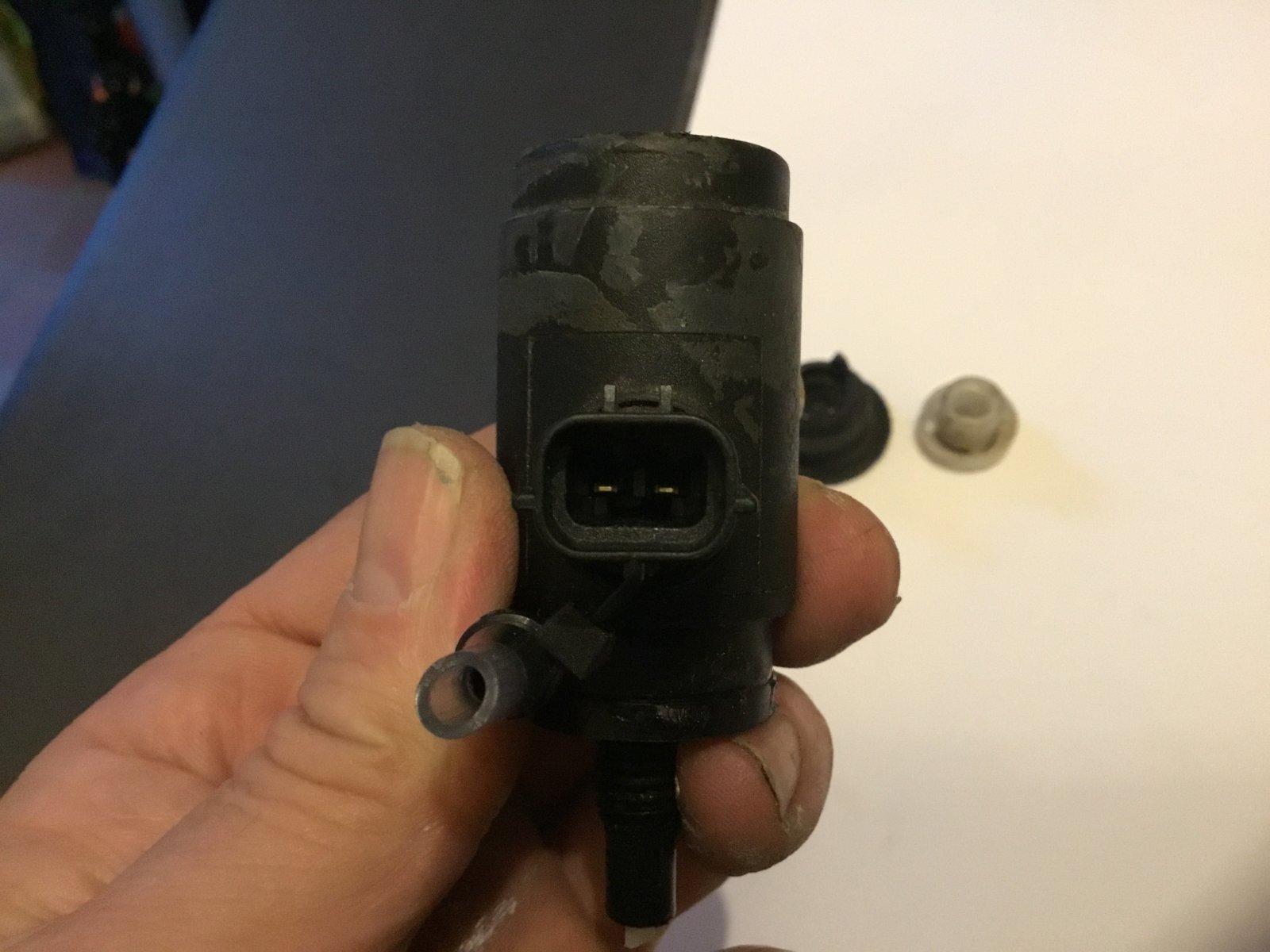

I have a 90 2.5TD with a PRC5765 screen wash bottle fitted. The front screen pump stopped working, so need to replace it. I have looked up parts on LR Workshop but when I’ve found them on line they don’t match what I’ve got ( photos attached ) seems to be just a grommet RTC5828 and the pump ADU6693L which doesn’t seem to have a thread like mine.

Is it just a case of getting the new grommet and pump or do I keep looking for a pump to fit the grommet I have. Apologies if it’s a dumb question but just finished a night shift and spent way to long retrieving the threaded part of grommet from the washer bottle

Cheers
Mark



Attachments

•

  160.7 KB · Views: 97
•

  185.3 KB · Views: 100
•

  160.7 KB · Views: 96

H

Hicap phill

Well-Known Member

Posts

16,329

Location

Wiltshire

• Dec 30, 2023

• #2

That’s not threaded… it’s fins to make a better seal on the grommet
The old type were just plain push fit



dag019

Well-Known Member

Posts

6,154

Location

Warwick

• Dec 30, 2023

• #3

^^ As above it is not actually threaded. A new grommet and pump is all that is needed.



M

MARKMAC

Member

Posts

24

• Jan 1, 2024

• #4

Hi
Thanks. I’ll get those ordered.

Cheers
Mark



R

roberthayter

New Member

Posts

6

• Jan 11, 2024

• #5

Must be the season.... mine has likewise gone tits up, could hear the pump working but no water squirting, I have removed the dash top to check tubes not trapped all seems good. Pump then became intermittent when trying and now not working at all, fuse is good and water flows from the pump outlet if the tube is disconnected. Does this sound like the pump needs replacing or anything else? thanks. Incidentally Defender TD5 2000.



M

MARKMAC

Member

Posts

24

• Jan 12, 2024

• #6

I got new pump and fitted it, nothing! Swapped wiring over from back pump and it works. Tried old pump and yes it works too. So must be a fault in front washer wiring somewhere.



RustyDefender

Well-Known Member

Posts

568

Location

Lake District

• Jan 12, 2024

• #7

MARKMAC said:

I got new pump and fitted it, nothing! Swapped wiring over from back pump and it works. Tried old pump and yes it works too. So must be a fault in front washer wiring somewhere.

Click to expand...

Could be a bad earth or switch, can you test to see if you get 12v > to the front pump wire with a multimeter
