Series 3 Front Cross Memeber

Butternut · Oct 23, 2019

Hello Everyone - Newbie Member

Just started rebuilding my son's series three land rover (life ambition) and I need help please.

I have fabricated a new front cross member. While fitting I managed to grind out my reference marks. Does anyone know the correct distance from the front cross member to the chassis front (dumb irons).

Thanks if you can.

Cheers

Dave

Rodeo Joe · Oct 23, 2019

Try googling the workshop manual if you havn't got it already.
There's schematics and dimensions of the chassis in there.

Blackburn · Oct 23, 2019

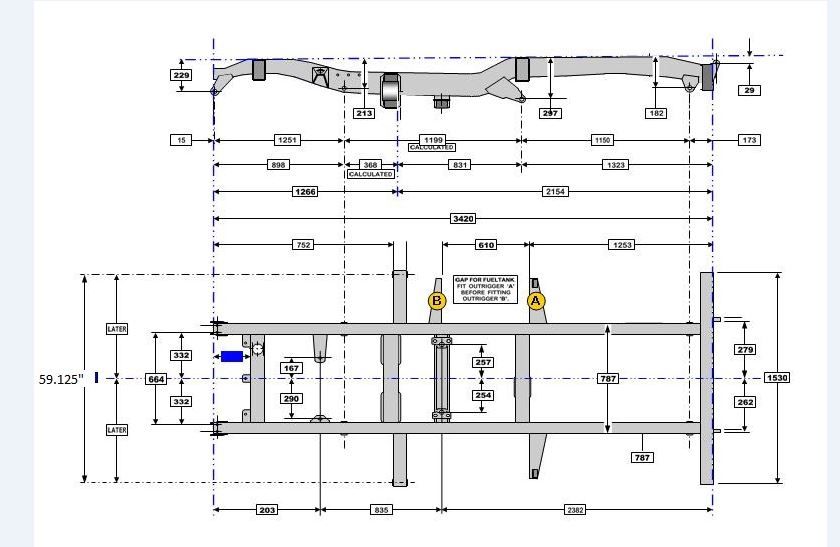

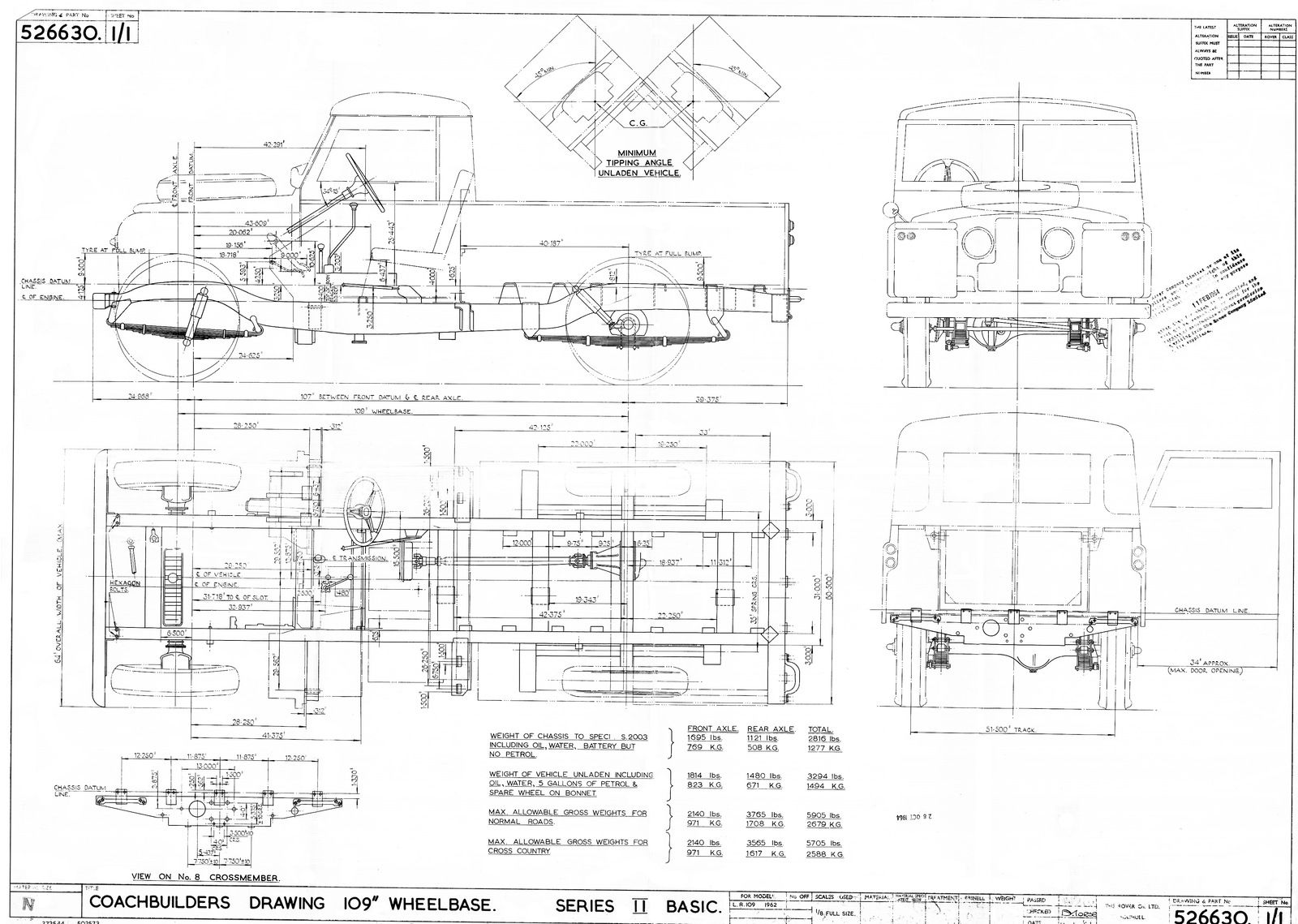

These any help maybe series 2 but dimension should be the same.
Just checked both of them and that measurement not on will check for you in the morning.

steve2286w · Oct 23, 2019

Your never ending supply of drawings and pdfs for any occasion never ceases to amaze well done that man !

Blackburn · Oct 23, 2019

Not all mine Steve I just collect them for the greater good.

Butternut · Oct 24, 2019

Rodeo Joe said:
Try googling the workshop manual if you havn't got it already.
There's schematics and dimensions of the chassis in there.

Will do - thanks

Butternut · Oct 24, 2019

Blackburn said:
These any help maybe series 2 but dimension should be the same.
Just checked both of them and that measurement not on will check for you in the morning.

Very helpful and kind. Really appricate your help. Thanks
