Series 3 Front axle oil seal removal

U

ukfactotum

Member

Posts

12

Location

Norfolk

• Dec 10, 2020

• #1

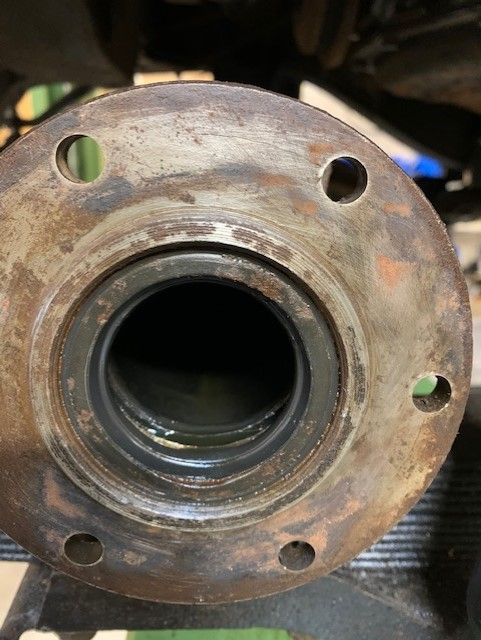

Can I ask what is the best way to remove and refit the front axle oil seal? See pic below. I'm replacing the swivels on my 1973 109" SW and I'm struggling to get the seal out. Any advice very much appreciated.

Graham



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Dec 10, 2020

• #2

ukfactotum said:

Can I ask what is the best way to remove and refit the front axle oil seal? See pic below. I'm replacing the swivels on my 1973 109" SW and I'm struggling to get the seal out. Any advice very much appreciated.

View attachment 224895
Graham

Click to expand...

Welcome to LZ.

Just destroy it out with a small cold chisel. Sometimes you can lay the chisel flat across the seal, under one rim, tap it in, and tap the chisel to pop it out.



U

ukfactotum

Member

Posts

12

Location

Norfolk

• Dec 10, 2020

• #3

Thanks Turboman - I'll give that a go. Is it straightforward to fit the new one?



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Dec 10, 2020

• #4

ukfactotum said:

Thanks Turboman - I'll give that a go. Is it straightforward to fit the new one?

Click to expand...

I think you are supposed to use a sealing locking type compound. It is helpful if you have something like a big socket, just less than the diameter of the seal housing. You can use that to drift the seal gently down.



U

ukfactotum

Member

Posts

12

Location

Norfolk

• Dec 10, 2020

• #5

Sorted!! A bit of cold chisel magic and it's out. thanks



U

ukfactotum

Member

Posts

12

Location

Norfolk

• Dec 10, 2020

• #6

Turboman said:

I think you are supposed to use a sealing locking type compound. It is helpful if you have something like a big socket, just less than the diameter of the seal housing. You can use that to drift the seal gently down.

Click to expand...

When you say sealing compound I guess hylomar - the non setting type - would work?



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Dec 10, 2020

• #7

ukfactotum said:

When you say sealing compound I guess hylomar - the non setting type - would work?

Click to expand...

From memory, it is supposed to be a seal/bearing type compound. Should be specified in the manual.



Bobsticle

De Villes Advocaat

Posts

27,632

Location

Manchester

• Dec 11, 2020

• #8

A wipe of silicone will do. It’s only to fill in the gouges made by the last cold chisel
