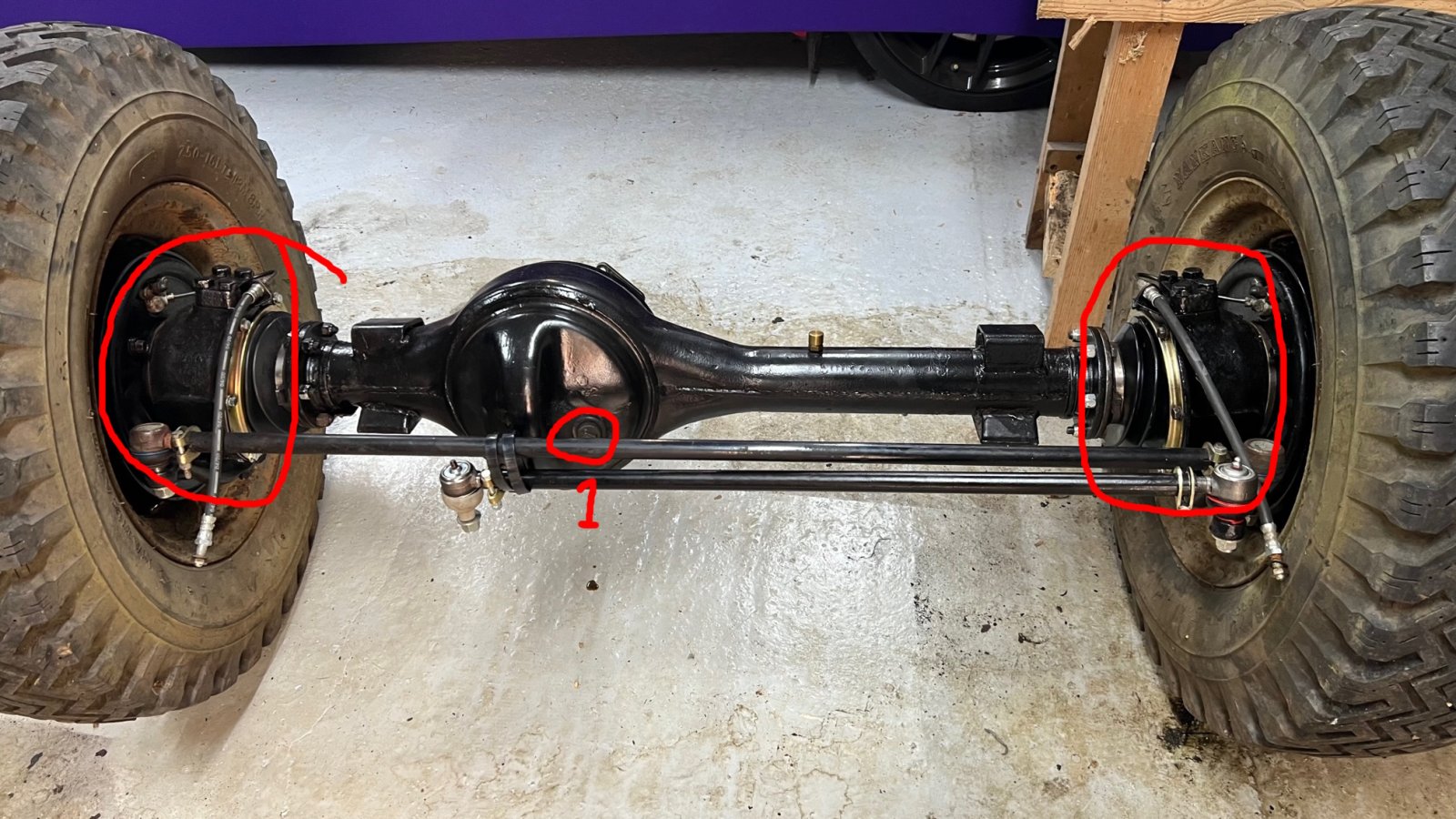

front axle diff oil.
- Thread starter Landyfella
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Wildefalcon
Well-Known Member
- Posts
- 1,685
Theoretically, no. There's a seal at the joint where the swivel ball attached that seals on a collar on the half shaft.
This prevents the swivel filling up when traversing side slopes.
Often removed or ignored. Which is fine if you don't go on side slopes.
This prevents the swivel filling up when traversing side slopes.
Often removed or ignored. Which is fine if you don't go on side slopes.
Landyfella
Active Member
- Posts
- 162
- Location
- Cambridge
so I would need to add some diff oil to those separately them? there appear to be a bolt that unscrews to fill. Next question would be to what level?
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
There will be filler/level plugs on the swivel housings. You can fill with 90 weight oil, or use the one shot grease, or a mixture of both.
The plugs are like small square bolt heads. You can usually remove them with a small adjustable, but if they have been in there for years, get the proper square key.
Landyfella
Active Member
- Posts
- 162
- Location
- Cambridge
excellent thx. how much would you put in? 200ml?
steve2286w
Well-Known Member
- Posts
- 4,572
- Location
- monkeyangerland

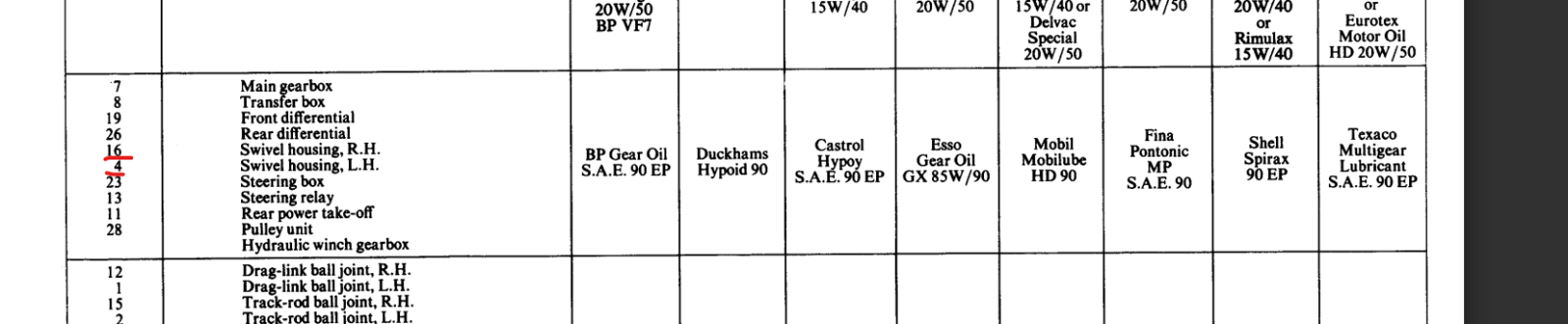

Have a look in the workshop manual, it will tell how what oil,how much and where to put it at the front section
smithies.co.nz
Land Rover Manuals
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Fill to the level plug with the oil. Or use one sachet of one shot grease per housing. If you can get it all in, the sachets are actually made for Defenders, which I think have bigger housings. If you can't get it all in, fill to the level plugs.
tottot
Well-Known Member
- Posts
- 8,073
- Location
- west wales coast
On the level you put as much oil as needed until you reach the plug hole.
A bit of the oil also makes its way into the hub for the bearings so important to keep them toped up.
If proper swivel hub grease is used its fine as it gets quite thin when warm. Thick grease is a no.
A bit of the oil also makes its way into the hub for the bearings so important to keep them toped up.
If proper swivel hub grease is used its fine as it gets quite thin when warm. Thick grease is a no.
Landyfella
Active Member
- Posts
- 162
- Location
- Cambridge

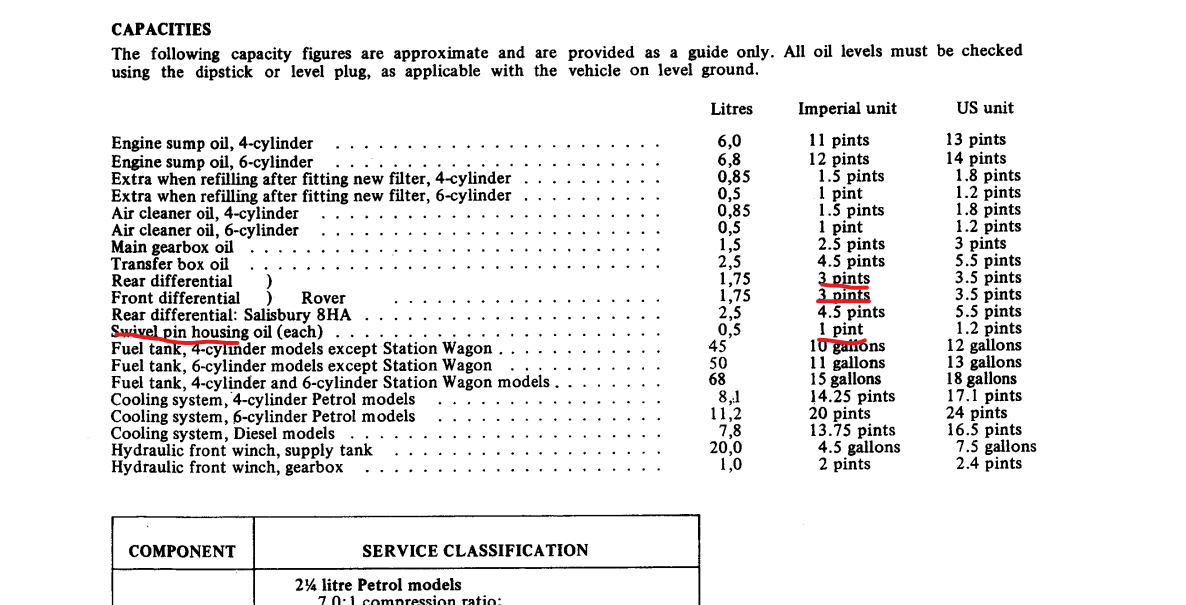

1 pint then according to the manual if I have understood it correctly.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
I always use the level plugs myself, always have.
Only thing is, you need to be on a fairly level surface for the plugs to work well.
Landyfella
Active Member
- Posts
- 162
- Location
- Cambridge
I'm going to use gear oil as that's what they recommend. Thanks all.
Wildefalcon
Well-Known Member
- Posts
- 1,685
EP90 to the filler level. EP oil has sulphur, which is the key to reducing wear in this design.
Do you have free wheel hubs?
Do you have free wheel hubs?
steve2286w
Well-Known Member
- Posts
- 4,572
- Location
- monkeyangerland
Yes go for GL4 too rather than GL5 as that does not agree with the phosphor bronze bits in gearbox
