freelander1 no reverse gear

great thanks very much , yes Andy i was thinking of doing it that way,
bonne soirée to you all

pwood999 said:

Plenty of rave links in the technical archives for this & Range Rover forums. Will post google drive link tomorrow.

Click to expand...

RAVE is here. Last post in that thread has the version with TSB's.

thanks very much , i have download it but can't open, its me, i'm zero with informatique,
i have to find someone to help me out, but thanks anyway, very kind of you,
the car is on the ramps and i will start tomorrow

bonjour, the engine with box and ird is out, not very difficult with the car on the ramps,
next i will separate , and open up the box, i let you know

i found a broken band so that was the -no reverse-problem, thanks for all your help

Good that you found it.

If you could take some photos and show how to replace the band that would help others. It appears to be a weakness in the Jatco box.

yes i tried to put the photos but doesnt work, mecanics is no problem for me but informatique is,
and i already closed up the box, tomorrow i will try to get the engine back in

To add a photo use the "Attach files" button in the left bottom corner of the box that you write in, then go to where they are and click. When upload has finished choose "Add thumbnail" and then they will be visible in your message.

yes but this is the problem --the uploaded file is too large -- and no idea to get the photo's smaller

weyert said:

yes but this is the problem --the uploaded file is too large -- and no idea to get the photo's smaller

Click to expand...

Change the camera settings on your phone to lower resolution, so the files are smaller. If you're using iPhone make sure it's set for "Most Compatible" and not high efficiency.

Or use a website like this to resize them !

ok thanks

i give up, it sais the uploaded file was not an image as expected

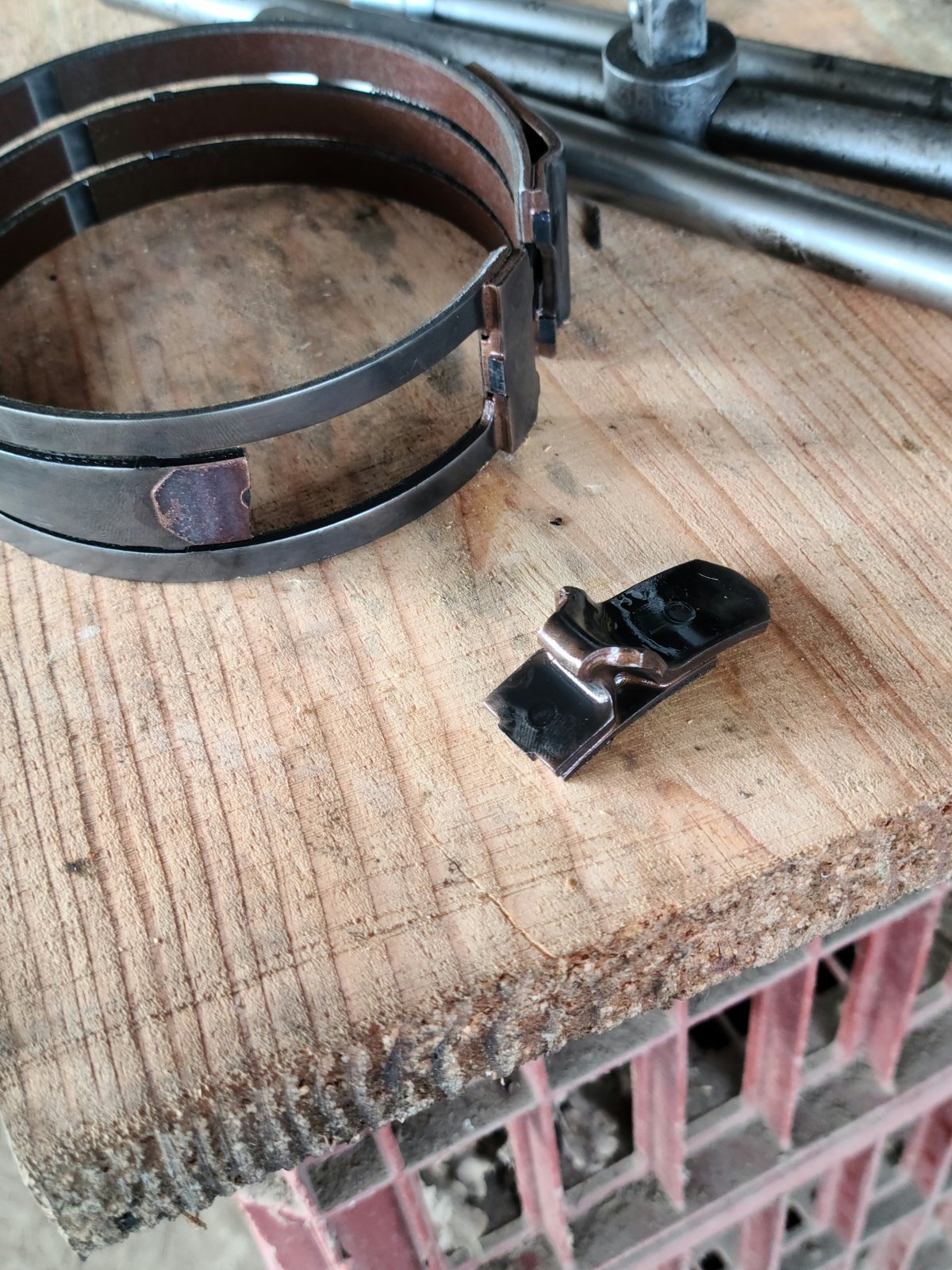

ok i think it works this is the broken band

weyert said:

ok i think it works this is the broken band

Click to expand...

I've seen that before. The reverse brake band on these is a week point. Glad it's sorted.

Exactly the same break on my son’s TD4. Seems quite common in the Jatco.

there are two types, one short and one longer with 3 rivets,the short one broke on the rivet, so i put the longer in

How did you get at it? Is it fairly near the outside?? Go in from the torque converter end or the driveshaft end??

weyert said:

there are two types, one short and one longer with 3 rivets,the short one broke on the rivet, so i put the longer in

Click to expand...

They do a heavy duty band, not sure if that relates to the 'longer one' you fitted. Good work.

from the converter side, not that difficult, i changed also all the oil seals and a new filter, i think it must be the heavy
duty band

i'm sure its a very difficult job if you do it with axle stands, the box is very heavy,
