Discussion in 'Land Rover Freelander' started by Alibro, Jun 19, 2020.

< Previous Thread | Next Thread >
  1. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    I'd love to see you. :)

    Just make sure to bring the overalls. :p

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,413
    Likes Received:
    6,200
    Location:
    Near Newquay
    I might have to bye some new overalls, especially for the trip. :D

    Alibro likes this.
  3. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    872
    Likes Received:
    285
    Location:
    Pedronapper (Peterhead)
    This is moving into the realms of angry-pixie-psychology with all this talk about CAN data etc, I'm much more comfortable with the fabrication level of tech, so you are doing well with it. I had a thought about the iPack - for the temperature, you could put the temp sensor into the battery / motor coolant circuit, it would be useful information, and definitely something you would want to keep an eye on, as well as preventing the gauge being dead/redundant.

  4. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    The pixies in CAN are very mellow, they don't bite at all however can get a bit tetchy if they meet another with the same name. Tend to argue a lot, throw a strop and refuse to work. :p
    The temp guage is CAN controlled too but I never figured out how to control it. It was another thing put off until I really needed to deal with it but i will make use of it if I can. ;)

    Last edited: Apr 2, 2021
    Nodge68 likes this.
  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,413
    Likes Received:
    6,200
    Location:
    Near Newquay
    It must be possible to convert an analogue voltage to a CAN message, its probably really easy, once the way to do it is figured out.

  6. tensa4

    tensa4 Member

    Joined:
    Aug 12, 2020
    Posts:
    24
    Likes Received:
    11
    Location:
    Kenya
    My car is petrol.

    I figured these are the only signals that must be fed back into CAN in my case:
    1. Gear Shift Position - Required by ABS
    2. Engine RPM - required by Electric steering and instrument cluster (will probably substitute this with drive unit current)
    3. Throttle Position - required by ABS for HDC if I keep it.
    4. Coolant Temperature - will read this off temp sensors on the cooling loops.

    Anything I might be leaving out?

  7. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    Speed?

  8. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    I'm pretty sure it can be done fairly easily with an Arduino and may already be working in the code I have. I just need to spend some time going through it but that is for another day. I'm busy atm welding and grinding. Hoping to have the bracket finished and painted tonight.
    I may not be much of a welder but I'm an expert grinder. :p

    Hicap phill and Nodge68 like this.
  9. tensa4

    tensa4 Member

    Joined:
    Aug 12, 2020
    Posts:
    24
    Likes Received:
    11
    Location:
    Kenya
    Speed will be supplied by the ABS ECU so I don't need to code for it.

  10. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    Have you seen this video?
    At one point I drove the car on the driveway with the ECU disconnected and I if I recall correctly the speedo was working so I believe you are correct.
    I'm pretty sure I took footage of it but for some reason never posted it on Youtube. :confused:

  11. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,413
    Likes Received:
    6,200
    Location:
    Near Newquay
    The speedometer will work, as the ABS sends the speed data to the Ipack over the CAN, independently of the EDC.
    Conveniently the Ipack of the FL1 is the communication hub for the CAN network, so it won't matter to the Ipack, if there's no data from the EDC, other than relevant engine data will be missing, which is what your video shows.
    The parking brake light is an odd one, as that signal is derived from the ABS, but I'm wondering if the Ipack activates that particular light, if it's lost data to the EDC, simply as a warning.

    It's interesting stuff, but unfortunately I'm more of an analogue electronics or hardware person, so data stuff isn't really my thing. :(

    Last edited: Apr 3, 2021
    Alibro likes this.
  12. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    So I got the motor mount bracket finished and painted last night.

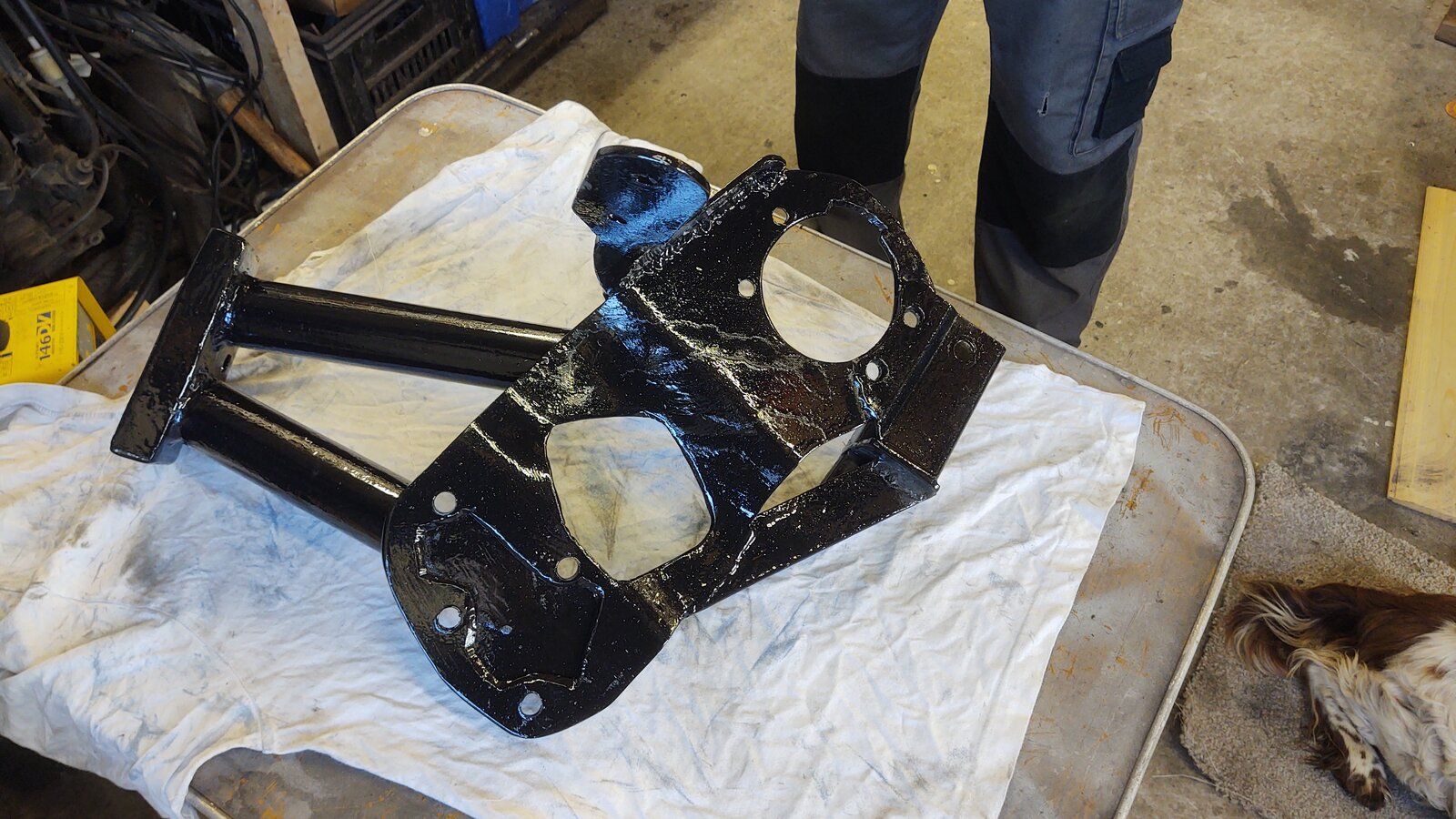

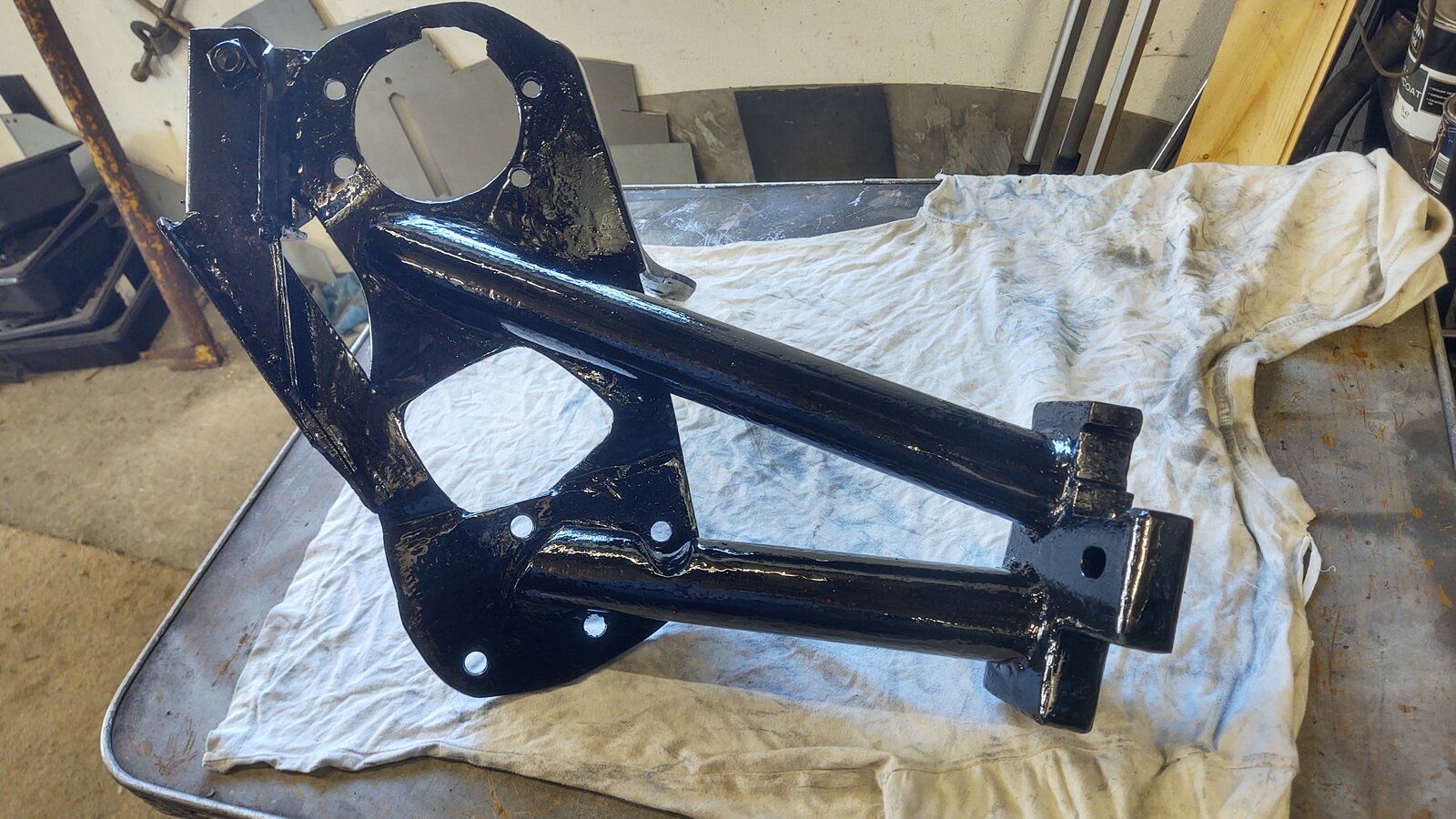

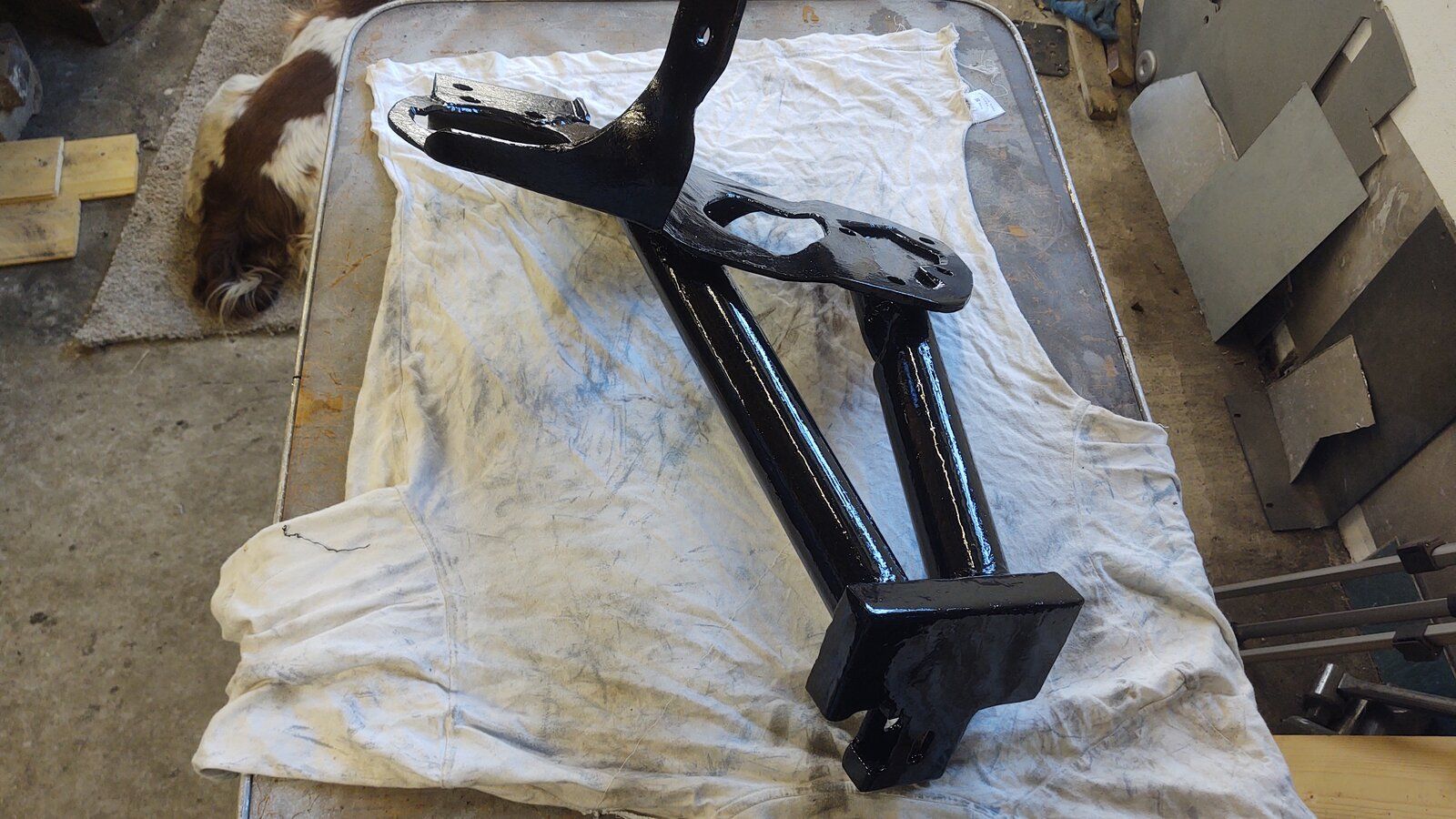

    IMG_20210403_105613590_HDR.jpg IMG_20210403_105434717.jpg IMG_20210403_105424880.jpg

    Then today got it fitted.

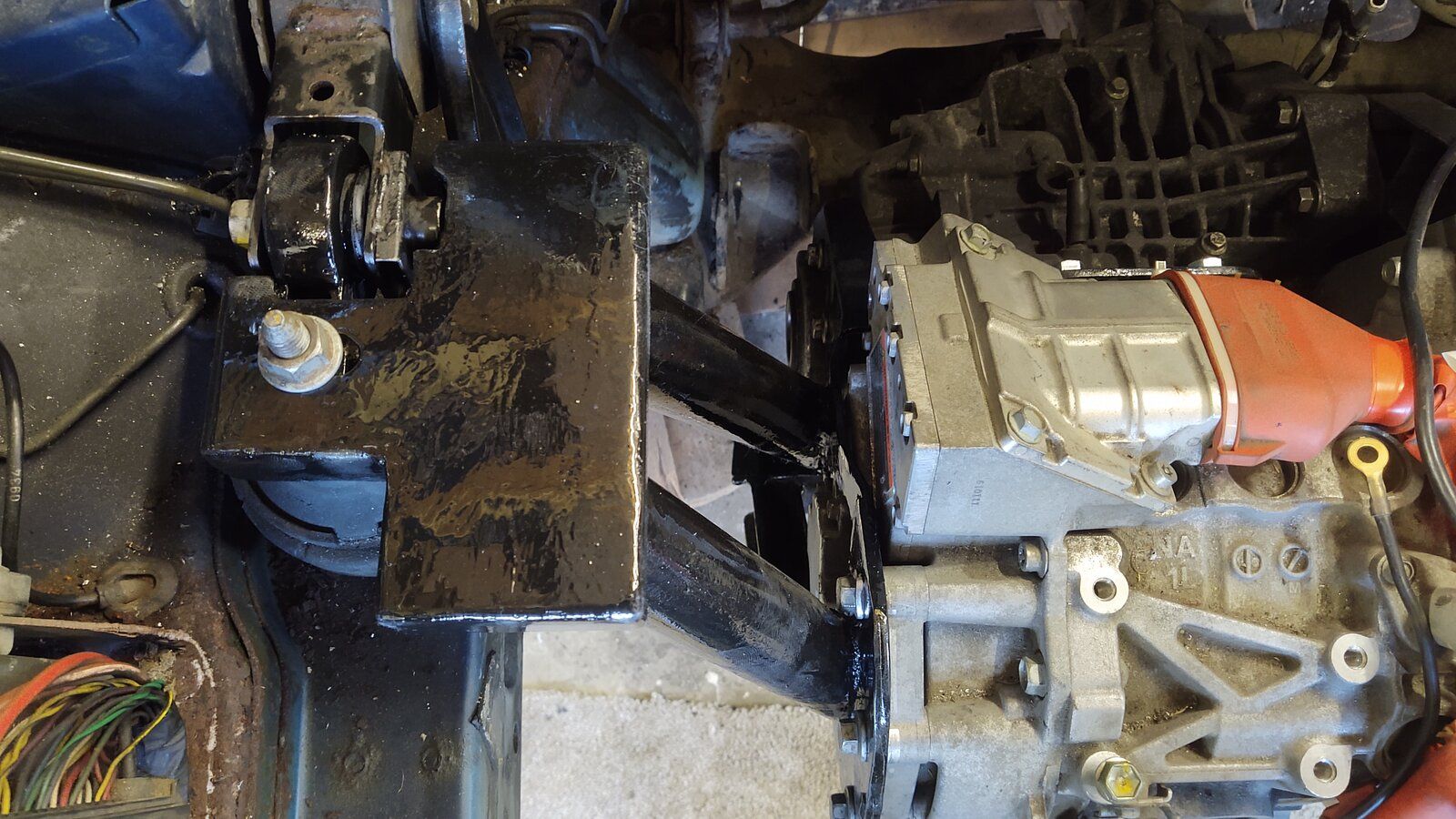

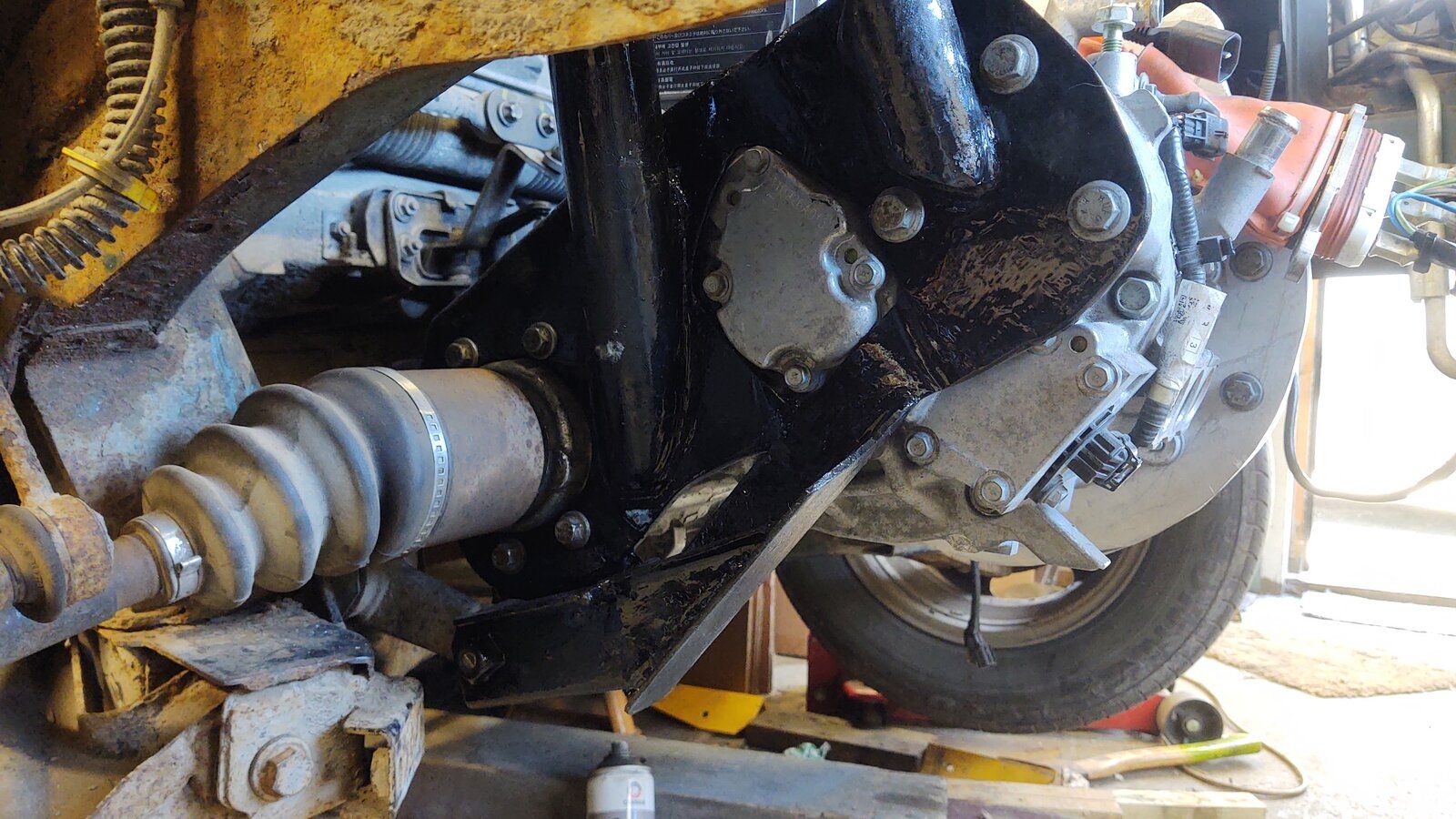

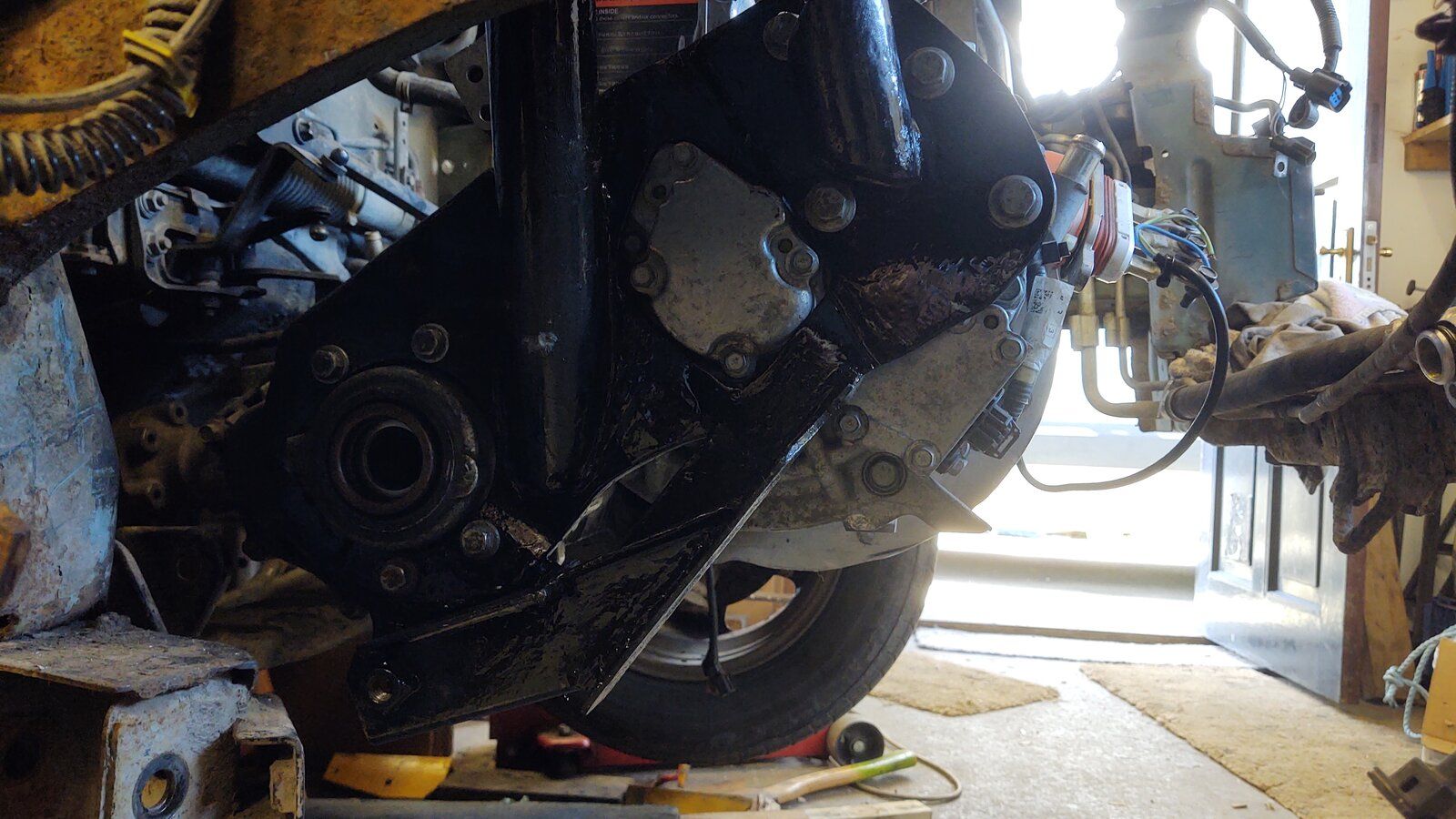

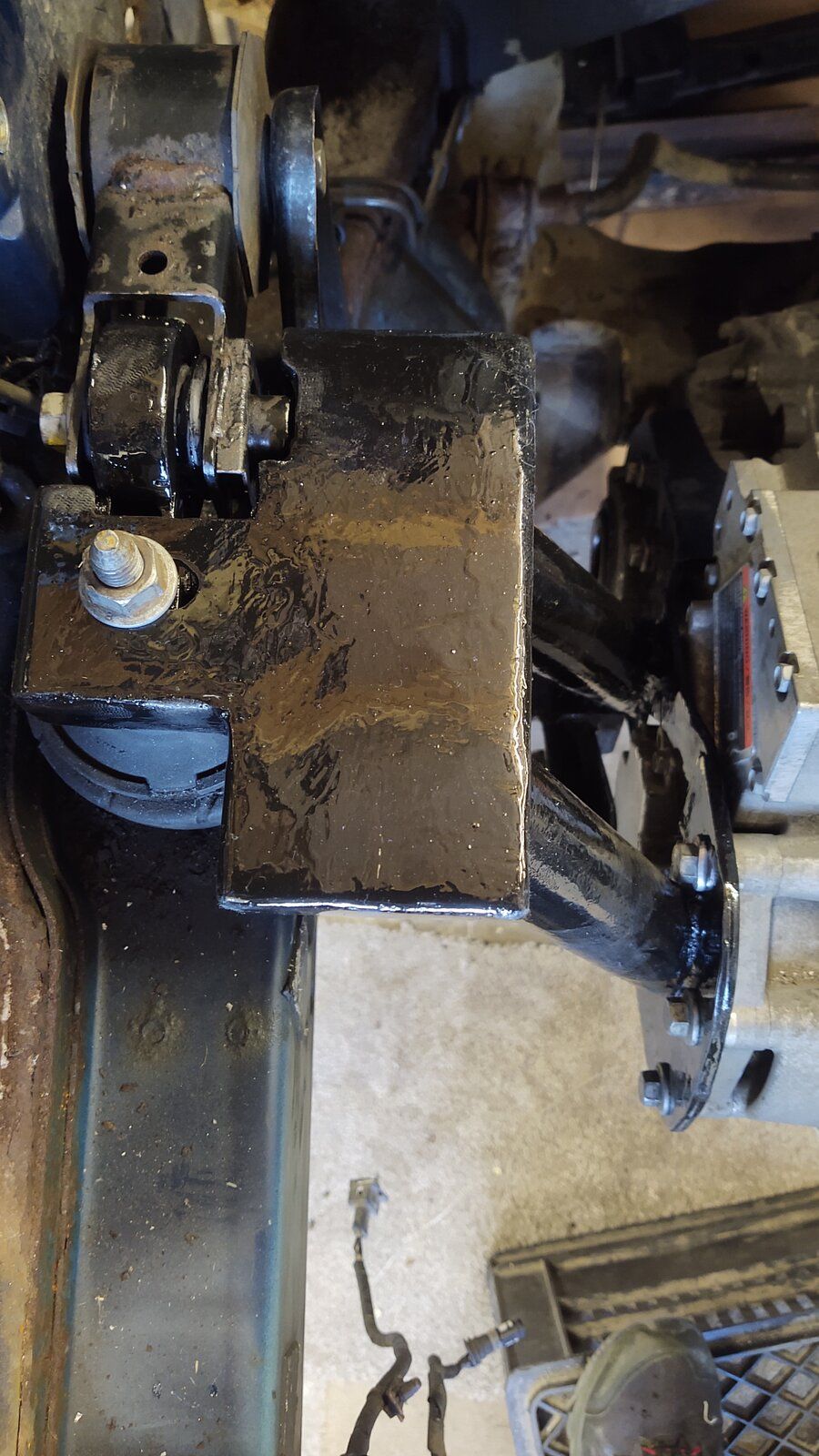

    IMG_20210403_112651554.jpg IMG_20210403_114316485.jpg IMG_20210403_112631677.jpg IMG_20210403_112622430.jpg

    Dippypud, Nodge68 and Jayridium like this.
  13. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    872
    Likes Received:
    285
    Location:
    Pedronapper (Peterhead)
    Aye, these are the manipulative, ruling, political class of pixies your playing with now.

    Alibro likes this.
  14. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,413
    Likes Received:
    6,200
    Location:
    Near Newquay
    Excellent stuff Ali.
    It was brilliant to see it moving under it's own power too. :)

    Alibro likes this.
  16. PRO

    PRO Active Member

    Joined:
    Nov 5, 2019
    Posts:
    491
    Likes Received:
    63
    Location:
    West Yorkshire
    Oh boy this is happening :)

    Alibro likes this.
  17. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,804
    Likes Received:
    1,655
    Location:
    Northern Ireland
    Thanks mate, it was a big moment for me, even if I was cheating a bit using a 1hp ebike controller. :p
    I started this thread in June last year after several weeks bouncing ideas off Nodge in private messages. I have to admit I didn't really believe it would get this far myself.

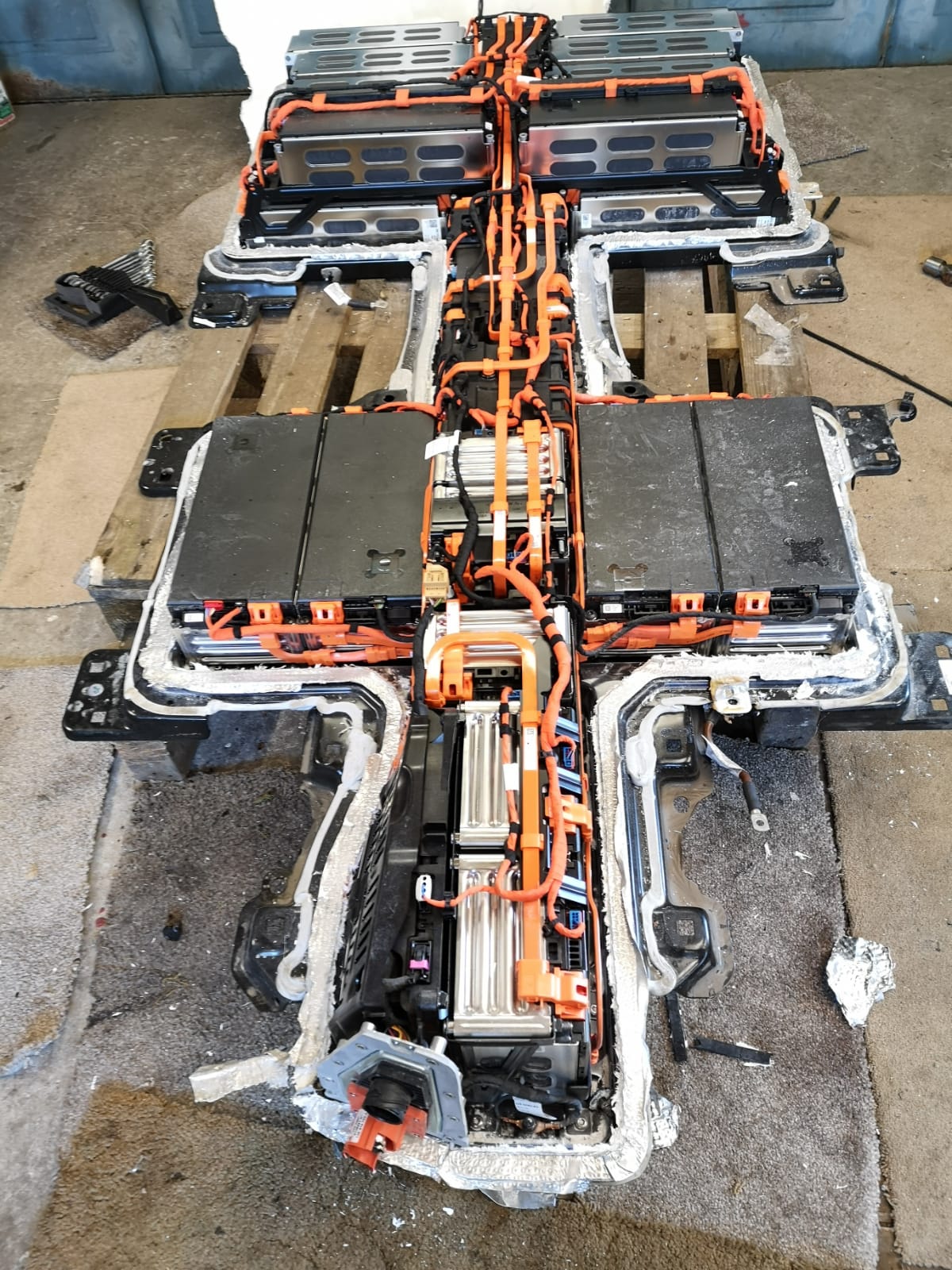

    Here is a wee taster of the next stage.


    kernowsvenski and Nodge68 like this.
  18. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,831
    Likes Received:
    978
    Location:
    Devon
    What a moment!!

    Many congrats all round.

    Alibro likes this.
  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,413
    Likes Received:
    6,200
    Location:
    Near Newquay
    I just goes to show just how little energy is required to get a vehicle moving, albeit slowly.

    I'm well impressed it's actually moving under its own power, and in such a short time too.

    Excellent work!!

    Alibro likes this.
  20. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    872
    Likes Received:
    285
    Location:
    Pedronapper (Peterhead)
    Well done Ali!

    Alibro likes this.
