Freelander 2 Auto oil level

Discussion in 'Land Rover Freelander' started by Tuganaught, Dec 7, 2021.

< Previous Thread | Next Thread >
  1. Tuganaught

    Tuganaught Member

    Joined:
    Nov 21, 2021
    Posts:
    10
    Likes Received:
    1
    Location:
    Plymouth
    Morning all, my auto box is being a little sluggish. I mean holding onto gears and little but to ling or not dropping quick as it knee wad. I was advised to change the oil in the autogear box. Having watched a few videos I'm not 100% how to check the level once the change is complete.
    Do I really need to get under the running car and undo that centre plug and see if anything pours outo_O

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,498
    Likes Received:
    7,715
    Location:
    Near Newquay
    Not done a FL2 box fluid change, but it's pretty standard to have the engine running while checking the box fluid level.

  3. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    178
    Likes Received:
    76
    Location:
    Vilhelmina, Sweden
    the engine should not be running, it should however be at 60c, either used a OBDII reader which will give a readout of the temperature or a thermogun heat reader thingy ( can't think of proper name) on gear box, alternatively take it for a good run. Yes you do need to get under the car to take out the center bolt. The small "bolt" in the center of the drain plug feeds up to a tube which gives the right level when refilling the gear box.

  4. Tuganaught

    Tuganaught Member

    Joined:
    Nov 21, 2021
    Posts:
    10
    Likes Received:
    1
    Location:
    Plymouth
    Ideal, thanks for guidance, I did think it had to be warm. I hope it does the job.

    Have a good Xmas all.

  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,498
    Likes Received:
    7,715
    Location:
    Near Newquay

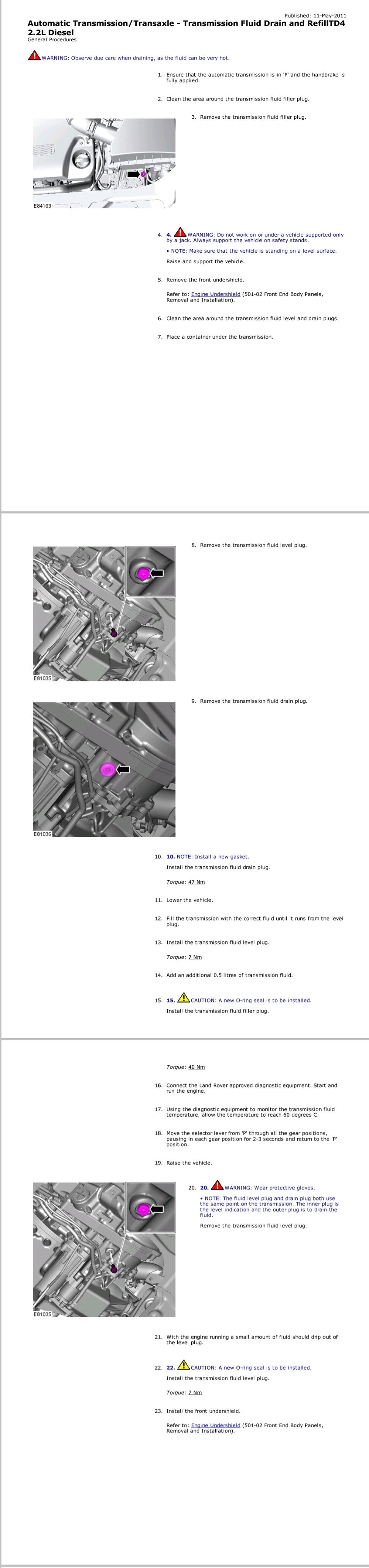

    According to the LR workshop manual, the engine is running while the fluid level is checked.

    Andy Warren likes this.
  6. Tuganaught

    Tuganaught Member

    Joined:
    Nov 21, 2021
    Posts:
    10
    Likes Received:
    1
    Location:
    Plymouth
    Thats is amazing thank you very much for the help.

    Merry Xmas

  7. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    45,912
    Likes Received:
    43,075
    It is true the engine needs to be running on tick over while the auto gearbox fluid level is checked. The FL2 method is the same as the FL1, but at slightly higher temps.

    If you set/check the level with the engine off, you will set the oil level too low. You then risk destroying the auto.

    Last edited: Dec 11, 2021
    Andy Warren and Nodge68 like this.
