freelander 2 2.2 2007 dump valve noise ?????

Discussion in 'Land Rover Freelander' started by nick the gin, Sep 24, 2021.

< Previous Thread | Next Thread >
  1. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    hi strange noise when you let off the throttle at 2000 rpm sounds like a kids dump valve going off
    and when it does it puffs out grey smoke ????
    any ideas lads ???

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    Sticking or damaged throttle body would be a good place start looking.
    Also look for boost pipe splits, or a combination of sticking TB and split boost pipe, as both are pretty common, especially on a 14 year old FL2.

  3. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    surely the tbhousing would come up on the obd ? no ?

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    Not necessarily.
    The FL2 really needs to have and air path test routine run using SDD, which will cycle the TB, test for boost leaks, and confirm the boost logged is consistent with the air flow measurement at the MAF.
    If you don't have access to SDD, then the only checks you can do is to check all the boost pipes for splits, and check the drive gears in the TB housing.

  5. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    right drove it for 30 miles today and finaly went into limp home mode with fault code P0234-00 any more ideas ???????

  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    The description of that code is linked in my signature.;)
    But it's here, if you're struggling to see it.

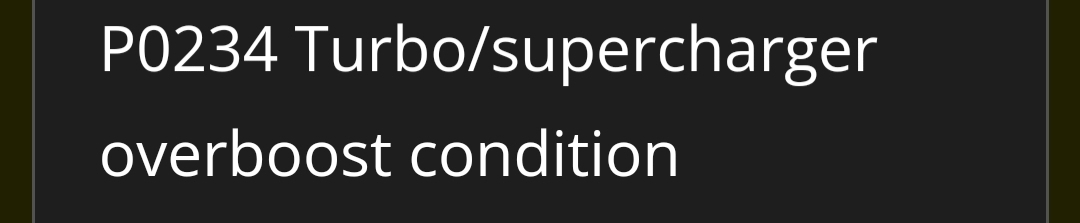

    Screenshot_20210928-181017_Samsung Internet.jpg

    So you could have a sticky boost control actuator, or possibly a sticky throttle body. The TB is the easiest thing to check, so do that first, then move on to checking the turbo boost control actuator, if the TB condition is good.

  7. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    in your signiture ????
    cant click on big lettering ??

  8. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    attachmentbdont work ??

  9. J_D

    J_D Active Member

    Joined:
    Sep 29, 2019
    Posts:
    315
    Likes Received:
    80
    Location:
    Worcestershire
    raywin likes this.
  10. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
  11. J_D

    J_D Active Member

    Joined:
    Sep 29, 2019
    Posts:
    315
    Likes Received:
    80
    Location:
    Worcestershire
    maybe if its still creating pressure.

  12. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    so no one thinks it may just be a split pipe ?

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
  14. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    You shouldn't get an overboost code with a split hose, but hoses should have been checked already, as I suggested in post #2. ;)

  15. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
  16. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    not looked yet will do morrow

  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    It's on the EGR intake assembly, just above the throttle body.

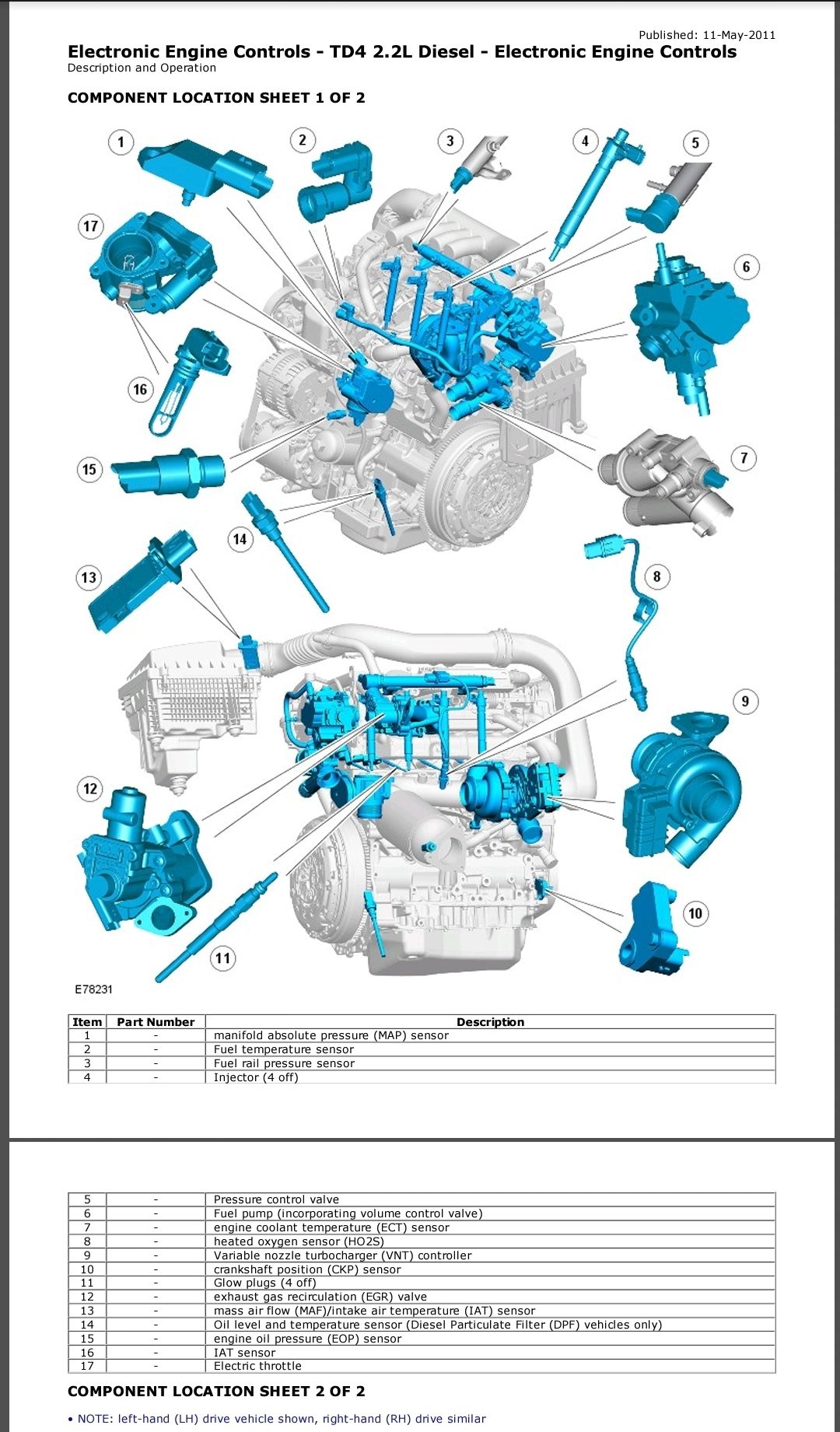

    Here's a diagram of the whole system.

    Last edited: Sep 29, 2021
  18. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    thanks nodge whats the best access for waist gate linkage access ? from above or below ? also on the lower pipe coming from the intercooler there is a big valve incorperated in that pipe what is it ?? tia

  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    It's a boost control actuator, rather than a dump valve. Modern turbos use movable vanes, instead of dump valves, so the vanes need accurate control using an electronic actuator. ;)
    Do you mean the throttle body?

    That's part of the emission control, closing at times in the drive cycle, aiding EGR effectiveness. The throttle butterfly is also closed when the ignition is turned off, so the engine stops smoother, and also prevents running on, should oil be in the combustion chamber.
    It's quite common for the plastic gears for the butterfly drive to fail, given strange running issues.

  20. nick the gin

    nick the gin Member

    Joined:
    May 9, 2021
    Posts:
    42
    Likes Received:
    1
    Location:
    tunbridge wells
    So what's best access to the to the linkage from the control valve to the vains??
