freelander 1 sump under tray

Discussion in 'Land Rover Freelander' started by jkk114l, Nov 11, 2020.

< Previous Thread | Next Thread >
  1. jkk114l

    jkk114l Member

    Joined:
    Jul 1, 2016
    Posts:
    13
    Likes Received:
    0
    Location:
    devon
    can anyone tell me what bolts/screws etc i need to fit the under tray. My FL1 was missing it and I've just picked 1 up but no fixings

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,502
    Likes Received:
    5,240
    Location:
    Near Newquay
    From memory.
    The 6 or 8 (year dependent) main bolts are M10 X 25mm flange bolts.
    The 2 small rear bolts are M8 X 20mm flange bolts.

    Edited for accuracy.

    Last edited: Nov 11, 2020
  3. jkk114l

    jkk114l Member

    Joined:
    Jul 1, 2016
    Posts:
    13
    Likes Received:
    0
    Location:
    devon
    Amazing thanks for the quick reply, can I also ask are there screws onto the bumper?

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,502
    Likes Received:
    5,240
    Location:
    Near Newquay
    There are fixings for the bumper to sump guard, but what fixings are used depends on the year of the vehicle. There were several changes to the bumper and sump guard over the years, so you have to get the correct guard for the year of vehicle, or the bumper fixings won't line up.

  5. J_D

    J_D Active Member

    Joined:
    Sep 29, 2019
    Posts:
    196
    Likes Received:
    43
    Location:
    Worcestershire
    Two bolts under the bumper, skinned knuckles needed to fit!
    I'd get a cheap tap and die set and clean the threads out before you fit it.

  6. jkk114l

    jkk114l Member

    Joined:
    Jul 1, 2016
    Posts:
    13
    Likes Received:
    0
    Location:
    devon
    thanks again, i'll get the bolts sorted and wing it for the screws, got plenty around, on a different note my FL also came with Land Rover front and top rear light guards (pre facelift) but not fixings, are sets available? i'm guessing just longer screws and some sore of packer for the rears but the fronts which need gromments/rivnuts?

  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,502
    Likes Received:
    5,240
    Location:
    Near Newquay
    The rear light guards are fitted with longer screws, which I found in stainless for mine. I'll see if I can find the specs of them.

    The front are pinned with the 2 molded in pins, and screwed on through the 2 holes.

    There are spacers too, but those should be easy to fabricate/cobble together.

  8. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    754
    Likes Received:
    212
    Location:
    Pedronapper (Peterhead)
    Not meaning to be pedantic or anything, but its two M10 bolts at the front of the sump guard, and two M8 bolts at the back, six bolts total.

    Nodge68 likes this.
  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,502
    Likes Received:
    5,240
    Location:
    Near Newquay
    There are 6 M10 bolts, and 2 M8 bolts.
    And a variety of different fixings for the training edge of the front bumper. ;)

  10. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,785
    Likes Received:
    365
    Location:
    Westmidlands

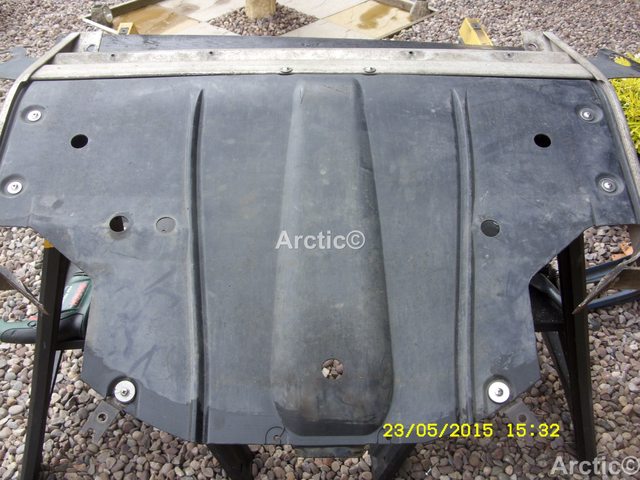

    I presume the OP as the whole alloy sump guard as here below, i modified mine so only the plastic part of the guard needed to be removed when doing an oil change etc, which left the alloy outer frame in situ.
    [​IMG]1

  11. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    754
    Likes Received:
    212
    Location:
    Pedronapper (Peterhead)
    Ah! I forgot about the original one... I've replaced my plastic section with an aluminium plate welded onto the original frame.
