Freelander 1 auto gear lever gaiter renew.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Impulse

New Member
Posts
3
Location
Newark
Hard to find info on how to get lever off

here’s how pull up sharply on knob and it’s released from the lever tube ,

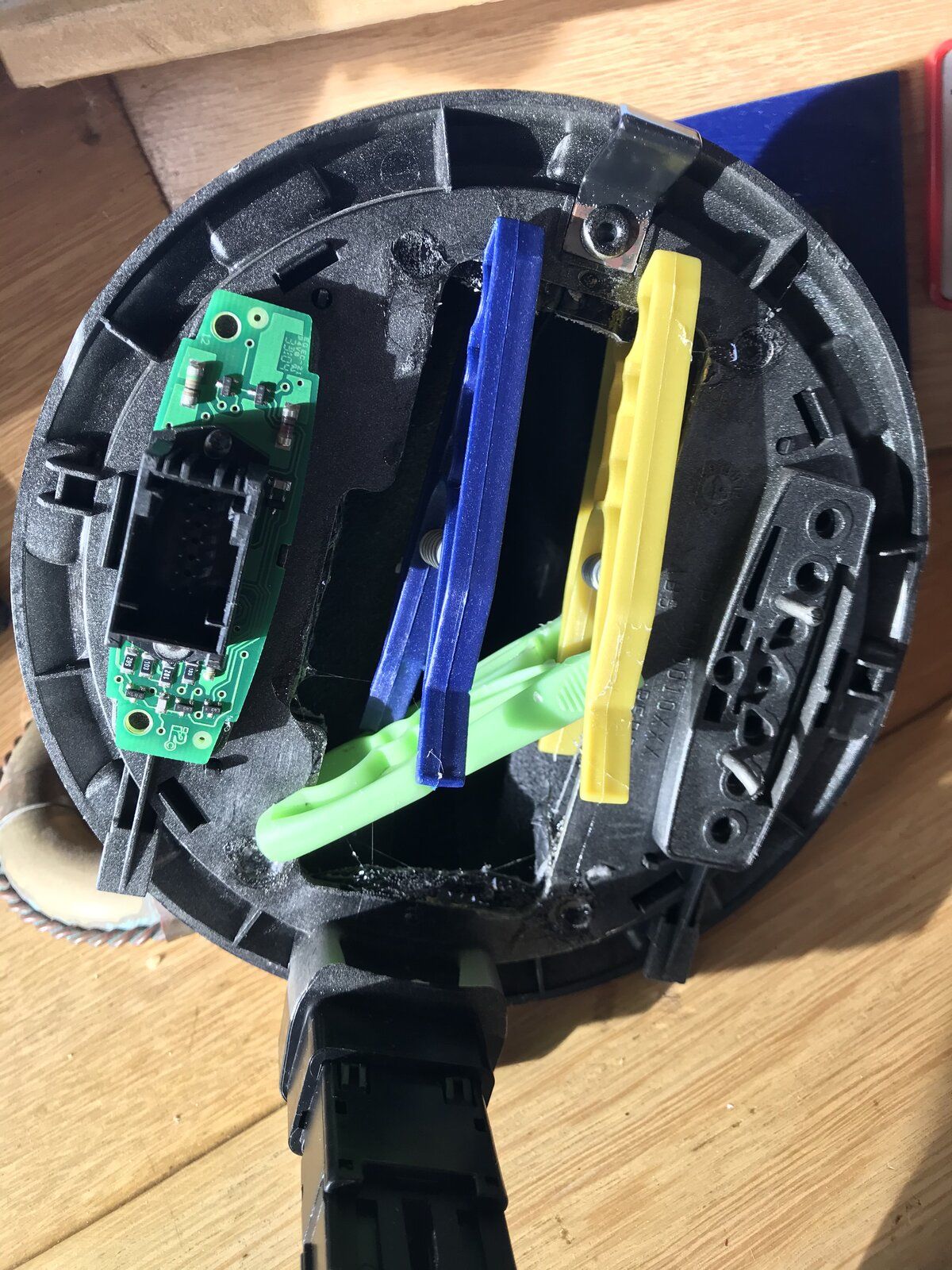

I released the bottom ring trim first, unplugging the HDC & gear indicator first .
You can then remove lever , gaiter + trim in one !
Th top of the gaiter is fixed to the ring trim via a thick o ring easily removed.

the bottom however is bonded ( some I gather are screwed ) and I had to drill the plastic river type fixing
In reverse I glued it all back left it overnight slip the lever back in the tube smart tap on the knob plug in the HDC switch & gear indicator plugs And all done .
there is no real info I could find on you tube mostly fl2 hi how is completely different

hope this helps

Did mine recently. Didn't find it too difficult, but as you say, to get your knob off takes a good pulling.

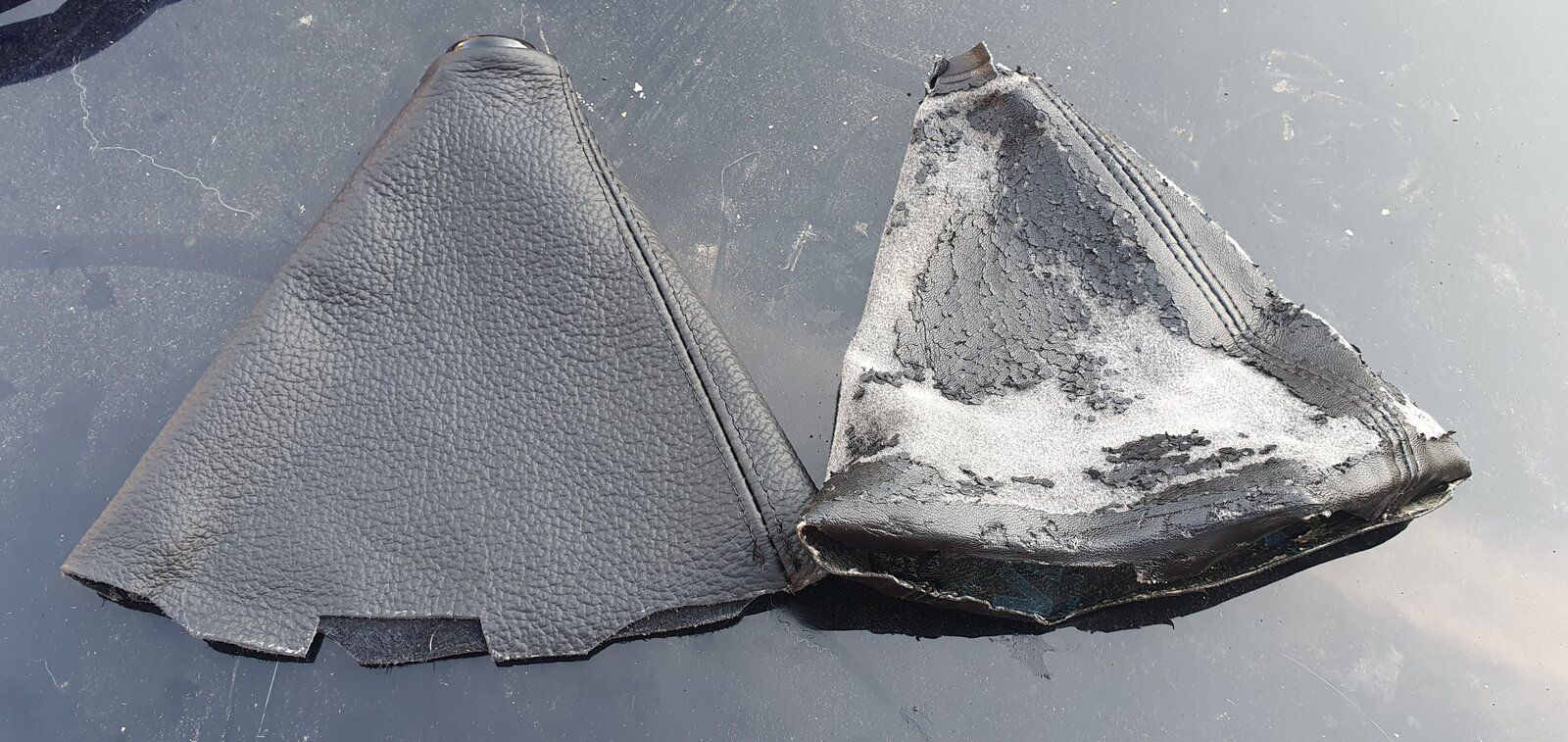

I used superglue to stick the new gaiter back to the plastick frame. It was back together all secure within 15 mins and has made a huge difference to the interior as mine looked like this...
