Series 1 Foot Breake

gary brion · Feb 25, 2023

Hi All,

Series 1 1958
Brake pedal just decided to not come back up,brakes working fine
any clues?

freelance · Feb 25, 2023

Serious leak somewhere, check underneath for fluids, blown wheel cylinder, check for wet/coated backplate and wheel, or master cylinder seals

steve2286w · Feb 25, 2023

Has the return spring on it broke

steve2286w · Feb 25, 2023

gary brion · Feb 25, 2023

Ah! thanks il check that in the morning,I might even go get the touch out
Thanks lets hope that's all it is

lynall · Feb 25, 2023

gary brion said:
Hi All,

Series 1 1958
Brake pedal just decided to not come back up,brakes working fine
any clues?

Pedal rotted and bent in half, had the same on a 58 s1 years ago.

gary brion · Feb 26, 2023

Ok guys
the pedal is very sound, with no obvious leaks and I can't see any springs, or anywhere where a spring may be fitted.
It is a 1958 so a later one.

steve2286w · Feb 26, 2023

Similar to early ones but parts and manuals here might be worth a look
http://smithies.co.nz/land_rover/

Hicap phill · Feb 26, 2023

gary brion said:
Ok guys
the pedal is very sound, with no obvious leaks and I can't see any springs, or anywhere where a spring may be fitted.
It is a 1958 so a later one.

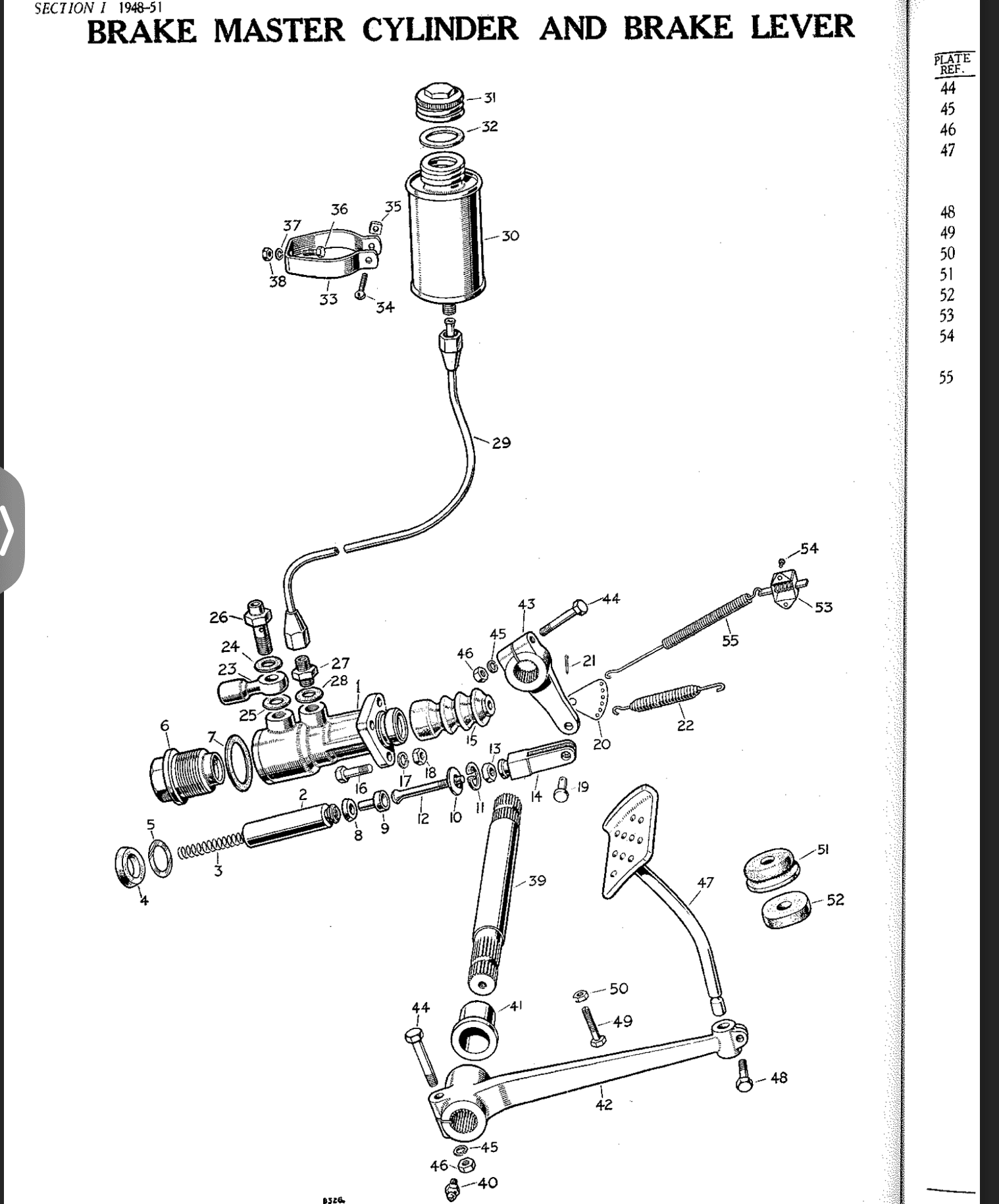

Return Spring should be on the same bracket as the brake light switch spring.

some times the piston rod & piston seize a bit,check the dust cover is in place
