Fitting a TD5 AMC Head

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
markomate2

markomate2

Well-Known Member
Posts
899
Location
Bedford and Tallinn
Hi
My previous thread on my TD5 Stripdown and Rebuild, showed the rebuild I had to do as a result of a mild runaway caused by 6 litres of diesel leaking into the sump from a cracked No1 injector pocket.
I enjoyed the rebuild and the 4000 odd miles of driving after, but always in the back of my mind was, would the head crack again?
I routinely checked the oil level every few days, all ok until last month when the level shot up, sure enough the repair had cracked!
I wanted to keep the D2 so I decided to splash out on a new AMC head, got mine from Turners, with the new bolts, gasket, seals and some other odd bits, it came to £1450.
Frida from Turners was great, got the head shipped next day even though she was off on her holiday the day after!

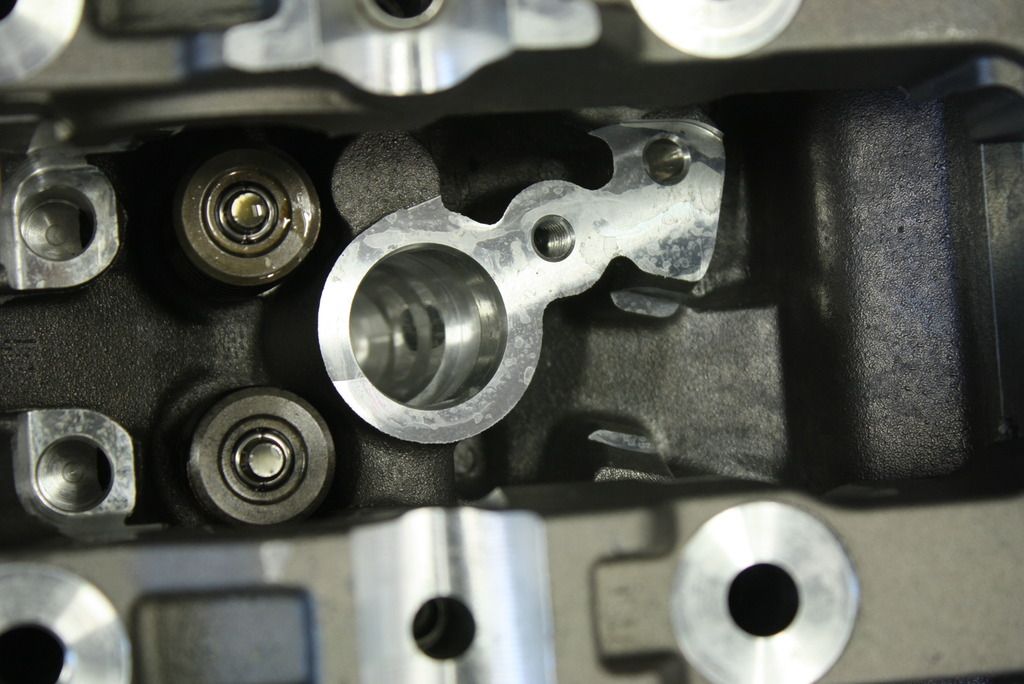

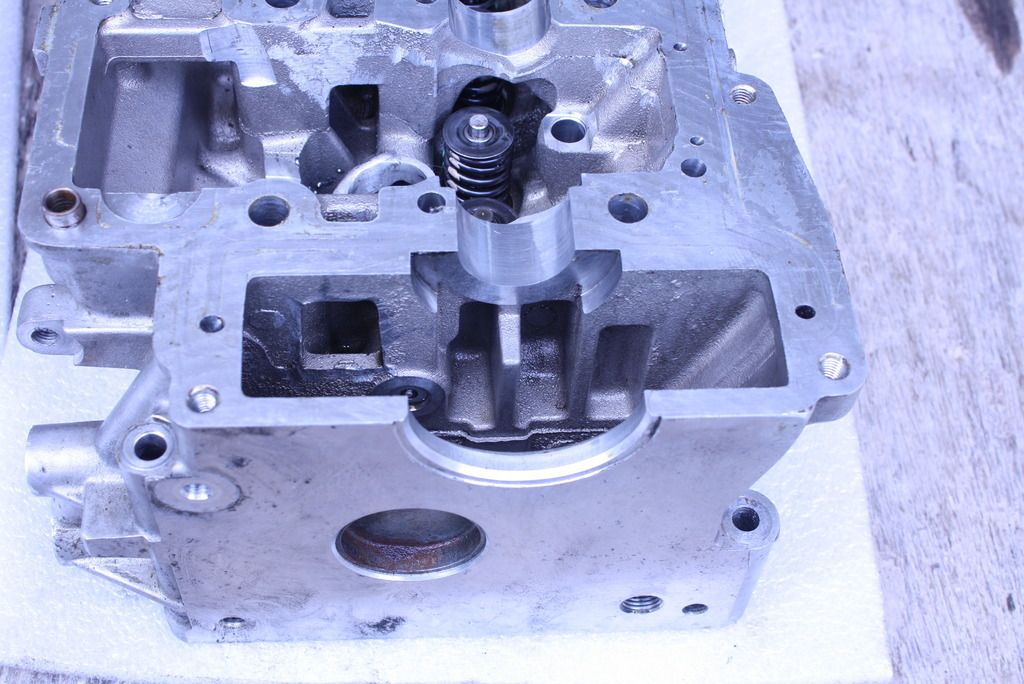

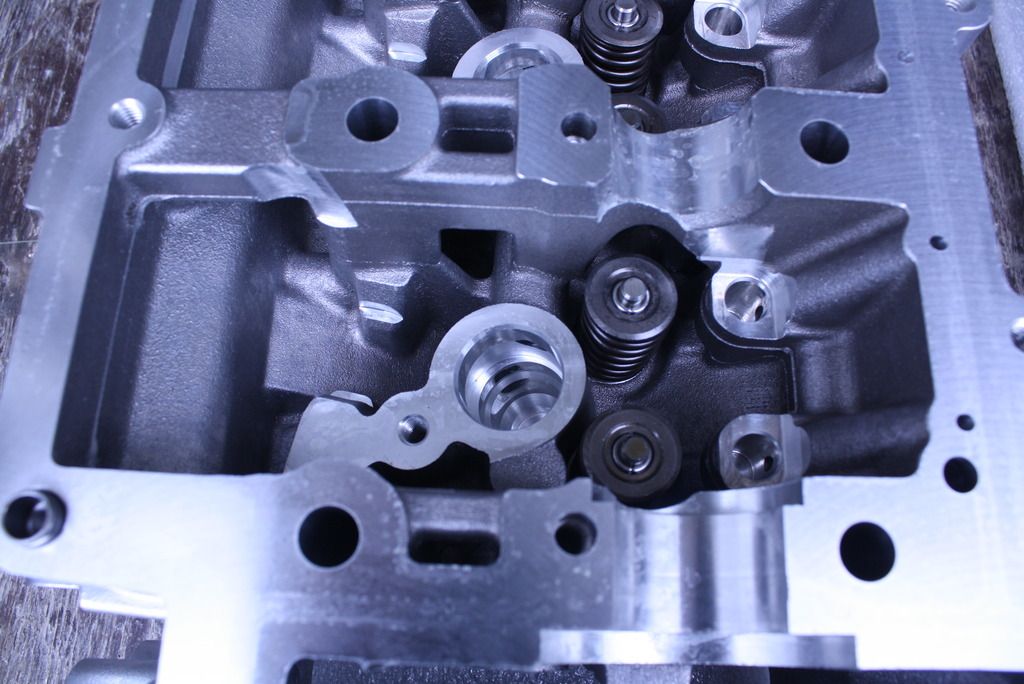

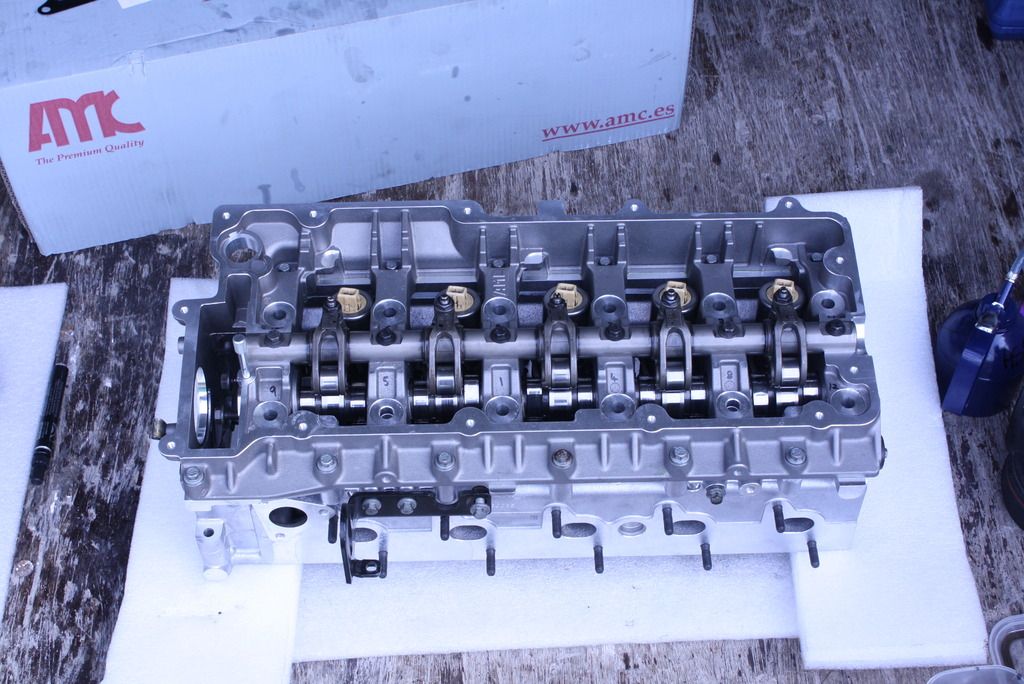

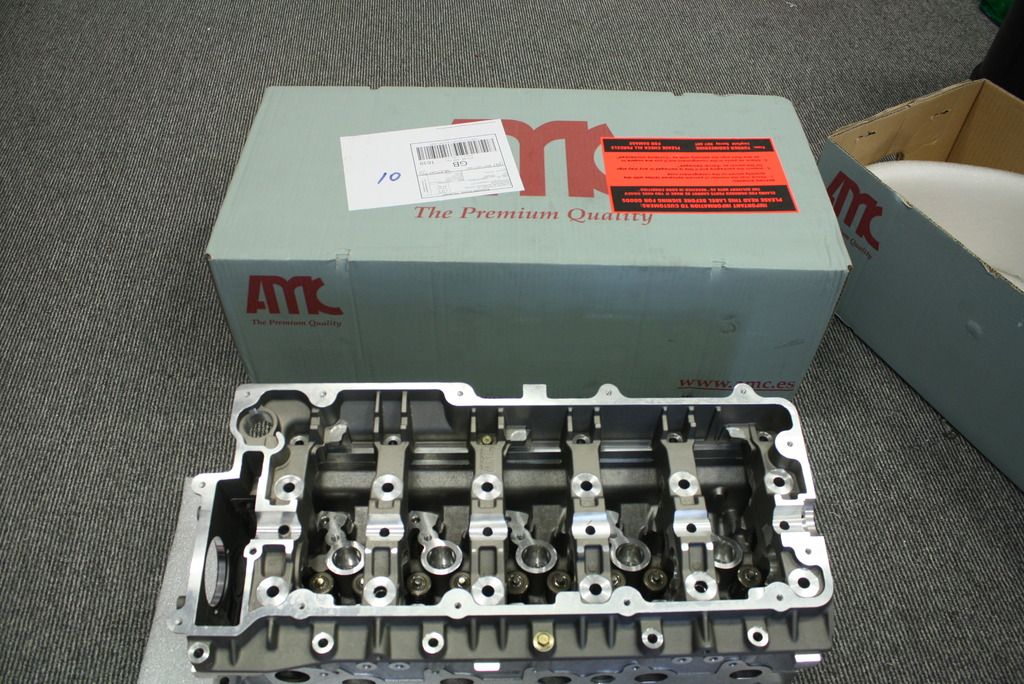

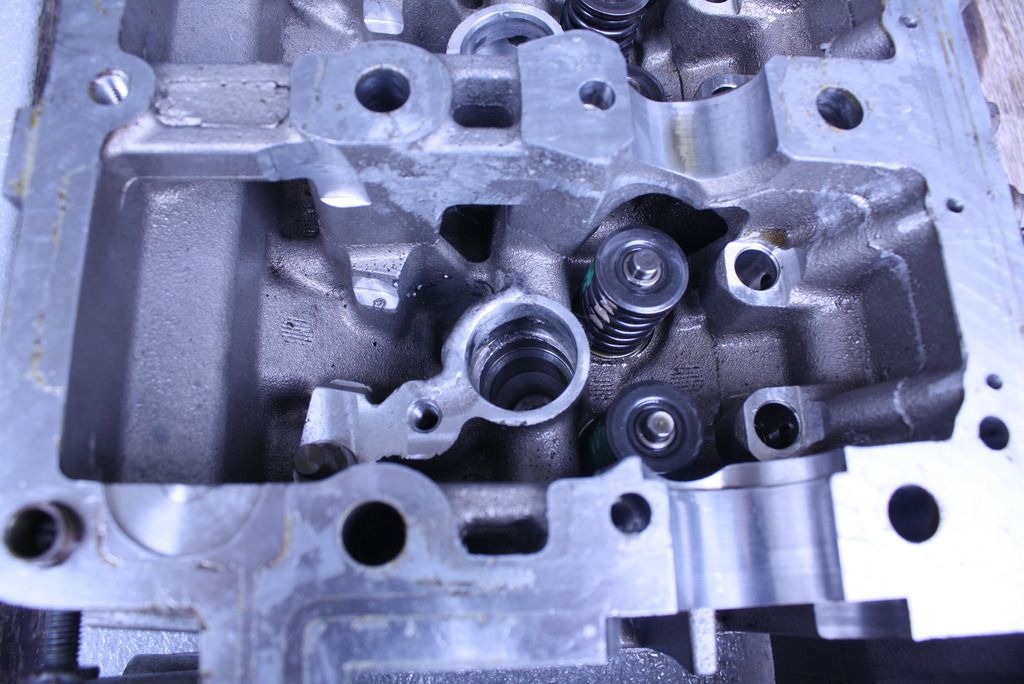

First pics show the head as recd, it was very obvious that the AMC head had much chunkier injector pockets! Sorry for the weird colours later, I forgot the camera was set for tungsten lighting.


Last edited:

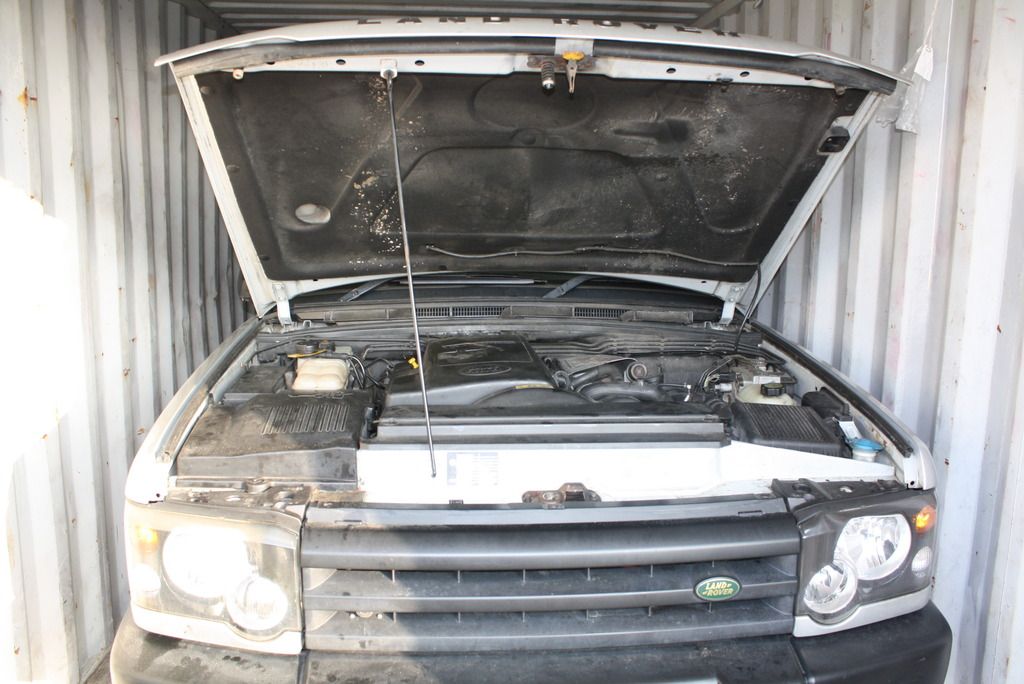

The old head was removed, quite easy.
Couple of tips:
I can never get the push fit fuel hose couplings to release so I just disconnect the whole pipe assembly from the FPR.
Dont bother removing the fuel cooler, just unbolt it from the inlet manifold.
Leave the inlet manifold in place, the bolts are a total PITA to get to!
Leave the turbo in place, remove the exhaust manifold.
Remove the injectors
The head can be lifted off by hand, its easy if you have help, I didnt!
When the oil was drained out a total of 13 litres of oil/diesel came out, it should have been about 7.5 litres!

So to the fitting!

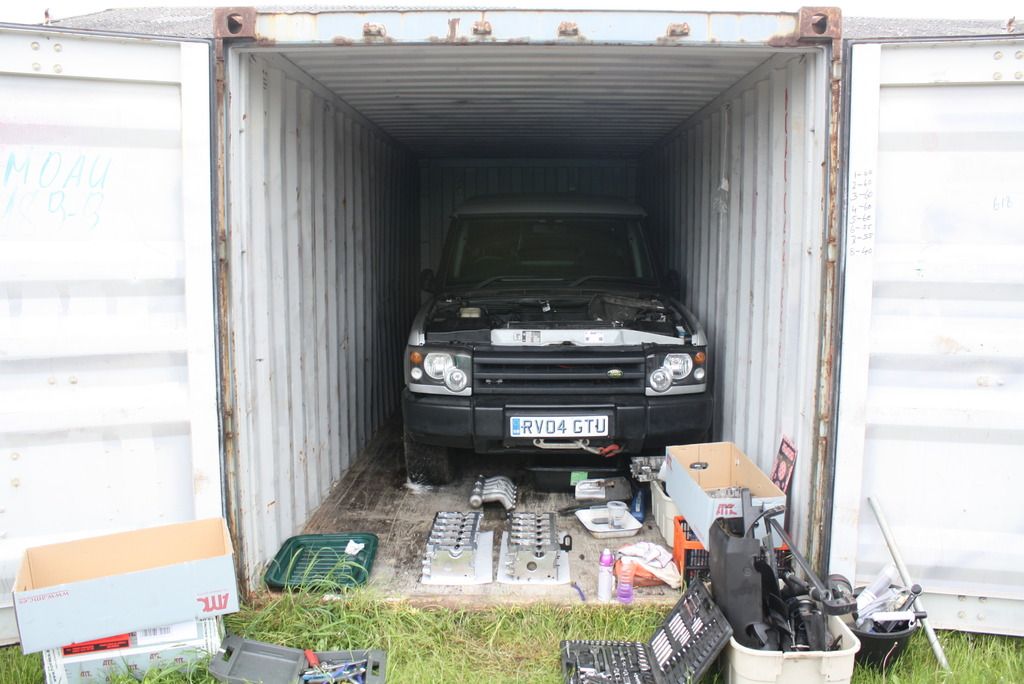

I dont have a workshop now so a 20ft container works quite well!

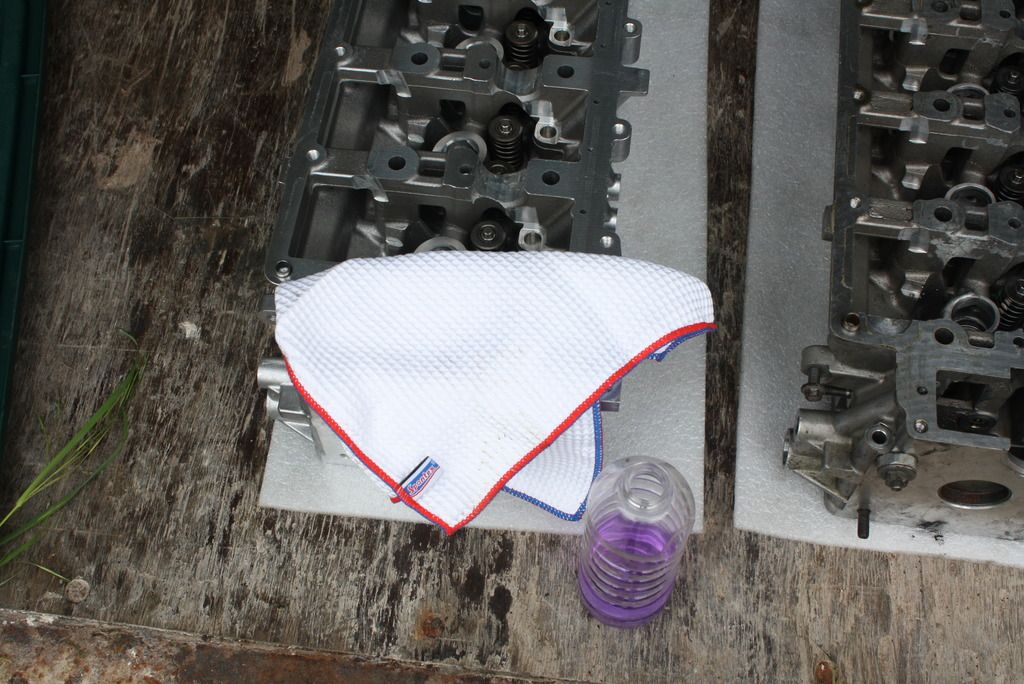

Before starting work, clean the new head, use a lint free (microfibre) cloth and meths, Dont use cotton rags or paper towels, they will leave lots of threads on the sharp machined edges.

Transfer any studs and brackets from the old head to the new one.
When the old head was stripped down the parts were stored using my favourite freezer bag system, just number the rollers and lash adjusters 1-10
EDIT DO NOT PUT YOUR HYDRAULIC TAPPETS IN A BAG!!!! KEEP THEM UPRIGHT!!!!!

Last edited:

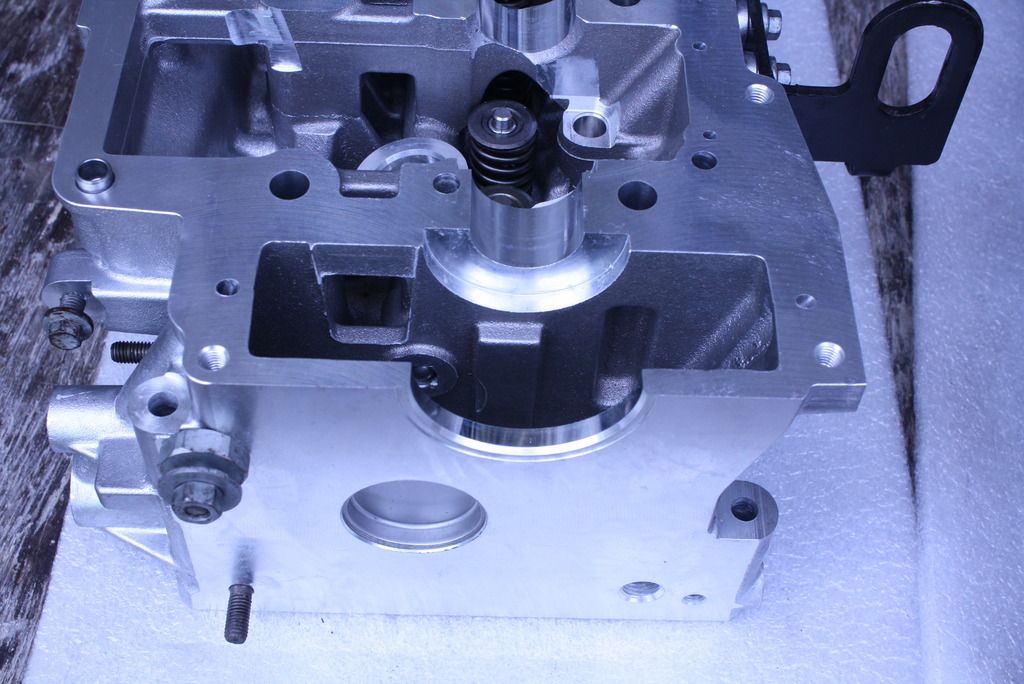

The AMC head comes with new valves, springs etc. They also supply new exhaust studs and copper injector seals.
The TD5 head comes in two parts, the top part retains the camshaft, its bolted to the head and also through bolted to the block, so its not possible to change the camshaft without removing the head.
The joint between the two parts must be oil tight as the galleries in the top part supply oil to the camshaft and the lash adjusters.

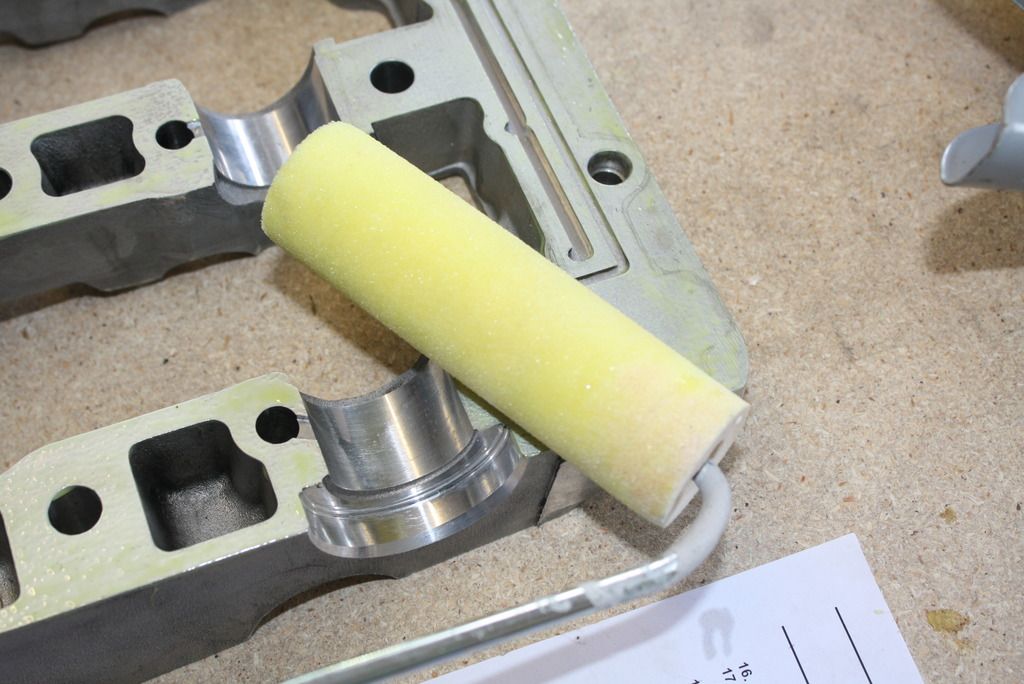

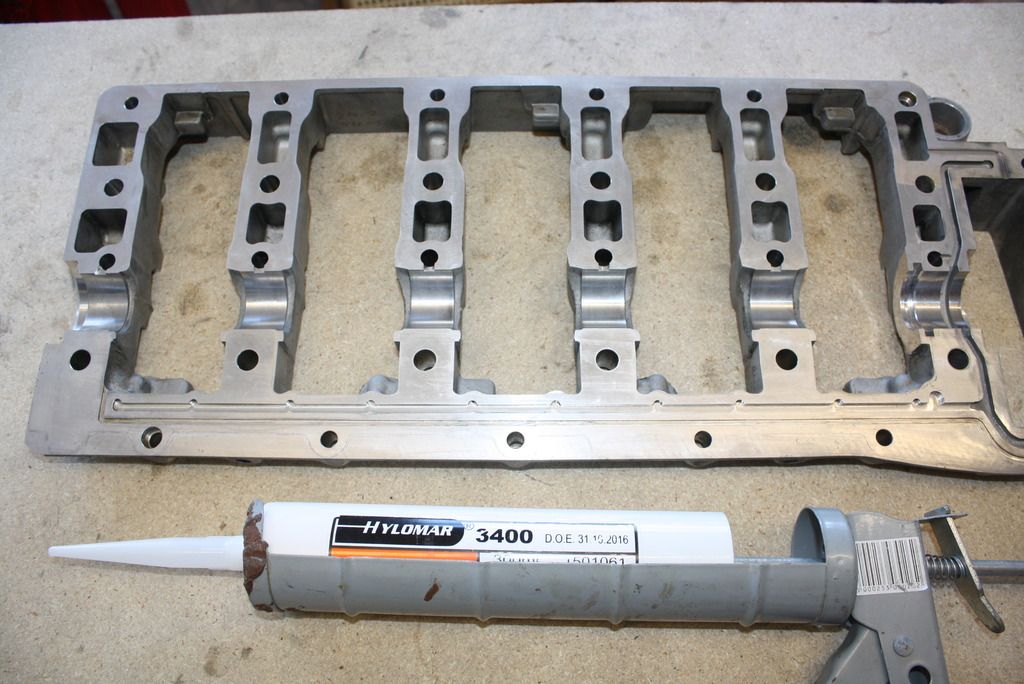

Clean the mating faces with meths and apply the sealant, then use a small gloss paint/foam roller spread the sealant into a thin layer.

Page from RAVE showing where sealant has to go, do let it get into the channels/galleries. Or the camshaft bearings.

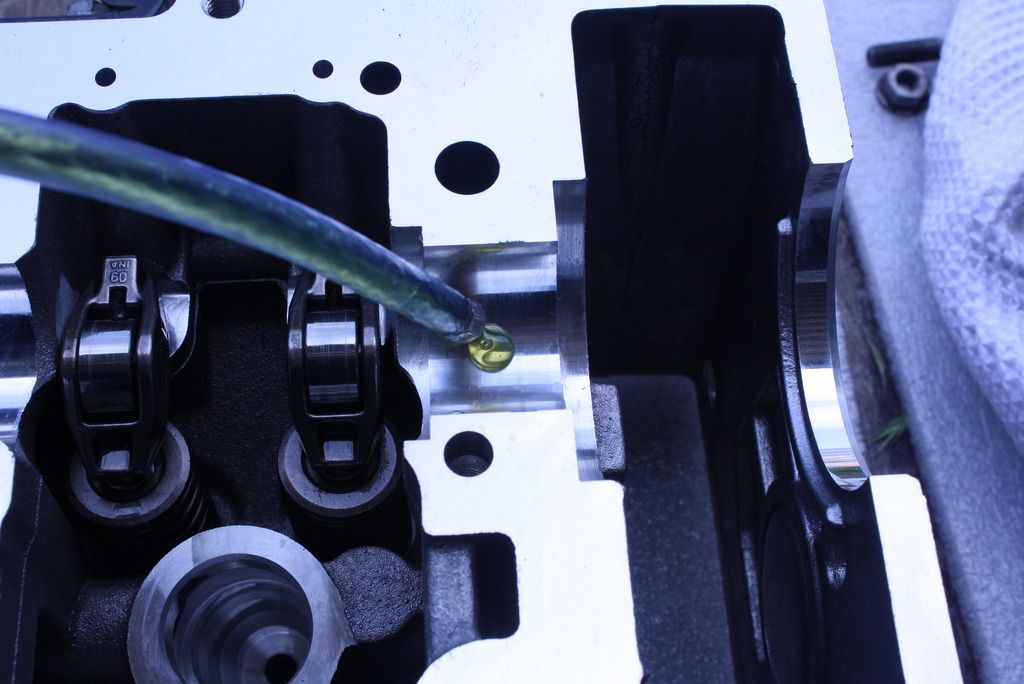

Oil up the cam bearings with assembly oil or normal oil.

Then after fitting the camshaft, fit the top part of the head and bolt down, in sequence and to the torque in RAVE.
IMPORTANT

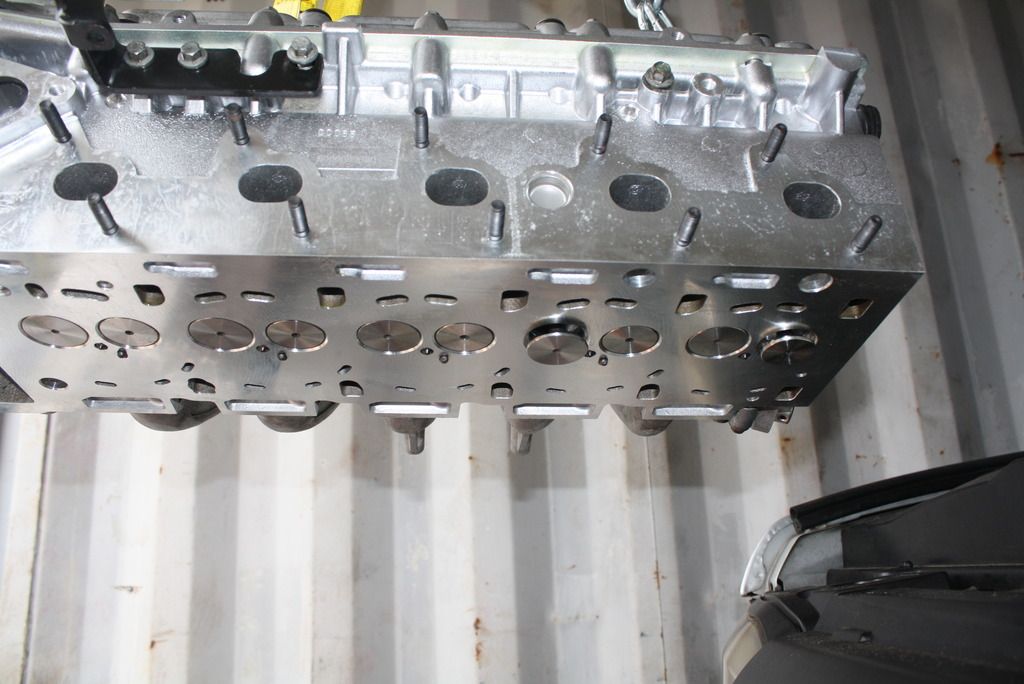

As soon as you fit the cam, some of the valves will protrude below the head face, so make sure your head is supported on the ends, the packing from the AMC box was perfect.

NOTE: I decided to build up my head before fitting it, but you can just fit the head, without bolts then build up the cam, etc before bolting it down, its your choice, if you build up the head before fitting, try to use a crane to install it, or have a bigger garage and a mate to help!

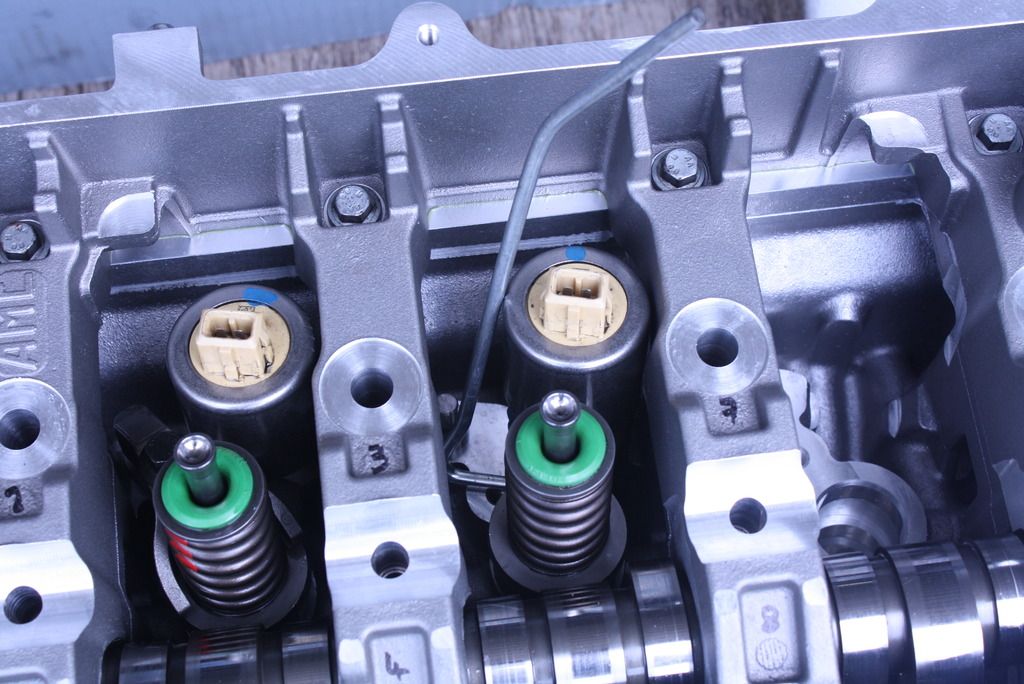

Injectors fitted, new, genuine, seals. Oil up the injector o rings and push fit the injectors.

For anyone who's interested, this is how I remove TD5 injectors!, slightly bent tent peg, works a charm!
Also on this close up, the numbers you can see are the head bolt tightening sequence, thats coming later!

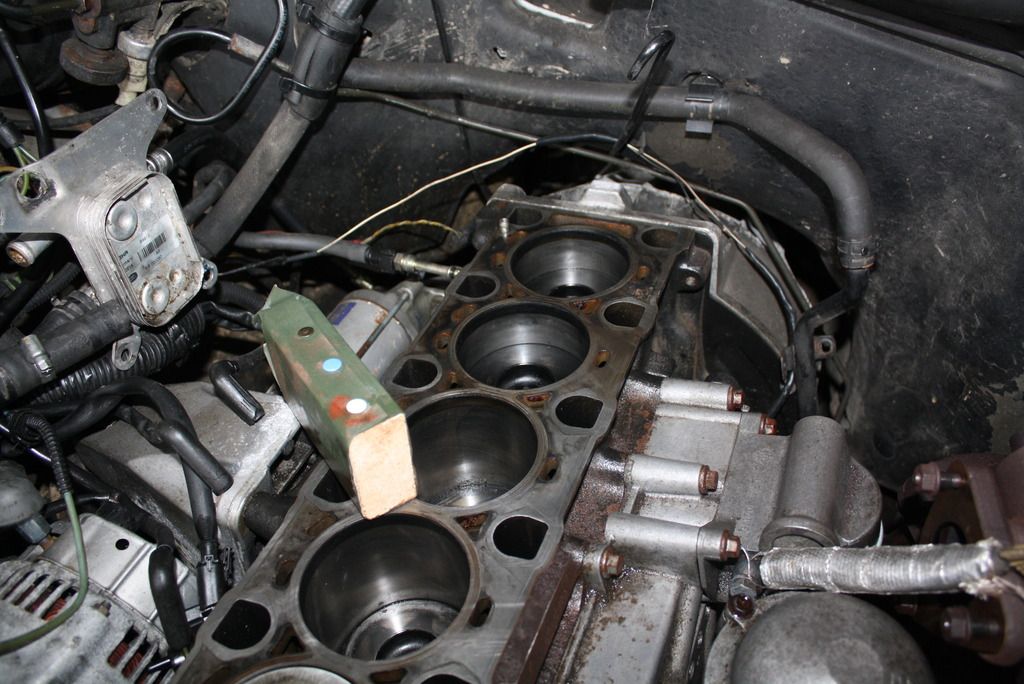

Before fitting the head, clean the block deck. The old head had only been on a few months so not much cleaning was needed.
Use your fingers to feel for high spots. I used 1000 grit wet and dry, wetted with WD40, wash after with meths.
To add, the head bolts are obvioulsy tightened in sequence, the AMC guide was different to RAVE and involved 8 stages! Mark the head with sequence numbers first then check off each stage on the guide.

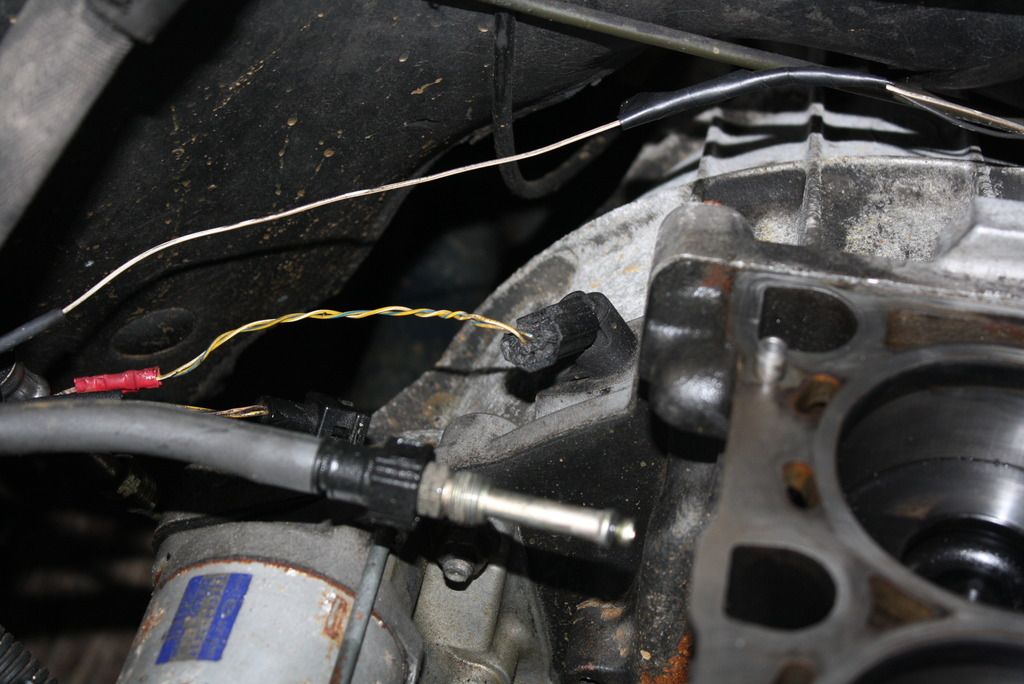

Before you refit the head, use the easy access to change your CPS (crank sensor) if you want!

Last edited:

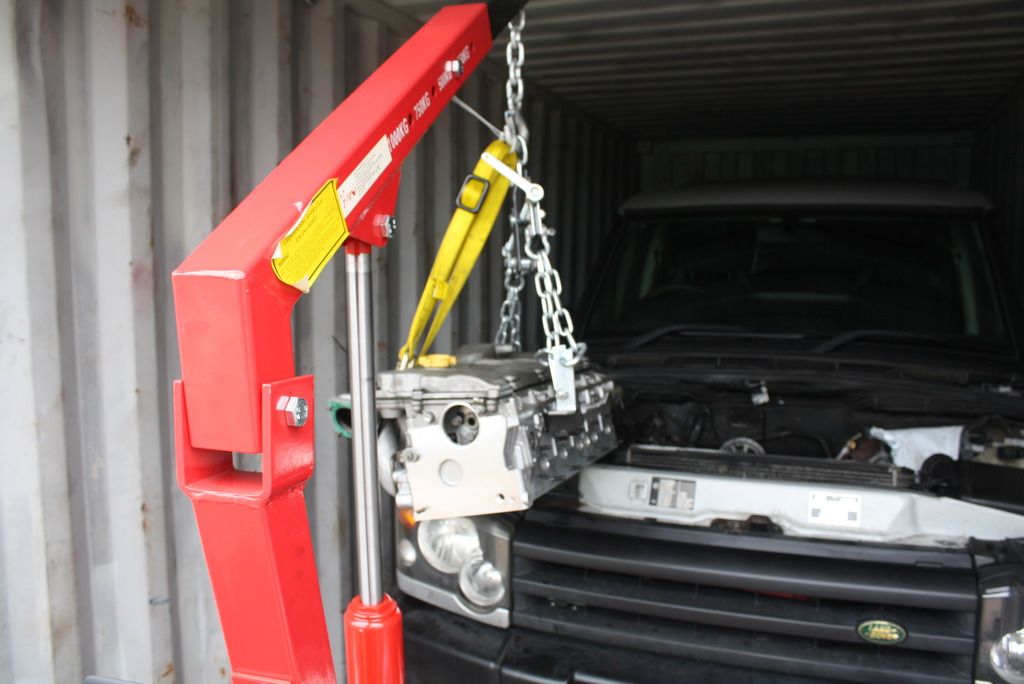

Fitting the head; I used the RAVE method, use an engine crane.
I didnt want to risk dinging the valves/injectors by man handling the head on.
I have a 1 tonne SGS crane, but a 2 tonne would be better, it takes a bit of trial and error to set the arm correctly, you need max extension.

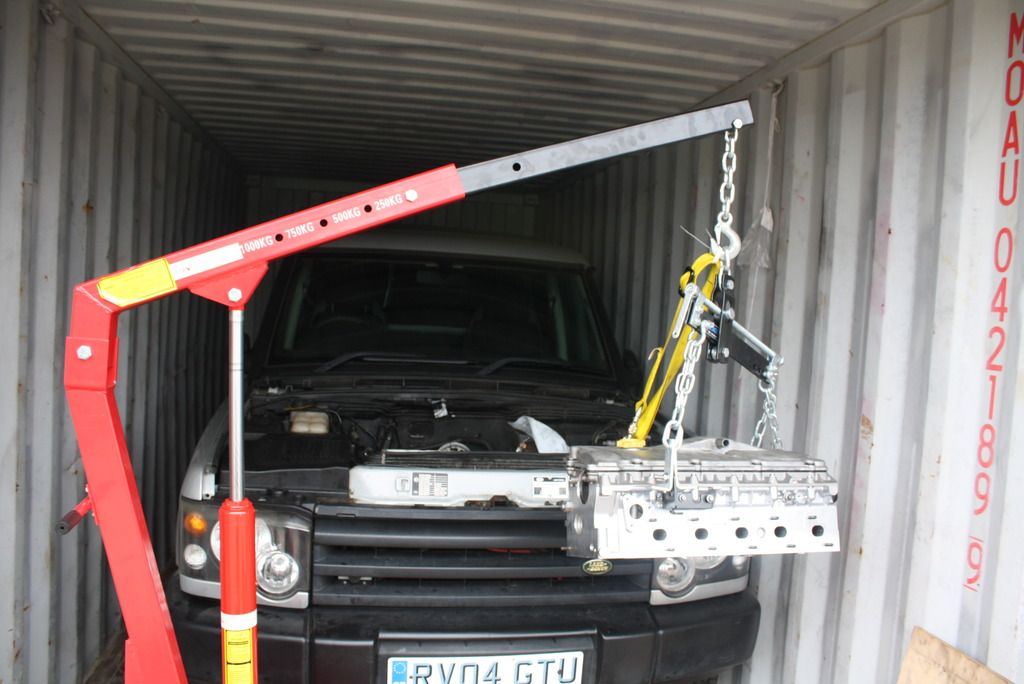

Also I used a strap and leveler to pre set the angle of the head, you have to angle it back at first to just clear the bulkhead lip, then bring the front down, be careful not to catch on the timing sprocket.
It took a long time but no damage to the head or my back!
The arm isnt bending, Ive got it set way beyond its normal limit!


Ok all in, after the head is fitted, its another couple of hours work to connect the exhaust manifold, fuel cooler, fuel pipes, cooling system etc.
Couple of purges and she started almost first turn.
Qute happy with the result
Now to fix the 3 Amigos!
Any questions just ask!
Thanks for reading.. Mark
