Freelander 1 Facelift dash light removal/question

C

CAT69

Member

Posts

48

Location

north west

• Sep 16, 2019

• #1

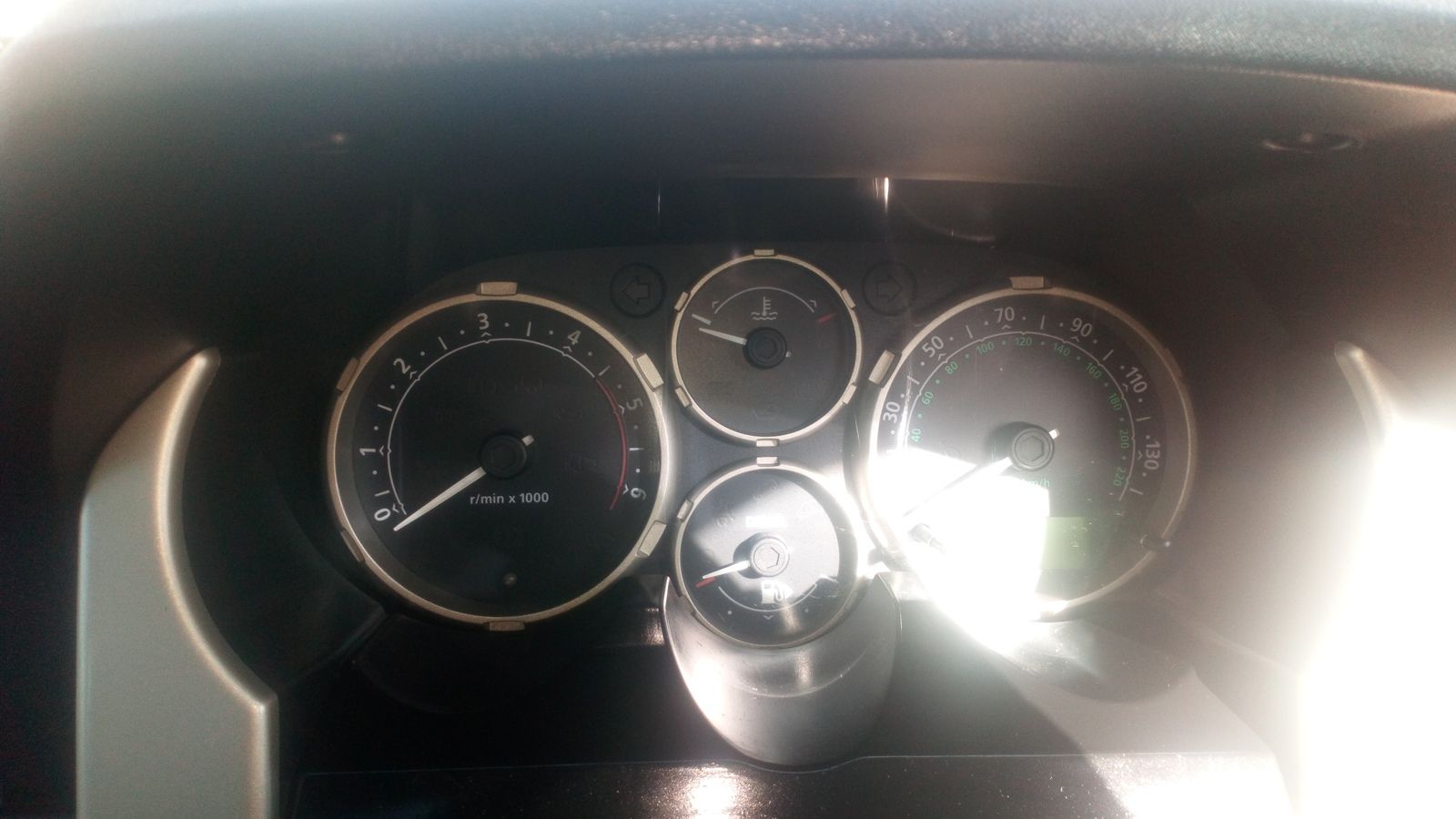

2004 dash binnacle looks like it's held in with 4 screws then comes out?
Before removing are the bulbs that light up the panel removable or soldered into the board
Thanks



Attachments

•

  114.1 KB · Views: 197

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Sep 16, 2019

• #2

They are 3 watt capless bulbs. It takes a couple of minutes to remove the the dash.



C

CAT69

Member

Posts

48

Location

north west

• Sep 16, 2019

• #3

Hi thanks once lve removed the 4 screws should it just pull out



C

CAT69

Member

Posts

48

Location

north west

• Sep 17, 2019

• #4

Nodge68 said:

They are 3 watt capless bulbs. It takes a couple of minutes to remove the the dash.

Click to expand...

Does it just pull out arter screws removed



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Sep 17, 2019

• #5

CAT69 said:

Does it just pull out arter screws removed

Click to expand...

Yes. Remove the canopy and lift away. Then remove the screws holding the Ipack in place. It just pulls forward enough to get to the harness plugs.

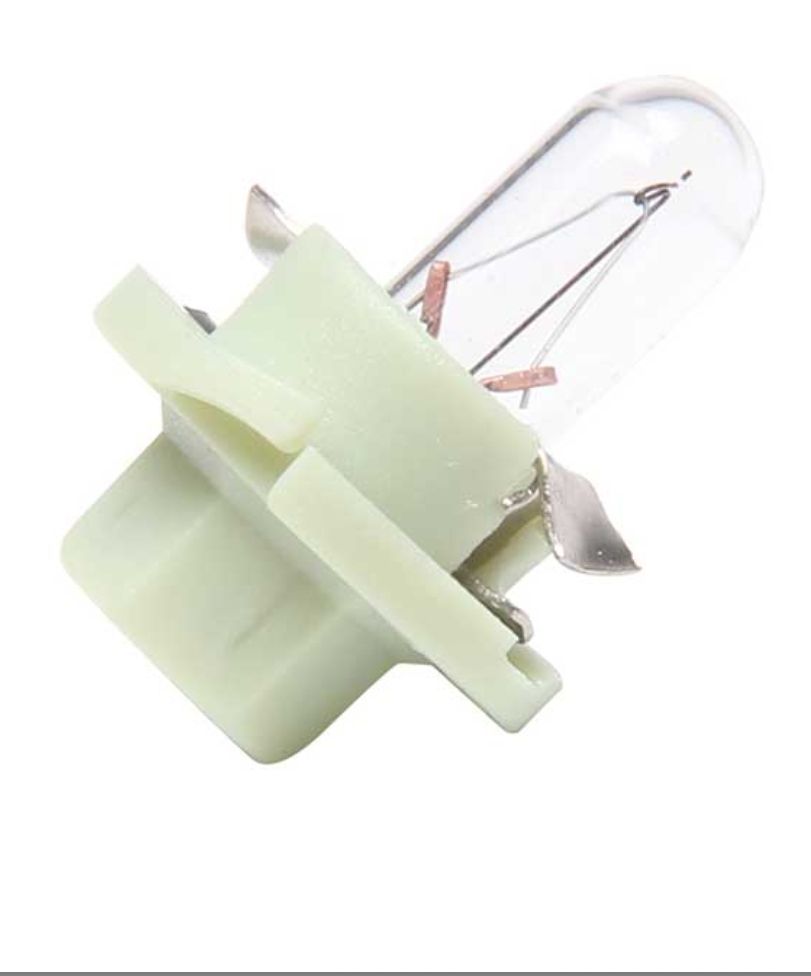

I think I'm wrong on the bulb type though. They are funny 1.2 Watt bulbs, that are installed in twist in plastic cap. Like this.
