Engine to bellhousing bolts

Discussion in 'Land Rover Discovery' started by Beneagles, May 28, 2019.

< Previous Thread | Next Thread >
  1. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    OK...just how DO you get a spanner or socket on the bolt at the top/driver's side of the bellhousing....and then how the hell do you get any purchase on it????

    :mad:

  2. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    4,025
    Likes Received:
    3,908
    Location:
    In Isolation
    I dropped the box down at the back & used a couple of extensions & a wobbly mine were solid, if your really stuck
    you could pull off the engine mounts & drop the whole unit down.

    Kev12 and Hicap phill like this.
  3. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,106
    Likes Received:
    250
    Location:
    conwy, north wales
    It is easier with two. I lay with my head towards the back of the car and felt around for it to put the socket on with long extensions while my assistant turned the socket wrench. Don't make my mistake and forget to bend the tabs on the top two bolts up.

  4. berg450

    berg450 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    492
    Likes Received:
    68
    Location:
    Hungary
    Google this: changing clutch on a land rover discovery 2.
    Well explaines how to do. And yes, drop the gearbox down a bit and you will get enough room to reach the top bolts.

  5. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    Cheers gents....gearbox mounts tomorrow I guess :(

  6. berg450

    berg450 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    492
    Likes Received:
    68
    Location:
    Hungary
    Do you want to remove the gearbox or you just want to undo the top bolts (removing oil cooler pipe)?

  7. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    OK Number one Bast*rd bolt is free and out. Engine hanging on crane...gearbox supported on jacks. Separation between gearbox housing and engine is fine...EXCEPT at the half past one position (viewed from the front of the vehicle. There is absolutely no movement at this part. Level with the connector in pic below.
    What am I missing?? Biggest fear is that there used to be a bolt from the engine side through to the gearbox but it has sheared at some point in the past....:eek:


    Attached Files:

  8. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,106
    Likes Received:
    250
    Location:
    conwy, north wales

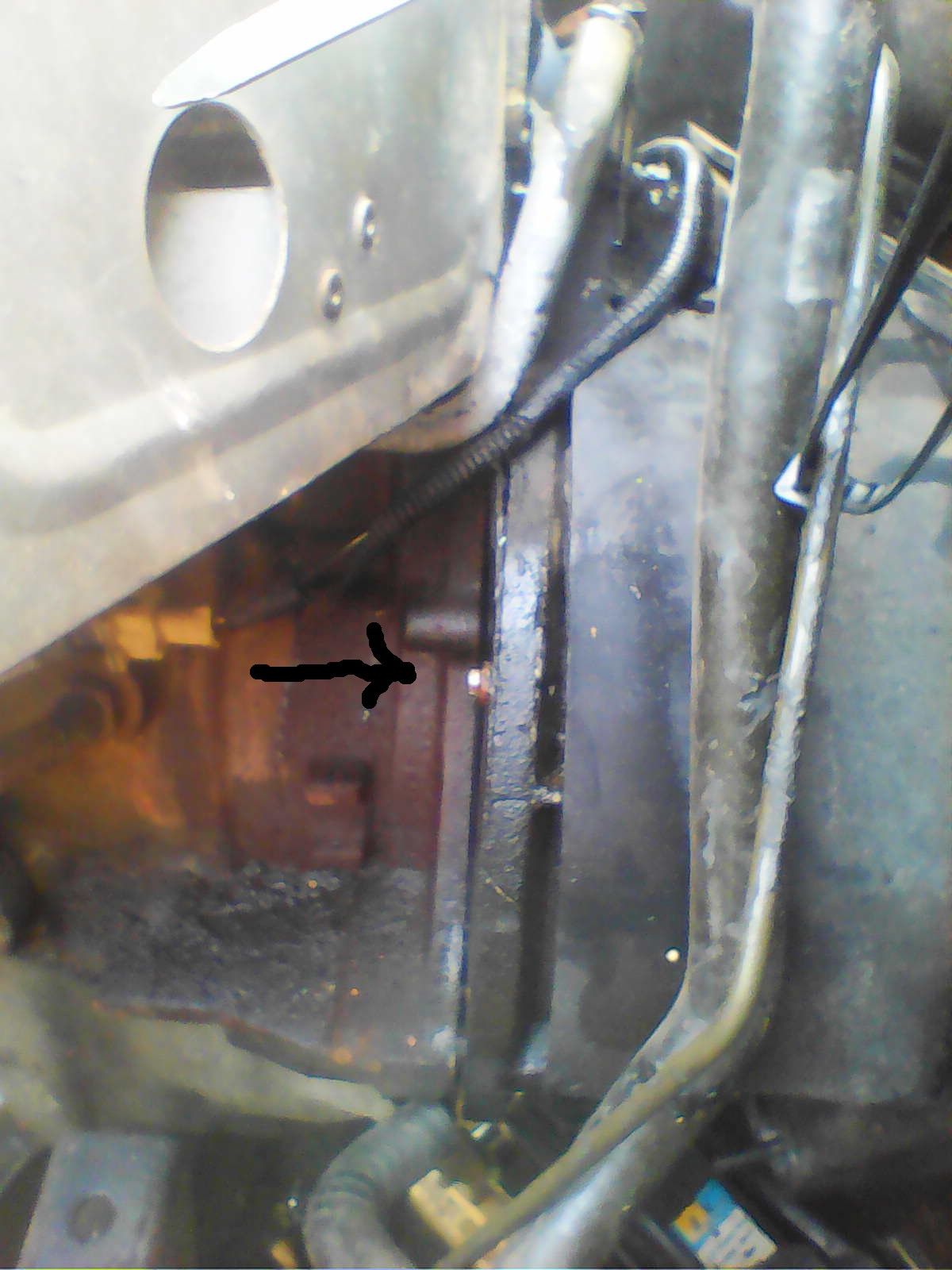

    You have removed the tiny bolt that goes through the plate on the passenger side?
    eng bolt 1.jpg

    Last edited: Jun 1, 2019
  9. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    The 8mm that is nicely rounded? No....thought that was well clear of the engine aspect?

  10. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,106
    Likes Received:
    250
    Location:
    conwy, north wales
    It certainly looks clear. You have taken out the main bolt above it? It locates on the left hand tab as you look towards the front of the car.

  11. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    Yes, top bolt is out. Will borrow 8mm Irwin tomorrow to persuade the wee bolt to surrender - I only have the basic set and 8mm is in the extension pack. Bloody typical!! :D

  12. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,106
    Likes Received:
    250
    Location:
    conwy, north wales
    When you say top bolt, I take it you mean both top bolts. The 8mm bolt looks clear in the picture

  13. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    Yes, the driver's side top bolt was the one that started this thread....the top line separates ok.
    Will take out the 8mm anyway...it may be that the plate is holding the engine further along and that is the source of my problem....but not holding my breath! :)

  14. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,106
    Likes Received:
    250
    Location:
    conwy, north wales
    Just clutching at straws just in case - you have bent both of the bracket tabs up. I am sure the swinging of the gearbox would do that anyway as I forgot about them until I couldn't get the box back in and found that they were blocking it.

    Looking at the picture closer it does look like it might be that bolt.

    Last edited: Jun 1, 2019
  15. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,537
    Likes Received:
    13,314
    Location:
    louth lincs
    thats a 6mm bolt hence 8mm head and it certainly has to come out

  16. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    Cheers James - have 8mm Irwin now so will tackle it tomorrow.
    :)

  17. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,537
    Likes Received:
    13,314
    Location:
    louth lincs
    are you taking engine or box out, with the box once props and mounts are removed lowering box makes getting bolts easy except top left which can be done first before lowering box from engine bay,remove crank sensor before splitting and oil pressure switch wiring,starter inner nut is the hardest fastener imo but a long extension and uj down through the manifold helps

  18. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,058
    Likes Received:
    1,448
    Location:
    North Perthshire
    Thanks all.....engine is now out....and gearbox on the ground. Can't believe that that silly wee bolt was the same as all the big ones! :eek:
