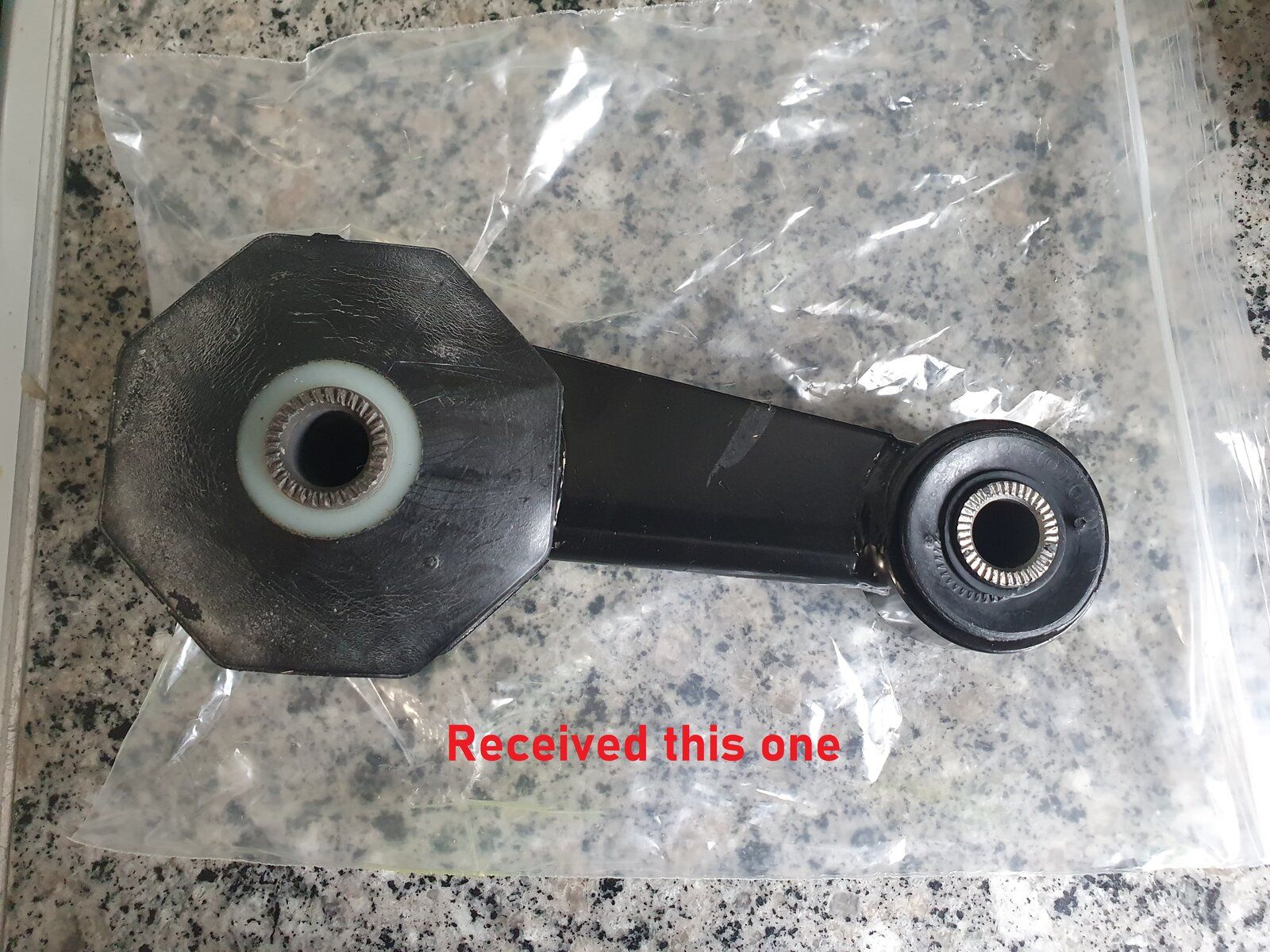

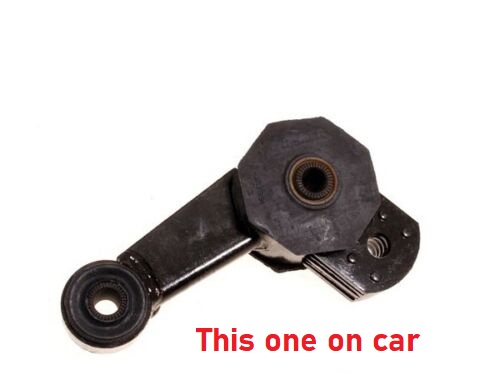

Hello, I ordered an engine mount lower tie rod for my Freelander 1 TD4 2002 but a different one came to the one that's on, yet when i ordered it says its for a TD4 (see pics) is it ok to put it on or do i need to send it back for correct one.
Thank you



Attachments

•

  346.7 KB · Views: 110
•
  s-l500 (2).jpg

  24.1 KB · Views: 121

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Apr 27, 2021

• #2

It'll still fit.
These are aftermarket parts now, so will be pretty much interchangeable.



S

sm1thy

Member

Posts

25

Location

Lancashire

• Apr 27, 2021

• #3

Thanks Nodge helpful as always



F

freespaña

Active Member

Posts

157

Location

España

• Apr 27, 2021

• #4

Hello. I think you got the TOP tie rod.



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Apr 27, 2021

• #5

freespaña said:

Hello. I think you got the TOP tie rod.

Click to expand...

You could be right there, as they are pretty similar in dimensions.

sm1thy said:

Thanks Nodge helpful as always

Click to expand...

Check the length between centres, if it's the same, then you'll be ok. If the centres are different lengths, then you can remove the large bush from the new one, and fit it in the old bar.



S

sm1thy

Member

Posts

25

Location

Lancashire

• Apr 27, 2021

• #6

Measure the same as old one, so fitted it with no problem
