Engine coming out fine but miscalculated height needed.

brianconwy · Jul 22, 2019

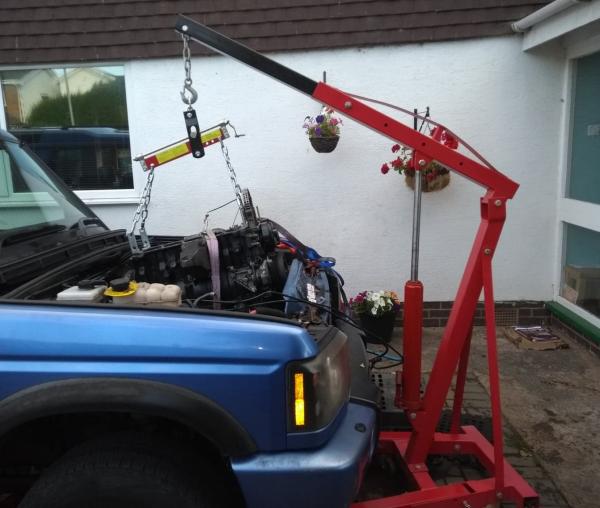

We have got the engine to here but the hoist won't go higher.

Trying to think of a way to support it so can remove levelling device and shorten distance to jib.

jamesmartin · Jul 22, 2019

just use a short chain or strop between the 2 lifting points on the engine

NPG · Jul 22, 2019

Remove wheels and lower vehicle perhaps ?

steve2286w · Jul 22, 2019

Prop it up with some timber can you also put the pin through links closer to hook

brianconwy · Jul 22, 2019

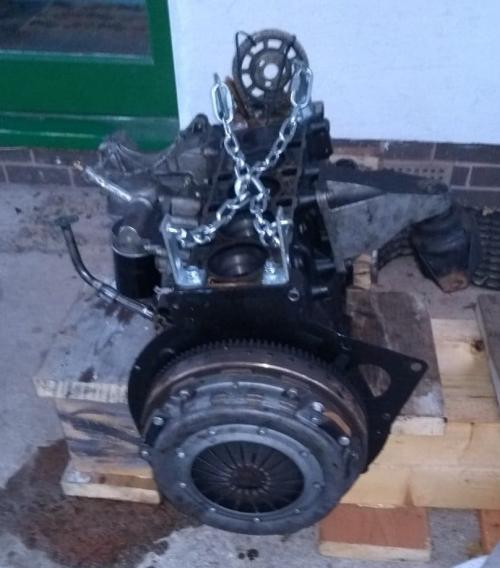

The cylinderf head was already off so bolted plates onto the vacant holes. in the end lowered it back down, took the leveller off and it did the trick. Thanks for the replies. I took the radiator and the next cooler off. Did I need to do that?

steve2286w · Jul 22, 2019

Good idea I think to get the rad out of the way easily damaged if something bumps into it
Take plenty of pics as you remove bits helps when putting it back together

Marmaduke · Jul 24, 2019

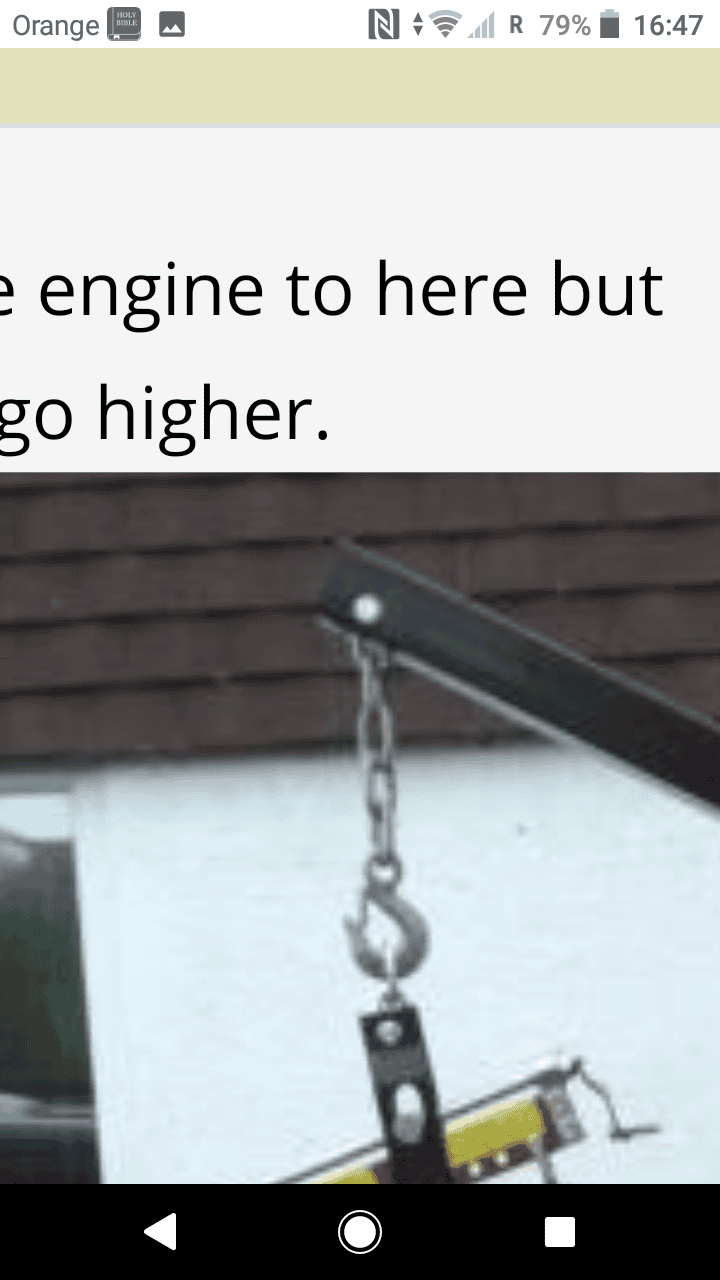

I cut a few of the links off mine when I first had it

jamesmartin · Jul 24, 2019

i dont bother with a leveller just use a chain the links act as stops so you can alter precise point of lift

Beneagles · Jul 24, 2019

Mine lifted fine on a length of rope

Beneagles · Jul 24, 2019

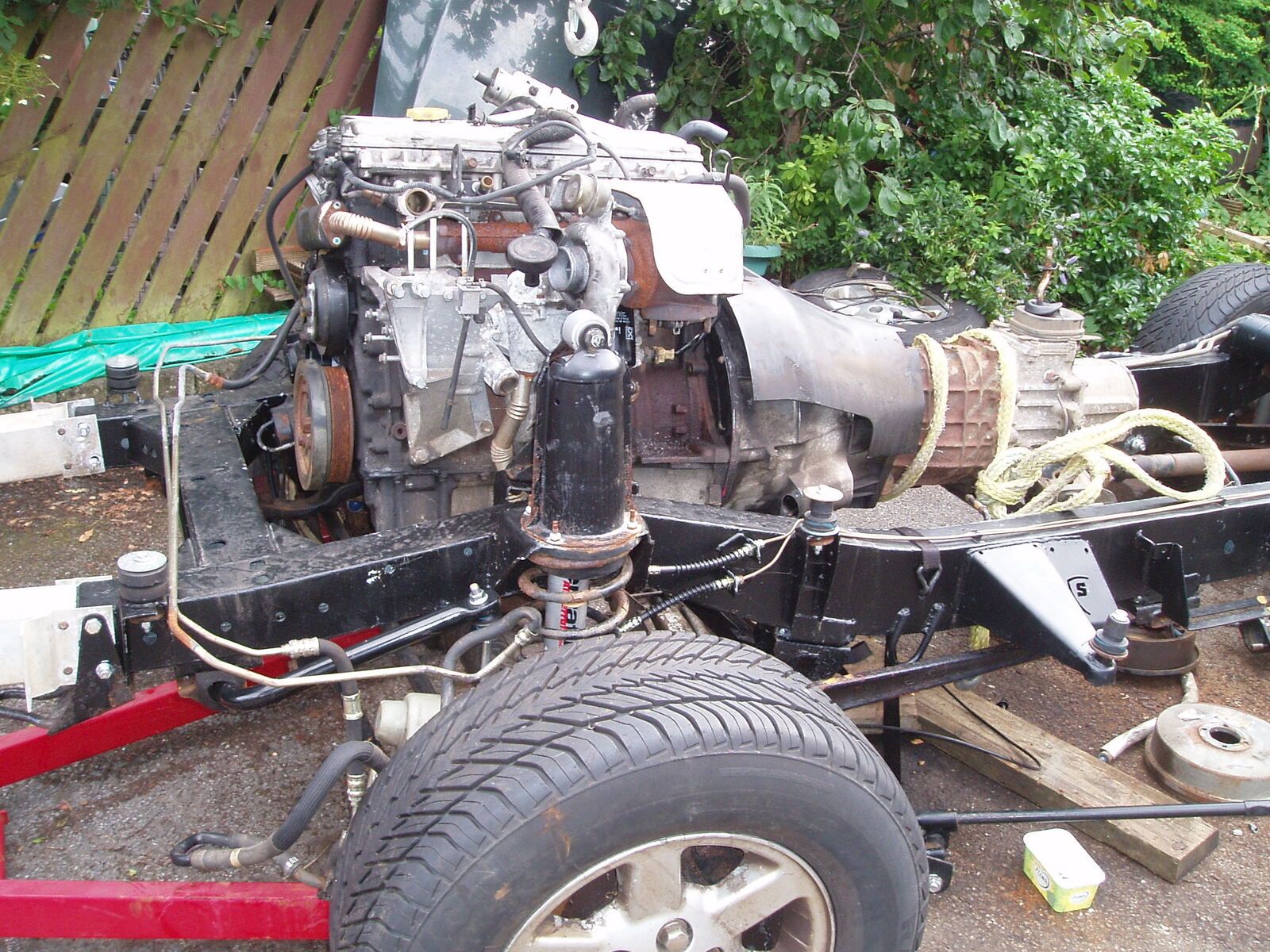

'Course, putting it back is a hell of a lot easier if you don't have the body in the way!
