Elusive screw on LT230

miktdish · Mar 28, 2024

The speedo drive (FRC3310) fits in the drive housing (FRC3286) which has an O ring and a pinion seal and is all held in with the retaining plate (533765) which clamped into the LT230 case with a set screw/bolt.

What is the part number of this bolt ? (i've looked everywhere)

gstuart · Mar 28, 2024

Hi

Would it be part number 78924 plse

miktdish · Mar 28, 2024

Thats deffo for the series and you get 3 of them, the speedo drive was off the gearbox rather than the transfercase .... The question is ... is it the same set screw for the Defenders LT230 ?

Galladog · Mar 28, 2024

Could it be part 14, No 571536 ?

miktdish · Mar 28, 2024

Galladog said:
Could it be part 14, No 571536 ?

Hi Matey ...
I hope not as that's £19.61 + vat and p&p ....

Now then, hang on - that could be where i've been going wrong, looking for a set screw not a stud ...
50p from Blanchards - more my sort of price

Galladog · Mar 28, 2024

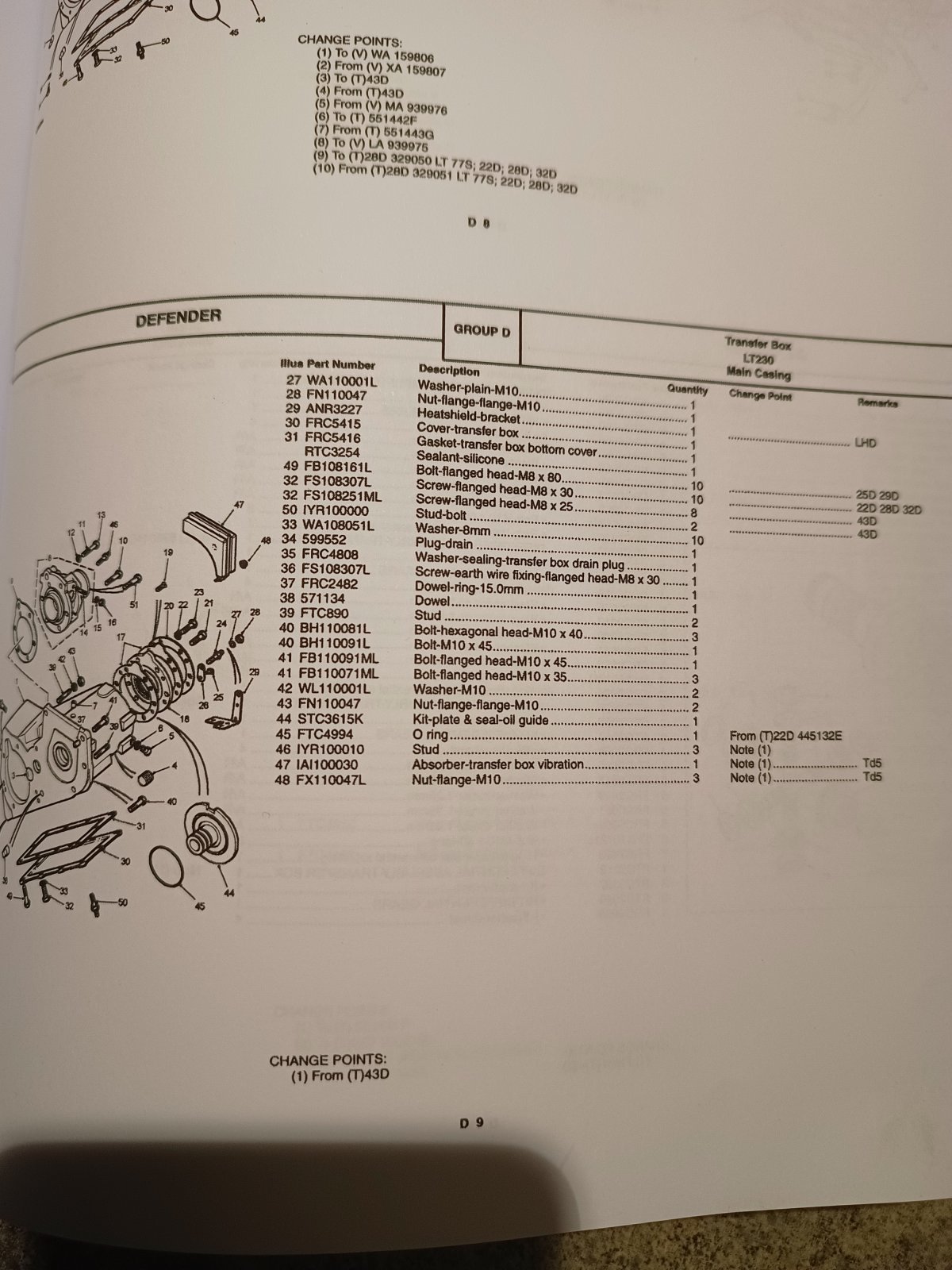

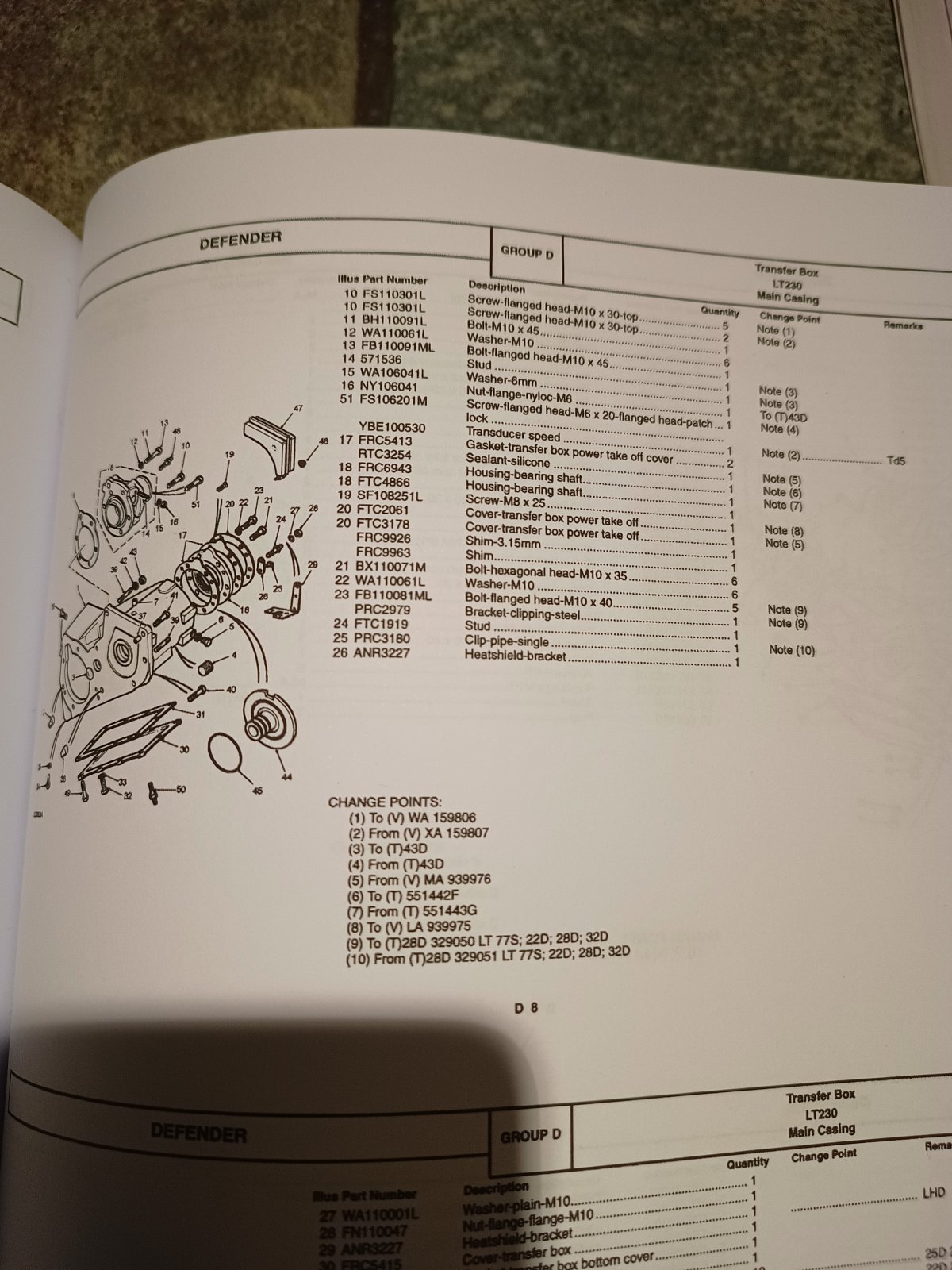

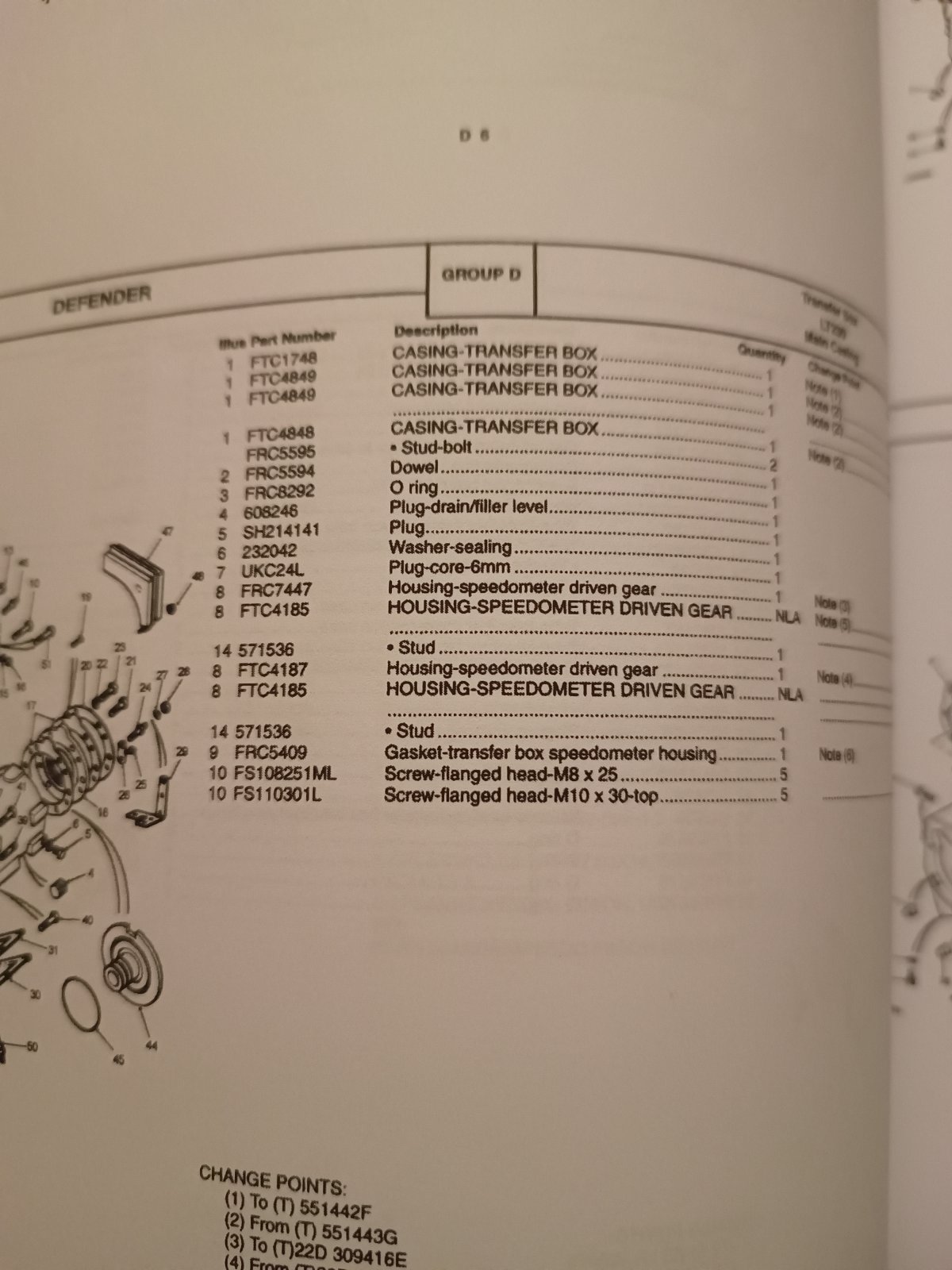

There are 4 diagrams for the t box, you want them ?

miktdish · Mar 28, 2024

Squire - you have hit the nail on tut head.

It seems this stud "Suits all LT230 and LT95 transfer cases with mechanical speedo cables. Suits speedo cable clamp 533765." which is zacktly what I was stuck on ....

Galladog · Mar 28, 2024

Galladog · Mar 28, 2024

Galladog · Mar 28, 2024

Galladog · Mar 28, 2024

Galladog · Mar 28, 2024

If these don't work out for you I will scan them tomorrow

miktdish · Mar 28, 2024

Galladog said:
If these don't work out for you I will scan them tomorrow

They are all good for me

Ta very muchly
