EAS on windows 7

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
scott02464

scott02464

Active Member
Posts
710
Location
Up North!
It does actualy work! :D I have seen plenty of debates on Windows 7 not working with the EAS software. You need to install the correct 'Driver' to make the USB port (Comm port) recognise the USB adapter! This is how i got mine to work......

I bought the lead and USB connector from here (Software came with it)Air Suspension Diagnostic Cable - Range Rover P38 EAS on eBay (end time 08-Jan-11 13:20:31 GMT)

Then follow this vid from storey wilson (third vid down) http://www.rswsolutions.com/index.php?option=com_content&view=section&layout=blog&id=10&Itemid=68

Follow the steps in the vid up to 2:24 then pause. (I used this vid so i didnt have to expain each step)

See where the drop down box says 'Update Driver'. Click Update Driver and select 'Update using Internet'. This will the automatically update and install the Driver you require!

Once the driver has installed you will see which 'Comm port' it is called ie. comm 3 displayed in brackets!

Job done, Driver installed. And you should now be able to use the software and leads on Windows 7!

Hope this helps if all you have is Window 7 (like me)

Oh and mines a 64bit version too

Scott

i didnt even spend that, im sure its posted on here, i soldered the connector from and old serial mouse to the obd plug, correct wires obviously and tucked that up behind the panel for safe keeping, now i just plug it in to the usb/rs cable and off i go!!

Hi

I used the compatibility mode on mine. Ran without any problems. I also soldered the serial just behind the original plug. I have a flashdrive with the unlock program in the car, so wherever I go, I just use any pc to link up and unlock.

Iv just got a couple of question about some bits on the software if someone could please help? :)

In thie first pic (on the Faults page) what is the purple 'Unlock EAS' button do?

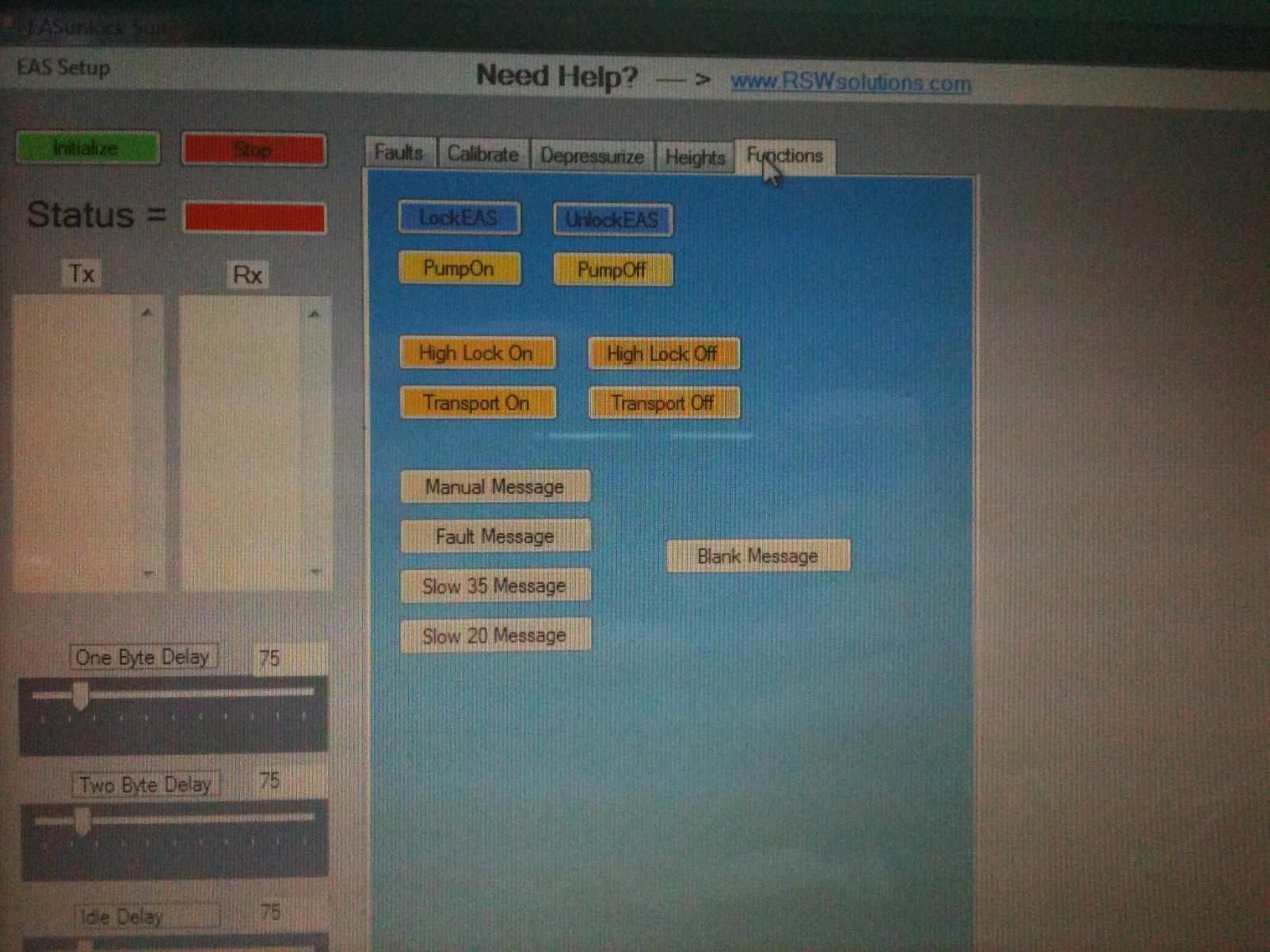

Also in the second pic (on the Functions page) What is this page for?
Ie. what is the 'lock eas' and 'unlock eas' and all the 'orange' buttons do?

I proberly wont have to use these but it dunt hurt knowing what they do :)

Cheeers Scott


Attachments

  • IMG_0463.jpg
    239.7 KB · Views: 283
  • IMG_0464.jpg
    244.4 KB · Views: 266
scott02464 said:
Iv just got a couple of question about some bits on the software if someone could please help? :)

In thie first pic (on the Faults page) what is the purple 'Unlock EAS' button do?

Also in the second pic (on the Functions page) What is this page for?
Ie. what is the 'lock eas' and 'unlock eas' and all the 'orange' buttons do?

I proberly wont have to use these but it dunt hurt knowing what they do :)

Cheeers Scott
Click to expand...

It unlocks EAS. Brings it out of solid fault state.

scott02464 said:
Sorry mate, what does that mean by Unlocks it? And what does the solid fault mean?

LOL Not done this before so still learning :eek:
Click to expand...

If you get the dreaded "35mph max" message, you have a hard EAS fault. The "Unlock EAS" button clears the fault and resets the EAS. Of course if you have not fixed the fault it will come back again.

Datatek said:
If you get the dreaded "35mph max" message, you have a hard EAS fault. The "Unlock EAS" button clears the fault and resets the EAS. Of course if you have not fixed the fault it will come back again.
Click to expand...

Thanks for that mate! Thats made it alot crearer :D

Regards Scott
