Double skinned rear upper body on 110?

Discussion in 'Defender 90 / 110 / 130' started by Twinnie, Jun 29, 2020 at 11:29 PM.

< Previous Thread | Next Thread >
  1. Twinnie

    Twinnie Member

    Joined:
    Jun 19, 2020
    Posts:
    12
    Likes Received:
    2
    Location:
    London

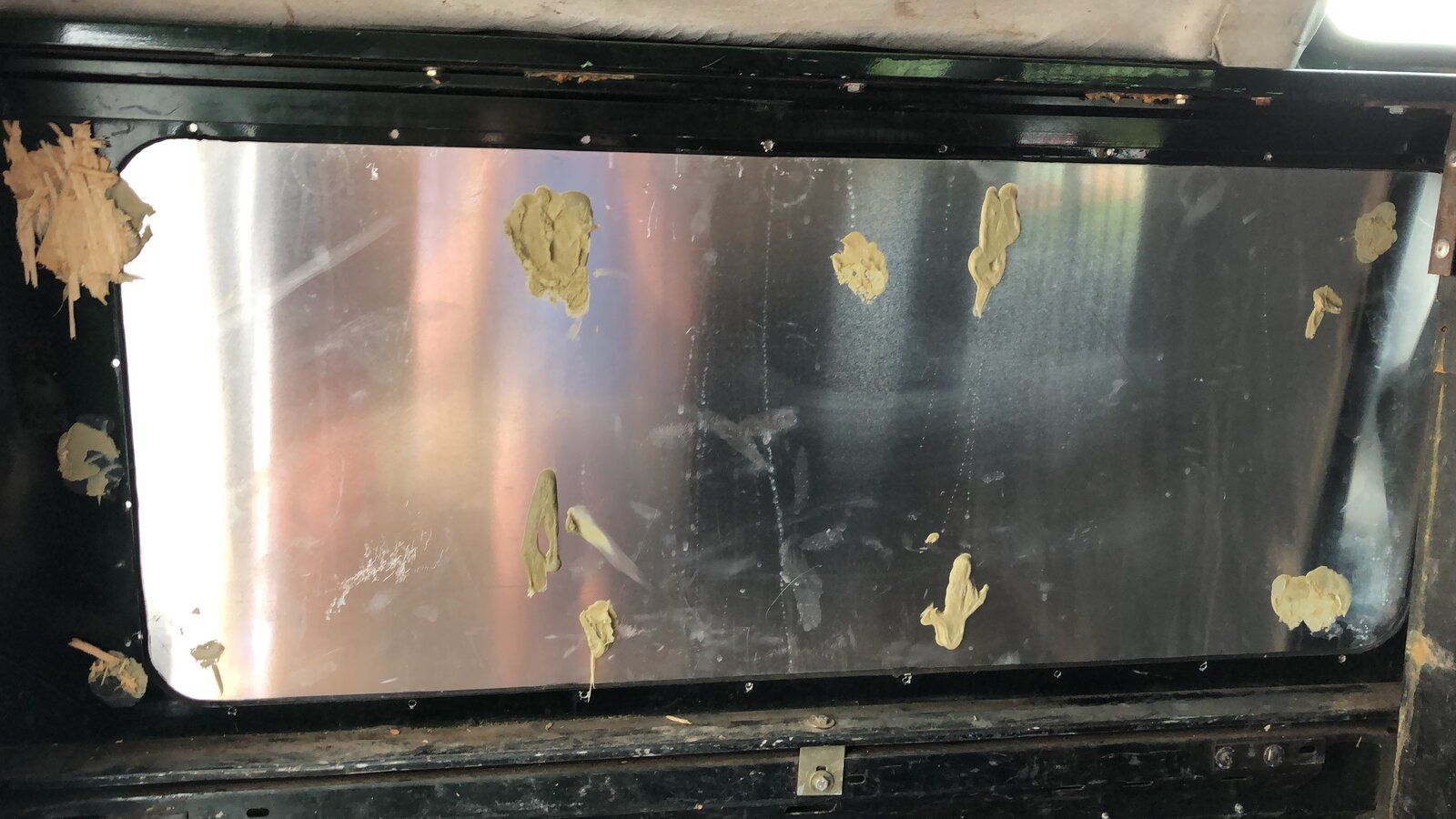

    So I'm trying to make sense of the back of my SW 110. This is what the inside looks like:

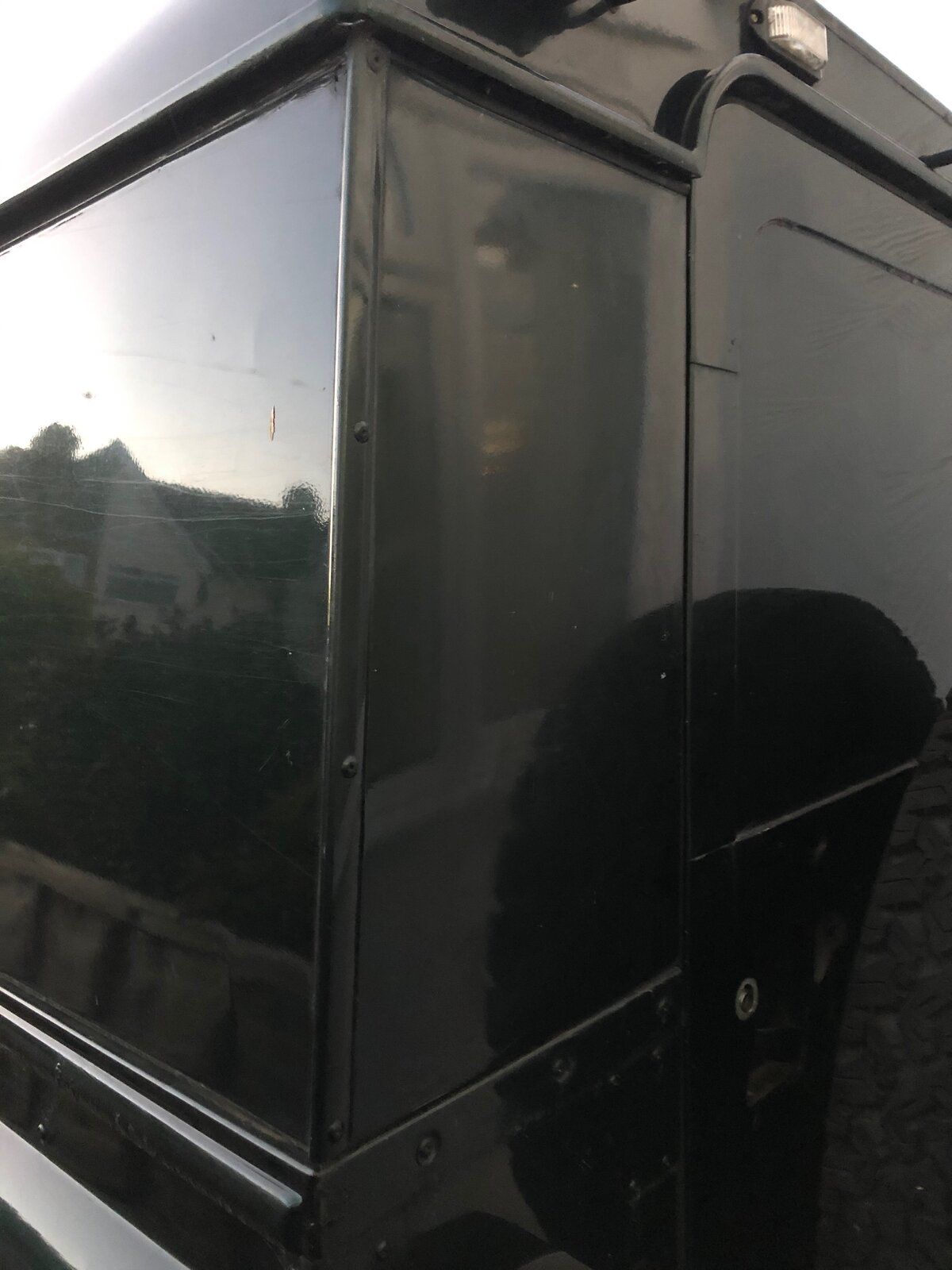

    And the rest of it:
    IMG_3679.jpeg IMG_3678.jpeg IMG_3677.jpeg

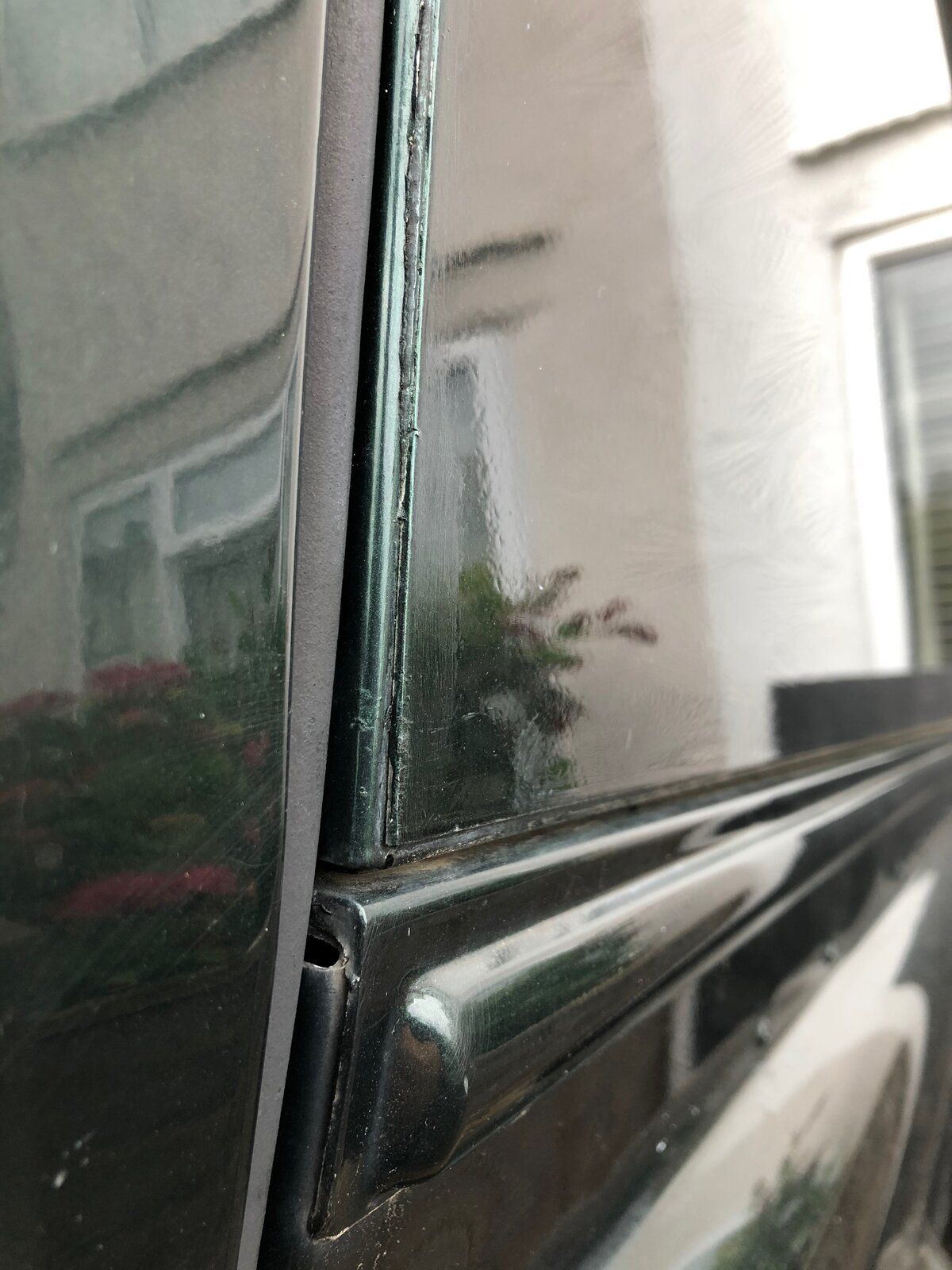

    It's a flat panel on the outside but it seems to sit slightly proud of the rest of the bodywork. also, on the inside the rivets look a little oddly placed but it does have a capping on the outside. I was starting to think that they just added an extra panel over the other one and fudged a capping on it, but looking at this video (www.youtube.com/watch?v=P6uE6YMAMpQ) they seem to have the same thing, only held on with rivets.

    Is this common on the vehicles, do they all have two panels on the back? If it's not normal then could anyone share there opinion on this? It looks like the extra panel is only held on with adhesive, which seems weird. I need to figure it out because I want to put windows in the back and I know it won't work if the depth of the cutout in the panel doesn't match the depth of the window kit.

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,063
    Likes Received:
    15,186
    Location:
    louth lincs
    someones just panelled over the original sides that had windows,same in your link

  3. tango90

    tango90 Member

    Joined:
    Feb 28, 2019
    Posts:
    34
    Likes Received:
    9
    Location:
    Ireland
    Looks like it might have been done at the factory to make the 110 utility by covering the rear windows on a standard station wagon.

  4. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,435
    Likes Received:
    2,381
    Location:
    South London/North Kent
    Or previously had landyglass which was replaced!

  5. Twinnie

    Twinnie Member

    Joined:
    Jun 19, 2020
    Posts:
    12
    Likes Received:
    2
    Location:
    London
    Nice to have confirmation that I can look into removing it. It looks like there did used to be glass in there because it looks like the rivets were drilled out. Even the glass in the rear door has been removed, I’m guessing it was to stop animals from smashing it while being transported. I was planning on replacing the capping on one side so now I’m thinking about removing the whole thing and squeezing it into my garage so I can get all this done in one big job. Thanks for the help.

  6. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,992
    Likes Received:
    492
    Location:
    Lost
    Personally, I would look to buy a set of rear sides with windows already in. Sell the ones you have as being “modified”, to be like utility sides, you may be surprised what someone is willing to pay for them. I picked up a set or series sides that I’m converting and painting, to replace my CSW sides. It’s quite a common swap.

  7. Twinnie

    Twinnie Member

    Joined:
    Jun 19, 2020
    Posts:
    12
    Likes Received:
    2
    Location:
    London
    I like that idea. Looking on eBay the sides don’t seem too expensive and I could prepare them before without having a Defender sat there with no roof. Plus I wouldn’t have to buy the window kit.

    mick 1986 likes this.
