Gents,
a quick and easy one, having just had a lovely set of brand new doors fitted to my 1986 90, i thought i would fit the door cards correctly with all the proper fittings, rather than drill holes in my lovely new doors.

but can i find the correct fittings,

i have these door cards


and they just have holes on the edges to put screws through. When I look at all the diagram's online then show to us these.



but i can't use them as the black part clips to the back of the card on a fitting that's not there and there is not supposed to be on those model of door cards. it comes on the later ones.

Help what's the correct fitting.

Gents,
a quick and easy one, having just had a lovely set of brand new doors fitted to my 1986 90, i thought i would fit the door cards correctly with all the proper fittings, rather than drill holes in my lovely new doors.

but can i find the correct fittings,

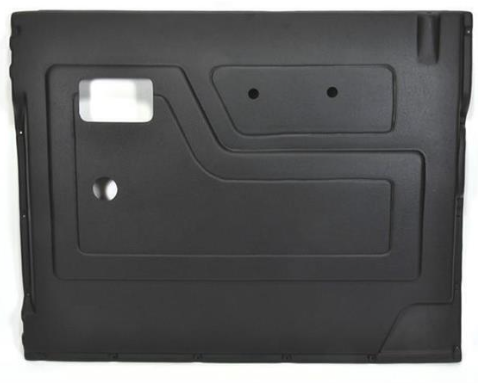

i have these door cards

View attachment 312756
and they just have holes on the edges to put screws through. When I look at all the diagram's online then show to us these.

View attachment 312757

but i can't use them as the black part clips to the back of the card on a fitting that's not there and there is not supposed to be on those model of door cards. it comes on the later ones.

Help what's the correct fitting.

This is what I have in my older parts catalogue (1987). Does this help with the part numbers for fasteners or are they the same as the ones you have? for the military door cards I have fitted (i know a series style split door so is different) you have to drill holes in the frame to then fit the plastic "rivets" to hold the door card in place. was not too happy about that with my brand new galv doors!


Attachments

  • 1710668039863.png
    78.5 KB · Views: 38
