Dog guard for Defender 90.

Glack Attack · Mar 17, 2024

Good Evening All!
I am Matthew and finally purchased my dream 2013 Defender 90 in October last year. Just getting round to doing some additions at the moment. I purchased this dog guard from John Craddock, https://www.johncraddockltd.co.uk/l...artition-less-bulkhead-from-vin-7a000001.html . I have fitted the bottom half now and it is solid, however, the top half I think requires the door card or grab handles to be removed for the brackets to be fitted? Has anyone ever fitted one of these? Thanks in advance.

lynall · Mar 17, 2024

Welcome to LZ.

Pics of what you have fitted so far might help people envisage what you need.

Glack Attack · Mar 18, 2024

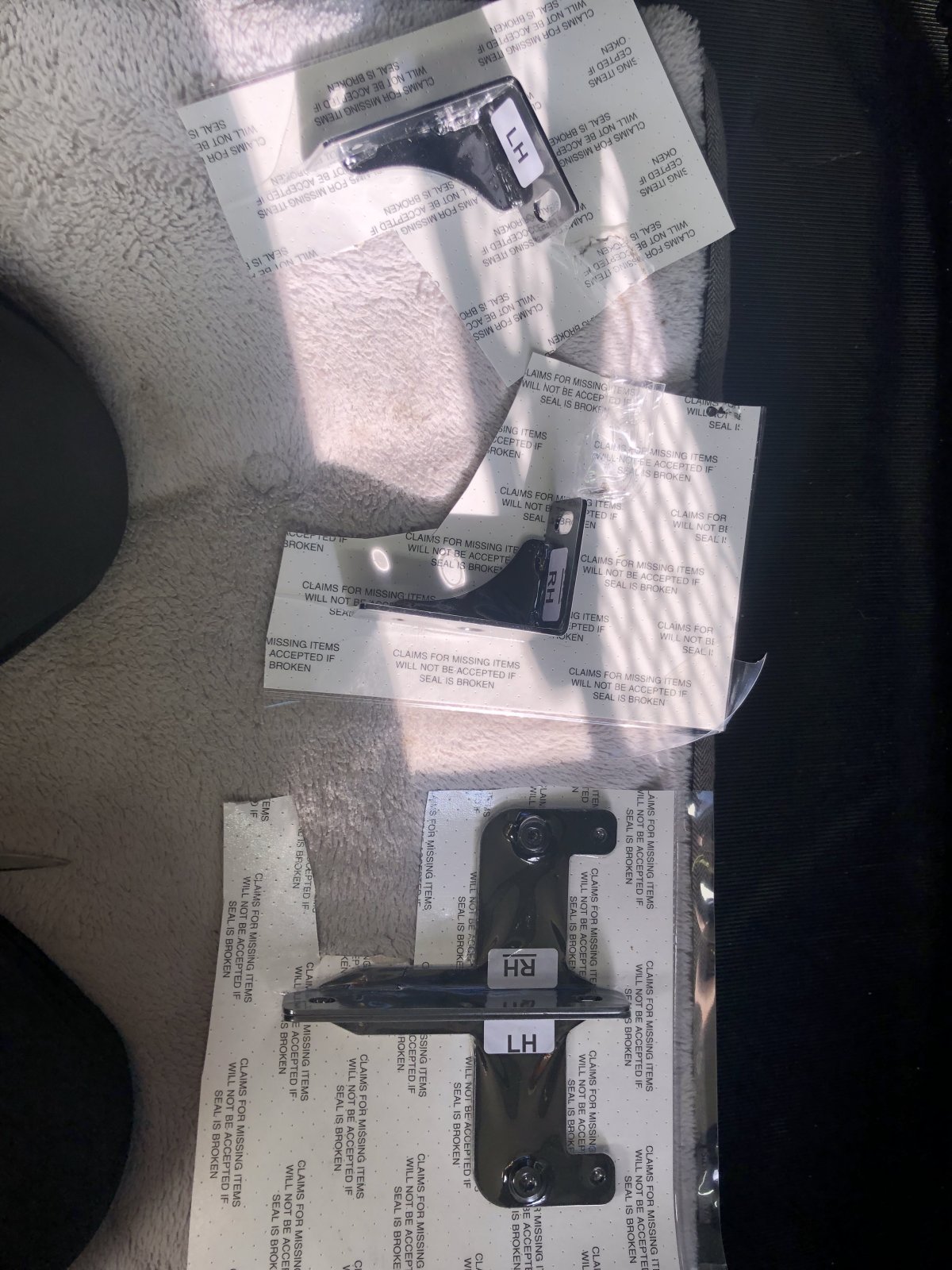

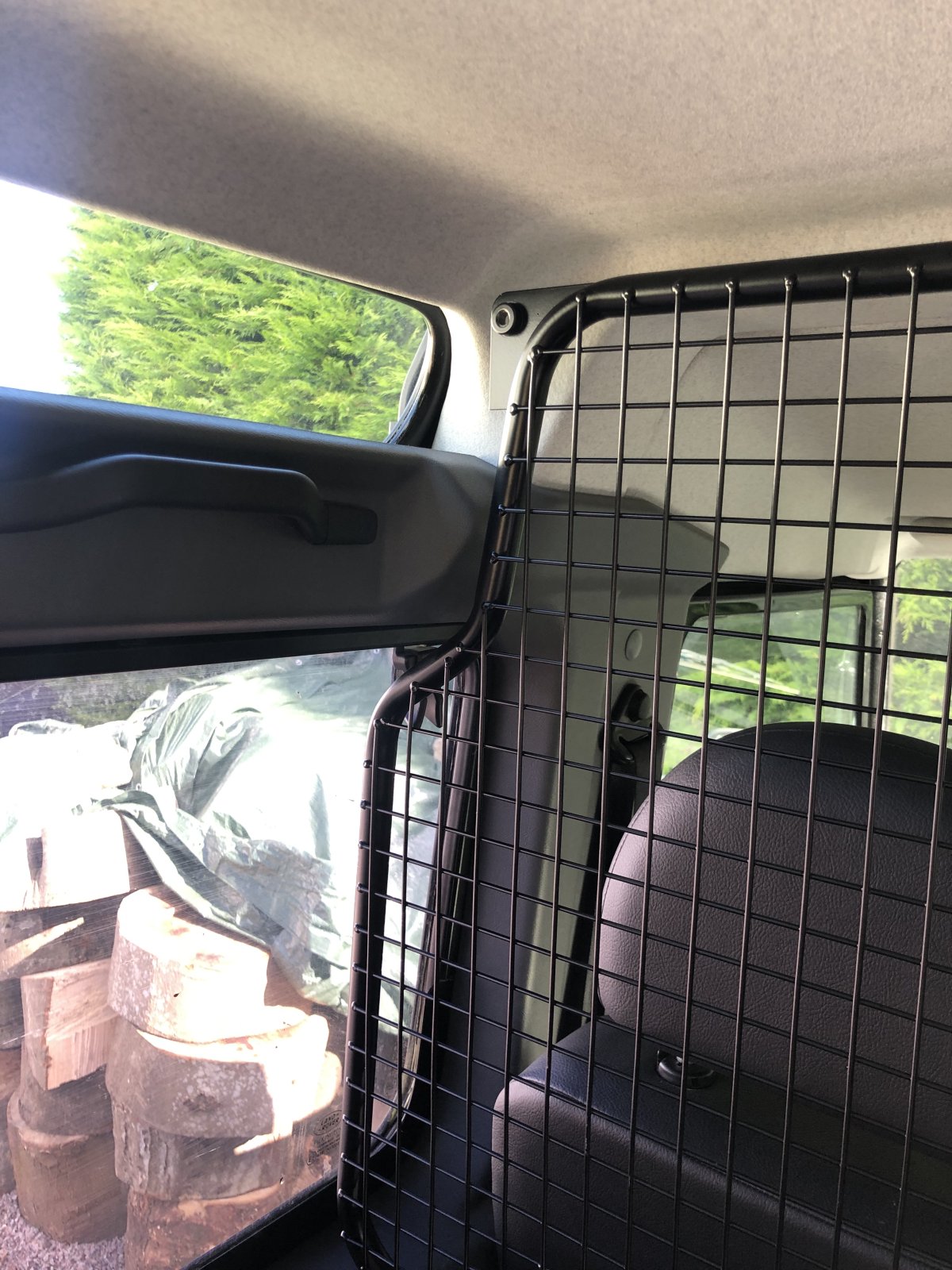

Hi there. Thankyou for taking the time to reply. Here is pictures of the remaining brackets to fit and a picture of where the guard has to go.

Glack Attack · Mar 18, 2024

Hi again. Have worked it out. Studied the supplied diagrams some more and the door card needs to come off and this gives access for the fixing points. This ain’t coming off ever again!! Lol. Thanks for reading

Anaconda · Mar 18, 2024

Are the bits of paper templates?
If so that gives the impression you put the brackets behind the headlining and then make a hole in the headlining and fixing bolt goes through the headlining and into the bracket.
If that is correct then its a bit of a faff, what about instructions that came with it?

Anaconda · Mar 18, 2024

Post some pictures when you have done it.

Glack Attack · Mar 18, 2024

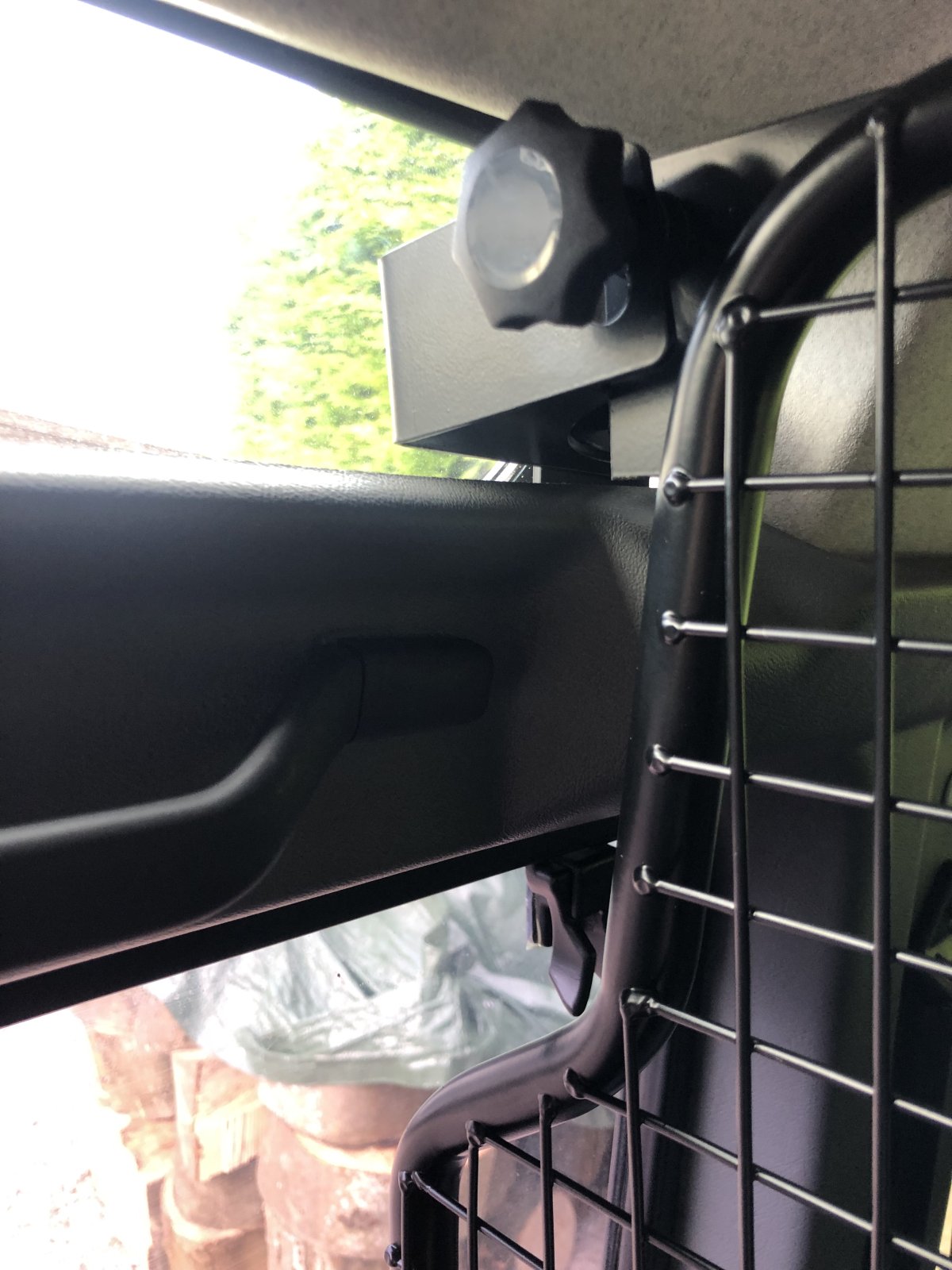

Here is a picture of the final brackets in place. No drilling was needed. The headlining, grab handles and seat belts have to come off then in behind, is two hidden bolts for the brackets. For any future purchasers, the brackets are labelled up left hand and right hand but these are incorrect and are to be fitted to the opposite sides. Hope this helps.

marjon · Mar 18, 2024

Glack Attack said:
For any future purchasers, the brackets are labelled up left hand and right hand but these are incorrect and are to be fitted to the opposite sides. Hope this helps.

Which way were you facing at the time

.

Glad your sorted, sure it will help somebody at some point, all info is good info

.

J

Anaconda · Mar 18, 2024

Glack Attack said:
Here is a picture of the final brackets in place. No drilling was needed. The headlining, grab handles and seat belts have to come off then in behind, is two hidden bolts for the brackets. For any future purchasers, the brackets are labelled up left hand and right hand but these are incorrect and are to be fitted to the opposite sides. Hope this helps.

Thought it would be silly to have to cut holes in things.
