Discovery Sill Replacement

Discussion in 'Land Rover Discovery' started by Paul D, Apr 4, 2010.

< Previous Thread | Next Thread >
  1. GreenHornet

    GreenHornet Well-Known Member

    Joined:
    Feb 19, 2011
    Posts:
    1,361
    Likes Received:
    2
    Location:
    Fleet, Hampshire
    See my thread mate. All there.

    Cut out your rust. Try and keep as much of the sill sides as you can. No point in cutting away good metal. Make your box section 60x100 and cut as I stated above. 1400 long is fine but I made mine slightly longer and offered up prior to sloping the rear.

    Weld in along seam and top edges. Any questions just pm me or post so others can see and help too.

  2. FAAace09

    FAAace09 New Member

    Joined:
    Oct 9, 2011
    Posts:
    63
    Likes Received:
    0
    Location:
    essex
    how thick are the box sections gez ??

  3. GreenHornet

    GreenHornet Well-Known Member

    Joined:
    Feb 19, 2011
    Posts:
    1,361
    Likes Received:
    2
    Location:
    Fleet, Hampshire
    My box section was 3.2mm. Plenty thick enough and I will be welding I tree sliders ASAP so they will take that strain easily too

  4. The V8 man

    The V8 man Well-Known Member

    Joined:
    Apr 5, 2011
    Posts:
    1,950
    Likes Received:
    17
    Location:
    Redhill Surrey
    The box section i used to replace my sills was 120mm x 60mm which is a perfect fit just cut it to length.

  5. itsme124

    itsme124 New Member

    Joined:
    Feb 9, 2010
    Posts:
    33
    Likes Received:
    0
    does any one rate these easy on seal sections you can buy on ebay the kinda just cover over the seals and weld on ! mine arnt bad but this year will have to be done ? just thinking will make lift easier ... ??

  6. itsme124

    itsme124 New Member

    Joined:
    Feb 9, 2010
    Posts:
    33
    Likes Received:
    0
    or failing this ^^^^^^^^^ does any one in the south west do these and how much to do mine :p :D

  7. nick2303

    nick2303 Well-Known Member

    Joined:
    May 17, 2010
    Posts:
    4,255
    Likes Received:
    3
    Location:
    Leeds (not by choice)
    i used em on mine.

    i cut away most of the crap and these fit fine... simple to do... 1st welding i'd ever done on a car...

  8. itsme124

    itsme124 New Member

    Joined:
    Feb 9, 2010
    Posts:
    33
    Likes Received:
    0
    ideal maybe these are the way forward and they are alot cheaper and easier to fit if the rot aint to bad lol asyou get a sill kit inner and outter and pillers for like £127 ... and then mounts about £30 per side ........

  9. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,514
    Location:
    Doncaster
    Sorry I've not replied to any of this for a while. Not been well, Disco on SORN and various concerns with life in general ...

    Any road up, the Disco sailed through MOT .. except I'd forgot to put ARB's back on .. so had to have a re-test!

    I'll take some pictures tomorrow, or over the weekend as we're off up onto Rudland Rigg .. well seeing son in Middlesboro uni but it'd be rude not to visit the North end, at least, of RR while we're so close ..

    Basically all I did to finish the sills was as it shows earlier to both sides, welded metal plate to body mounts where they were rusty, two at the rear cross-member were shot, then undersealed it all .. didn't bother even grinding back the welds, just cleaned it all up properly before under-sealing! It's now not our daily drive so doesn't need to be special, other than for laning and offroading. No rot in the boot floor, or cabin floor, non in the engine bay so not much else to say, it's a straight Disco ... ;)

    Be getting out on the lanes again soon, did a few locals the other day just to check everything out and 'get a feel' again .. I like the extra grip taking the ARB's off gives .. So hope to see some of you out again soon .. ;)

  10. GreenHornet

    GreenHornet Well-Known Member

    Joined:
    Feb 19, 2011
    Posts:
    1,361
    Likes Received:
    2
    Location:
    Fleet, Hampshire
    Glad you are back in the Disco again having fun.

  11. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,514
    Location:
    Doncaster
    Cheers GH. Liked the write-up of your build, very entertaining with some good choices (and reasons for the choices) which might help a few others 'do it right' too .. ;)

  12. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,514
    Location:
    Doncaster

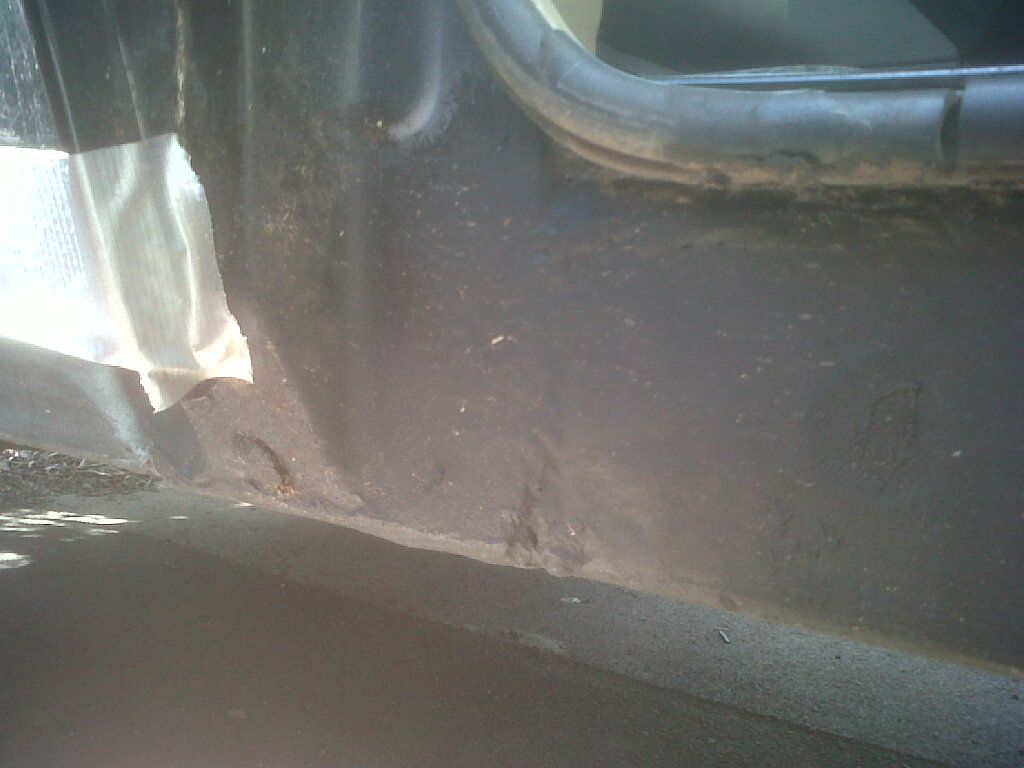

    To finish, just been out to take a few pics of the finished articles .. all undersealed so notalot to see ..

    Pics show both sides and in front of the rear wheels all filled and solid and one rear body mount .. all with some residual sand on due to <cough> testing ... ;)


    Attached Files:

    • 002.jpg
      File size:
      139.2 KB
      Views:
      2,257
    • 004.jpg
      File size:
      115.4 KB
      Views:
      2,007
    • 010.jpg
      File size:
      137.7 KB
      Views:
      1,952
    • 011.jpg
      File size:
      108.4 KB
      Views:
      1,938
    • 009.jpg
      File size:
      102.3 KB
      Views:
      1,842
    • 008.jpg
      File size:
      145.3 KB
      Views:
      1,902
  13. THE BUDDAH

    THE BUDDAH New Member

    Joined:
    Jan 13, 2009
    Posts:
    686
    Likes Received:
    0
    Location:
    Romford essex
    Hello greenhornet,

    was this done because the inner sill was still in place?
    I was under the impression from other threads on here that the box section would fit straight on.

    cheers.

  14. GreenHornet

    GreenHornet Well-Known Member

    Joined:
    Feb 19, 2011
    Posts:
    1,361
    Likes Received:
    2
    Location:
    Fleet, Hampshire
    I kept my inner sill intact where it had strong metal, with discos how they are I couldn't bare to remove good metal lol.

    My thinking was also that the inner sill would give evermore rigidity to the sill area which proved correct last weekend. I still haven't sorted my tree sliders out yet so my passenger door was caved in straight onto the sill. However all the strength of the metal meant only the door was sacrificed.

    Once I put the box section in place I seam welded around the edges of the original metal and puddle welded the top. Lasted perfectly for the last six months hard labour!

  15. discodaddy7

    discodaddy7 Member

    Joined:
    Jun 15, 2012
    Posts:
    12
    Likes Received:
    0
    Location:
    Lancashire
    Hi, just read this after spending two days welding the sills on my 93 200disco and i'm a bit gutted I never saw it before or I would have cut my sills clean off and done this instead very good idea, think i will wait till next require welding as I put a good bit of welding on mine. spanking job you have done there tho hats off to you.

    Last edited: Jun 15, 2012
  16. Big DJ

    Big DJ New Member

    Joined:
    Oct 19, 2011
    Posts:
    15
    Likes Received:
    0
    Location:
    Heathrow
    If anyone is in need of replacement sills I have a pair available. I got my mate to make them for me and told him I wanted 2. He did me 2 pairs!!!

    They have been made with rock / tree sliders already attached. If I remember rightly they just need the ends of the box section capping and then a lick of paint.

    If anyone is interested drop me a pm and ill sort some pics.

  17. stubradley1

    stubradley1 Active Member

    Joined:
    Jul 18, 2010
    Posts:
    233
    Likes Received:
    0
    Location:
    Coleford,Gloucestershire
  18. goldentiler

    goldentiler New Member

    Joined:
    Sep 16, 2008
    Posts:
    3
    Likes Received:
    0
    Location:
    Mansfield
    Hit here guys looking to get sills replace on my TDi 300 , I live in ollerton Mansfield area,
    Do you know any guys who can do me a great job
    Paul

  19. goldentiler

    goldentiler New Member

    Joined:
    Sep 16, 2008
    Posts:
    3
    Likes Received:
    0
    Location:
    Mansfield
    Hi have you still got the sills, after some for my TDi. 300 want someone to fit them
    Paul

  20. patmac

    patmac New Member

    Joined:
    Jan 10, 2013
    Posts:
    36
    Likes Received:
    0
    Location:
    ireland

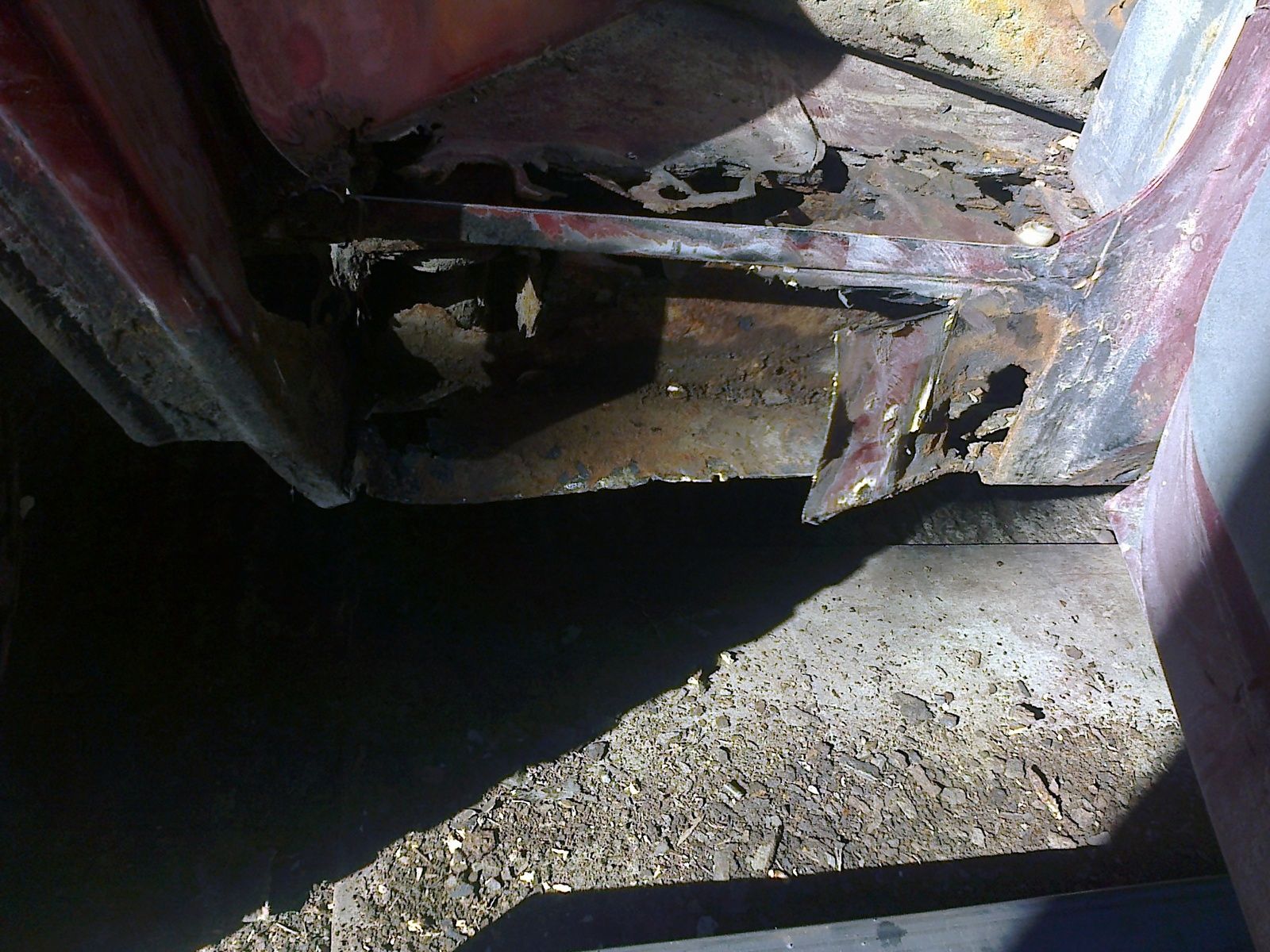

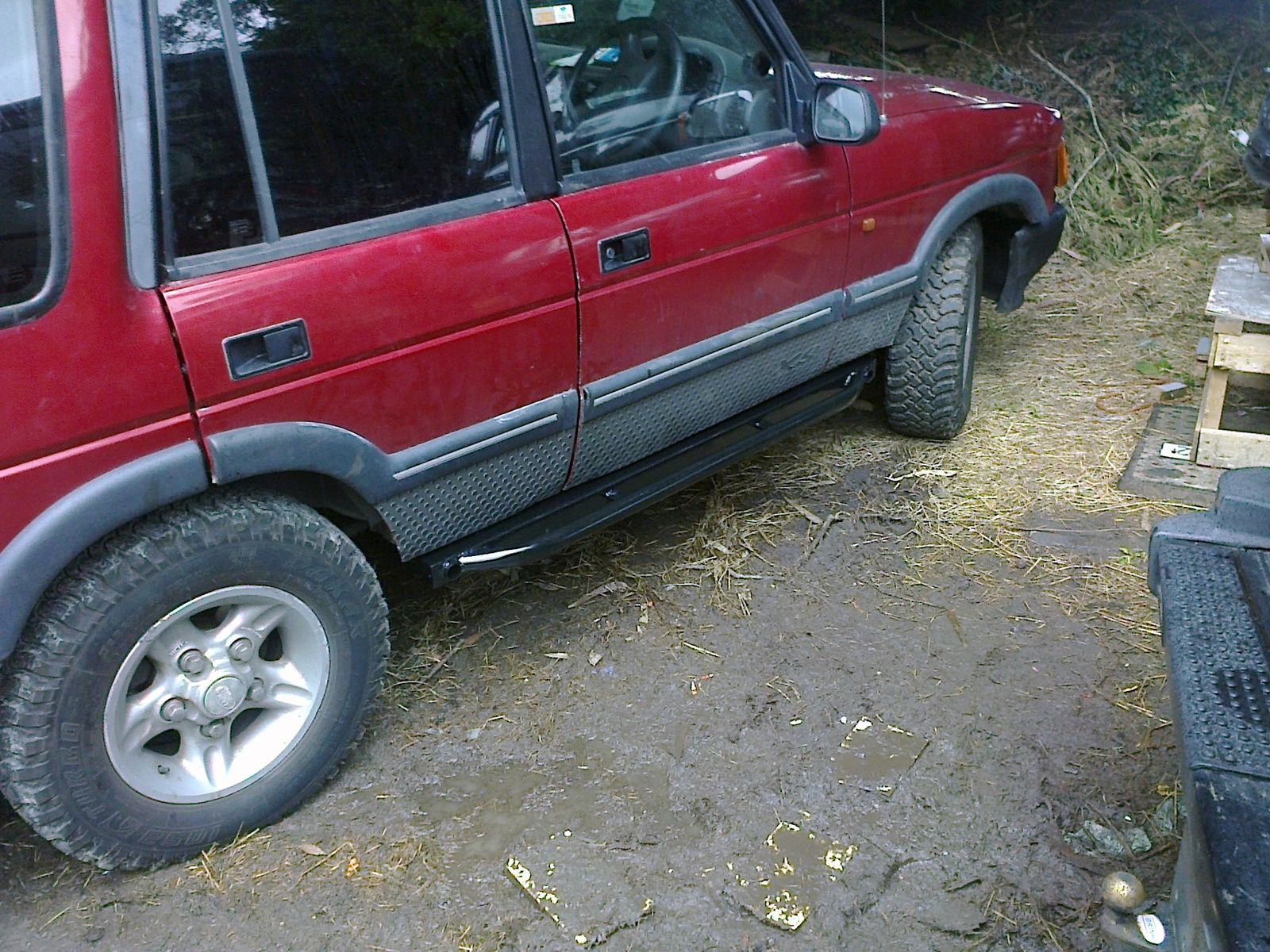

    Had no choice but to "steel" this idea


    Attached Files:
