Discovery 300tdi Brake upgrade

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Jottie

Jottie

New Member
Posts
8
Location
Hertfordshire
I would like to upgrade my front brakes from solid discs to vented discs, I am guessing all I need is RTC6776/6777 calipers and vented discs. Is this a straight swap or is there any issues that I may run into.

Thanks in advance

Jottie said:
Like the sound of that Will I still be able to run 15” modulars ? Thanks
Click to expand...

Id guess yes....the discs are the same dia. I have them on mine with 16s and nothing is close to touching a wheel.

And a decent set of pads....not some £6 a set carboard pads....but no need to go over the top either.

EeEk said:
Id guess yes....the discs are the same dia. I have them on mine with 16s and nothing is close to touching a wheel.

And a decent set of pads....not some £6 a set carboard pads....but no need to go over the top either.
Click to expand...
I’ve always run EBC green stuff on most cars I’ve had so it will be along those lines, thanks for your help

Did this to mine a good while ago, probably 8-10 years ago.

Do a search as I put up all the part numbers etc that you need for the conversion.

I did mine a few weeks ago using disco vented disks and 110 calipers.
part numbers
Front caliper left SEB500470
Front caliper right SEB500460
Disks front FTC902


Attachments

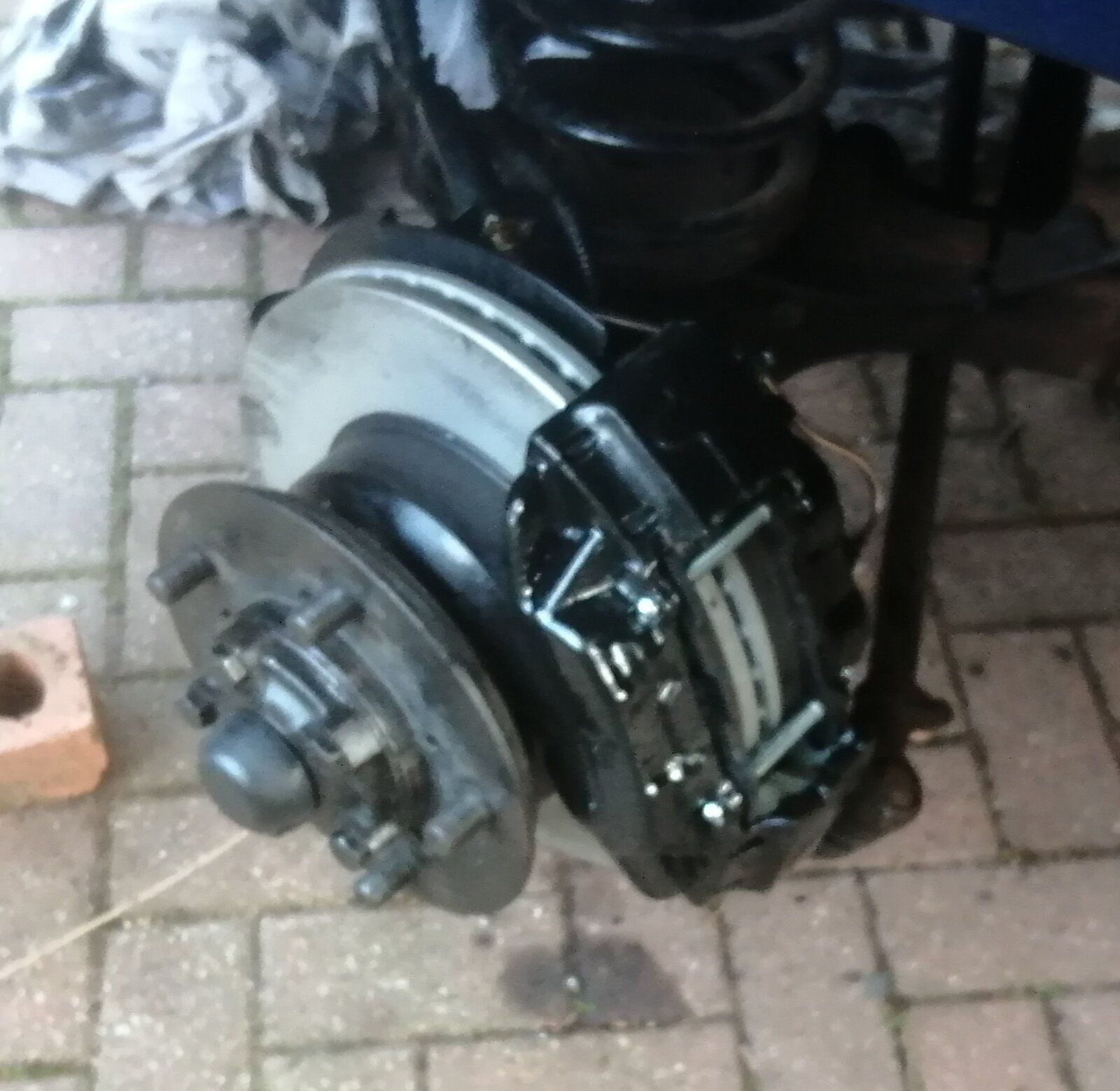

  • IMG_20210422_102134.jpg
    221.8 KB · Views: 254
I thought V8s came with them as standard.?
I know my 300tdi Anniversary had them when I got it, but that might only have been because it is an Anniversary. ;)

Lo
triumphman said:
I did mine a few weeks ago using disco vented disks and 110 calipers.
part numbers
Front caliper left SEB500470
Front caliper right SEB500460
Disks front FTC902
Click to expand...
Looks the business, I found StuRox list of parts and yes same calipers and discs so thanks. Did you have to change the calipers steel brake pipe to 110 pipes or do the disco ones still fit?

Last edited:
StuRox List


1 x Front Brake Pads 110/130 86- - Part No STC2952

1 x Front Brake Discs (2) Drilled & Grooved 110/130 1994 on - Part No DA4602

1 x Front Brake Pad Fitting Kit (Vented Discs) - Part No STC8575

1 x Caliper Front LH 110/130 94- (Vented) - Part No SEB500470

1 x Caliper Front RH 110/130 94- (Vented) - Part No SEB500460

5 x Front Brake Caliper Bolt Metric (Double Hex) - Part No FTC3375

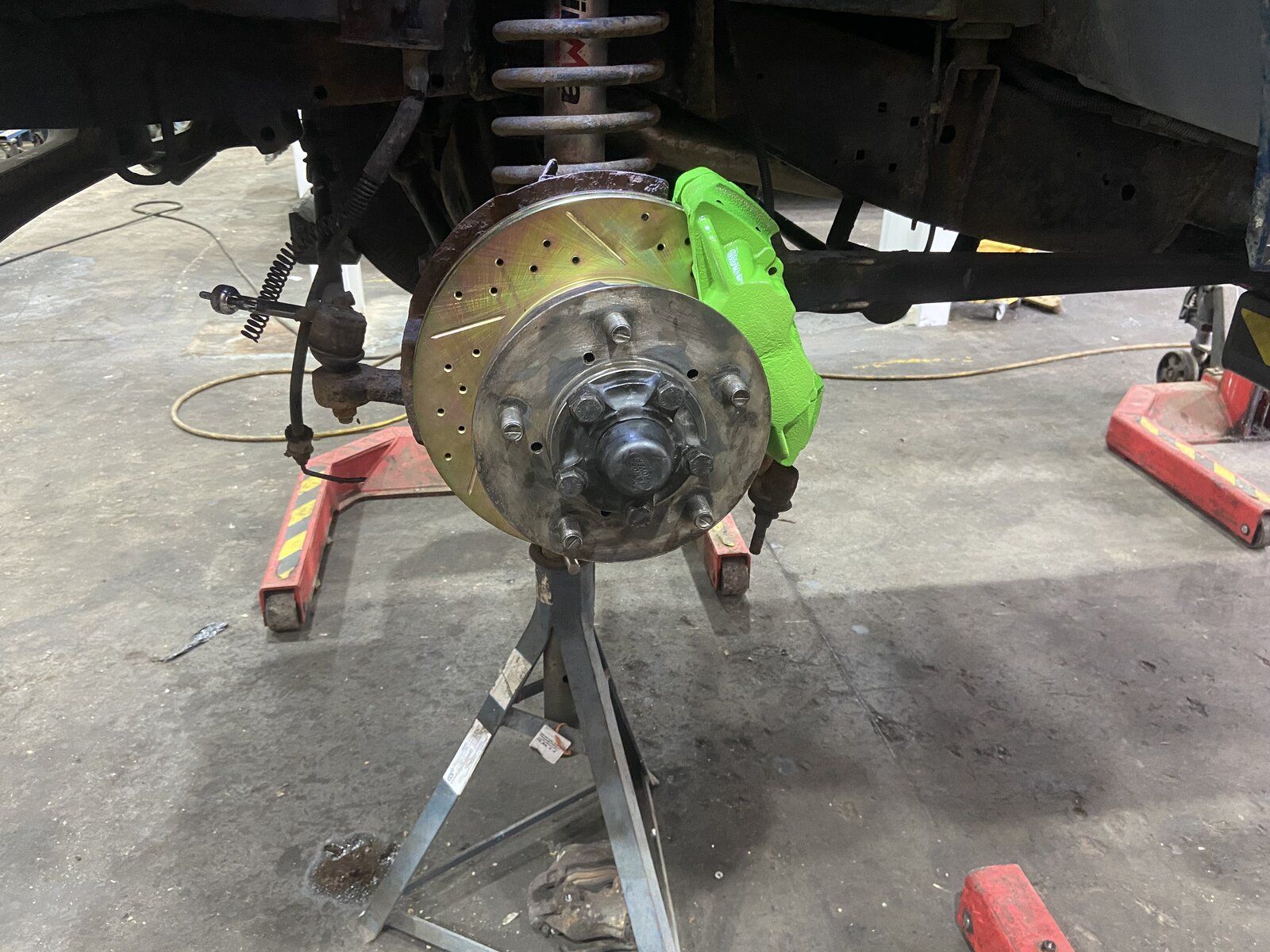

I extended my brake lines with braided hoses when I changed mine as I was in the process of a 2inch lift
