disco 2 front springs,

car sits 50mm less on drivers side than passenger side, 04 do you think new springs will sort it out? and how about any recommendations on springs!

Did you set the back to be of equal height?

Cheers

neilly said:

Did you set the back to be of equal height?

Cheers

Click to expand...

yeh! measured from centre cap to underside of the arch, spot on, used my Hawkeye!

So the back is equal but the front is lopsided? on a flat level road?

yeh air on rear! coils on front

discodrivercumbria said:

yeh air on rear! coils on front

Click to expand...

As would be expected, otherwise you would not have set the rear suspension using your hawkeye...LOL

Cheers

neilly said:

As would be expected, otherwise you would not have set the rear suspension using your hawkeye...LOL

Cheers

Click to expand...

its the front in question not the rear, am i right in thinking they are handed too!,

Not according to RAVE, springs are listed in there,

Surprised that you have equal height at back and a 50mm tilt at the front, was it always like that?

Cheers

neilly said:

Not according to RAVE, springs are listed in there,

Surprised that you have equal height at back and a 50mm tilt at the front, was it always like that?

Cheers

Click to expand...

ive equaled the rear up tonight, as rear pass side was down, but front drivers side is down, odd! it's the 1st one ive ever had on air, had it 6yr now, but it wanders over the road now and again, tramlining!! ive tried alsorts to stop it, shocks,tyres, pressures, linkage bushes, watts, everything, so tonight i plugged it in, been a while and no faults at all on owt, so had a mess and levelled it up on the rear, now front is down on drivers side, have sort of noticed, so gonna get 2 new springs and do it

I would take it for a drive on a nice flat carpark, do a bit of a slalom, let it all reset and then measure again,

Approx 473mm on the back and 500mm on the front.

Cheers

But then if you look, it would appear there are different part number for LH and RH springs, so maybe they are handed.
https://rimmerbros.com/Item--i-GRID010213
CHeers

neilly said:

I would take it for a drive on a nice flat carpark, do a bit of a slalom, let it all reset and then measure again,

Approx 473mm on the back and 500mm on the front.

Cheers

Click to expand...

but would you not think the fronts have got a bit tired too? the 473mm sounds about right, my drive is level just that i am gonna put new shocks alround, as the super gaz squeak like fook, it has done my head in, the shaft inside, ive taken em off and lubed em once, cured it for a month or so, but doing it again, on all 4! so going back to hydrolic, so whilst ive it in bits new springs i think, you reco any!

They are indeed handed.
There’s a chance the spring could have become coil bound if it’s leant for a while

discodrivercumbria said:

but would you not think the fronts have got a bit tired too? the 473mm sounds about right, my drive is level just that i am gonna put new shocks alround, as the super gaz squeak like fook, it has done my head in, the shaft inside, ive taken em off and lubed em once, cured it for a month or so, but doing it again, on all 4! so going back to hydrolic, so whilst ive it in bits new springs i think, you reco any!

Click to expand...

See post #11, never needed to fit std springs on the D2.

Cheers

neilly said:

See post #11, never needed to fit std springs on the D2.

Cheers

Click to expand...

just looked on island 4x4, as been said they are handed, theirs are britpart, are they anygood?

I used Britpart on the front of my D2, and ever since I've regretted it as they're too harsh and jumpy. I'm going to replace them with OEM's when I get some spare cash.

Have to love RAVE at times. Depending on the age of the vehicle.03 MY onwards the springs changed,

Suspension pages



General information pages.


Cheers

neilly said:

Have to love RAVE at times. Depending on the age of the vehicle.03 MY onwards the springs changed,

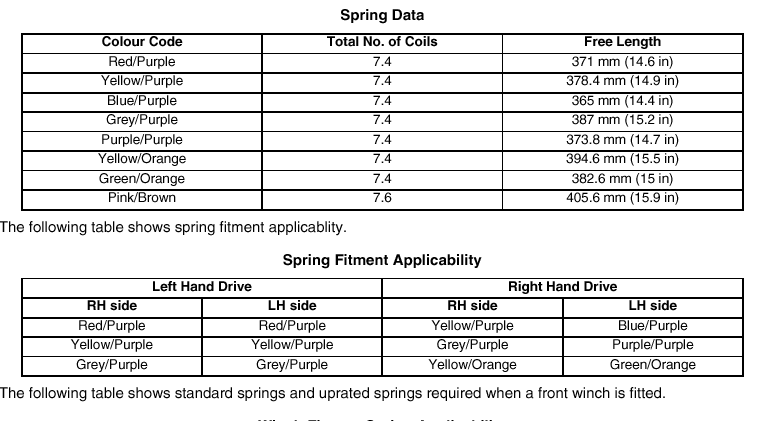

Suspension pages
View attachment 145852

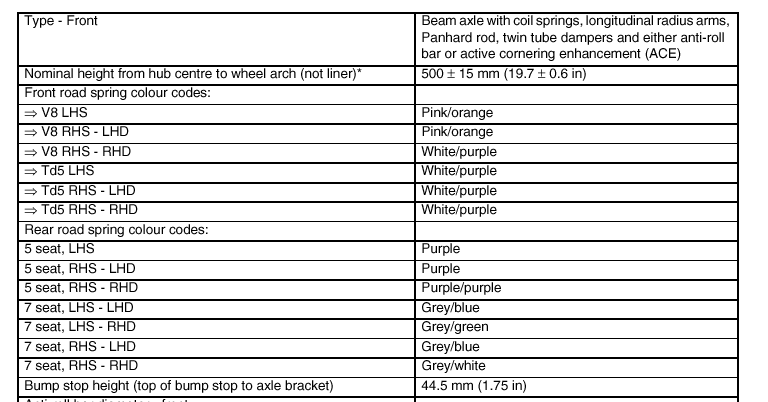

General information pages.
View attachment 145853

Cheers

Click to expand...

thats confused me more! lol 2004 7 seater!

Can you still see the colour bands on your current coils?

Shimsteriom said:

Can you still see the colour bands on your current coils?

Click to expand...

i will have a look tomoz, good idea! cheers
