Disco 2 Disco 2 Facelift Headlights

Discussion in 'Land Rover Discovery' started by DefenderPilot, May 11, 2022.

< Previous Thread | Next Thread >
  1. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    819
    Likes Received:
    430
    Location:
    Shetland
    Has anyone successfully taken these apart? I've been fiddling for hours with one of mine and I can't see how they come apart, if indeed they do. I want to get at the levelling motors to see if I can fix them. Mine seemingly didn't work on my project Disco but I managed to get them to work for a short time this afternoon but they got slower with each operation until they stopped working again.

  2. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    28,742
    Likes Received:
    63,640
    Location:
    East Dorset
    I tried and failed, to do that on my Disco 1's. They are basically not designed to be easily taken apart. so maybe yours are the same. As with most of this stuff, decent contacts and a lube job is about all you'll be able to do I expect. :(

  3. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    819
    Likes Received:
    430
    Location:
    Shetland
    The motors are inside the light unit so to do anything with them I'd need to open them up. Given the ridiculous price of 2nd hand units, never mind new, I was hoping to be able to fix them.

  4. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    11,085
    Likes Received:
    5,116
    Location:
    Worcester
    I took the expensive route to do it, but you could try a low oven to loosen the glues, around 60 degree or so.

    Or a hot air plastic welder on the seam.

  5. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    11,085
    Likes Received:
    5,116
    Location:
    Worcester
    How much are SH units nows?

  6. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    819
    Likes Received:
    430
    Location:
    Shetland
    About £150 each for good condition.

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    15,468
    Likes Received:
    2,843
    Location:
    Arad
    Unfortunately there are no instructions but seems that if you are handy enough they can be disassembled how to replace facelift headlight level motor , try to PM that guy cos he vas active on this forum not very long ago

  8. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    11,085
    Likes Received:
    5,116
    Location:
    Worcester
  9. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    11,085
    Likes Received:
    5,116
    Location:
    Worcester
    Have to be excellent for that price! Like new!

    I think I paid less that double that

  10. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    819
    Likes Received:
    430
    Location:
    Shetland
    Thought I'd update this thread with a bit of info for anyone interested.

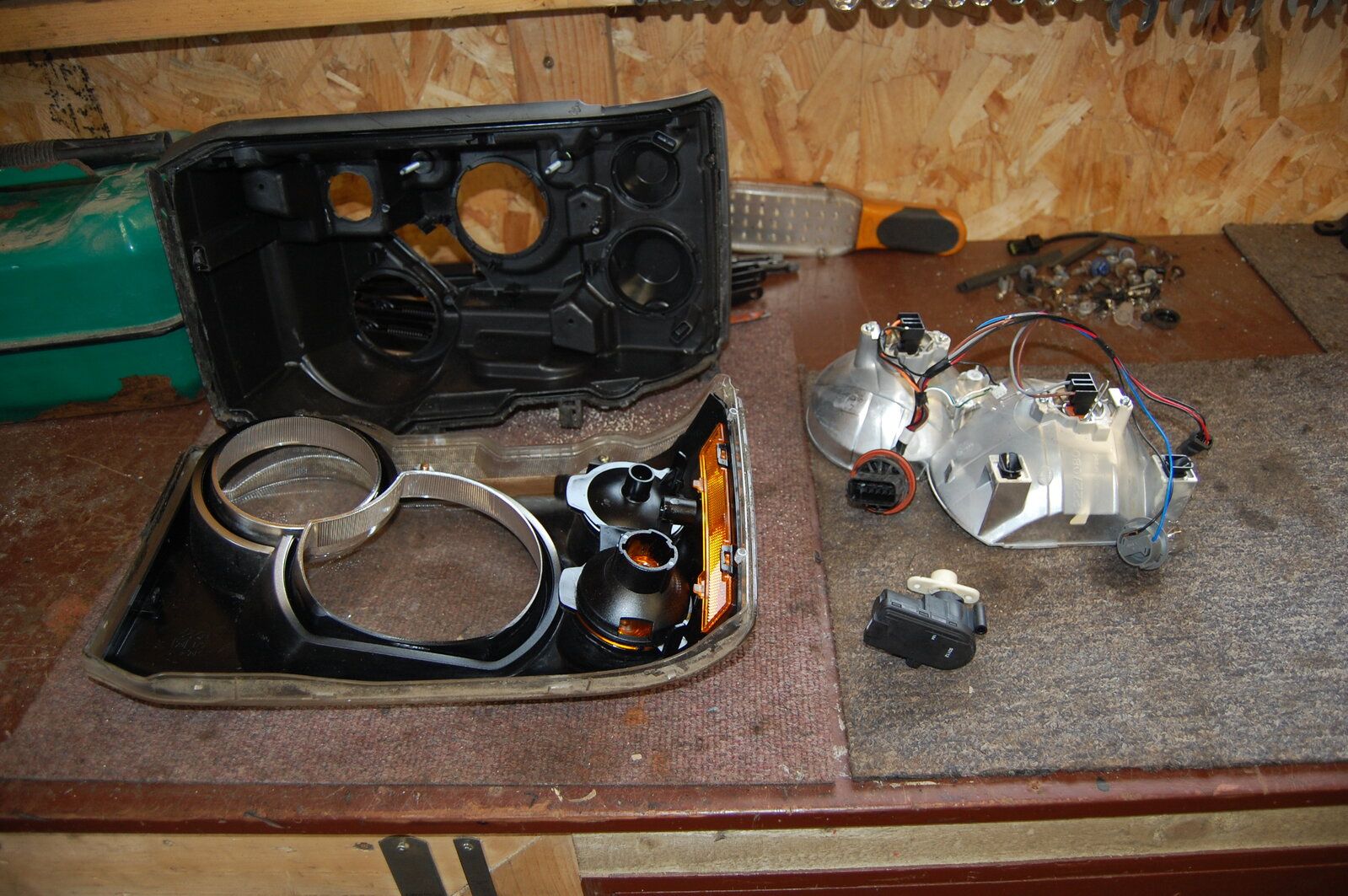

    It can be done but it breaks things. Having managed to prise apart a knackered unit I can see from how things are assembled inside that it was never meant to be taken apart again. The levelling motor was completely inaccessible behind the lens. To get the lens out required force enough to flex and crack it and it also pulled the threaded adjuster out of the motor unit.


  11. Andy Warren

    Andy Warren Well-Known Member Full Member

    Joined:
    Jun 27, 2017
    Posts:
    1,174
    Likes Received:
    548
    Location:
    Hertfordshire
    Good effort but I'm glad I own a non facelift D2 & would never entertain upgrading it to look like a 'facelift model even if the lights were a tenner each (as they've probably been pinched out of some poor sods D2:mad:.
    On another note my facelift FL1 has the same thing with the motors bonded in the H/L whilst for the pre facelift ones the motors are available separate (which is the way it should be). Good luck with this.

  12. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    819
    Likes Received:
    430
    Location:
    Shetland
    I did end up biting the bullet and buying a 2nd hand pair. If I need to replace them in future I'll be reverting to pre-facelift headlights or mounting an off the shelf round headlight inside the case.

    Andy Warren likes this.
  13. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    11,085
    Likes Received:
    5,116
    Location:
    Worcester

    What did that come to?

    I just bit the bullet after seeing second hand ones
