hi everyone my first post on here so here goes

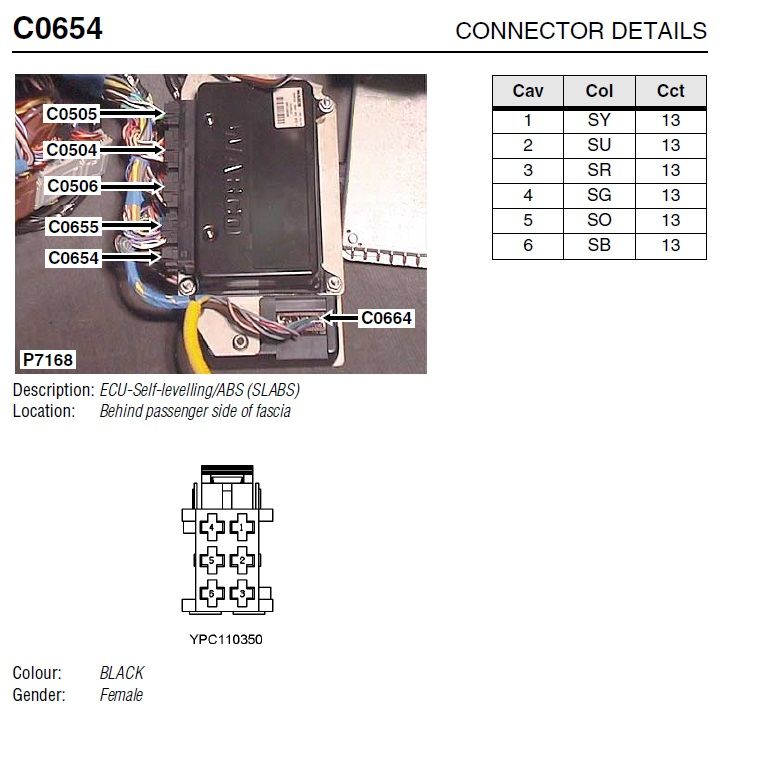

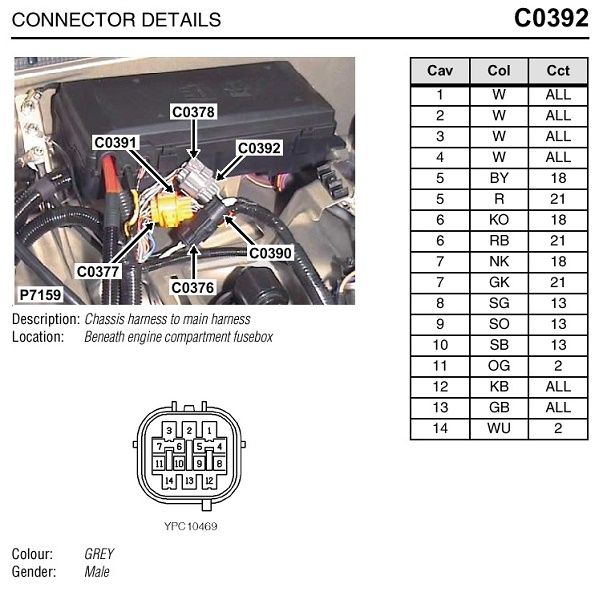

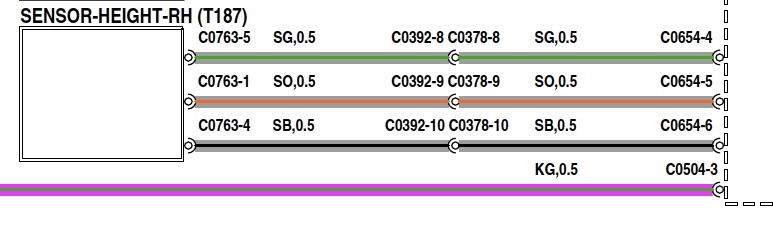

Amber light constantly on for suspension nanocom says no fault found but when I went in to slabs outputs the right sensor value reads 0 left was on 70 voltages where 4.8 and 5.1 which I'm sure is ok .new sensor fitted to the right this week also disconnected sensor linkage and manually moved it up and down while watching nanocom readout which stayed on zero . Also tried another slabs module but no different showed same readout . Swapped compressor and solenoid valve but that didn't help . air bags are 6 months old all the bits swapped before I got the nanocom . I can blow up left side with nanocom although it says target height not reached if you repeat a few times it keeps going up . Right side will not inflate at all if I switch pipes on the solenoid valve right hand will lift . My gut feeling is faulty connection or broken wire between ride height sensor and slabs module anyone have experience of this before or where I should look or am I barking up the wrong tree . As they say a little knowledge is dangerous ! I know I could stick some springs on but past experience with the defender I had to put heavy duty springs on to cope with the weight and the ride was too hard for any sort of comfort . I do a lot of 200 mile round trips and when it's working that air suspension is lovely . Thanks in advance for any help received.
