Diesel leak

Discussion in 'Land Rover Freelander' started by Larahausp1, Dec 1, 2017.

< Previous Thread | Next Thread >
  1. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen

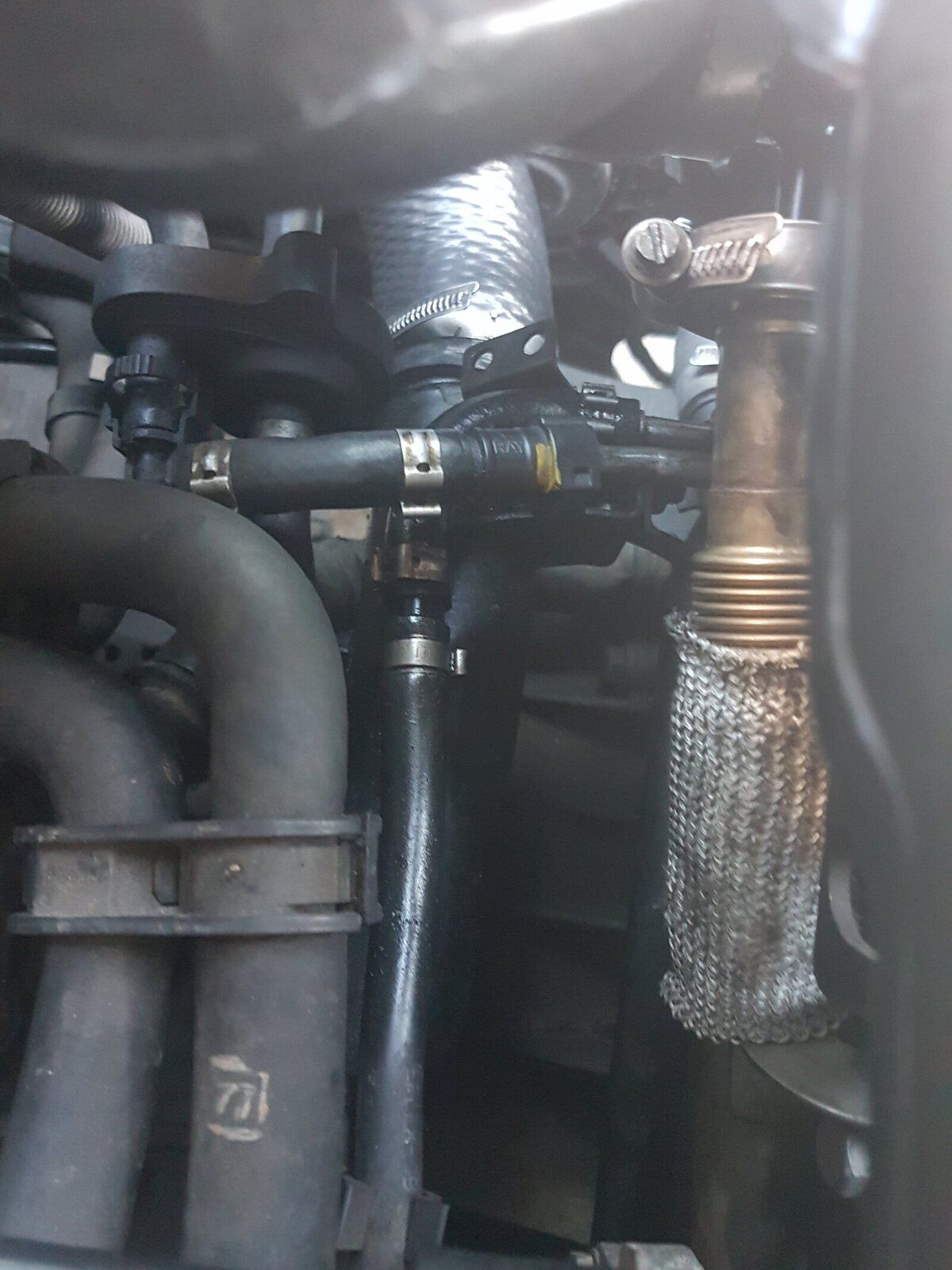

    Just niticed diesel leaking from front right by the egr valve. Any ideas of how big a job it is. Looks like its coming from fuel lines above turbo hose. Mainly on 1st start up

    Last edited: Dec 1, 2017
  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    A picture of the offending area would be helpful. ;)

  3. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen
    I have s picture but not sure how to upload it

  4. guineafowl21

    guineafowl21 Well-Known Member

    Joined:
    Feb 24, 2015
    Posts:
    2,781
    Likes Received:
    1,769
    Location:
    Inverness
    Click in the ‘reply’ box. At the bottom right is a button labelled ‘Upload a File’.

  5. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen

  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    Easy job for a competent DIYer. As long as the parts to fix it can be found. I think hose PN: WJH104061 would probably fit ok, if it's the elbow hose leaking. If it's a straight hose, then any auto-factors would do it. It could also be the pipe coupler, which again would come from an auto-factors. You'll also need some worm clips.

  7. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen
    Ok thanks for your help

  8. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen

  9. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen

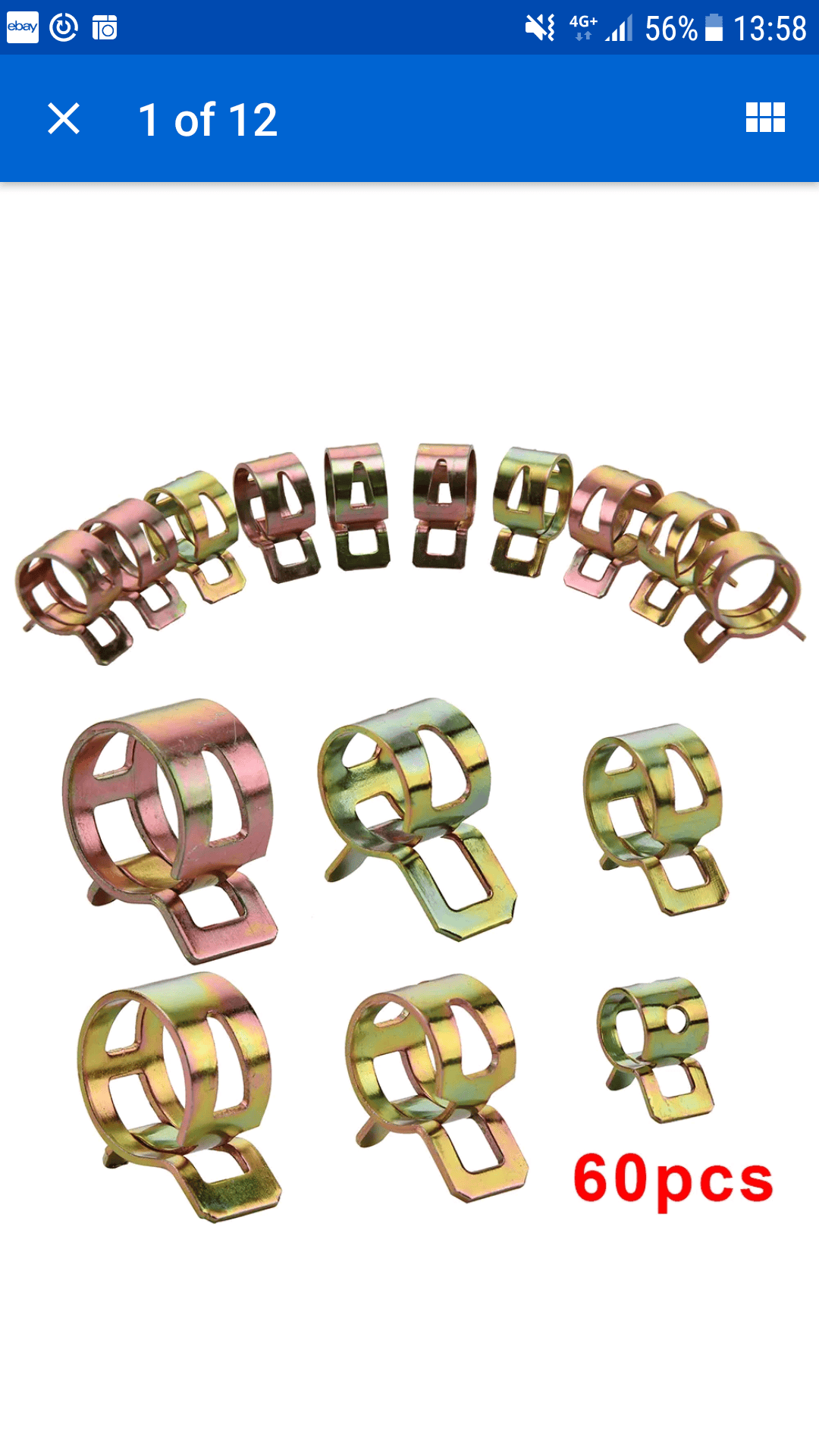

    These ones

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay

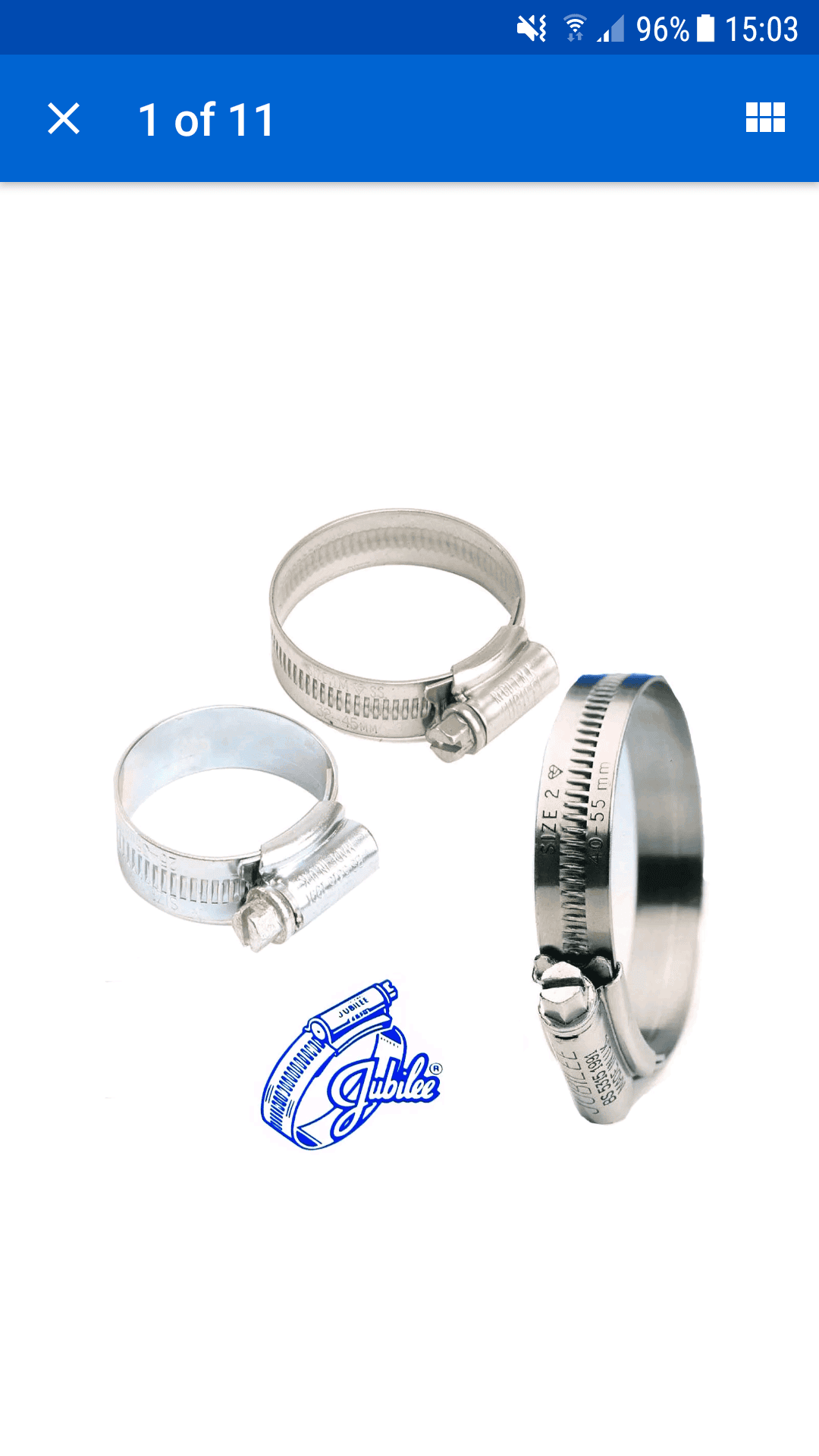

    No. Worm clips, or worm drive clips, are the type that use a screw thread to tighten a steel band. They are commonly called Jubilee clips, but that is just one manufacturer. Like this. Screenshot_20171201-150325.png I prefer Norma worm drive clips myself, although they are hard to get.

  11. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen
    Ok cheers mate i know which ones you mean

  12. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,943
    Likes Received:
    435
    Location:
    Westmidlands
  13. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen
  14. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    Hose clips are a personal thing. However I generally think that the manufacturers did there homework on which is best. Hence I prefer to use what LR fitted from new. ;)
    Which was this.
    http://www.brit-car.co.uk/product.php/127641/5497/clip___hose

  15. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,943
    Likes Received:
    435
    Location:
    Westmidlands

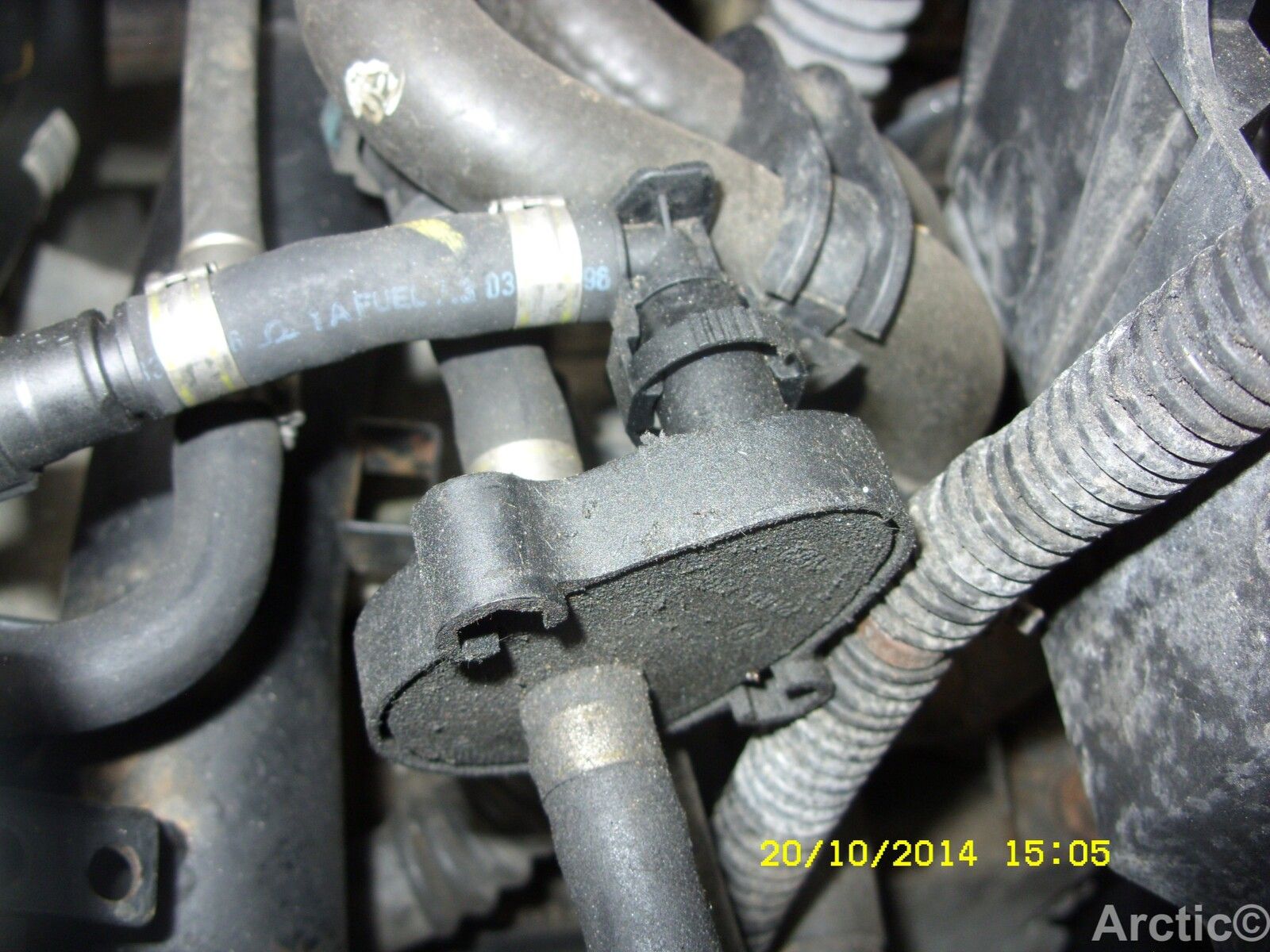

    The clips that are fitted to the fuel thermo valve already are re-useable, they can be open with a thin bladed screw driver, then squeezed back together with some pliers, it maybe that the hose as flared on the end and needs cutting back a little, this is a judgment you need to make as you on there on the job, view it and make your decision then, at the same time you can see what size the clip is.

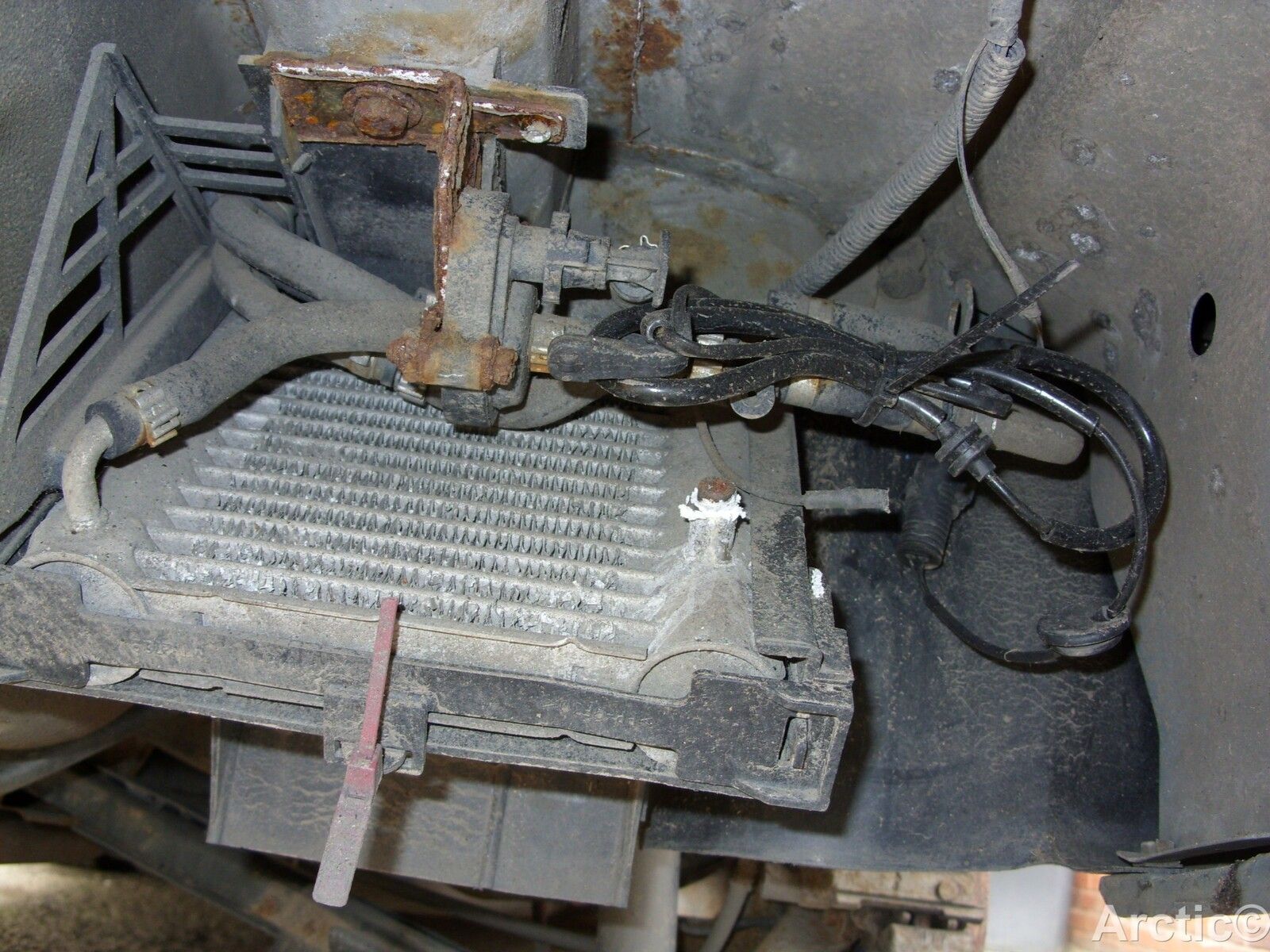

    These vales are also on the R40 but under the rear f the car photo 2 below, the hoses tend to leak at the ends because of flaring.


    Attached Files:

  16. Larahausp1

    Larahausp1 Member

    Joined:
    Jul 12, 2017
    Posts:
    88
    Likes Received:
    1
    Location:
    Halesowen
    Photo 1 looks similar to my photo so will check all those. But not sure on photo 2 mine is a 53 plate 2.0Td4

  17. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,943
    Likes Received:
    435
    Location:
    Westmidlands
    Photo two is of the same vale but on a Rover 75 diesel, which uses the same thermo valve it is situated at the rear of the R75 photo is just an example, so no need to worry there.
