Diesel Leak where from

Hicap phill · Aug 21, 2020

removed the accelerator cable holder(except 1 did not come out)

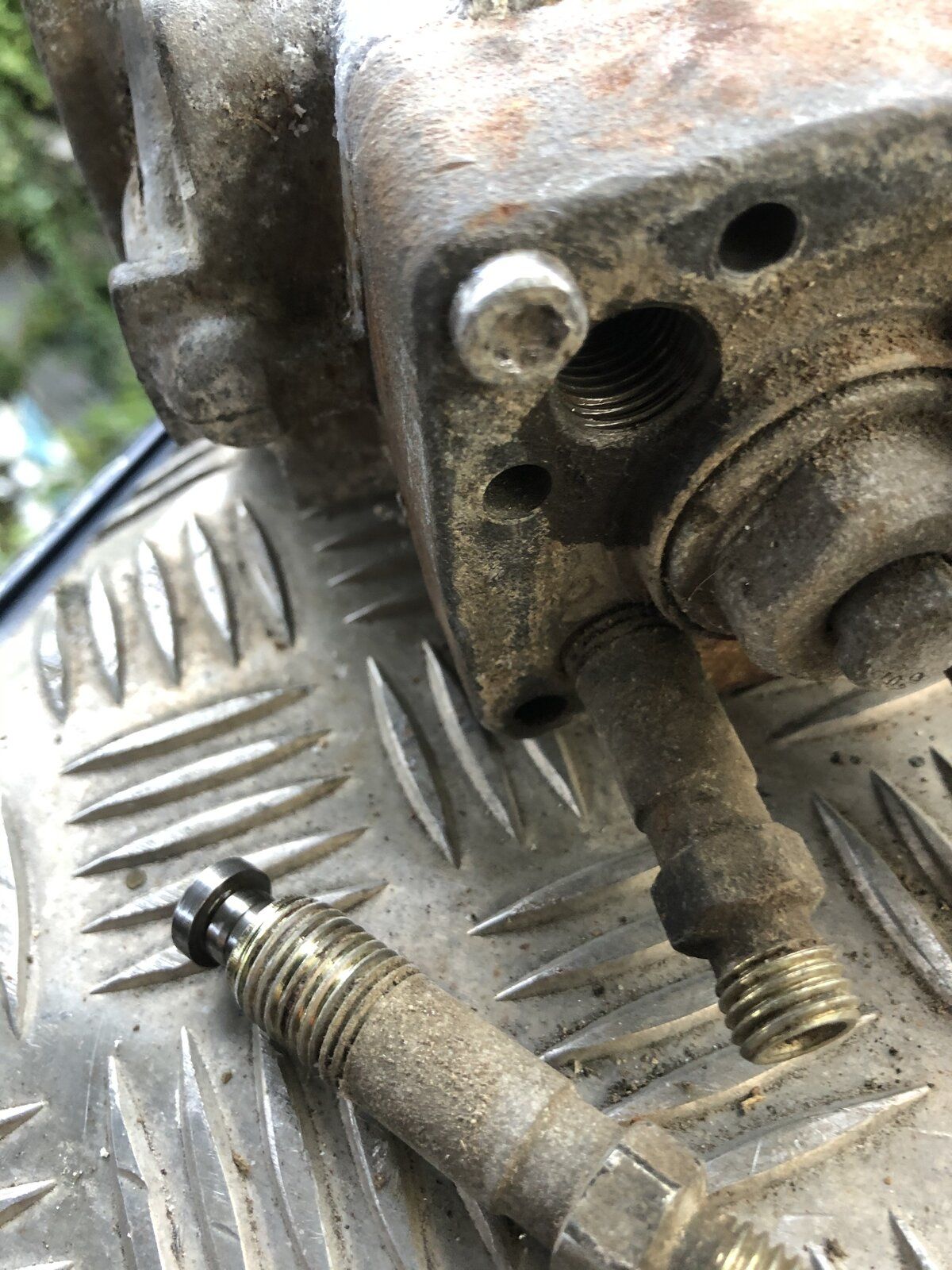

removed a connector to try to get a better grip. watch out for little bits & a copper washer

still unable to undo that 1 torx even grips would not move it.

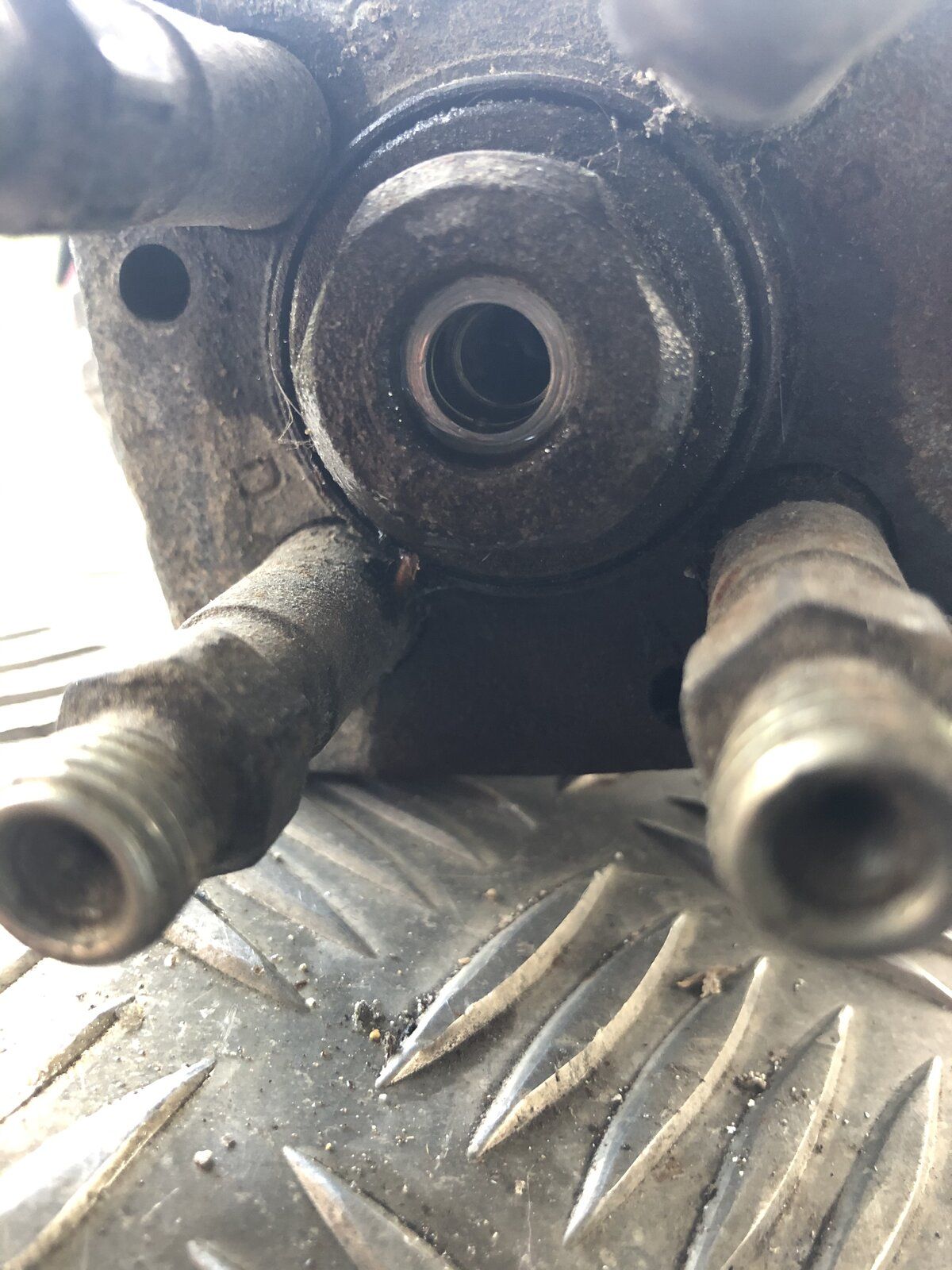

So centre bolt has a copper washer and the other main nut needs a special tool.

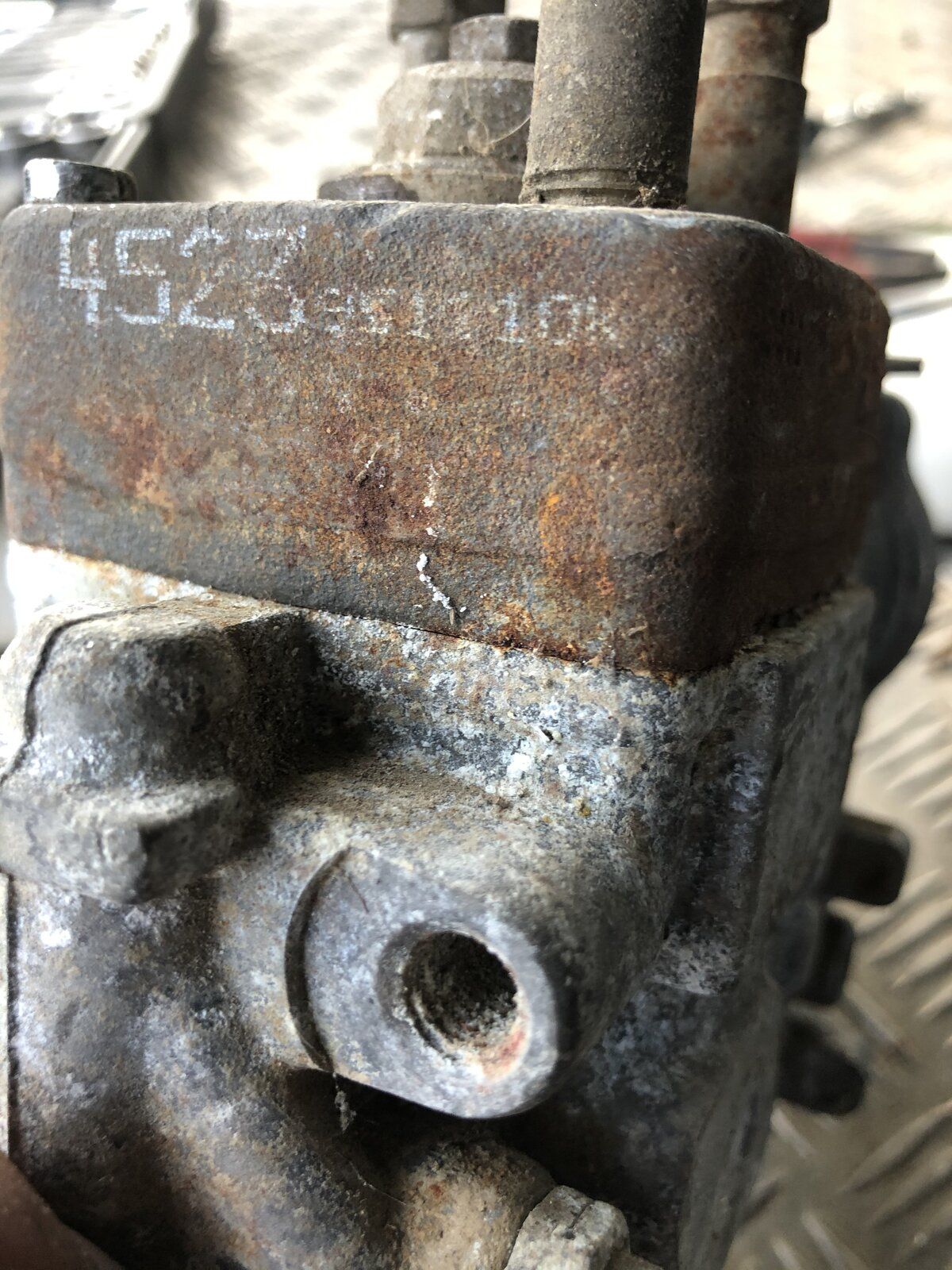

Looking at where your leak is could be where the 2 faces meet. As special tools are needed I would send off

border · Aug 21, 2020

Hicap phill said:
removed the accelerator cable holder(except 1 did not come out)
View attachment 217538
removed a connector to try to get a better grip. watch out for little bits & a copper washer
View attachment 217538
still unable to undo that 1 torx even grips would not move it.
So centre bolt has a copper washer and the other main nut needs a special tool.
View attachment 217540

Looking at where your leak is could be where the 2 faces meet. As special tools are needed I would send off
View attachment 217541

Spot on Mate Thanks for taking the time to do that. it makes sense of what I need to get at now.

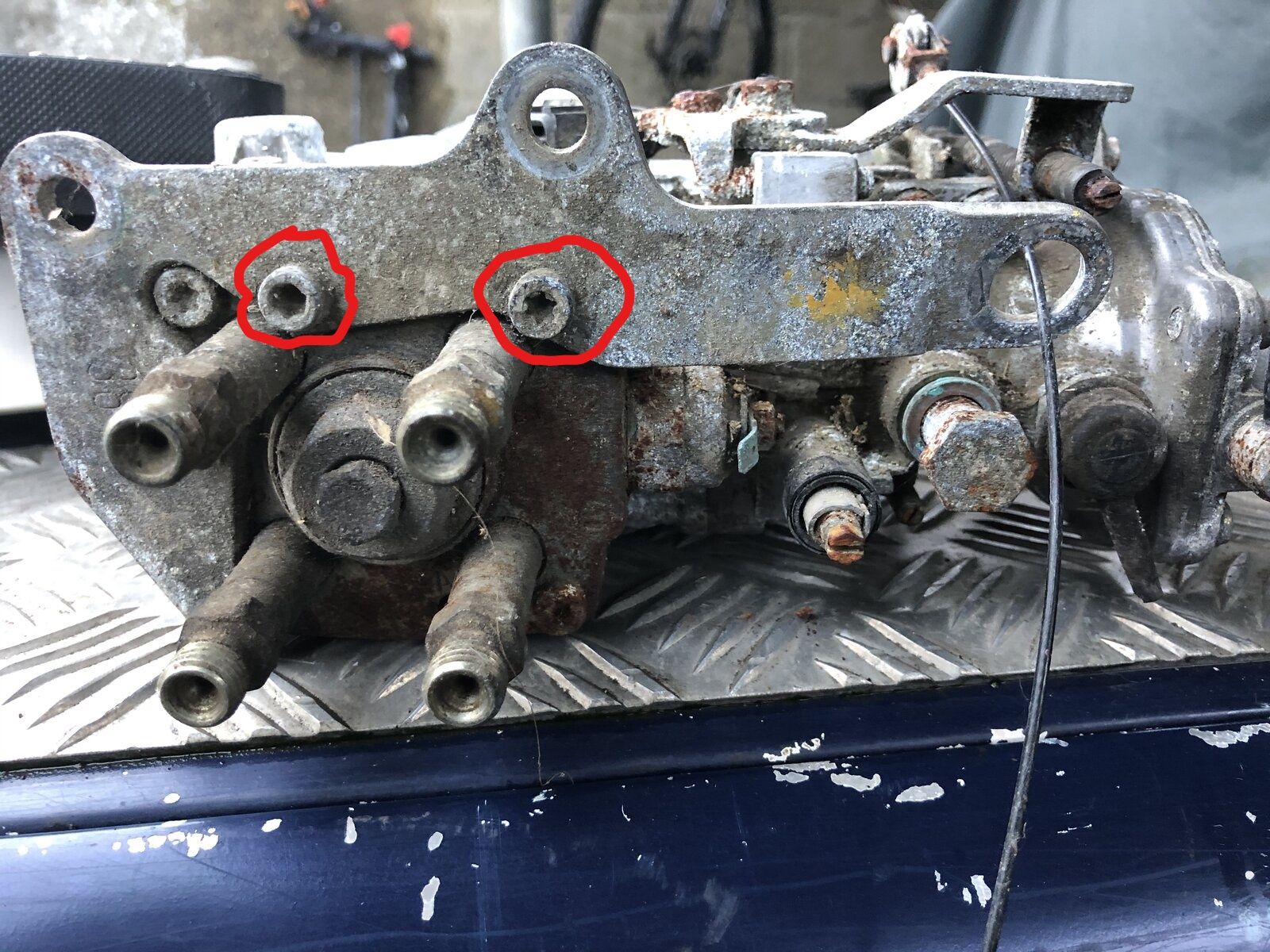

How long are these bolts I have circled ? do they go right through and hold that big square bit in ?

Hicap phill · Aug 21, 2020

2are long right through into pump
2 are short into square block
They alternate in length

border · Aug 21, 2020

Hicap phill said:
2are long right through into pump
2 are short into square block
They alternate in length

Reason I ask is when my pump was took off last time that bracket for throttle cable was taken off, wonder if its loosened something on it.

Hicap phill · Aug 21, 2020

Think there was 4 bolts holding the bracket on + 2 bolts also into the pump.
Even when I took all the bolts out nothing moved. Unsure if it’s seized together.

border · Aug 25, 2020

Just an update on this. Not had time to try anything yet bloody boiler packed up at home had to get new one.
Anyway just really putting up with it for now as the leak is really not that bad, cant really afford to take it off and send it to be fixed yet.
Think my cheapest option if worst comes to worst is to take pump off my 300tdi spare parts Disco , then again its one of those electric thingy ones so not sure if it will do.
Got a pic of it somewhere will post it up.
