Had look at mine but can’t tell as is black sheath on it. Don’t really fancy pulling at it
P38A Diesel Injector No.4
- Thread starter Lukas018
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 58,170
- Location
- Preston Lancs.
Nothing to do with fuel it is for timing correction purposes.Yeah I need to check if they are wrong way round. Only plays up when I change up a gear I suppose if sensor or wiring is wrong will not send enough fuel. If wiring is correct then sensor must be knakered. I need to swap the crimps for solder joints
Don't mate wiring so brittleHad look at mine but can’t tell as is black sheath on it. Don’t really fancy pulling at it
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
You'll go blind durty boy.Had look at mine but can’t tell as is black sheath on it. Don’t really fancy pulling at it
Datatek
Well-Known Member
- Posts
- 43,920
- Location
- Near Poitiers SW France
Try soldering the wires and swap round if still wrong. I don't have details of exactly how the sensor is constructed, but it's just possible that with the connection reversed the timing would shift.Yeah I need to check if they are wrong way round. Only plays up when I change up a gear I suppose if sensor or wiring is wrong will not send enough fuel. If wiring is correct then sensor must be knakered. I need to swap the crimps for solder joints
- Posts
- 58,170
- Location
- Preston Lancs.
I have no idea if the circuit direction is critical or not. But pin 1 on the sensor socket is listed as signal and pin 2 is listed as ground. Pin 1 listed as signal on both socket and ECU goes to pin 5 on ECU and pin 2 listed as ground on both socket and ECU goes to pin12 on ECU. So it appears there is a definite circuit direction. That circuit direction may apply to the sensor for correct operation i do not know but it is worth trying. One thing worth remembering about electrics is if you have to repair a connection ALWAYS reconnect the same wires parted back together. As said i don't have a clue if it matters in this case but worth a try. Good luck.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Morning Tony, would it be worth his while to connect the wires one way then reverse them,before soldering as the injector is still in place, to see if it makes any difference.?
- Posts
- 58,170
- Location
- Preston Lancs.
Yep that is what i am saying. There is a definite circuit direction that is obvious, it may apply to the sensor. Only one way to find out.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,262
- Location
- Trapped inside my head @ LZ asylum
Got your moneys worth from the window socket
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate

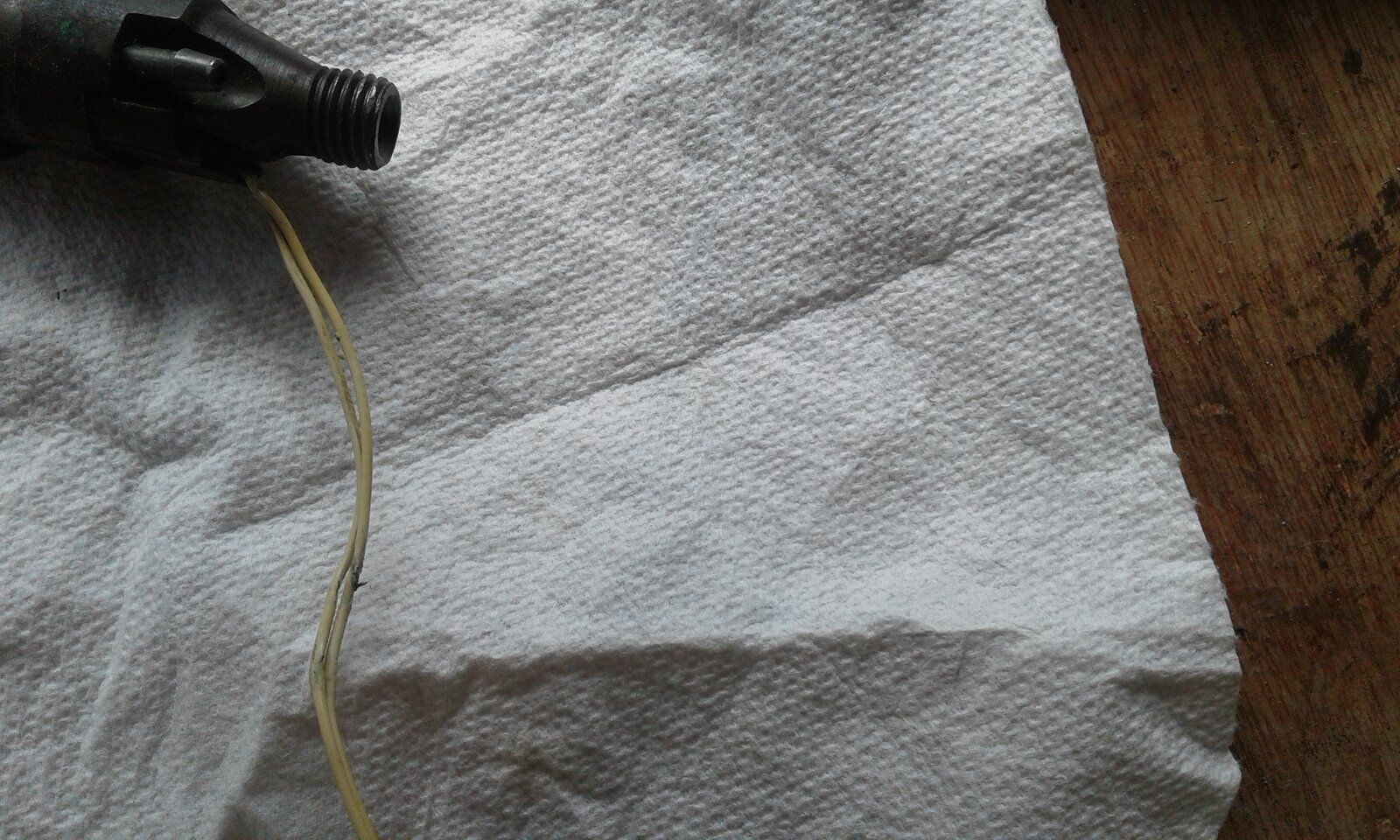

Just had a look at my old one,both wires are or were white
Attachments
- Posts
- 18,955
- Location
- Buckinghamshire, UK. ('95 DT)
Good to see I am not the only one with a shed full of broken sh*t.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Too true mate,that's the one that failed when,as you keep reminding everybody, I cleaned the diesel spill off the engine, NOT WITH A POWER WASH!!.When I cut back the "repair" it looks like its been trapped between the inlet manifold and the head. I'll have a go at soldering in a new section of wires,may come in handy.
Hi mate, on your injector can you check please if your pin 1 wire goes into the LHS of the centre and pin 2 goes into the RHS of the sensor just so I can check if I wired incorrectly?Too true mate,that's the one that failed when,as you keep reminding everybody, I cleaned the diesel spill off the engine, NOT WITH A POWER WASH!!.When I cut back the "repair" it looks like its been trapped between the inlet manifold and the head. I'll have a go at soldering in a new section of wires,may come in handy.
Datatek
Well-Known Member
- Posts
- 43,920
- Location
- Near Poitiers SW France
I'll go check.
Thanks mate.
Datatek
Well-Known Member
- Posts
- 43,920
- Location
- Near Poitiers SW France

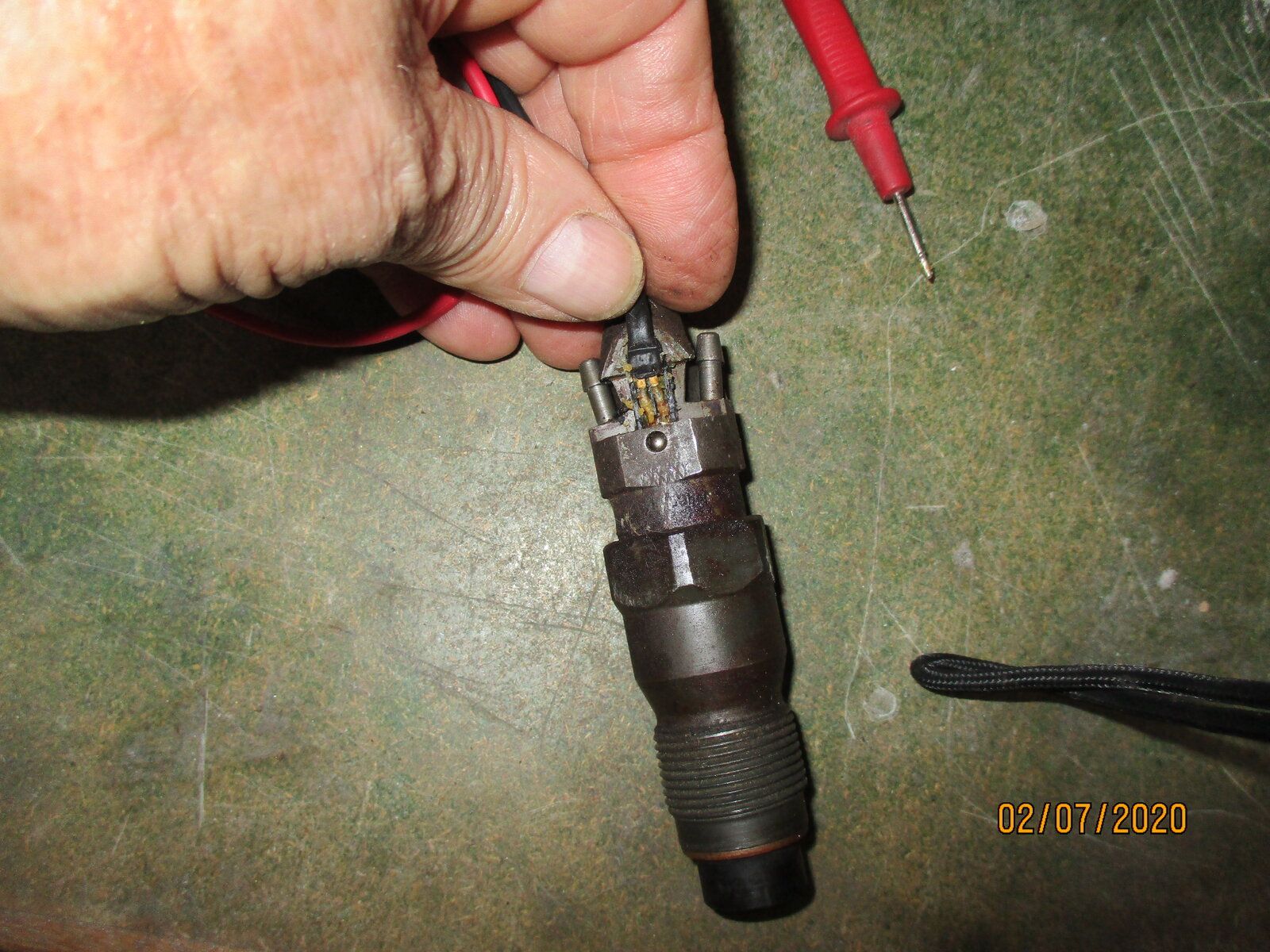

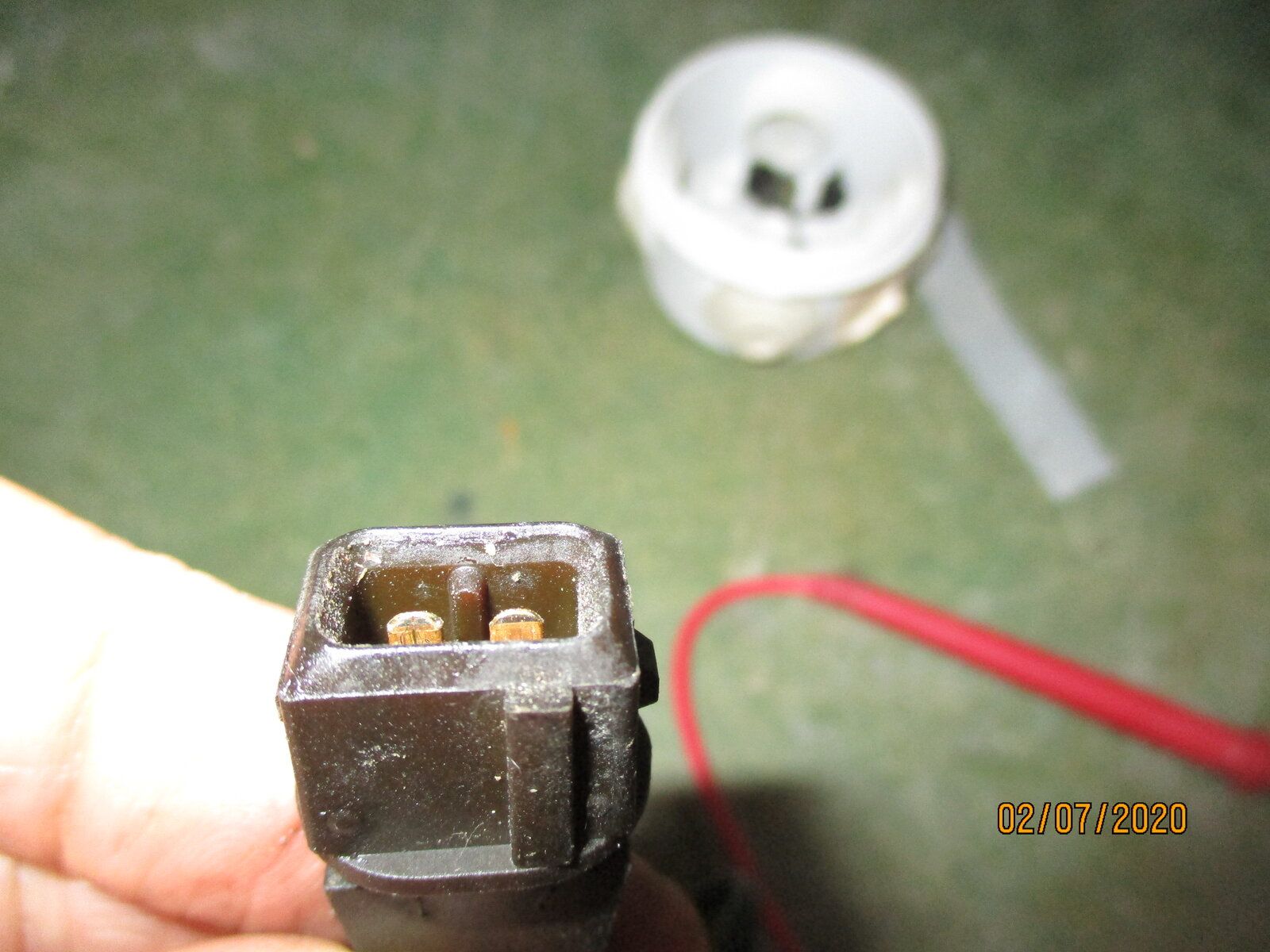

No numbers on the connector that I have, but if you look at the 2 photo's, the right hand wire on the injector goes to the pin adjacent to the raised keyway.
Thank you only difference is the plug on mine has the key way in the middle of the plug. Is your one from a later year?
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate

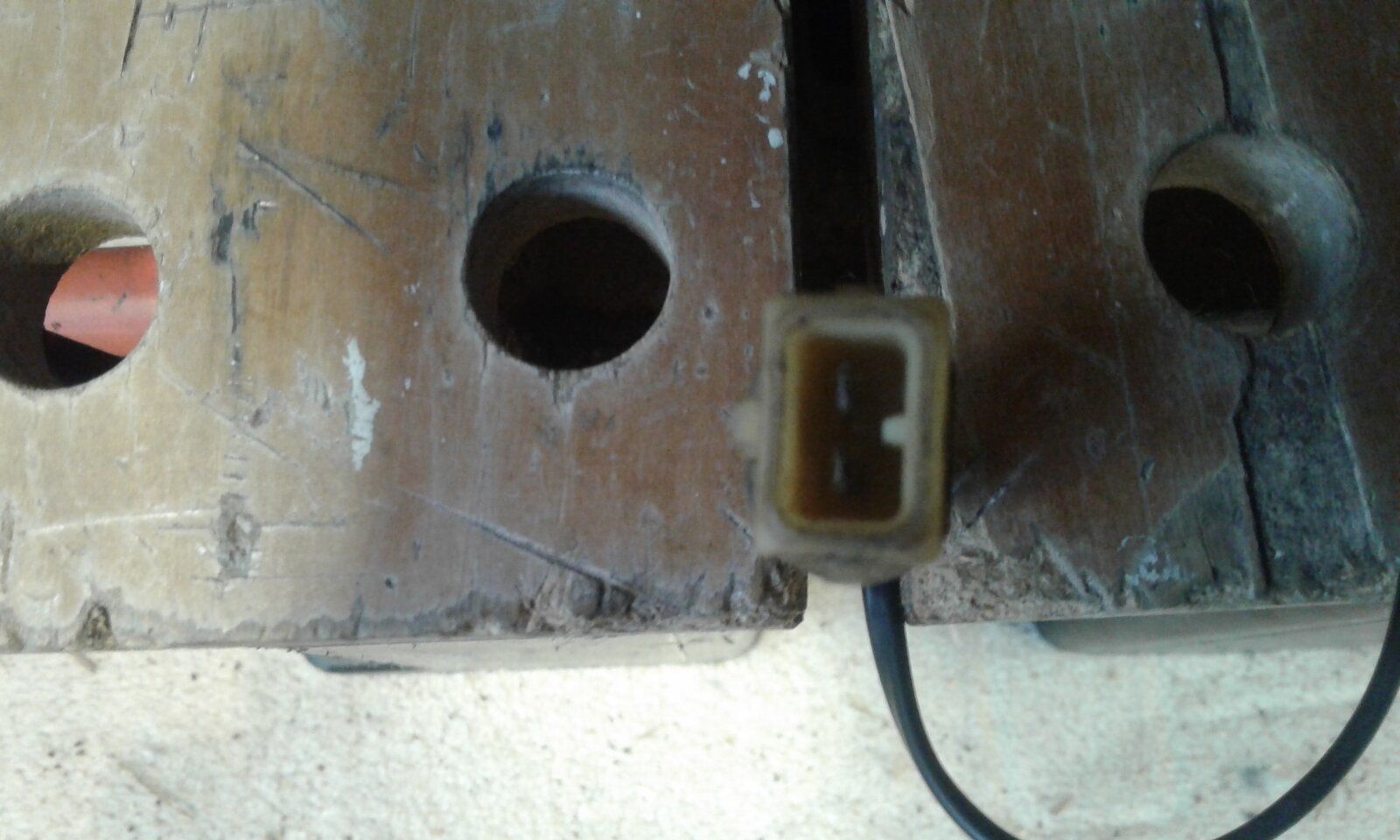

What colour plug do you have on your injector? I see Keith's is black, the one I have is white.the right hand wire on the injector goes to the top pin of the plug showing a resistance of 96 ish, with the probe still on the wire the bottom pin shows a dropping resistance.this was removed as faulty or could it be that is showing in the first case direct pin to wire and the second through the coil??
Attachments
- Posts
- 58,170
- Location
- Preston Lancs.
Both early plug and later plug are same pin configuration.
