Diesel cab heater

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Search WEBASTO, Engine bay isnt usually recommended, usually tap into the fuel tank and locate under at the back somewhere internally depending on vehicle.

Wherever you fit it, think of future servicing/fault finding on the diesel heater.
I have one of the cheap chinese ones on a boat, and have to say it is pretty good.

Thanks for the replies. Im thinking of removing the non working aircon. Making a box and fitting it there. I would run the heater outlet pipe through bulkhead into the cabin somewhere. Ive seen them mounted on the chasis before but they look hard to get to to repair and service. It will have its own fuel supply

CHRIS HILL said:
Thanks for the replies. Im thinking of removing the non working aircon. Making a box and fitting it there. I would run the heater outlet pipe through bulkhead into the cabin somewhere. Ive seen them mounted on the chasis before but they look hard to get to to repair and service. It will have its own fuel supply
Click to expand...
No need to mount in a box they are reasonably tough, even if water gets in and screws the ecu, a new ecu and timer is about 40 quid.

Get the smaller 2/5kw unit, the larger 5/8kw one is a chunky monkey.
If listing says 2/5 kw it is a 2 kw machine, and if it says 58 kw it is a 4/5kw machine!
I would use a fuel standpipe and take fuel from the main fuel tank, less messy/smelly in the cabin.

Landrover 002.JPG
Landrover 002.JPG


Attachments

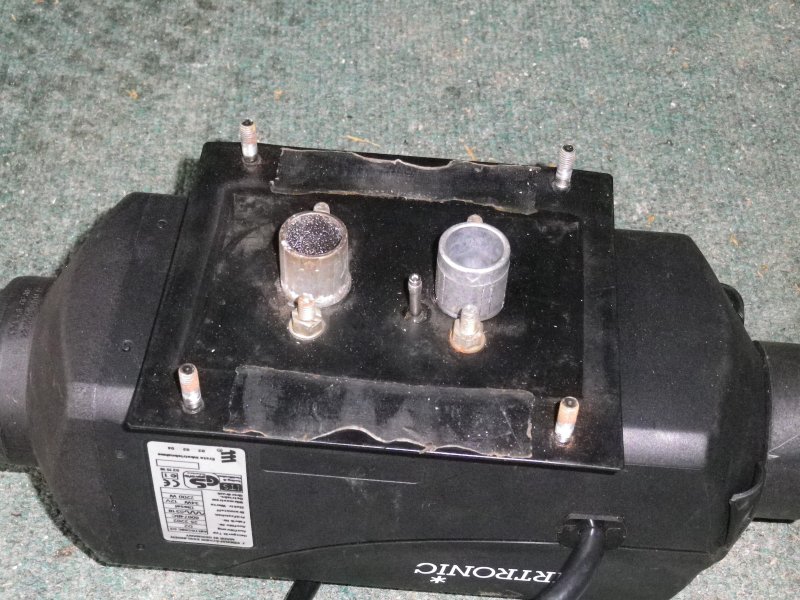

  • Landrover 007.JPG
    Landrover 007.JPG
    114 KB · Views: 102
Thanks again for the advice. I could take the cd autochanger out and mount under the seat. I would like to run it from a seperate fuel supply as i can get red diesel. Is there room under the seat in a 300tdi for one?

CHRIS HILL said:
Thanks again for the advice. I could take the cd autochanger out and mount under the seat. I would like to run it from a seperate fuel supply as i can get red diesel. Is there room under the seat in a 300tdi for one?
Click to expand...
Iirc at full bore they use 1/2 a litre an hour.
Maybe mounts the heater under the seat as per Hughes pics, then fit the red tank under the bonnet?

There is a few FB pages for the chinese diesel heaters, and some people reckon poor fuel causes issues with carboning up the burner chamber, always worth an ask.

lynall said:
Iirc at full bore they use 1/2 a litre an hour.
Maybe mounts the heater under the seat as per Hughes pics, then fit the red tank under the bonnet?

There is a few FB pages for the chinese diesel heaters, and some people reckon poor fuel causes issues with carboning up the burner chamber, always worth an ask.
Click to expand...
I would think that is an over-estimate on the fuel consumption. My 4KW diesel stove uses 0.2 of a litre an hour on low flame, 0.4 of a litre on high flame.

A lot of people on the cut have the chinese fuel heaters, and they like them.
They may not be quite a good as an Eberspacher, but at a third the price, you can afford to replace the whole thing if it goes tits up.

Turboman said:
I would think that is an over-estimate on the fuel consumption. My 4KW diesel stove uses 0.2 of a litre an hour on low flame, 0.4 of a litre on high flame.

A lot of people on the cut have the chinese fuel heaters, and they like them.
They may not be quite a good as an Eberspacher, but at a third the price, you can afford to replace the whole thing if it goes tits up.
Click to expand...
I am unsure of current eber/webby prices, but I do know the spares I needed to repair the broken webasto on our boat were 50 quid more than a whole new chinese heater!

I had the Eberbascher on my old boat and it worked very well. Great idea to put in the Disco, under the seat. I will look at getting the Chinese copy as a lot of boat owners use them and are very happy with them.

Turboman said:
I would think that is an over-estimate on the fuel consumption. My 4KW diesel stove uses 0.2 of a litre an hour on low flame, 0.4 of a litre on high flame.

A lot of people on the cut have the chinese fuel heaters, and they like them.
They may not be quite a good as an Eberspacher, but at a third the price, you can afford to replace the whole thing if it goes tits up.
Click to expand...
a stove isn't a heater though is it next time i run a heater i'll see how much fuel it uses on full chat

--ped-- said:
a stove isn't a heater though is it next time i run a heater i'll see how much fuel it uses on full chat
Click to expand...
It is a heater, and runs 3 radiators as well as heating a tank of water via a calorifier.
It doesn't do cooking.

But my point was actually that a 2.5 KW output of heat should use less fuel than a 4KW output, irrespective of the actual means of combustion. In fact, I would think the Eberspacher type heaters should be more efficient than a diesel vapourising type as well.

Last edited:
Hello. Just a update on cab heater. I opted for a 2kw heater from ebay sold by maxpeeding rods. Heater arrived quickly with all the parts. I fitted it under the passenger seat. I had to cut out the cross brace for the seat mount. I have made and fitted a bolt in cross brace. Heater install was a little tricky i had to extend some of the wires. I fitted a fuel tank under the bonnet where the jack goes. Heater works perfectly and gets very warm quickly.
