DISCOVERY 1 HEATER CONTROL PANEL BUST! REPAIR OR REPLACE?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

lrjohn

Active Member
Posts
138
Location
Suffolk

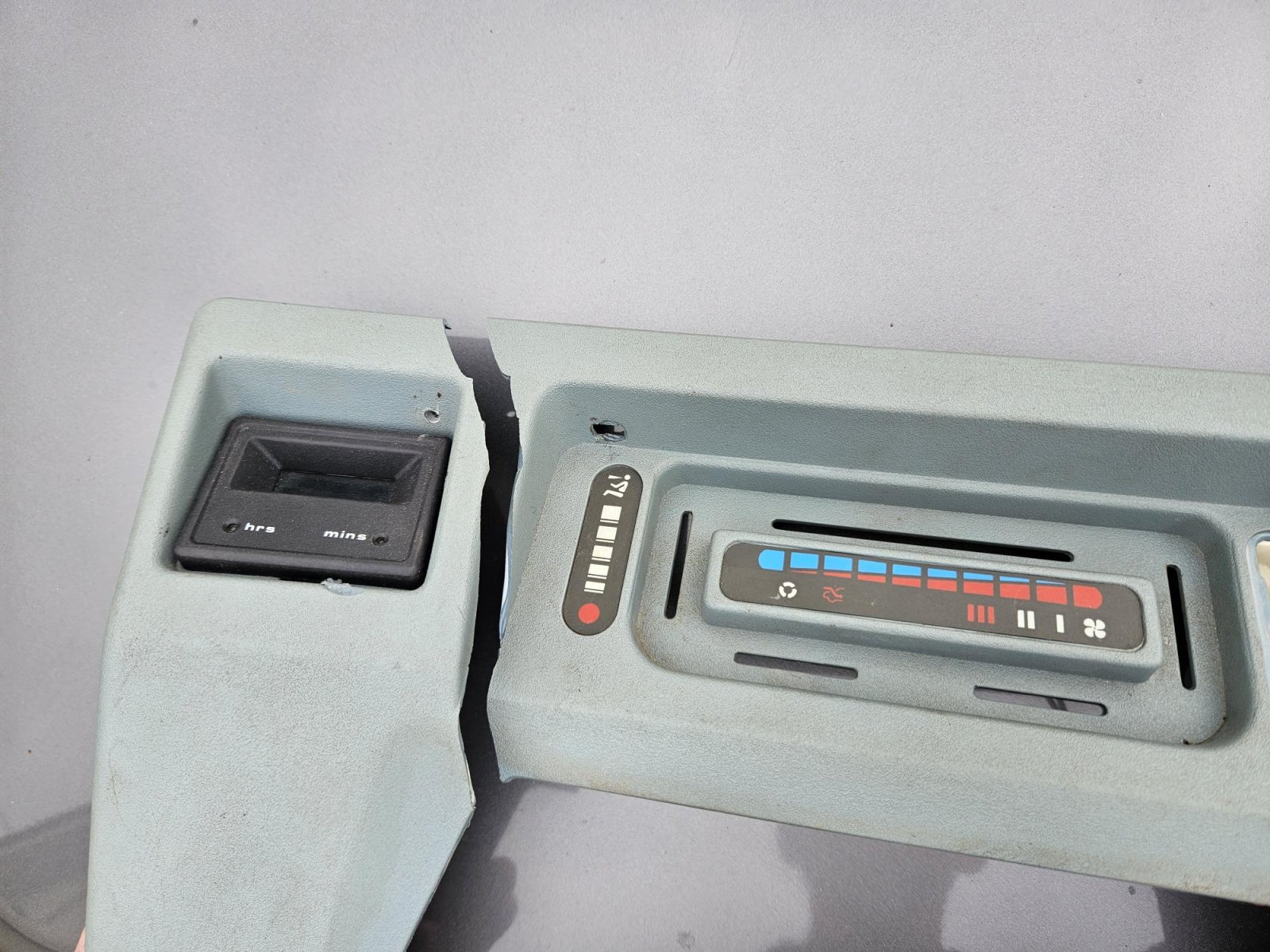

So I knew the heater control panel in the Discovery 1 I bought was cracked, but I didn't know it was actually in two pieces till I removed it today!
I have had a quick look to see if I can find a replacement with no luck – if you or you know someone who has one I would be very grateful!

Alternatively has anybody had success in gluing these trim pieces together, if so what adhesive have you used? Any advice much appreciated


Fill the back with JB weld or ct1 using cut up paper clips as a streaghtener.
Or you could use a soldering iron and melt the plastic over to give a temporary repair before you fill the back.
As regards making it look good from the front. No clue :-(

There are youtubes on mending plastic. It can be done. Most seem to use stick-on silver paper stuff, on the front side then making up a sort of glue gun with a copper pipe beaten into a shape so you can feed cable ties down it. This you attach to an ornery soldrering iron.
Best of luck.

So I knew the heater control panel in the Discovery 1 I bought was cracked, but I didn't know it was actually in two pieces till I removed it today!
I have had a quick look to see if I can find a replacement with no luck – if you or you know someone who has one I would be very grateful!

Alternatively has anybody had success in gluing these trim pieces together, if so what adhesive have you used? Any advice much appreciated

View attachment 320485
BTR3672JUL is the part number, you may find a new item if you search, but there is a second hand one on eBay for just £50. https://www.ebay.co.uk/itm/17615502...6VSJ8D&hash=item2903a86e8e:g:yXcAAOSwZJZllzq0

There are youtubes on mending plastic. It can be done. Most seem to use stick-on silver paper stuff, on the front side then making up a sort of glue gun with a copper pipe beaten into a shape so you can feed cable ties down it. This you attach to an ornery soldrering iron.
Best of luck.

There are youtubes on mending plastic. It can be done. Most seem to use stick-on silver paper stuff, on the front side then making up a sort of glue gun with a copper pipe beaten into a shape so you can feed cable ties down it. This you attach to an ornery soldrering iron.
Best of luck.

i successfully glued centre console and lower seat surrounds using plumbers pvc weld adhesive. needs to be left 24hrs to set
