Defender td5 footwell rust

Discussion in 'Defender 90 / 110 / 130' started by Discodevon, Feb 13, 2019.

< Previous Thread | Next Thread >
  1. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    hello I have footwell rust in my td5 defender, It’s at the normal place where the bulk head meets the floor where the metals are sandwiched together, it’s not structural but want to catch it before it does, question is what to treat it with after wire brushing?

  2. Brown

    Brown Well-Known Member

    Joined:
    Jul 11, 2012
    Posts:
    5,348
    Likes Received:
    1,568
    Location:
    East Midlands
    I slathered mine with the thin and runny variety of Dinitrol (ML3125) which seems to have sufficient corrosion inhibiting powers even after it has dried to keep the rust at bay. Everything looks black and inert rather than orange and active. Each time I have the floors up (e.g. clutch changes, gearbox work etc) I put some more on. No discernable rust progress in the last six years.

    Dave Decadent, Discodevon and doriz like this.
  3. Scooby22

    Scooby22 Well-Known Member

    Joined:
    Aug 11, 2017
    Posts:
    749
    Likes Received:
    222
    Location:
    County Durham
    Put Ku-rust on it to cure the rust then Dinitrol,

    Discodevon likes this.
  4. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    767
    Likes Received:
    252
    Location:
    Forfar/Dundee
    Red lead paint and then td5 paint.

    Discodevon likes this.
  5. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,131
    Likes Received:
    3,455
    Location:
    Arse!
    Can you still buy Red Lead?

    Discodevon likes this.
  6. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    Thank you lads much appreciated, any know a good red lead/ oxide? It’s a tad flaky on the edges so will need to clean that up first before I apply anything

  7. windy81

    windy81 Well-Known Member

    Joined:
    Jul 28, 2014
    Posts:
    211
    Likes Received:
    107
    lead oxide paint was banned eons ago, if i'm not mistaken due to the COSHH rules
    The 'red oxide' paint nowdays is just a pigment colour but with none of the lead, which is pointless.
    Better off with zinc paint from Bilt Hamber. It's offers way better protection from rust.

    doriz and Discodevon like this.
  8. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    I recently used the no nonsense red oxide from screwfix and found it to be proper rubbish

  9. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    767
    Likes Received:
    252
    Location:
    Forfar/Dundee
    I used the same stuff 2 years ago on my footwells although they were new welded ones. I haven't painted them since, just bare red oxide and no rust at all. Underside has thick paint on top. Could just be paddocks coating underneath but still good.

    Last edited: Feb 14, 2019
    Discodevon likes this.
  10. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    Not all red oxide is just a colour. The Tor Coatings stuff I used is a zinc rich primer, it just so happens that it is coloured red like the days of old. The 5ltr container weighed over 20kg, so it must have had a decent amount of zinc.

    Discodevon likes this.
  11. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    That stuff looks the dogs nutts mick thank you very much!!

    mick 1986 likes this.
  12. Muppetdaze

    Muppetdaze Active Member

    Joined:
    Oct 4, 2014
    Posts:
    279
    Likes Received:
    53
    Location:
    Thanet
    So I have rusty holes on the 45 degree slope part where it meets the flat part of the foot well, they're not big but I can see through them. Is it a case of cutting out just that strip or buying new foot wells?

    If so are paddocks the best place to get them?

  13. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    I would get them from YRM, but that’s personal choice.

    It depends on the state of the rest of the steel work as to how much you need to cut out and replace. You can’t weld to rust, so you will need to find decent steel to weld the new panels to.

    My Old Landy likes this.
  14. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    What age is your defender?

  15. Muppetdaze

    Muppetdaze Active Member

    Joined:
    Oct 4, 2014
    Posts:
    279
    Likes Received:
    53
    Location:
    Thanet
    It's an 85 military 110

    Discodevon likes this.
  16. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    767
    Likes Received:
    252
    Location:
    Forfar/Dundee

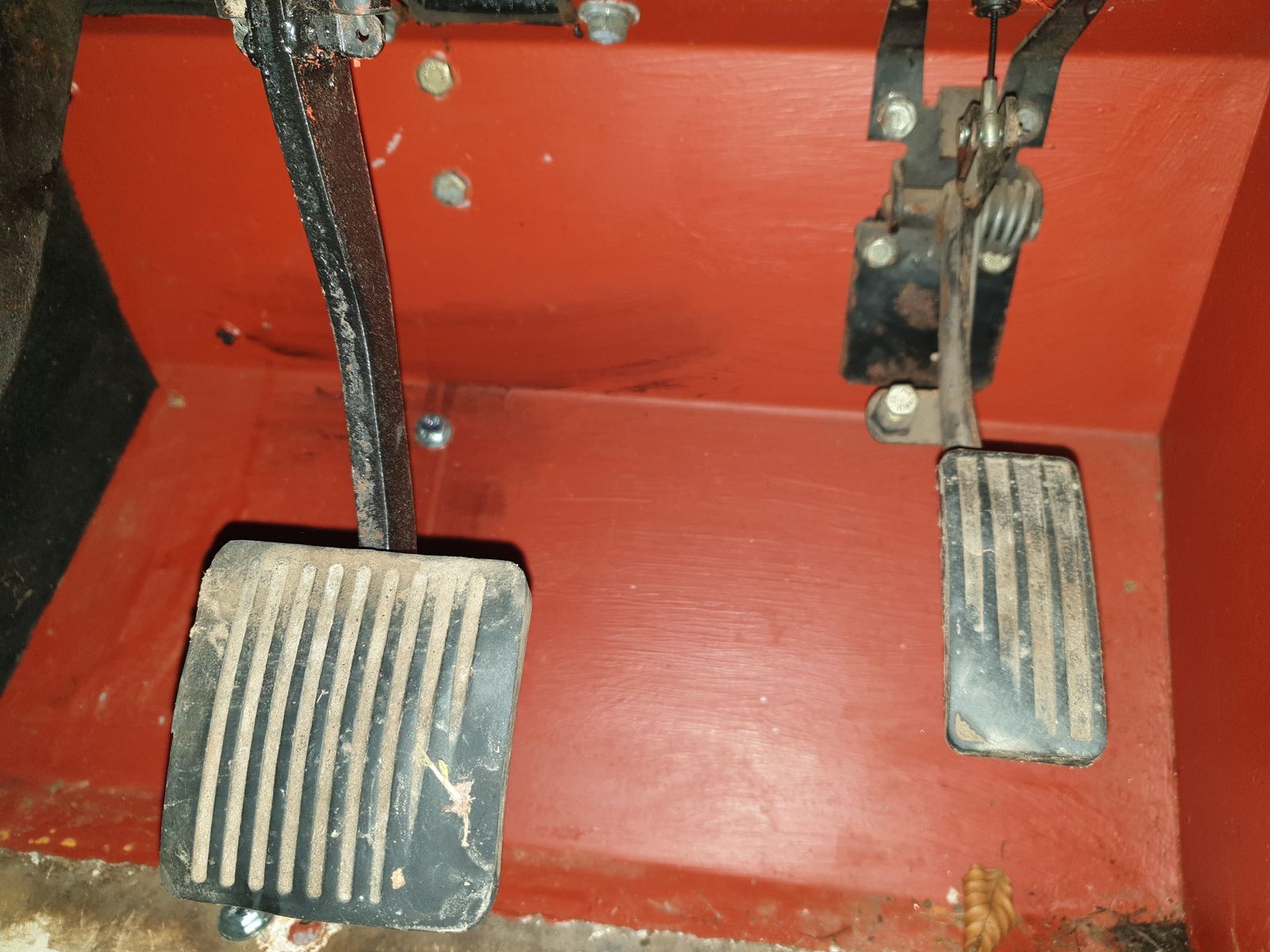

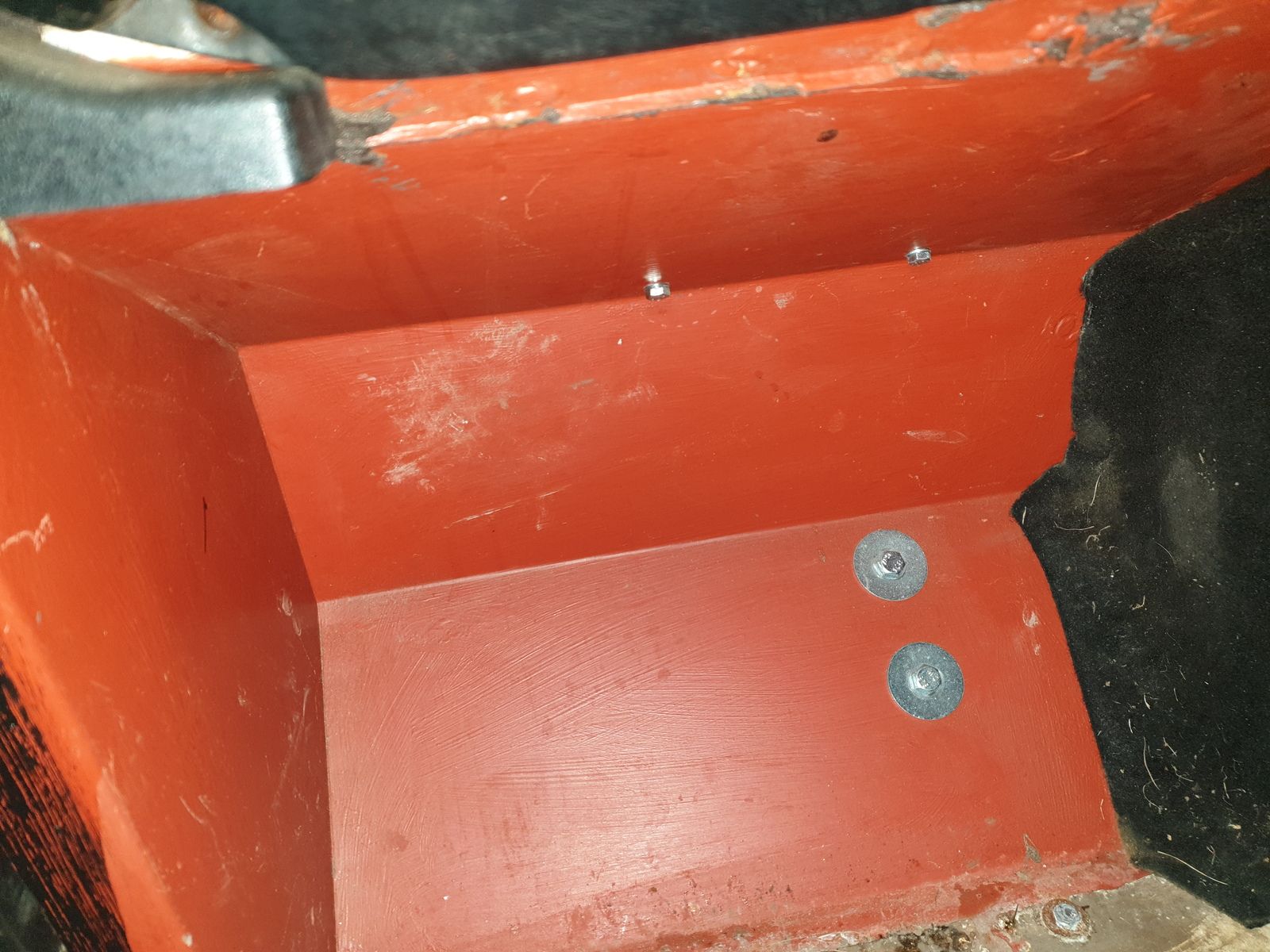

    20190214_073811.jpg 20190214_073841.jpg
    Here is my footwells, 90 is kept outside. Looks good after 2 years. Not good that after 2 years they are still in red oxide. Got them from paddocks.

    Discodevon likes this.
  17. Discodevon

    Discodevon Well-Known Member

    Joined:
    Jul 1, 2013
    Posts:
    945
    Likes Received:
    172
    Red oxide is proper old school now, but it takes some beating
