Defender - expedition preparation - interior shelf & storage ideas

Discussion in 'Expeditions' started by GreatTrekSouth, Jun 1, 2009.

  1. GreatTrekSouth

    GreatTrekSouth New Member

    Joined:
    Nov 16, 2008
    Posts:
    12
    Likes Received:
    0
    Location:
    London (South of the River)
    Hi there

    I am preparing my Defender for an expedition and want to modify the interior rear section. I basically want to make boxes and equipment as accessible as possible.

    Does anyone have any good ideas, suggestions or experience in land rover storage? Pictures would be especially appreciated to give me some ideas!

    I am running out of budget so will not be buying a Mobile Storage System drawer. I am thinking more along the lines of a basic rear shelf across the wheel arches. Perhaps also a shelf up at roof height as well.

    Many thanks

    Neil

  2. Griffdowg

    Griffdowg New Member

    Joined:
    Jun 29, 2006
    Posts:
    7,194
    Likes Received:
    0
    Location:
    Somewhere in Bristol
    neil,

    what vehicle? have a look at my website for ideas

    got a set of mantec load shelves in the back of my 90 and made a shelf up high :D

    G

  3. GreatTrekSouth

    GreatTrekSouth New Member

    Joined:
    Nov 16, 2008
    Posts:
    12
    Likes Received:
    0
    Location:
    London (South of the River)
    Thanks for the info.

    I have a Defender 110 CSW so I guess the load space in the rear is roughly the same as a 90 like yours.

    Have you got any good inside pics of your rear load space?

    Neil

  4. rover-resurection

    rover-resurection New Member

    Joined:
    Feb 3, 2009
    Posts:
    90
    Likes Received:
    0
    Location:
    ipswich, suffolk
    a shelf up top would be easy enough,i made 1 for for my old series 3 which would be very much the same with a defender. i just used some old bed slats, cut them to size slotted them on to the roof sill and secured it. i think a box between the arches will be easy to make with some ply.

  5. Booger

    Booger New Member

    Joined:
    Nov 18, 2008
    Posts:
    1,778
    Likes Received:
    0
    Location:
    Dorsetshire
    I also had a look at your website, very good, will be using it as a reference for my vehicle prep, but I didn't actually see any pics of your shelf system. Also couldn't see a pic on the mantec site, if you have a pic it would be very helpful ;)

  6. Griffdowg

    Griffdowg New Member

    Joined:
    Jun 29, 2006
    Posts:
    7,194
    Likes Received:
    0
    Location:
    Somewhere in Bristol

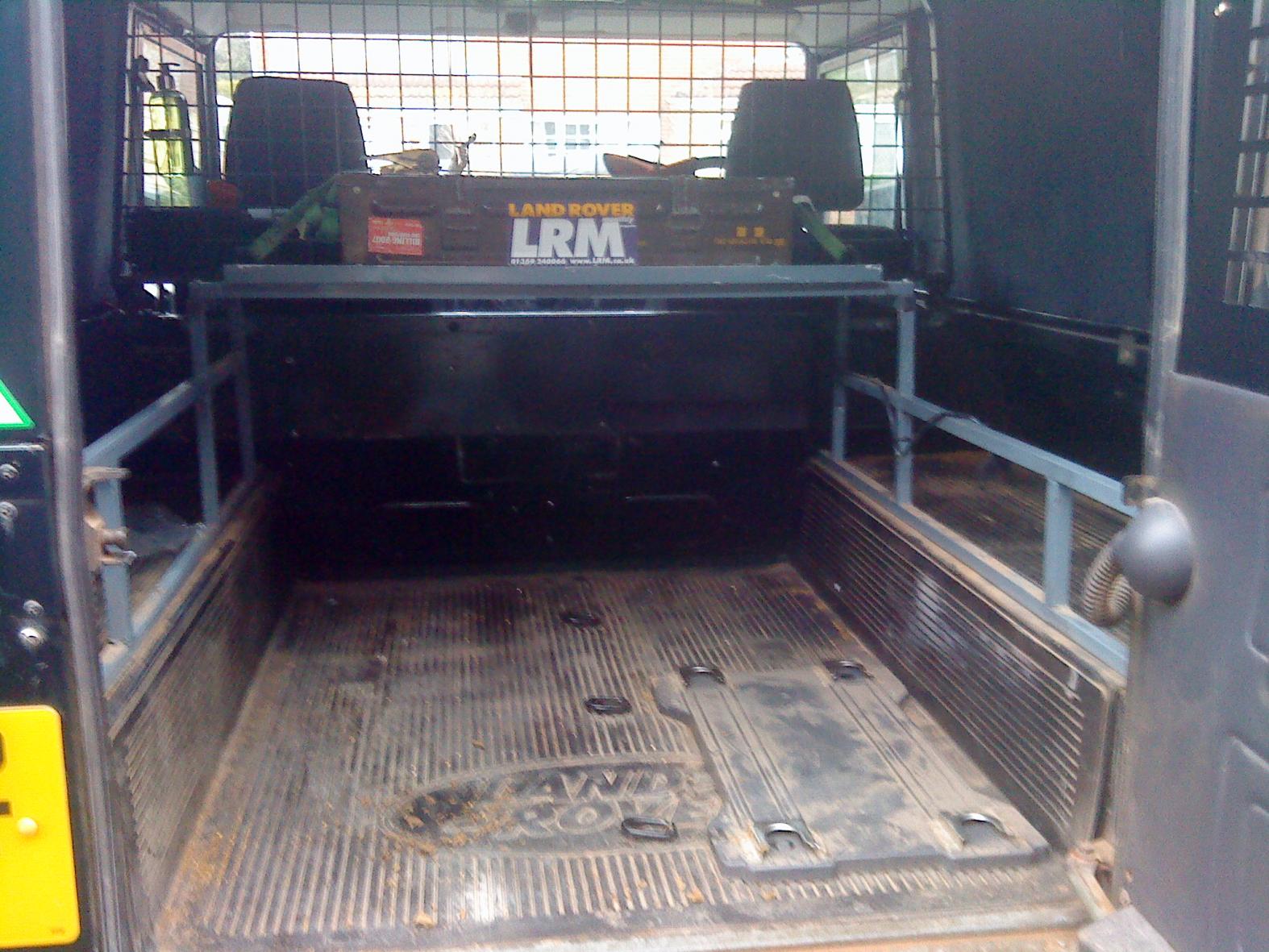

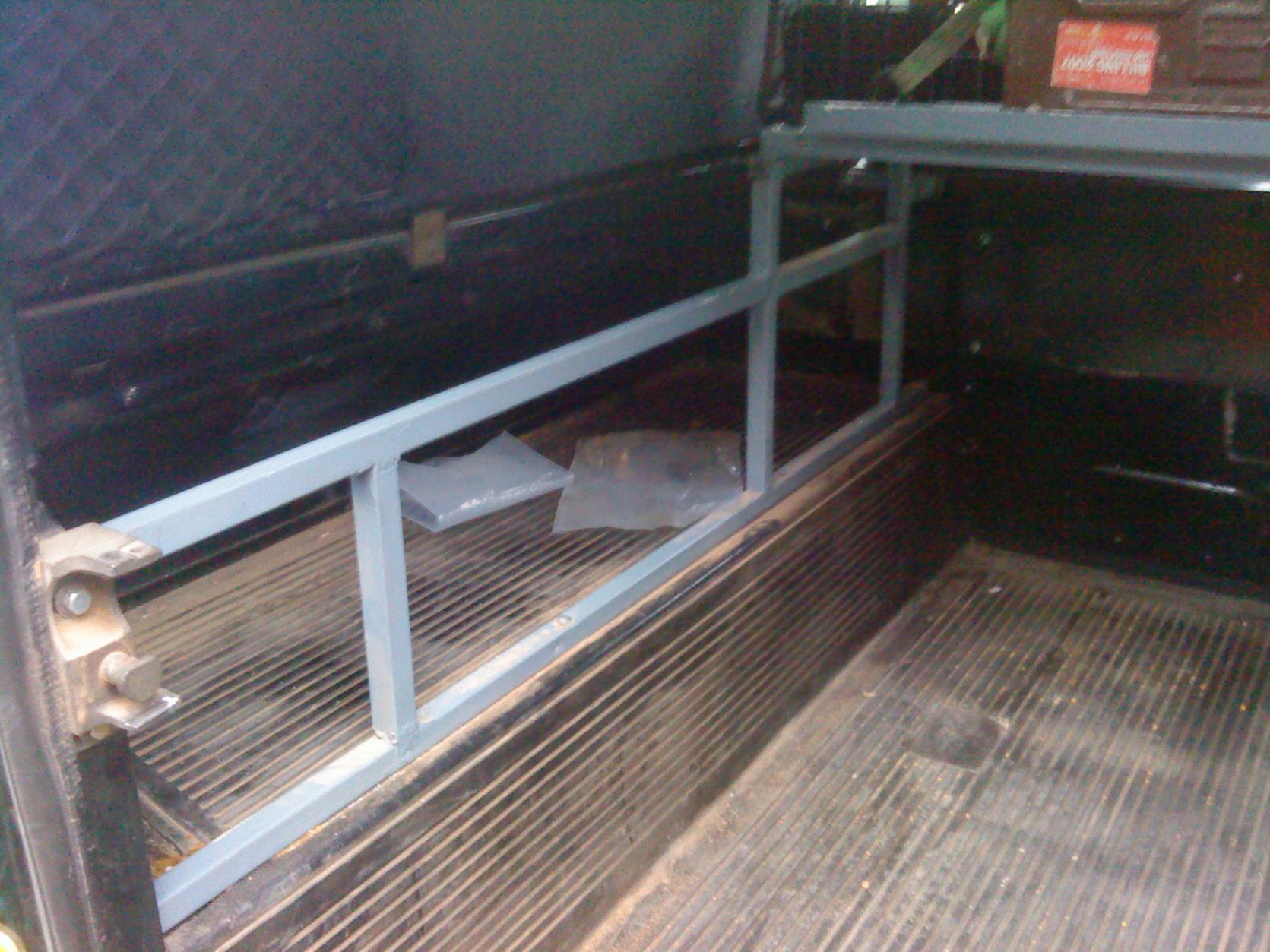

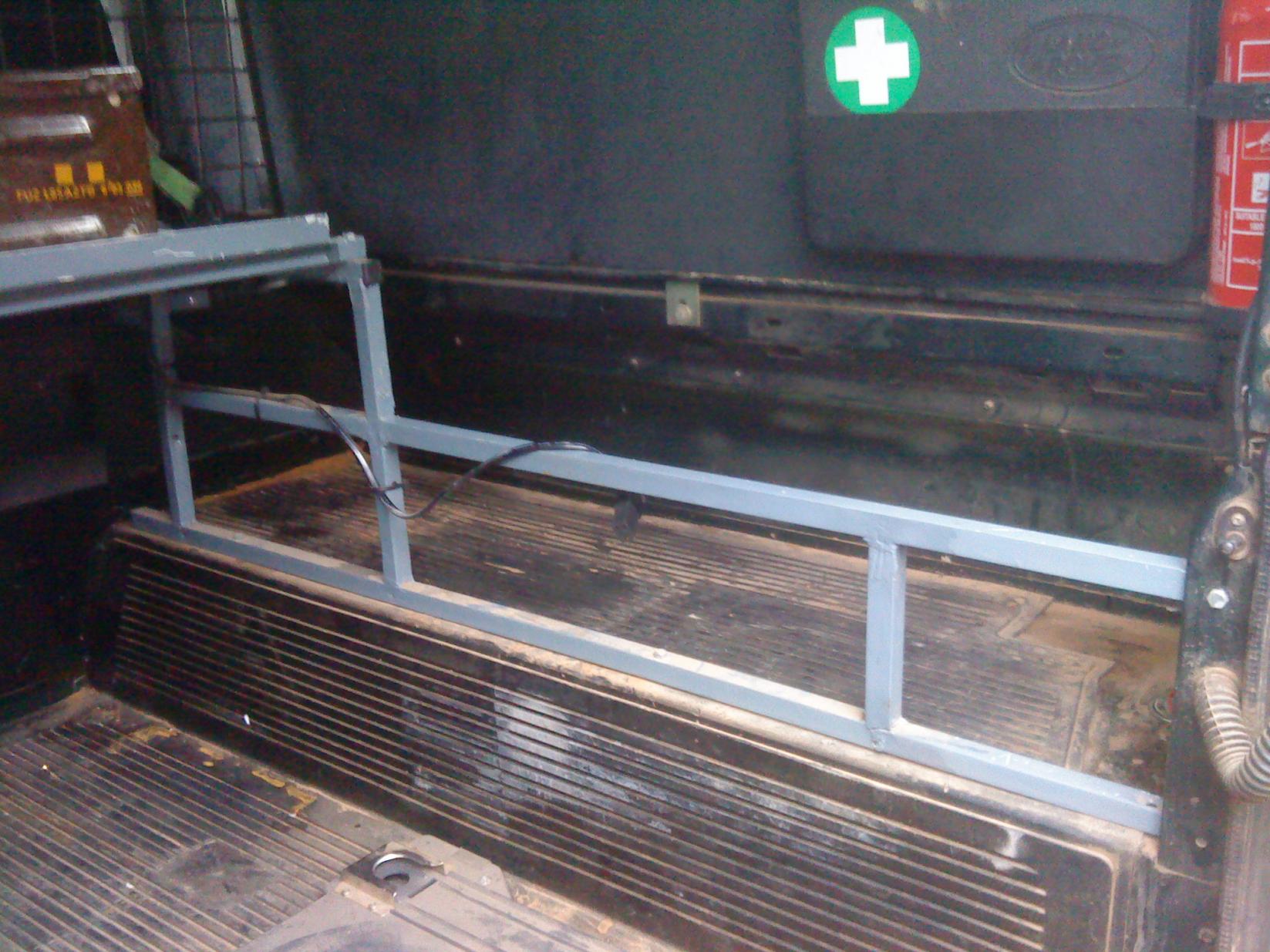

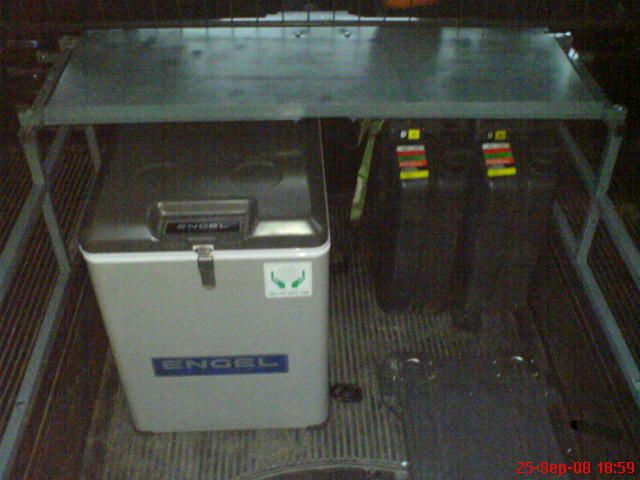

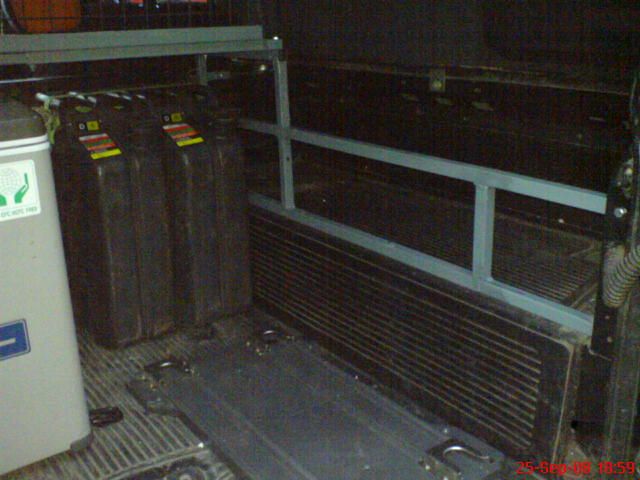

    Not the Mantec System but the one I built myself. I dont have any of the mantec one at the mo. Spoke to them a while back about it and they were stopping production to produce one that would also fit the newer puma's. Not sure whats happened. picked mine up 2nd hand, they are pretty rare though and very expensive new. All the G4 defenders have them in, and i noticed today at Eastnor, that those LR experience Icelandic things had a set in to. So if your there tomorrow, take a look. Once all my kit is in, and ive raised it for the fridge slide, I will take some pics for the website :)

    G


    Attached Files:

  7. Griffdowg

    Griffdowg New Member

    Joined:
    Jun 29, 2006
    Posts:
    7,194
    Likes Received:
    0
    Location:
    Somewhere in Bristol
  8. GreatTrekSouth

    GreatTrekSouth New Member

    Joined:
    Nov 16, 2008
    Posts:
    12
    Likes Received:
    0
    Location:
    London (South of the River)
    Awesome! Thanks so much.

  9. Jonnie Bee

    Jonnie Bee Member

    Joined:
    May 5, 2009
    Posts:
    62
    Likes Received:
    0
    Location:
    Bristol UK

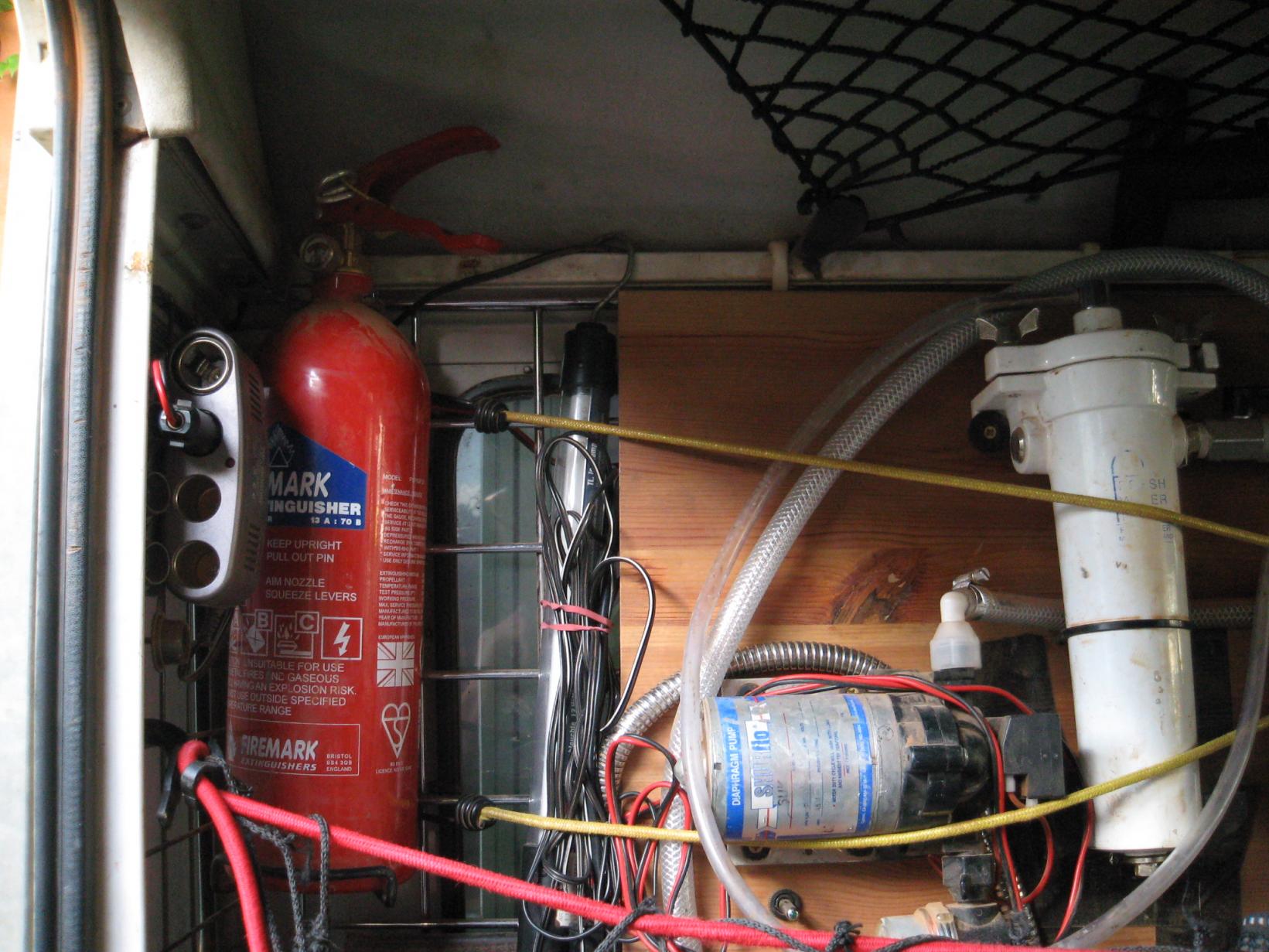

    Hi Neil
    We've just returned from a 6 month trip around W Africa in a 110 CSW - Met up with Griff in Morocco too, but that's another story....
    We also did everything on a budget, and I reckon our storage solution was pretty darn good. Well, it worked for us, and the only things not immediately accessible were the box of stored food and the spares...

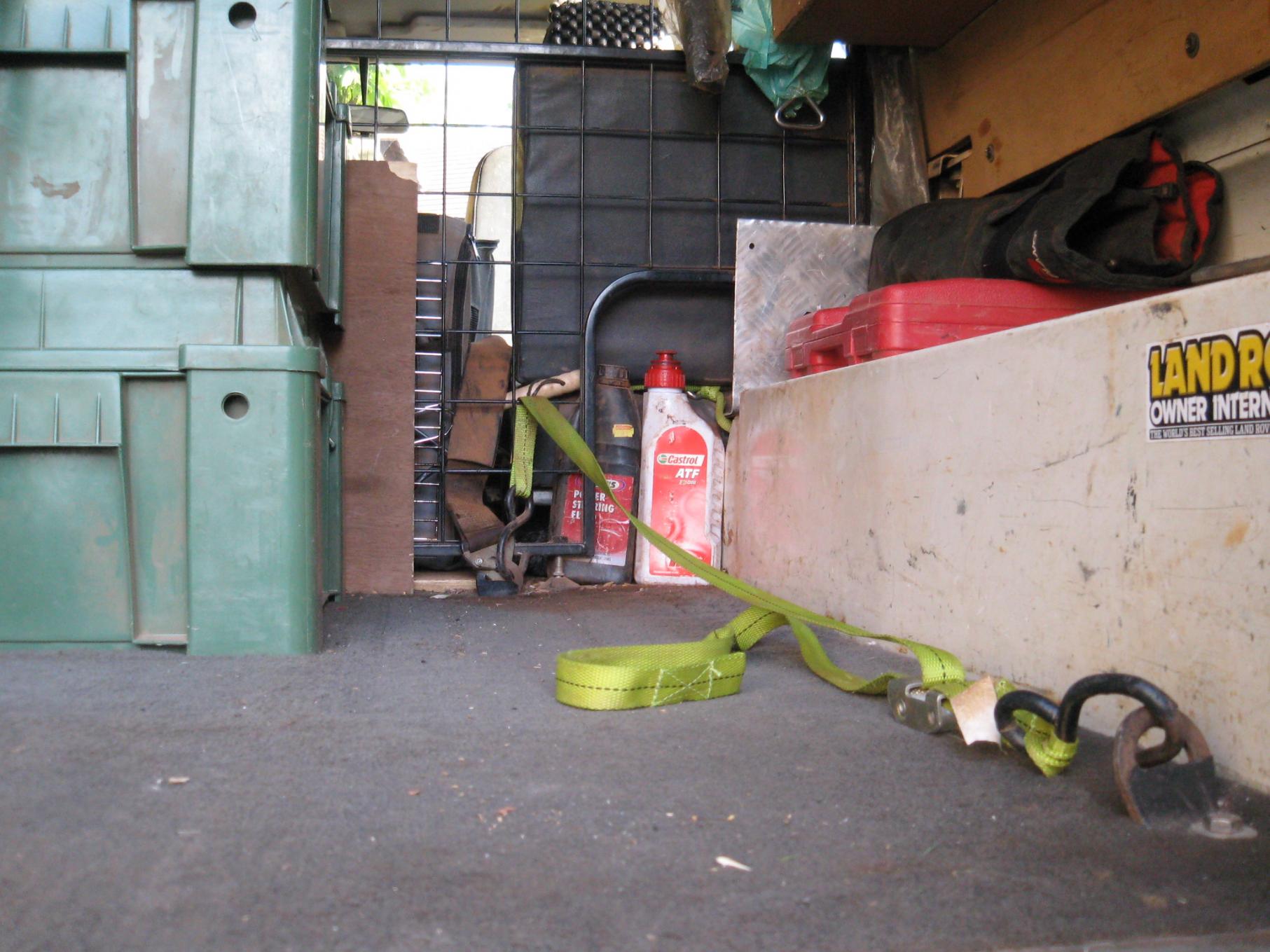

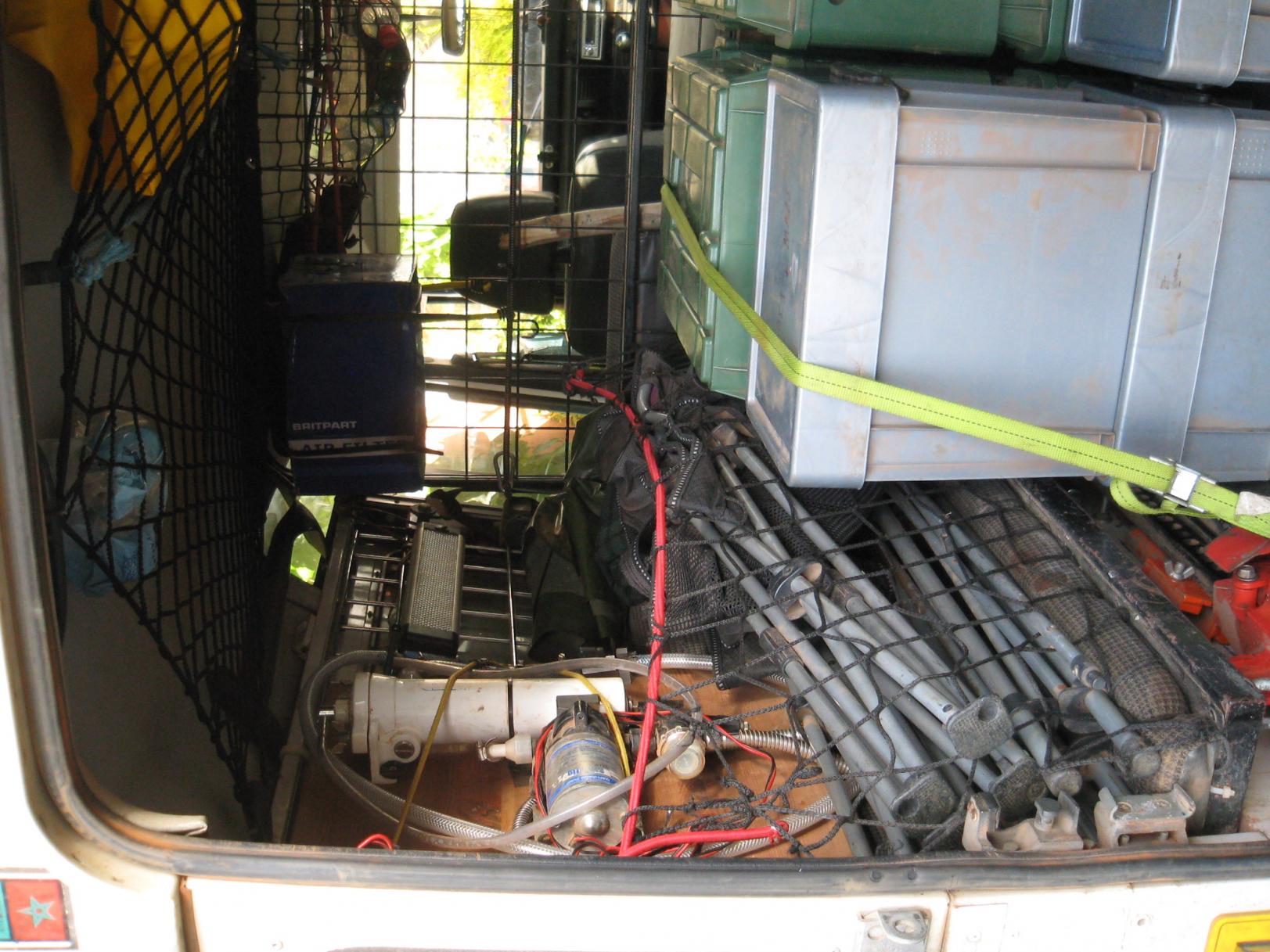

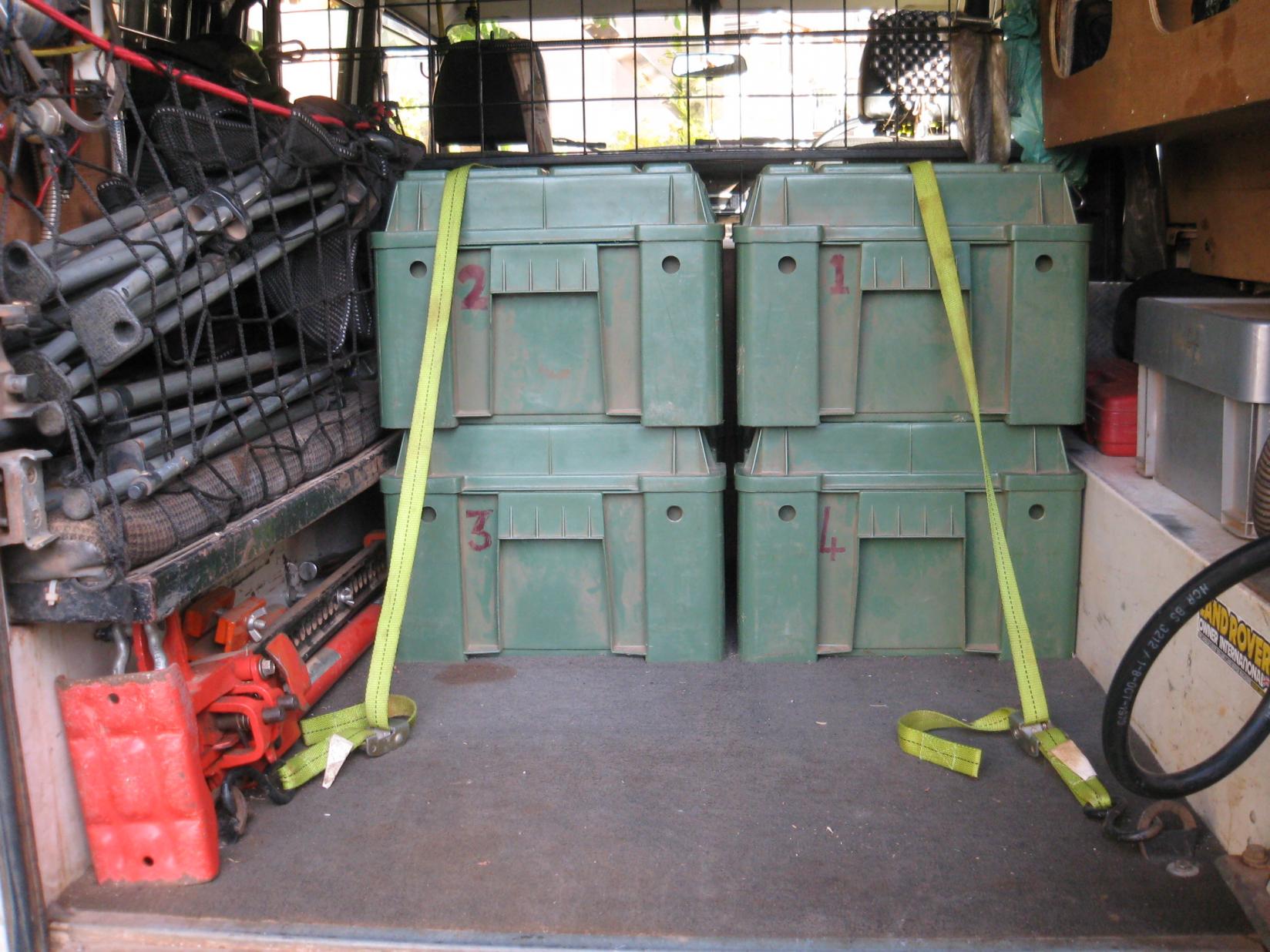

    Anyway, the pics attached show how well (if leaving one seat in the rear) wolf boxes fit in the remaining space. Also, the Hi-Lift fits below the seat, and with the use of an old net and bungee, on the seat is our table, chairs tyre pump etc etc.

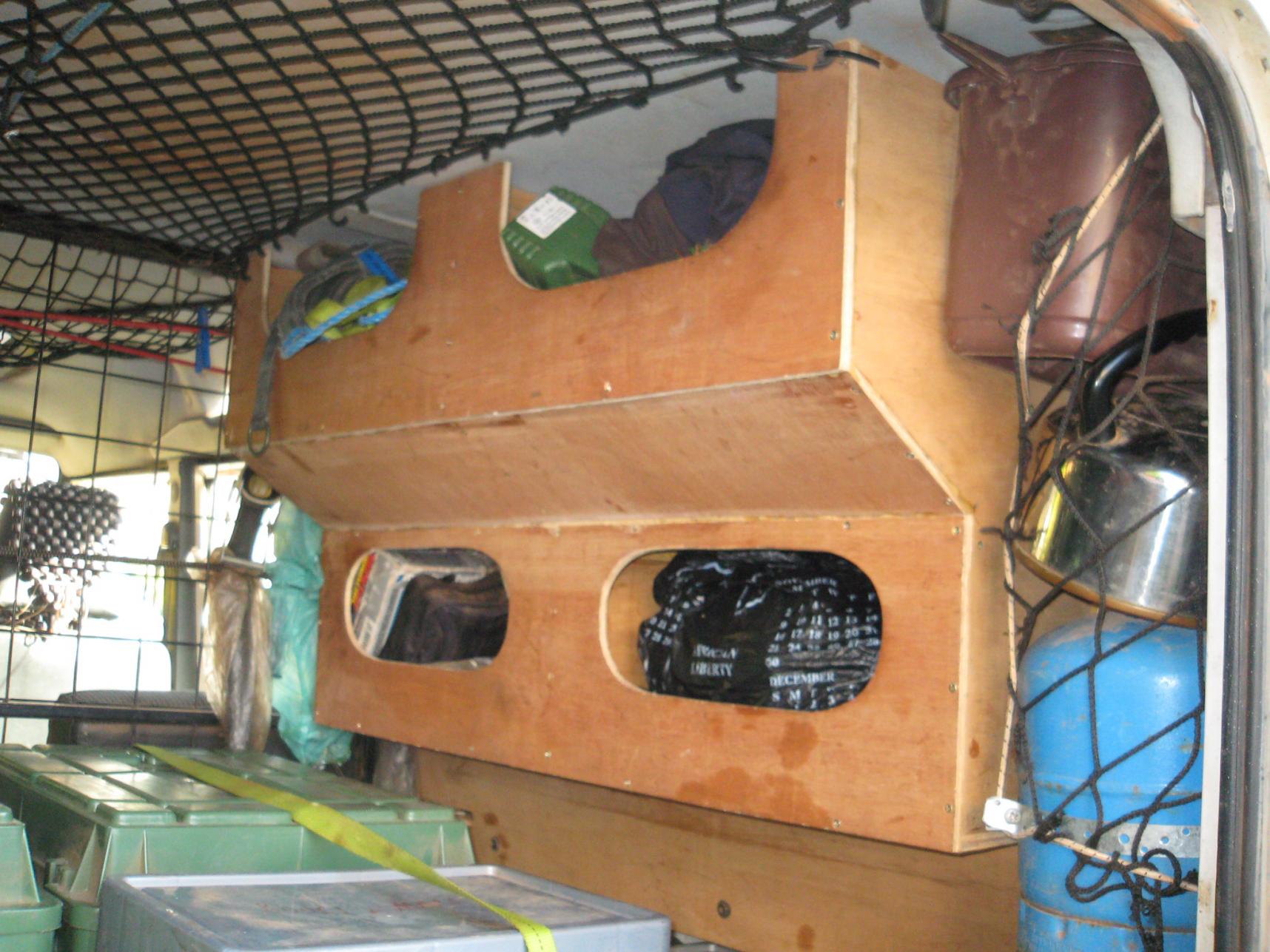

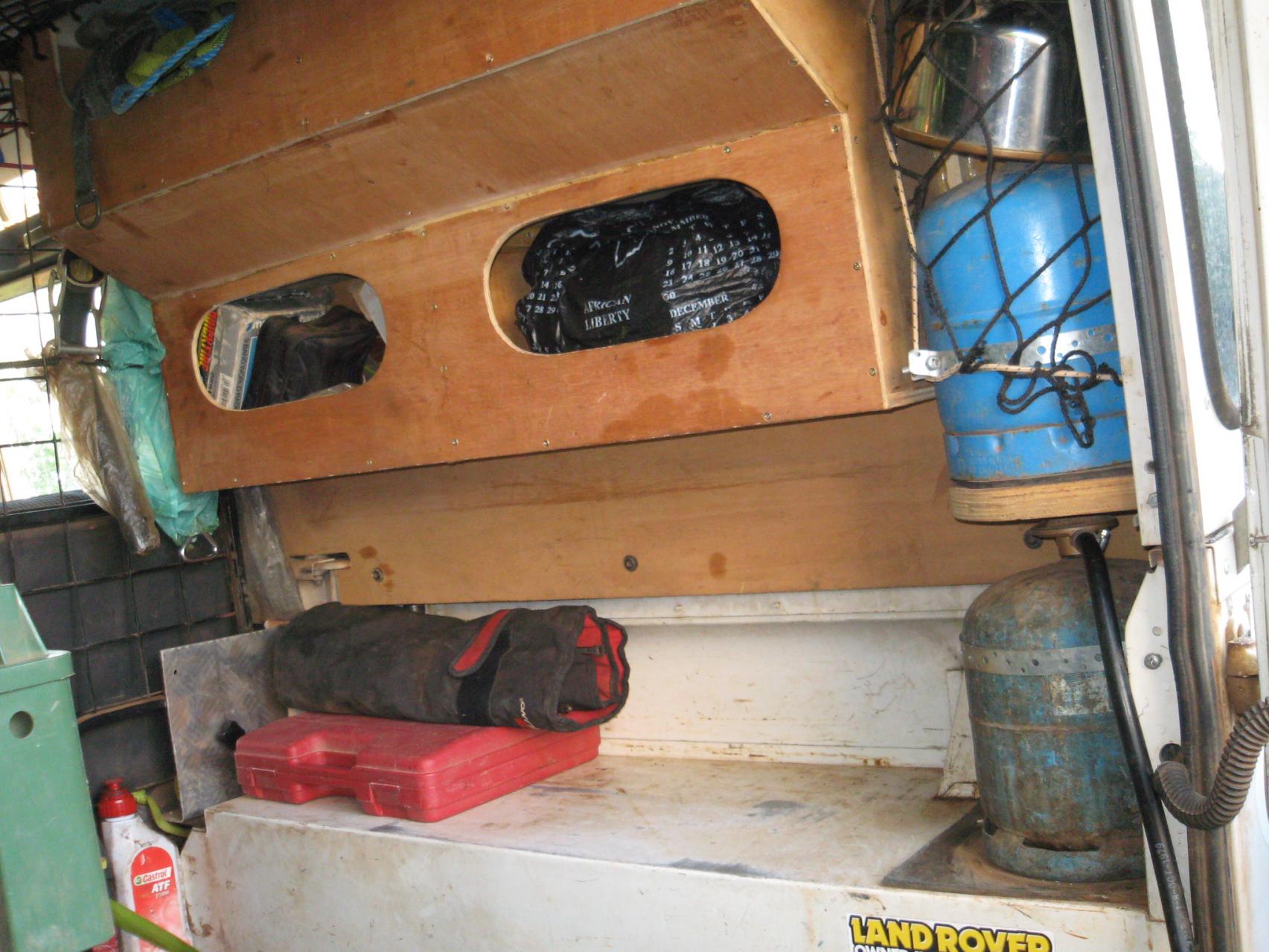

    On the other side I built a 4 compartment storage cupboard from thin ply and loads of polyurethane glue. Gert strong!
    Hope this helps,
    Jonnie


    Attached Files:

  10. onelife

    onelife New Member

    Joined:
    Jun 1, 2007
    Posts:
    491
    Likes Received:
    0
    Location:
    Southern England
  11. landroverjack

    landroverjack New Member

    Joined:
    May 11, 2010
    Posts:
    3,282
    Likes Received:
    0
    Location:
    NW Scotland
    Nice idea with the ply cupboard Jonnie. You've got me thinking if i can do something similar. What points is it attached to the vehicle and how much weight does it hold?

  12. jai_landrover

    jai_landrover Well-Known Member

    Joined:
    Oct 18, 2006
    Posts:
    13,223
    Likes Received:
    13
    Location:
    Luton
  13. rustyrhinos

    rustyrhinos Well-Known Member

    Joined:
    Jul 21, 2008
    Posts:
    2,618
    Likes Received:
    0
    Location:
    Stamford, Lincs
    Not a Defender, but in my series I have a few cheap plastic boxes, 1 metal storage box and the rest is thrown in, but that is not to everyones style!

    I have one of the boxes from here: BareBox - they are well made and make good use of the shape of the rear tub. Expensive for what they are, yes, but if you can't be bothered to make a box yourself (I did not have time, we tend to make everything) it is somewhere to start.

  14. bluehaze

    bluehaze Well-Known Member

    Joined:
    Oct 16, 2009
    Posts:
    2,074
    Likes Received:
    12
    Location:
    Andover
    That's a nice and simple solution.

  15. landroverjack

    landroverjack New Member

    Joined:
    May 11, 2010
    Posts:
    3,282
    Likes Received:
    0
    Location:
    NW Scotland
    90 quid! :doh:

  16. Jonnie Bee

    Jonnie Bee Member

    Joined:
    May 5, 2009
    Posts:
    62
    Likes Received:
    0
    Location:
    Bristol UK
    There is one sheet of 25mm ply bolted against the window. In pic 7 you can see the lower 3 bolts which are existing (originally used to attach grey plastic trim) and along the top I drilled out 4 holes and bolted through into the 'U' channel. I then built the rest of it from 9mm ply. It takes a fair weight (recovery gear, books etc) and has taken a lot of heavy off-road abuse (1000's of K's of unmade road, hundreds of which severe corrugations) and still as strong as the day I built it! The secret? polyureathane glue and loads of screws! Line each compartment with foam to reduce noise also.

  17. B3aker

    B3aker Well-Known Member

    Joined:
    May 3, 2009
    Posts:
    1,412
    Likes Received:
    0
    Location:
    Cambridgeshire.
    I've managed to conn one of my mates into knocking me up a draw if i get all the materials and a supply of beer, will post some photo's when its done.

  18. bluehaze

    bluehaze Well-Known Member

    Joined:
    Oct 16, 2009
    Posts:
    2,074
    Likes Received:
    12
    Location:
    Andover

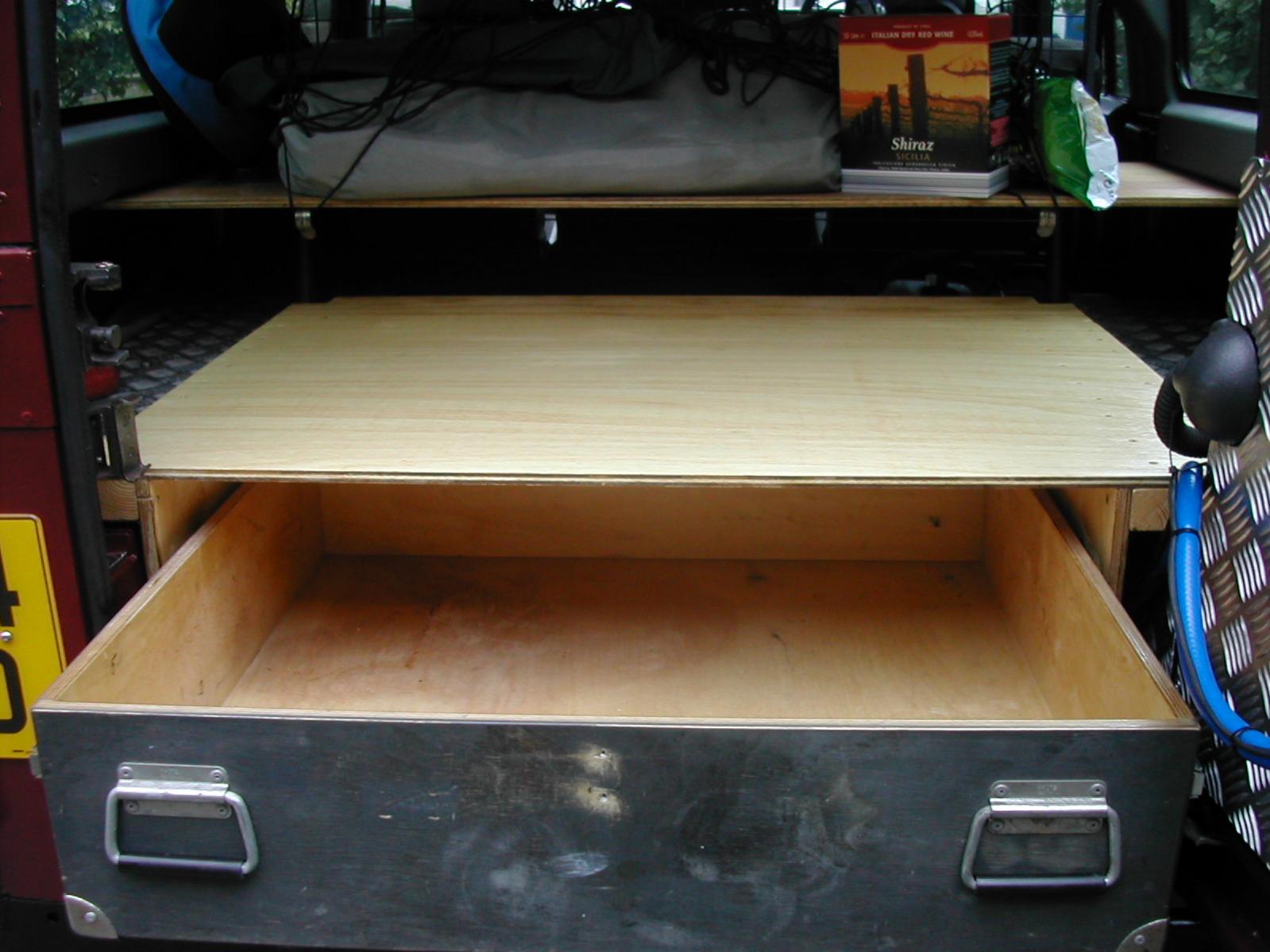

    £45 quid and four hours work to make the drawer - see the storage solution thread.

    Cooker housing next.

    Then I'm going to remove my higher shelf and fit a storage area between the arches, in line with the drawer. This will be used for non essentials and will be accessable via a hinged lid..........


    Attached Files:

  19. landroverjack

    landroverjack New Member

    Joined:
    May 11, 2010
    Posts:
    3,282
    Likes Received:
    0
    Location:
    NW Scotland
    Ahh I see, trouble is.. my 110 hard top has no windows and these 3 bolts are not there anymore! :doh:

    I have cut down some old shelves which now fit perfectly across the wheel boxes so there is a flat base if i want to sleep in the back. My plan is to put a cupboard system on one side, similar to yours, but so that it comes right down to the wheel box where i can bolt it on. Then I should be able to bolt it somehow to the section where your 3 bolts are and again at the top where the gutter runs along.

    Have you got any tips? How heavy do you estimate it is?

    Thanks, Jack.

  20. landroverjack

    landroverjack New Member

    Joined:
    May 11, 2010
    Posts:
    3,282
    Likes Received:
    0
    Location:
    NW Scotland
    A nice job well done, good luck with your next ideas!
