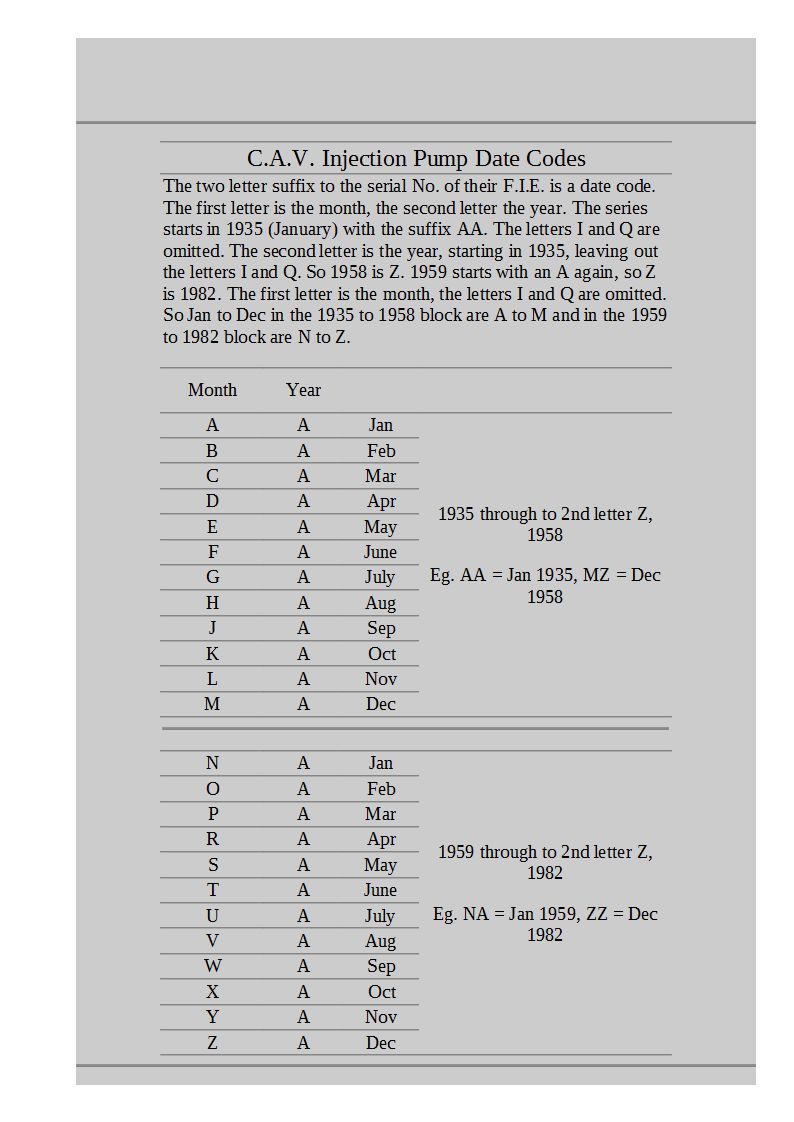

Series 2 Date my pumps (with the ghost of Cilla Black?)

Enot fittings are short like that.
http://www.ebay.co.uk/itm/10x-Tubin...hash=item3a6f2b5cb9:m:myBA9gA6qldoq6eB3PWGcSQ

Blackburn said:

Enot fittings are short like that.
http://www.ebay.co.uk/itm/10x-Tubin...hash=item3a6f2b5cb9:m:myBA9gA6qldoq6eB3PWGcSQ

Click to expand...

Yea but what thread.................

Bobsticle said:

Yea but what thread.................

Click to expand...

Thread gauges are available from good engineering suppliers or even off Ebay. What's Cilla got to do with it? Knew her long ago when she was Cilla White.

Bobsticle said:

Yea but what thread.................

Click to expand...

Well - my pump seems to be a bit different.

Look in the picture =>



There's a union there instead of that bayonet thing you've got.

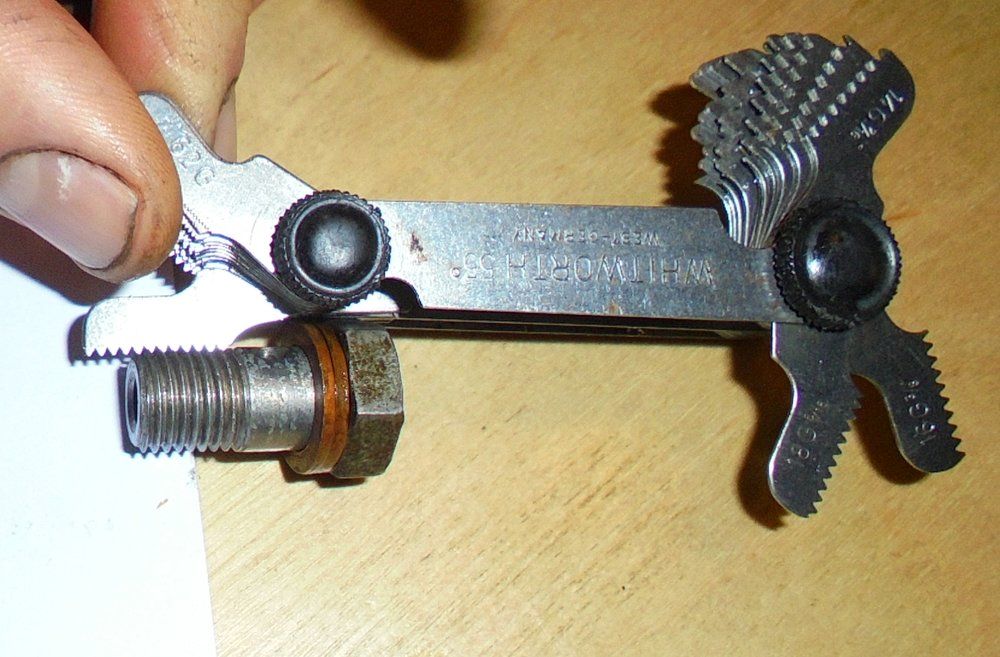

I removed the union, however, and measured the threads =>



I'm 99% sure it is a Whitworth thread - 1/4 inch

I need to find my UNC/F gauge to be 100% sure but I reckon the thread angle is 55 degrees not 60 (as it doesn't even get remotely close to the metric shapes on the other side of the gauge in the picture)

May be you want the other bigger bit measured as well?

If so let me know.

I'm in measuring mode ('uck all else to do in the cold when you're waiting for parts)

Stretch said:

Well - my pump seems to be a bit different.

Look in the picture =>

There's a union there instead of that bayonet thing you have got)

Click to expand...

Either that is an earlier setup, and they moved on to the bayonet type. or else Bobsticles has been modded, possibly to accomodate the fuel pipe of a later vehicle.

Stretch said:

Well - my pump seems to be a bit different.

Look in the picture =>

There's a union there instead of that bayonet thing you've got.

I removed the union, however, and measured the threads =>

View attachment 110361

I'm 99% sure it is a Whitworth thread - 1/4 inch

I need to find my UNC/F gauge to be 100% sure but I reckon the thread angle is 55 degrees not 60 (as it doesn't even get remotely close to the metric shapes on the other side of the gauge in the picture)

Click to expand...

Yes it seems that pump hasnt got the one way valve on it. I know when I took mine off the hole into the aluminium body was smaller than the hole into the valve, hence the adapter.

Bobsticle said:

Yes it seems that pump hasnt got the one way valve on it. I know when I took mine off the hole into the aluminium body was smaller than the hole into the valve, hence the adapter.

Click to expand...

Sometimes the valve is at the filter end of the fuel line.
