dash lights and things SII

Hiya,

I'm just about the iron all the gremlins out of my dash lighting (lack of), just wondering, the following in the centre dash bit with the dials

the red (centre top) indicator is oil pressure warning?
the orange (right bottom) is indicators (bulb gone)?
the green (left bottom) is lord knows what
the pull out switch (doesnt appear to do anything) and an indicator light below it (which I assume is something to do with it)

Anyone help?

Cheers

Miles

the red (centre top) indicator is oil pressure warning?
Yep

the orange (right bottom) is indicators (bulb gone)?
Choke warning Yellow (operates on a cable switch and temp sensor in cylinder block by thermostat)

the green (left bottom) is lord knows what
Its orange on mine and its the bat charge warning light

the pull out switch (doesnt appear to do anything) and an indicator light
The pull switch on the right hand side is the pannel lights
No indicator on my switch

below it (which I assume is something to do with it)
This is the choke warning light isnt it.(See before)

photo of dash please !!!

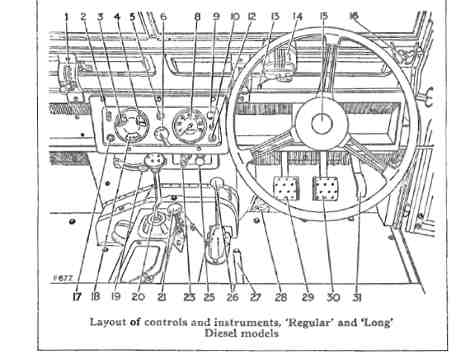

Ere you go

vunderbar, cheers all especially the pictures

miles

clivees said:

Ere you go

Click to expand...

my dash is different.... early defender w/ padded dash. hidden wiper motors....

the colonel said:

my dash is different.... early defender w/ padded dash. hidden wiper motors....

Click to expand...

Well that would be a series 3 then

clivees said:

Well that would be a series 3 then

Click to expand...

correct... thought thats what he said he had.
