Series 3 Dash Lighting

H

Hopper78

Member

Posts

19

Location

UK

• Dec 18, 2019

• #1

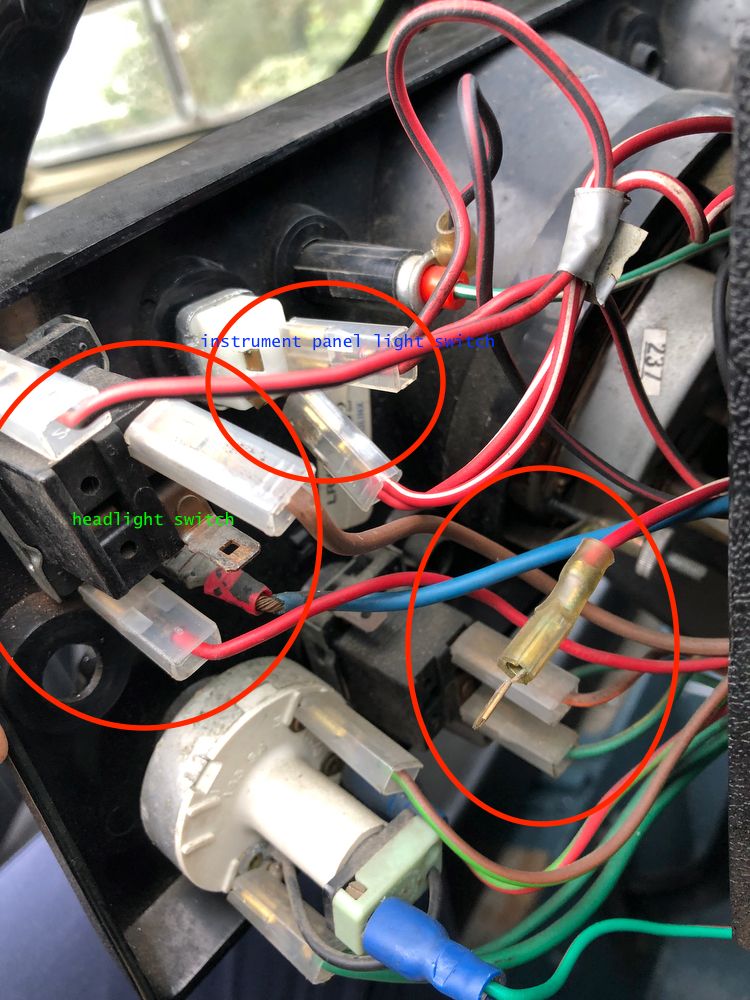

Hi, my instrument panel lights on the dash have never worked - I've opened it up today and replaced the bulbs but not sure which wires should be going where - there's a red and white one not going anywhere at the moment.

All the other lights on the dash work - it's just the two used to illuminate when dark.

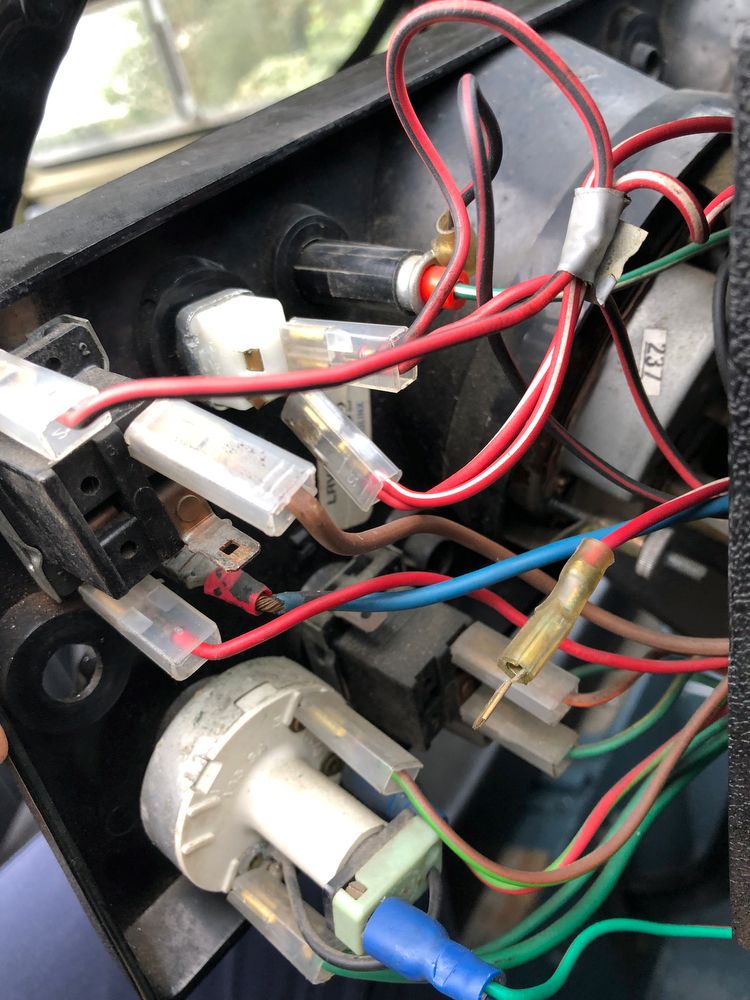

Pic attached - any help would be much appreciated.

Cheers



Attachments

•
  Photo 18-12-2019, 10 58 43A.JPG

  122.7 KB · Views: 157

Last edited: Dec 18, 2019

R

rob1miles

Well-Known Member

Posts

3,565

Location

Slough and Bath

• Dec 18, 2019

• #2

They should be wired to come on the same time as the rear lights, so if one of those wires does that try it, the other could be earth but check first.



minecab

Active Member

Posts

156

Location

milton keynes

• Dec 18, 2019

• #3

you may have a switch to turn off dash lights



H

Hopper78

Member

Posts

19

Location

UK

• Dec 18, 2019

• #4

Had a another look this evening - turns out it's just a dodgy toggle/switch.

Still not sure what the random RW is for.

Have attached wiring diagram if anybody needs for future reference.



Attachments

•
  Photo 18-12-2019, 10 58 43A.JPG

  133.2 KB · Views: 142
•
  Wiring Diagram Petrol Series 3.png

  164.9 KB · Views: 142

Last edited: Dec 18, 2019
