Cubby Box/Cup Holder

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
C

Cameron.Gibson

New Member
Posts
4
Location
Henley-on-Thames
Hello Guys,

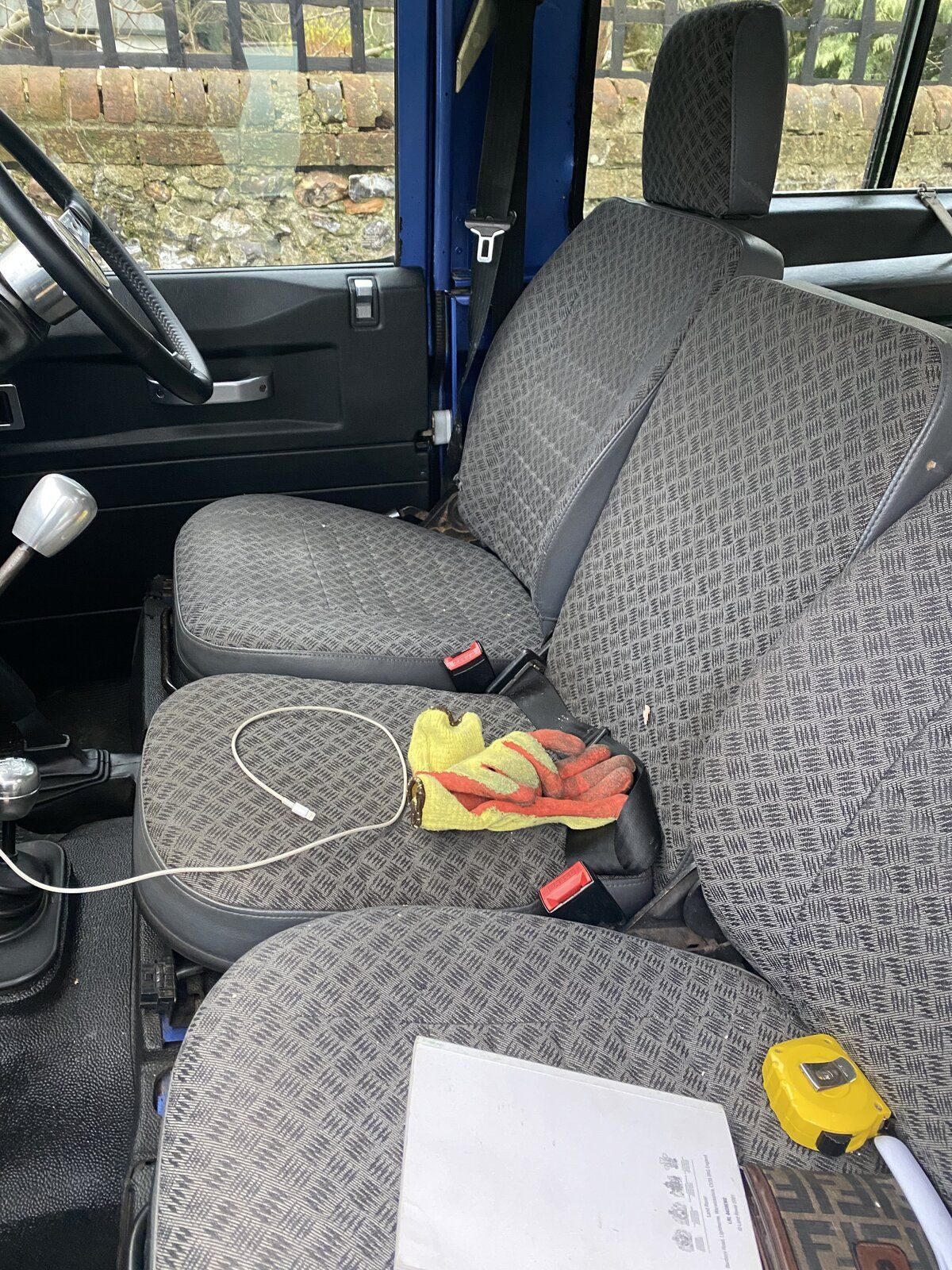

Purchased a 2002 TD5 90 recently that came with 3 seats in the front. However I’m looking to install the the cubby box/cup holders in place of the middle seat at it’s not much use and cup holders are needed. Is it a straight bolt on to where the middle seat would be or do the rails need modification? Thank you.


Attachments

  • CC307475-8F53-45FD-808E-EF3F46AEC810.jpeg
    556.6 KB · Views: 108
You might need to drill some holes and put rivnuts in to match the screw holes in the cubby box. Easy job provided you don't drill through any cables -----

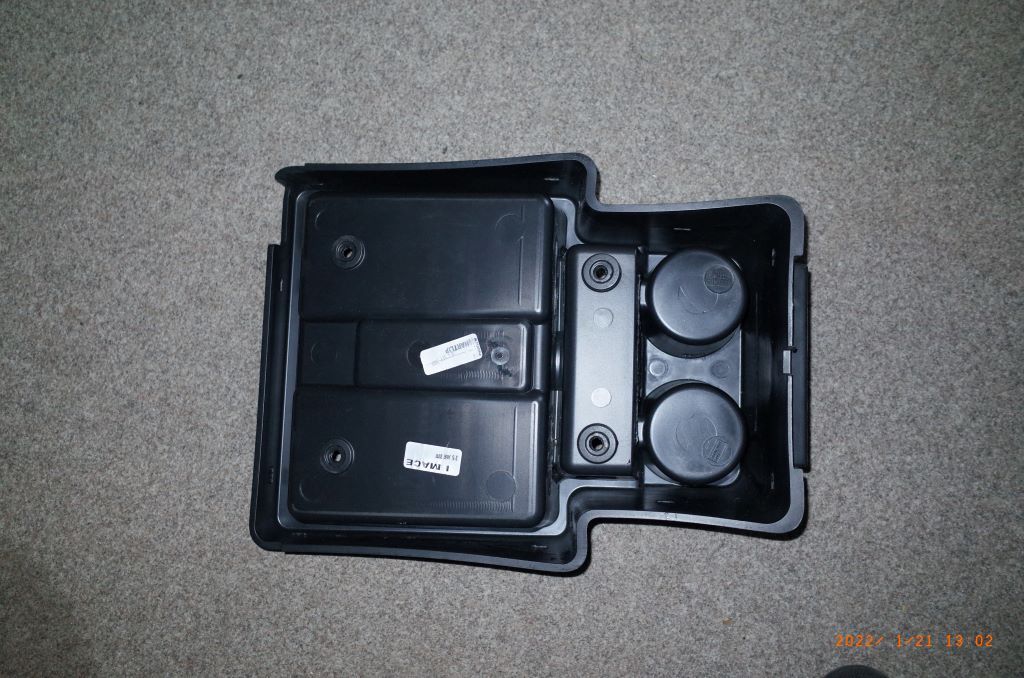

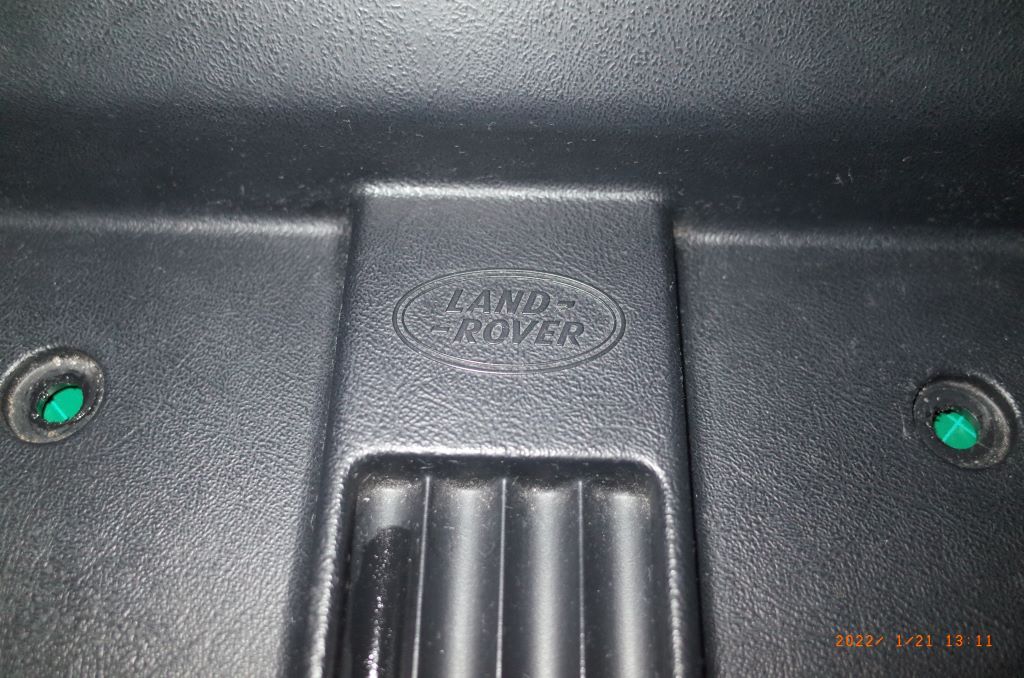

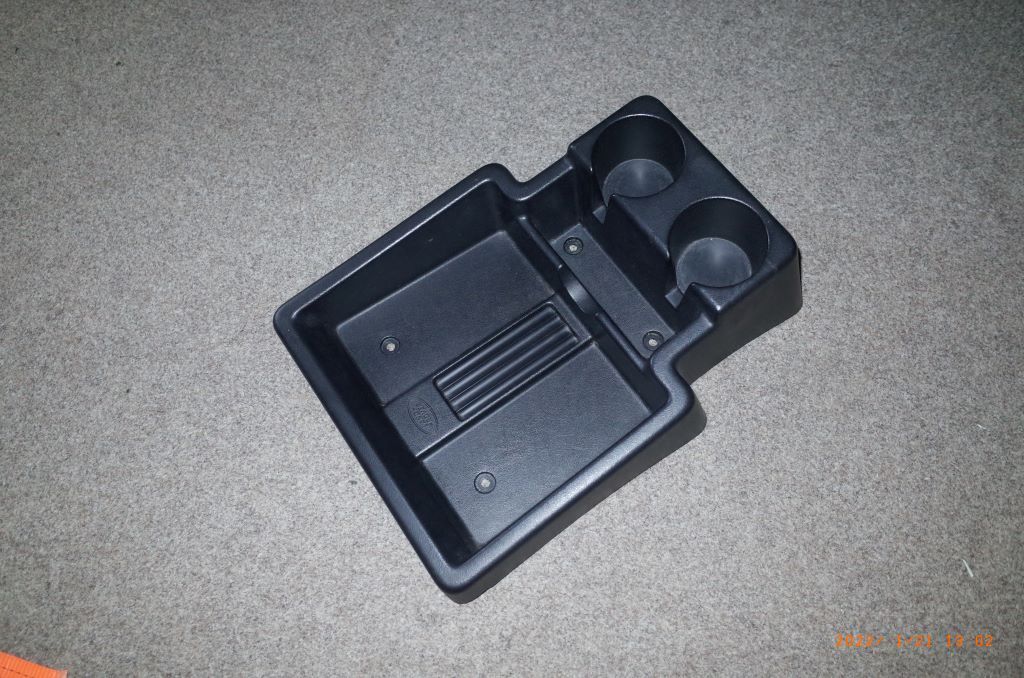

Hole pattern is .... 220mm (front to back) 130mm (back pair) 175mm (front) the front holes are 90mm from the front of the tray.
All holes 9mm diameter
The tray is made from 8mm thick polyprop, is very rigid and wieghs around 4Kgs

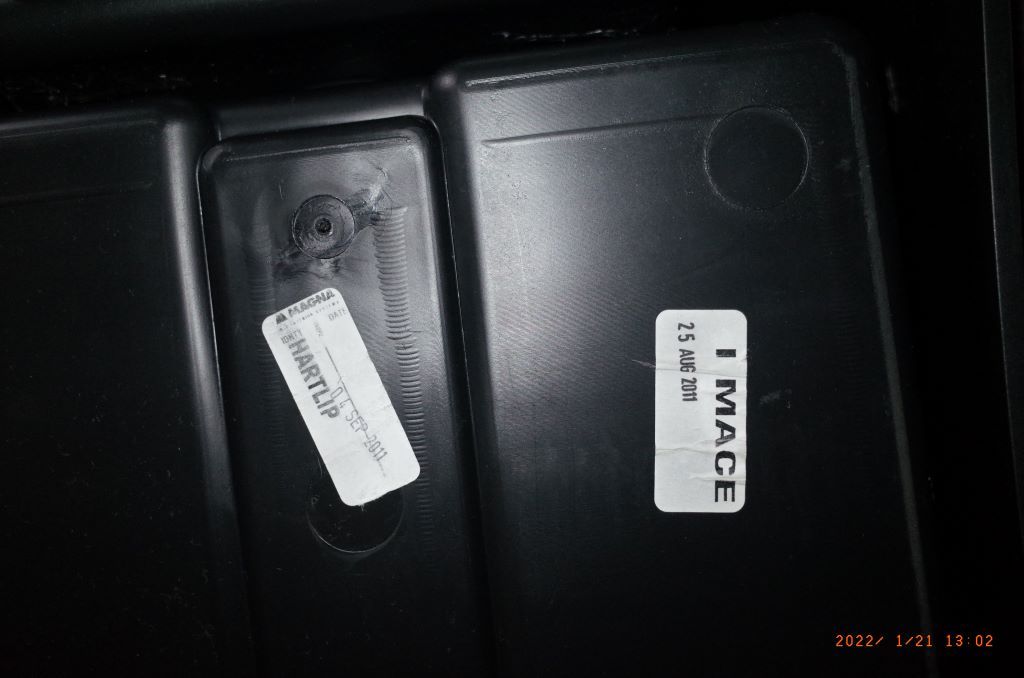

Original, new in 2011, was in a D90 from 2014 for about 4 or 5 years then in my garage.
Not new but not far off.

£35 delivered mainland UK.






Part number https://www.lrdirect.com/fhs500290puy-console

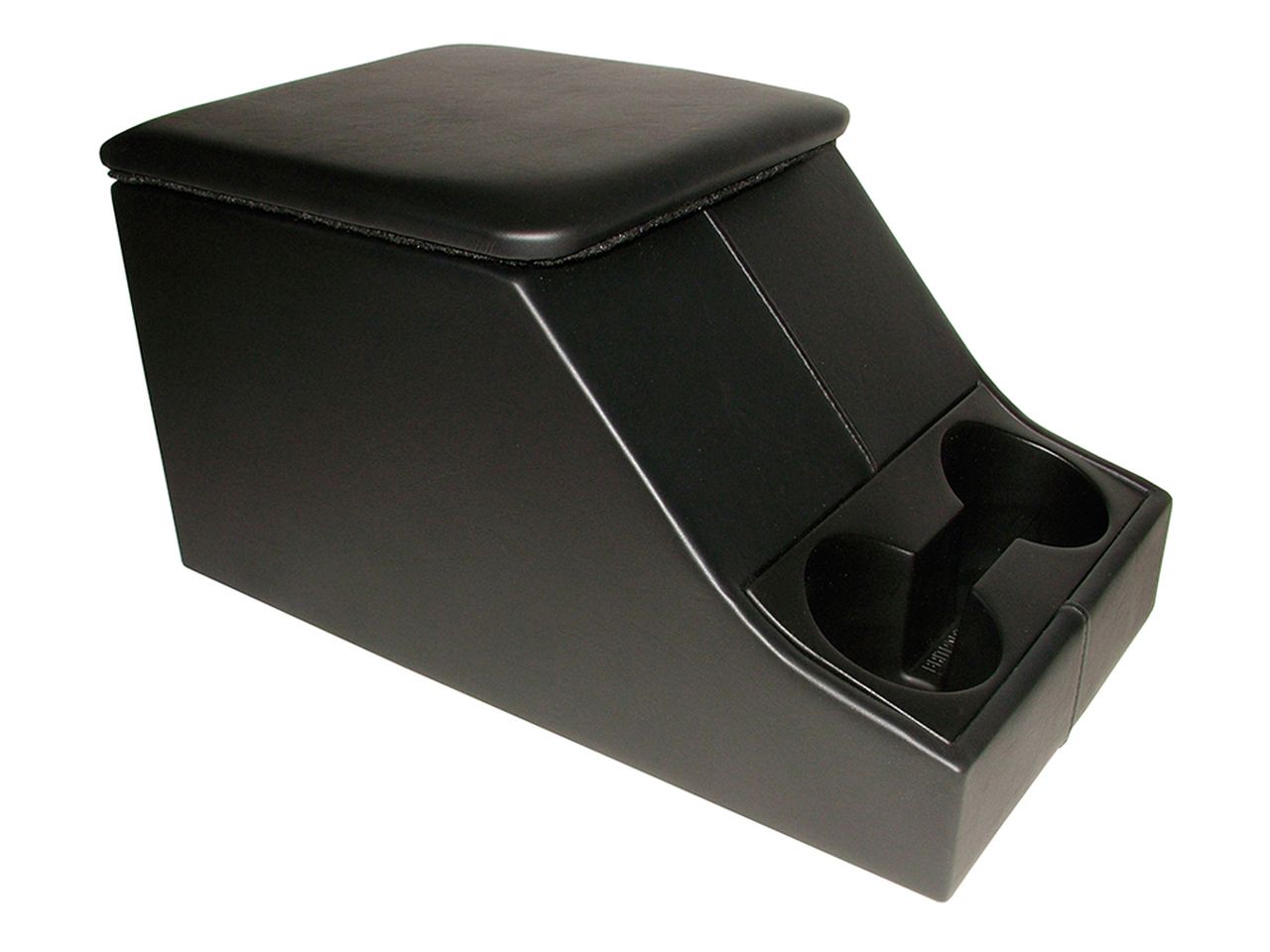

Thank for all the info. However I’m looking for the cubby box/cup holder unfortunately as in the photo.


miktdish said:
Hole pattern is .... 220mm (front to back) 130mm (back pair) 175mm (front) the front holes are 90mm from the front of the tray.
All holes 9mm diameter
The tray is made from 8mm thick polyprop, is very rigid and wieghs around 4Kgs
Original, new in 2011, was in a D90 from 2014 for about 4 or 5 years then in my garage.
Not new but not far off.

£35 delivered mainland UK.

View attachment 257373
View attachment 257374
View attachment 257375
View attachment 257376

Part number https://www.lrdirect.com/fhs500290puy-console
Click to expand...
miktdish said:
Hole pattern is .... 220mm (front to back) 130mm (back pair) 175mm (front) the front holes are 90mm from the front of the tray.
All holes 9mm diameter
The tray is made from 8mm thick polyprop, is very rigid and wieghs around 4Kgs
Original, new in 2011, was in a D90 from 2014 for about 4 or 5 years then in my garage.
Not new but not far off.

£35 delivered mainland UK.

View attachment 257373
View attachment 257374
View attachment 257375
View attachment 257376

Part number https://www.lrdirect.com/fhs500290puy-console
Click to expand...


Attachments

  • 00A7E06A-6F39-4586-9016-1501530D417B.jpeg
    75 KB · Views: 97
