Disco 2 Cruise control not working

sierrafery said:

1. yes, provided the N/C contact closes so it's not enough to change the status but important to be closed to live when released if you see what i mean

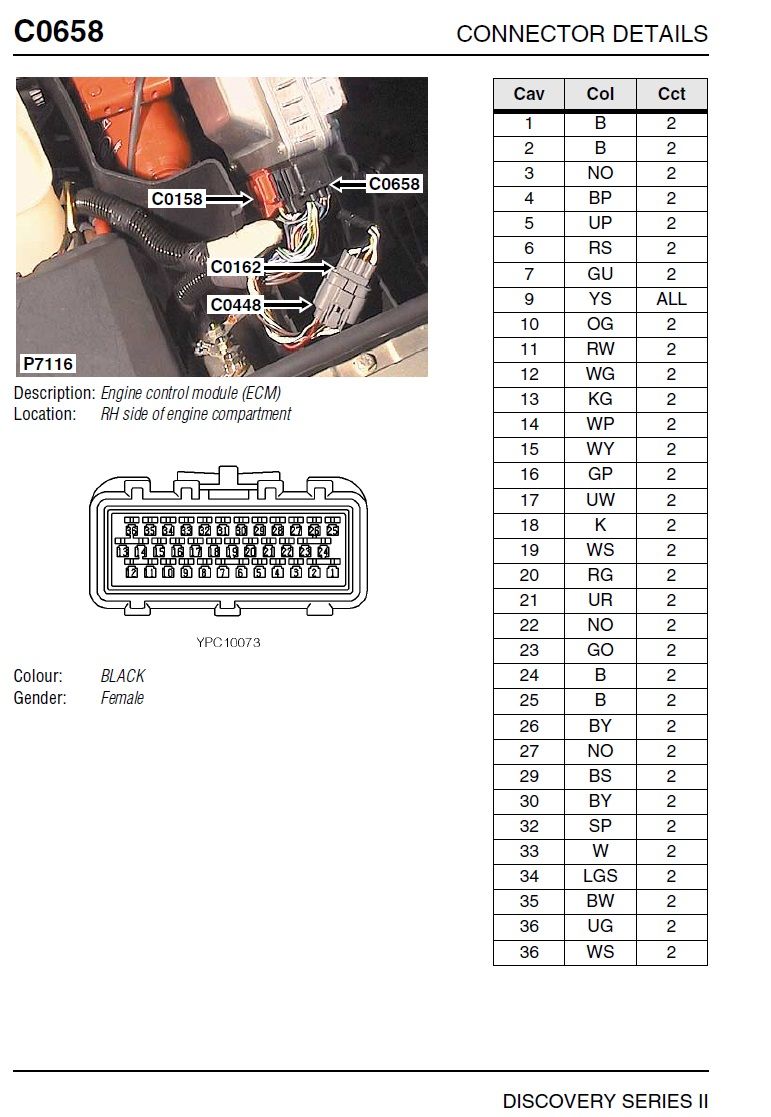

2. with ignition on you must get 12V against body at pin 10(orange/green wire) of ECU black plug(C0658) with pedal released and 0V with pedal depressed, use a needle from behind without unpluggin it, if you get those readings the brake switch is OK
View attachment 174656

Click to expand...

sierrafery said:

Then unplug the hydraulic clutch switch and see if the CC works that way, you should have said what year is your D2 cos it depends where it is, on early modells is on the clutch pipe near the fusebox and on facelifts is in the bottom of the master cylinder.... btw, is the ECU the factory fitted orignal one?

Click to expand...

sierrafery said:

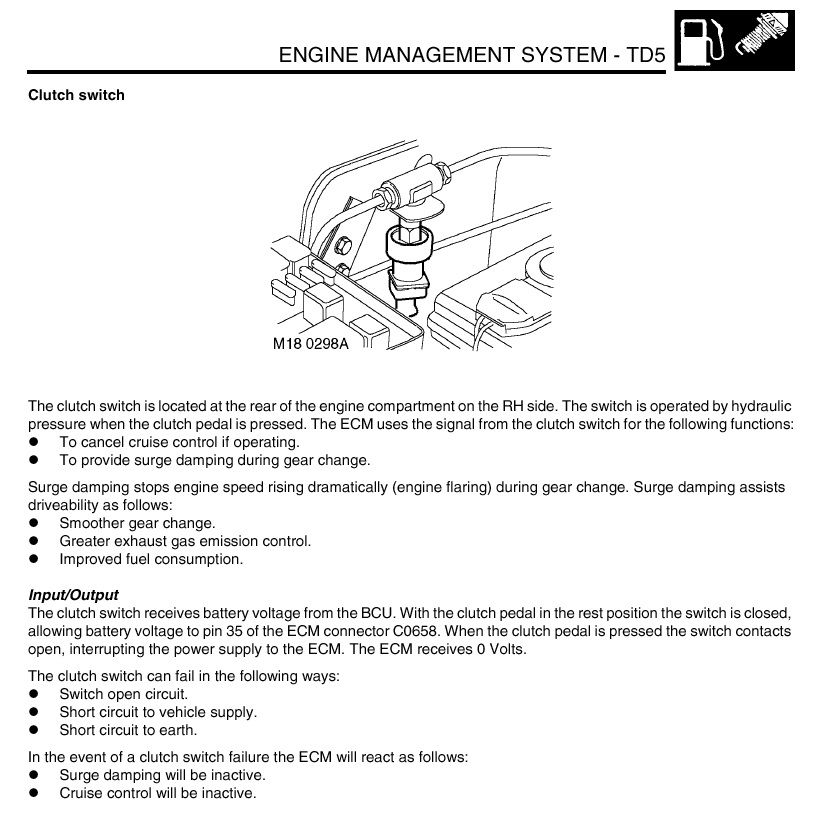

see this but neglect the input/output thing cos it's wrong, in reality it's N/O and closes to earth when the clutch is depressed
View attachment 174666

Click to expand...

sierrafery said:

Then it's normal for the CC to not work cos the ECU gets a clutch depressed input, it seems that the previous owner didnt want to spend on it and simply bridged it but this also reduces the power a bit cos the fuelling is affected, buy a new one and connect it back

Click to expand...

sierrafery said:

MSK500020 work fast and you'll not have to bleed the system then cos normally you'll lose a bit of fluid only, eventually put your finger on the hole after you remove the old one and fit the replacement

Click to expand...
