Crank Case Breather Housing - Screw Thread Gone! (SOLVED)

Discussion in 'Land Rover Freelander' started by Tilgi, Dec 30, 2021.

< Previous Thread | Next Thread >
  1. Tilgi

    Tilgi New Member

    Joined:
    Oct 17, 2021
    Posts:
    9
    Likes Received:
    0
    Location:
    Surbiton

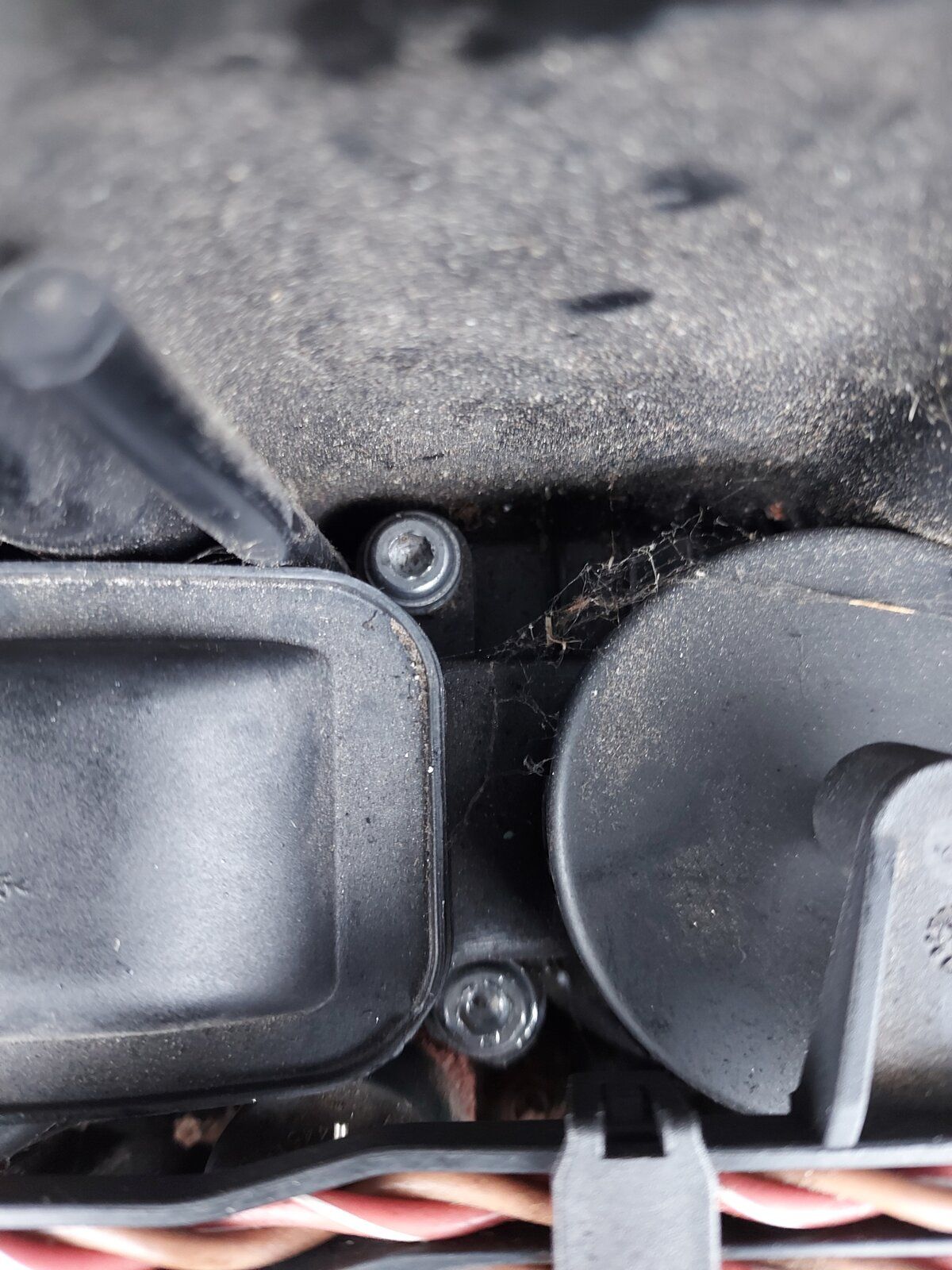

    Afternoon All - Have changed a few filters in my 2004 Freelander TD4 and just about to get around to changing the crank case filter but have a small issue with the housing. Two of the screws have the thread gone and the hex key sockets just twist. Any thoughts?

    Was hesitant to drill to release but exhausted a few options already and held off from just ploughing ahead with a wrench to make it worse. Pic Attached.


    Attached Files:

  2. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Is it the thread that has gone and it just turns, or is it the hex shape that has rounded and the key turns and does nothing??

    If the latter a slotted screwdriver forced in across the corners should loosen it.
    If the former then grips and lift as you turn or, as you say, drill head but then you may end up stuck with a bit in the socket end of the fixing.
    Please report back.!!!

  3. Tilgi

    Tilgi New Member

    Joined:
    Oct 17, 2021
    Posts:
    9
    Likes Received:
    0
    Location:
    Surbiton
    Thanks Andy. It's a case of the hex bolt just rotates as the head has rounded completely. I'll keep the thread updated for others (if unfortunate enough to have the issue).Should be having another crack at once back at home after the NY. Did think a chisel to create a groove for a flat head similar to your suggestion should do...!

  4. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Yes or a large screw extractor which has a reverse thread on it so that when you unscrew the bolt the extractor tightens into the fixing.

  5. J_D

    J_D Well-Known Member

    Joined:
    Sep 29, 2019
    Posts:
    435
    Likes Received:
    120
    Location:
    Worcestershire
    The nut part is only held in plastic so I wouldn't chisel.
    As above, reverse drill/extractor.
    Can you get mole grips on it at all, I know it is deep down but just a little turn would help

  6. Tilgi

    Tilgi New Member

    Joined:
    Oct 17, 2021
    Posts:
    9
    Likes Received:
    0
    Location:
    Surbiton
    All sorted - thanks for the thoughts. Went down the reverse drill bit route. Took a few pilot holes but all sorted and got the BMW oil filter in!

  7. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Thanks for feedback, we'll done!
    Please change thread title to include 'Solved' as it helps others.
