Coolant leak tdv6

L1a1n1d1y · Sep 4, 2022

I have a coolant leak on my discovery 4 tdv6, It would have happened when away on holiday towing a caravan.

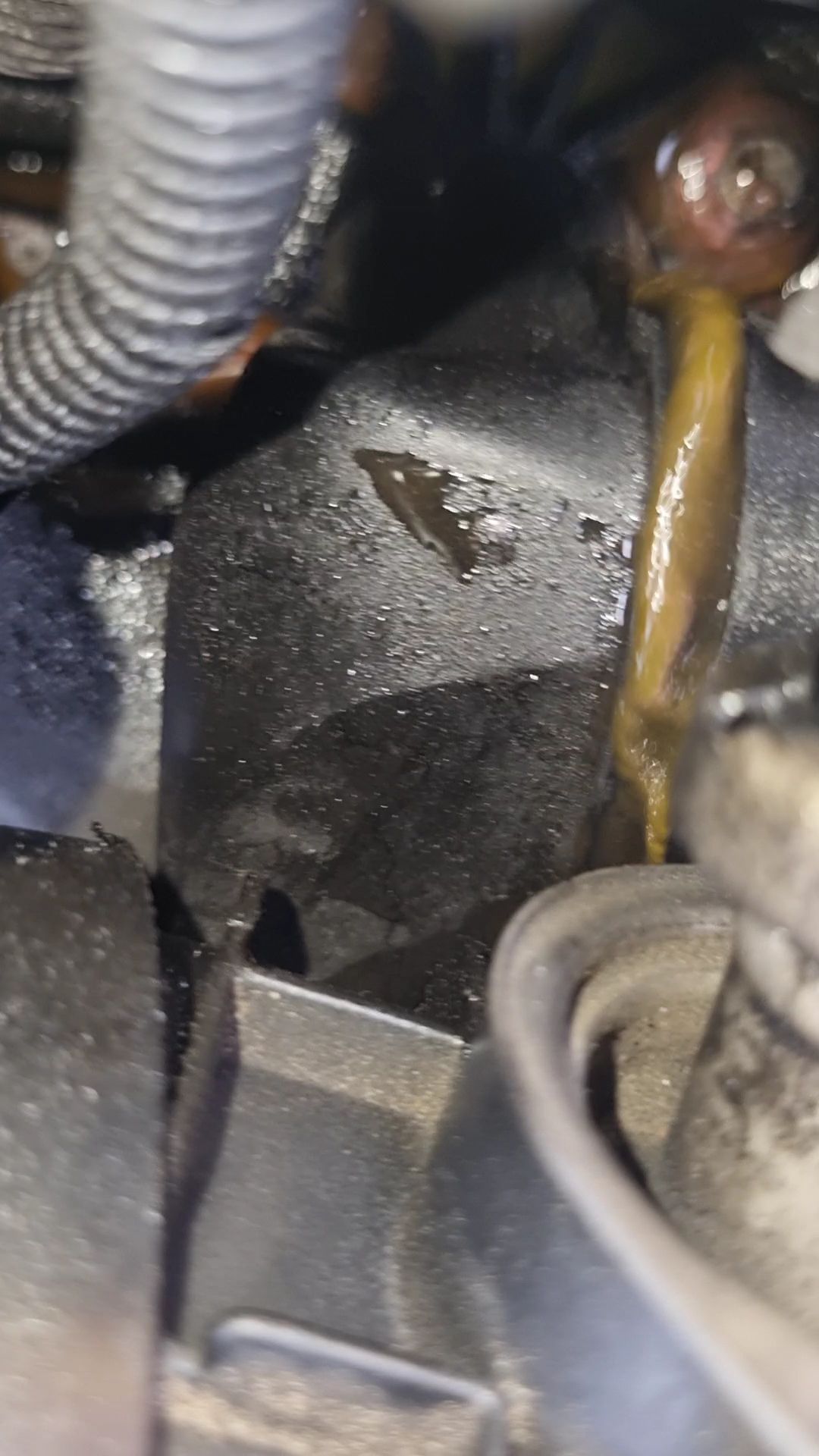

I pressurised the system and its coming from the top not sure if it's the thermostat housing I was hoping someone will be able to tell me before I start ripping it apart... I will try and upload a video if not will be a photo...

Thanks in advance

lynall · Sep 4, 2022

L1a1n1d1y said:
I have a coolant leak on my discovery 4 tdv6, It would have happened when away on holiday towing a caravan.

I pressurised the system and its coming from the top not sure if it's the thermostat housing I was hoping someone will be able to tell me before I start ripping it apart... I will try and upload a video if not will be a photo...

Thanks in advance

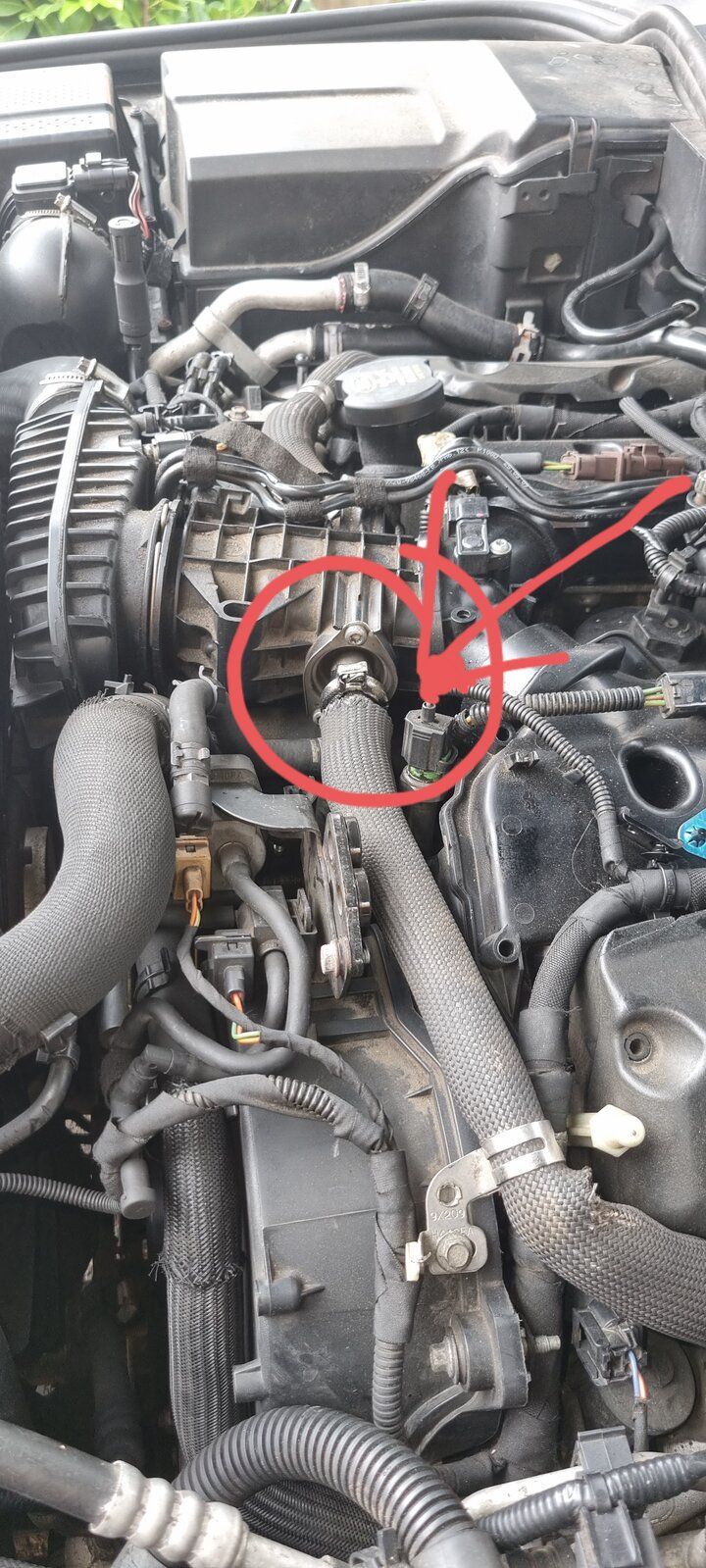

That pipe in the centre of the circle is your egr pipe from the passenger side of the engine.
There is a black plastic block underneath that in the front of the engines V, that can and does leak.

Not sure on the 3.0, but the 2.7 stat is down low by the bottom of the rad.

Edit google land rover 1316061, seems it is common across the 2.7 and the 3.0.
