Coolant leak...Please help identify the hose

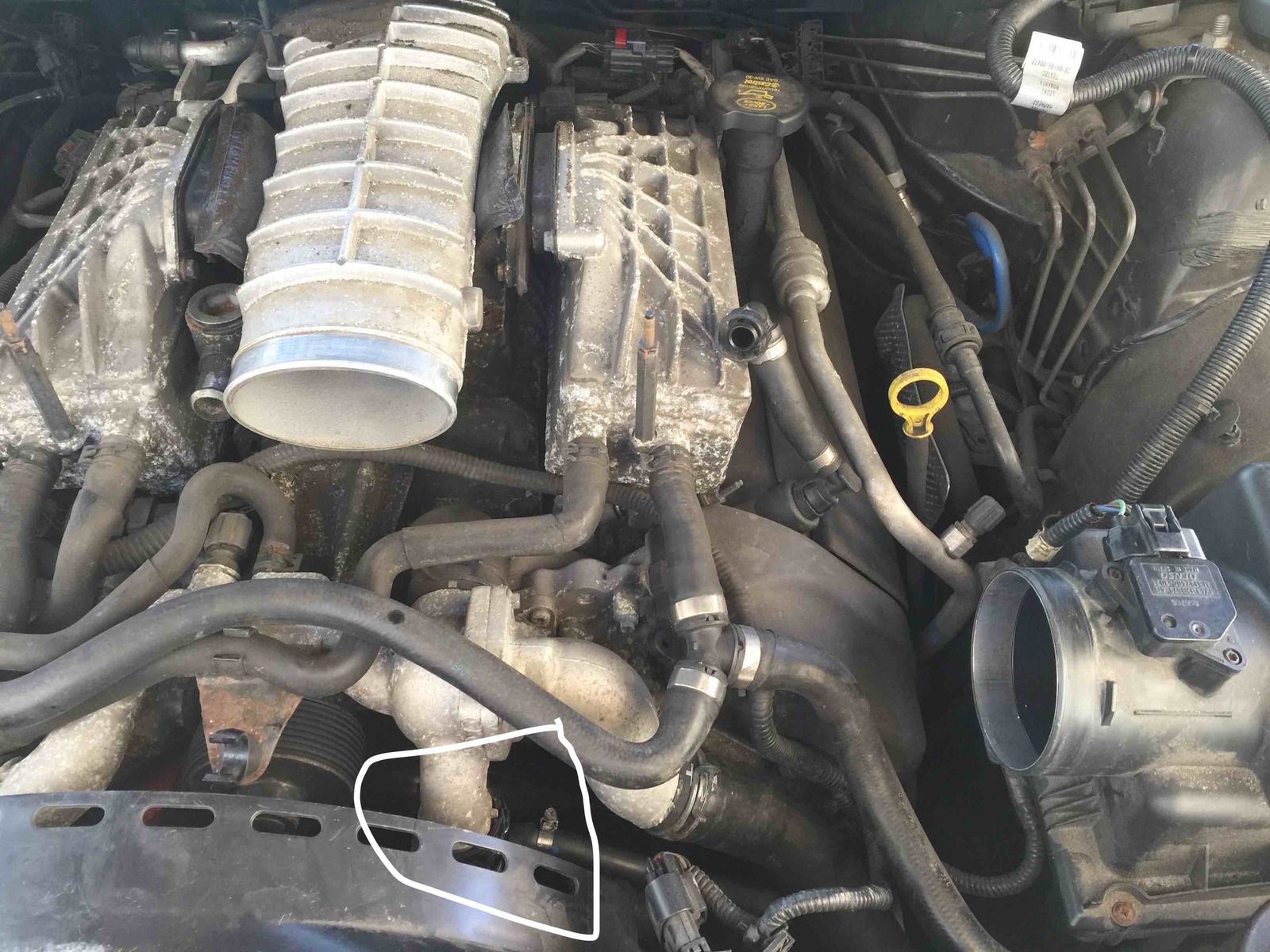

Hi Guys, i have a real issue with my 2005 RR 4.2 Supercharged. I am having a terrible time naming the hose set responsible for the issues i am having. i have attached a few pictures below which hopefully someone will be able to give me name for the hose so i can buy a replacement.

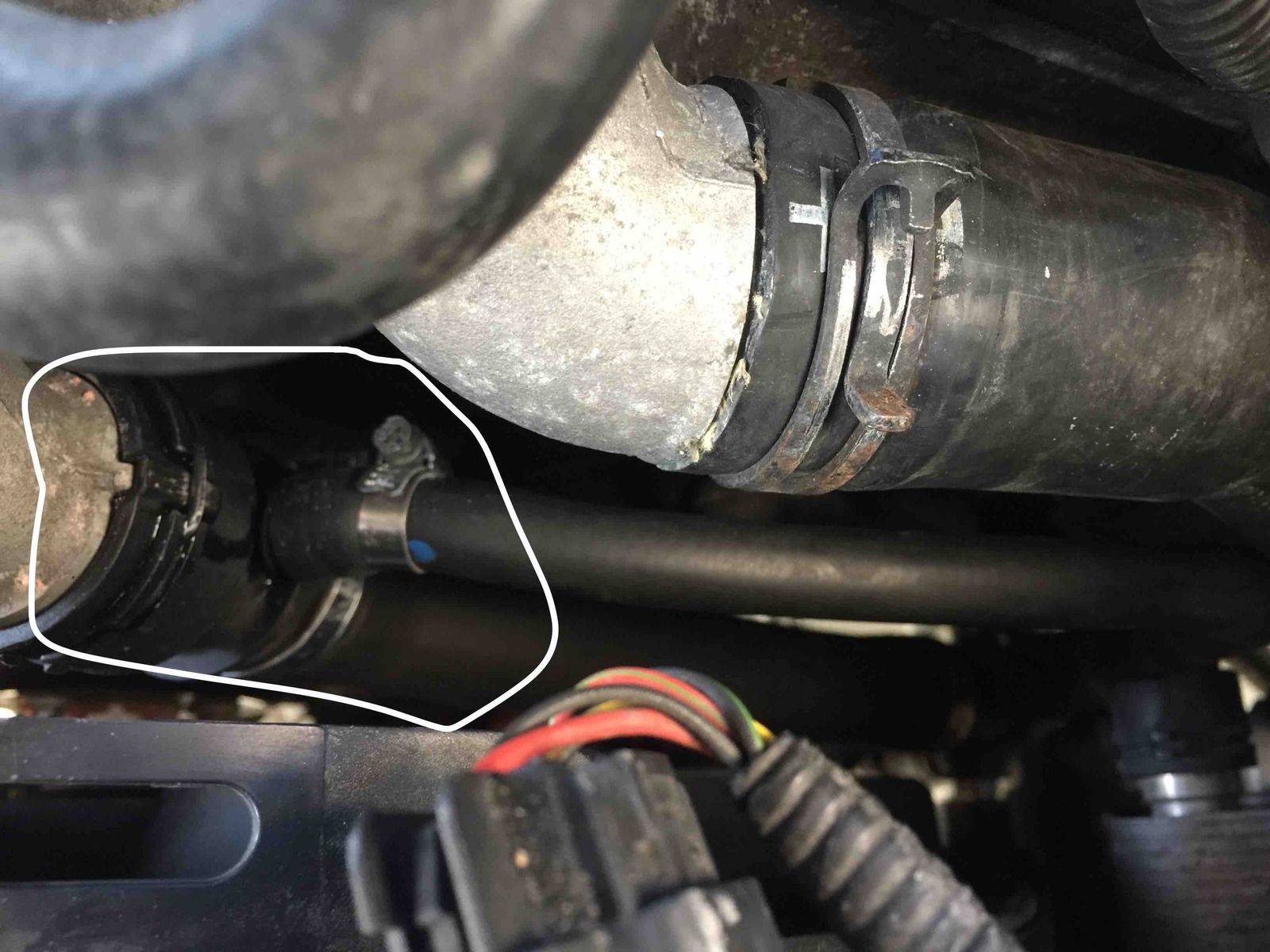

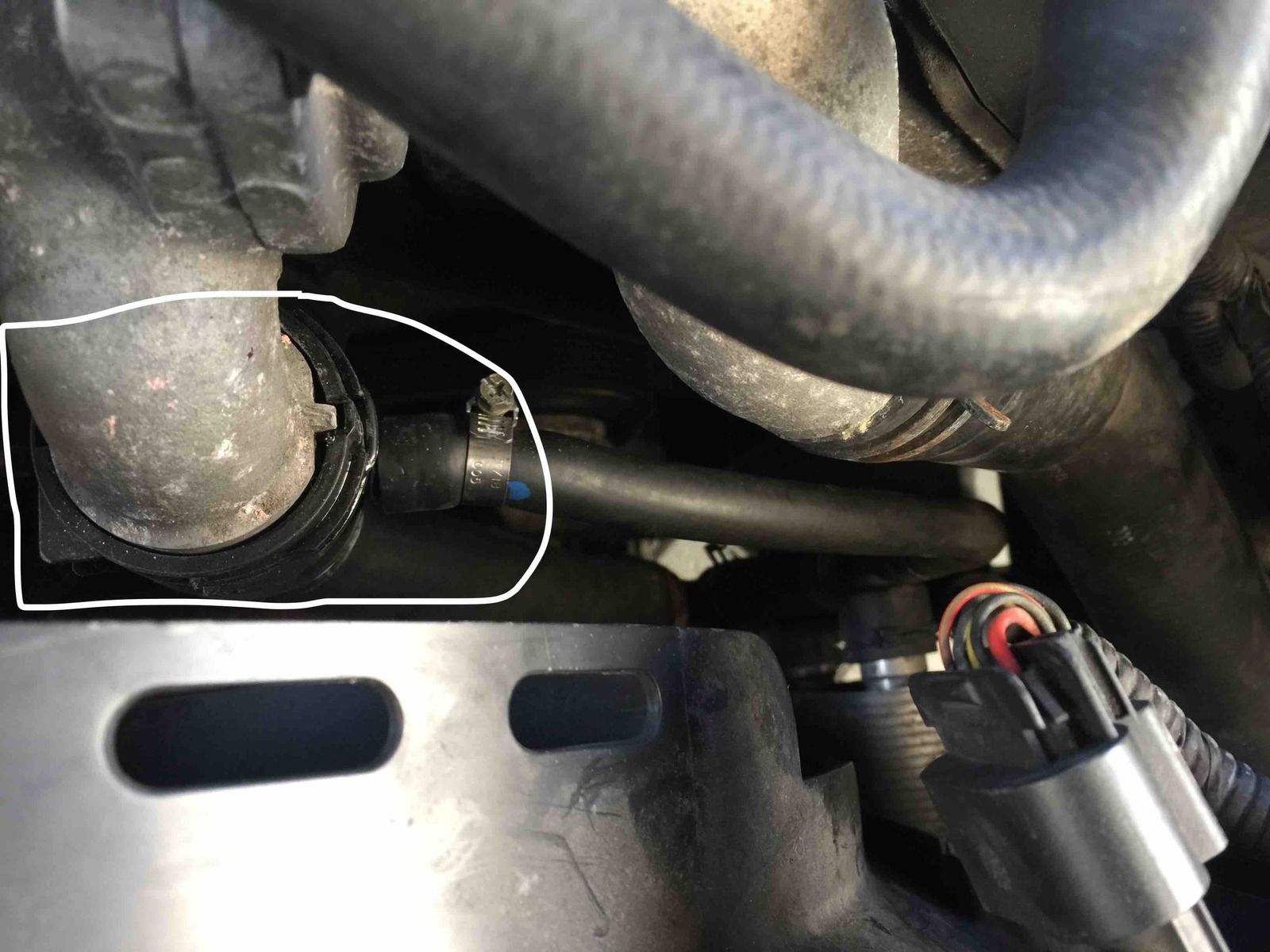

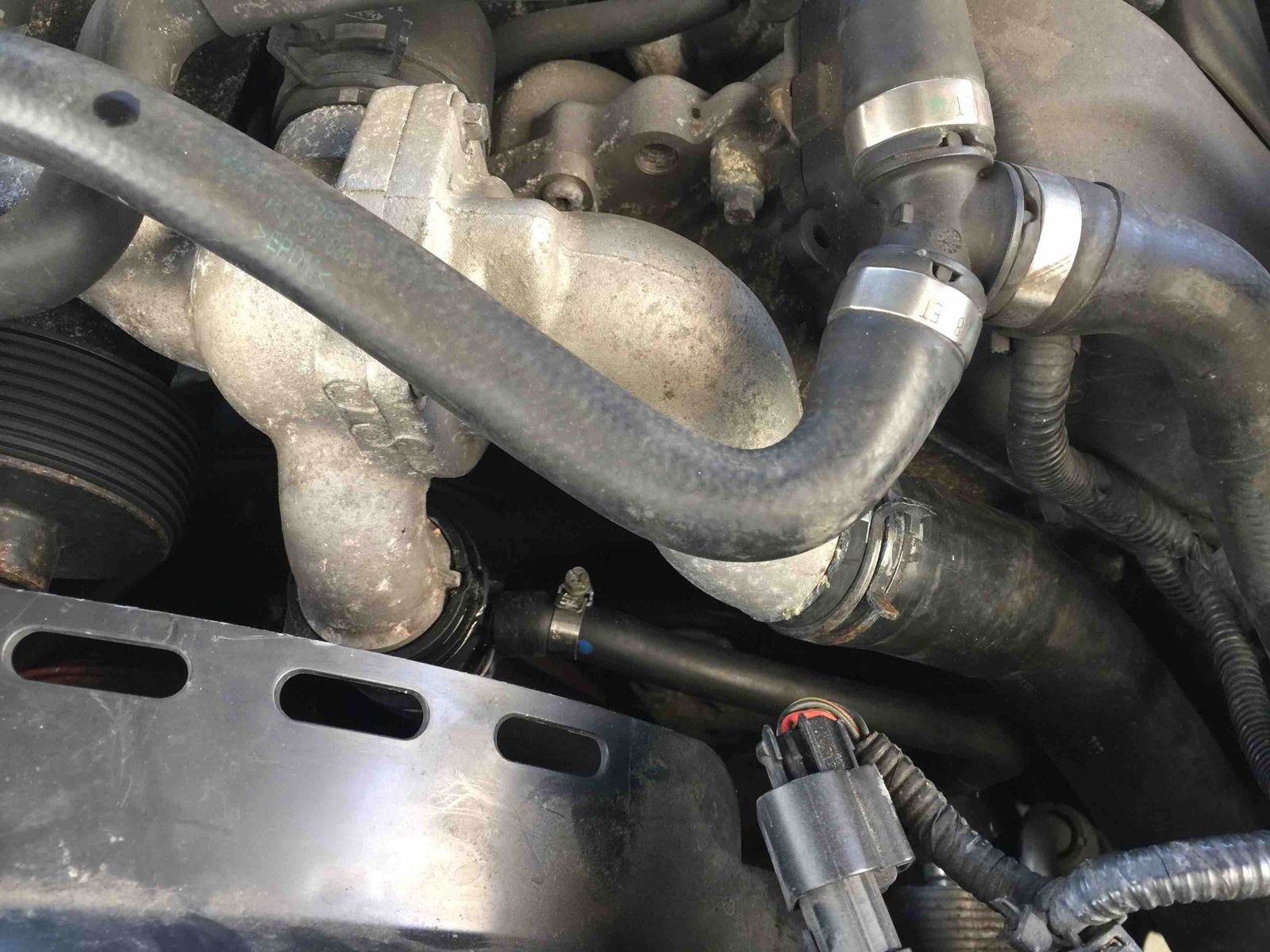

The main hard plastic connector attached to the cast pipe in the picture is the issue as the leak is coming out of there. The cast pipe is coming off just in front of the Thermostat and i have taken it off and had a look but its still leaking. It seems like there is T off to a small diameter hose to some sort of cooler attached to the radiator.

A few garages near me haven't a clue, i am doing the work myself i just need to know what i am ordering.

Have a look through this: http://new.lrcat.com/
Left click on your vehicle.
Then left click on the relevant section - think it will be 3.
Then work your way through the sections - probably 30303.
If you right click on the text & open in a new tab you'll get pics of the parts with numbers in your new box.
Once you've found the right pic & the right item number click on its number & the LR part numbers & VIN number range will appear at the bottom.
Have fun

That is a briliiant link ta much

Appreciate that dude. I just came across that. But your explanation is fantastic.

Ratae said:

Have a look through this: http://new.lrcat.com/
Left click on your vehicle.
Then left click on the relevant section - think it will be 3.
Then work your way through the sections - probably 30303.
If you right click on the text & open in a new tab you'll get pics of the parts with numbers in your new box.
Once you've found the right pic & the right item number click on its number & the LR part numbers & VIN number range will appear at the bottom.
Have fun

Click to expand...

I've tried clicking on the link but nothing will open. Am I doing something wrong or has the link expired?

Working fine for me - just read your post & checked it. I right click on the link & 'Open link in new tab'
ETA I've just tried left clicking to see if that makes a difference & it opens itself fine in a new tab.
And clicking on it in your quote of my original works both ways too, so I don't know what's going on for you.
Further ETA If it's still not playing try new.lrcat.com

Ratae said:

Working fine for me - just read your post & checked it. I right click on the link & 'Open link in new tab'
ETA I've just tried left clicking to see if that makes a difference & it opens itself fine in a new tab.
And clicking on it in your quote of my original works both ways too, so I don't know what's going on for you.
Further ETA If it's still not playing try new.lrcat.com

Click to expand...

Thanks but still no joy. I've clicked everything to the bone!, It doesn't matter, I'll try again tomorrow.

http://new.lrcat.com/#!/12119/94841/95970/7631/96090

https://www.google.co.uk/search?q=P...00&aqs=chrome..69i57&sourceid=chrome&ie=UTF-8
PCH502100

If it is leaking maybe fitting the clip in the correct place will stop it. It needs to be on the bulbous part of the hose nearer the main hose.
