none of us are always correct - not even JM & Wammers.
- Posts
- 83,232
- Location
- Embasinga stocæ
and use a green ink eraser to clean the contacts. then spray with contact cleaner & make n break the contacts a few times.
toms3
Active Member
- Posts
- 375
- Location
- west yorkshire
hi buz sorry Iv not updated for couple of days but iv not had chance to look at it yet. I had a go testing the wire that goes to start the alternator working ,where it comes out of the bulkhead tonight just before it got dark and theres no voltage there
i was hoping it was just a case of fitting a new wire from where it comes out of the back of the dash as the wire feels stiff from the engine heat but unfortunately not the case. its my daily so iv been charging the battery overnight to keep the battery topped up so I can get to work and do errands ect.
should this wire be constant ignition live? or does it just power for a moment after start up to get the alternator working?
I have been wondering if I can take an ignition live from the fuel pump solonoid? only temporaly while I find the problem and sort it out properly.
its a nightmare when its your daily and rely on it heavily isnt it!
iv finally got the day off tommorow and im going to have to swap my transfer box too as its making some bad noises!
i was hoping it was just a case of fitting a new wire from where it comes out of the back of the dash as the wire feels stiff from the engine heat but unfortunately not the case. its my daily so iv been charging the battery overnight to keep the battery topped up so I can get to work and do errands ect.should this wire be constant ignition live? or does it just power for a moment after start up to get the alternator working?
I have been wondering if I can take an ignition live from the fuel pump solonoid? only temporaly while I find the problem and sort it out properly.
its a nightmare when its your daily and rely on it heavily isnt it!
iv finally got the day off tommorow and im going to have to swap my transfer box too as its making some bad noises!
toms3
Active Member
- Posts
- 375
- Location
- west yorkshire
I will do if i have to resort to this temporary method.

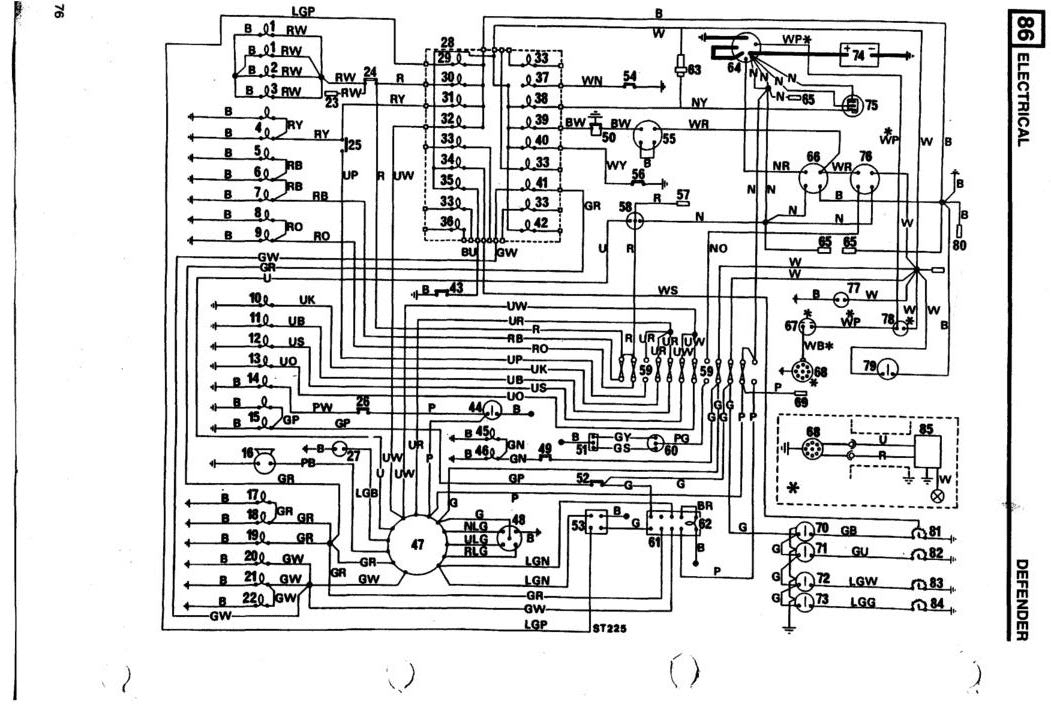

iv been studying mad hat mans wiring diagram

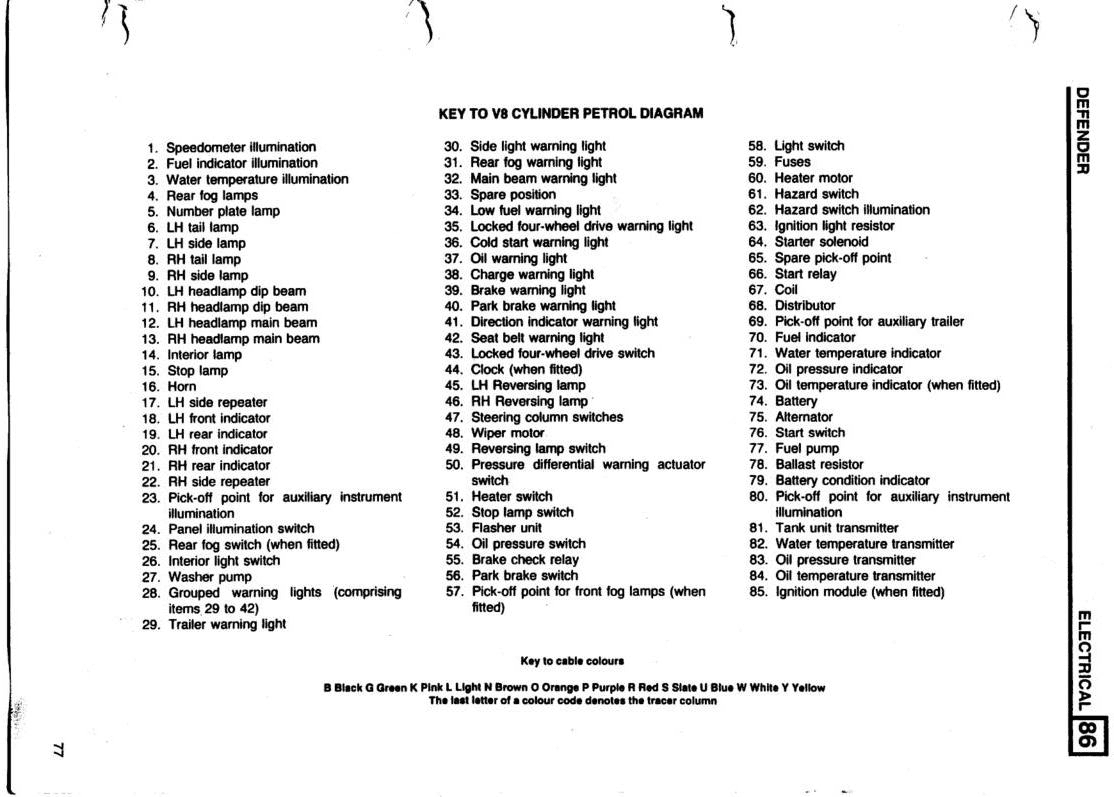

what is the part that is no. 63? (ignition light resistor) could this cause a failure in the circuit?
cheers!!!
Tom.
- Posts
- 83,232
- Location
- Embasinga stocæ
it needs to be live all the time to activate the alternator. I does need to be feed via a 1.2w lamp tho. do NOT apply 12v direct.
the resistor just allows current to flow to the alternator, if the bulb fails. Not sure on resistance tho.
most likely 240Ohms 1.5w
the resistor just allows current to flow to the alternator, if the bulb fails. Not sure on resistance tho.
most likely 240Ohms 1.5w
toms3
Active Member
- Posts
- 375
- Location
- west yorkshire
something like this?......
http://www.ebay.co.uk/itm/12V-LIGHT...873652?hash=item28078561b4:g:hOAAAOSwQPlV7u3d
struggling to find 1.5w tho is this suitable?
- Posts
- 83,232
- Location
- Embasinga stocæ
further investigation state that it should be circa 15ohms 5watt wirewound.
On the 300 it is 100 ohms and about a 1/2 watt rating
- Posts
- 83,232
- Location
- Embasinga stocæ
See heresounds good enough for me
I was quoting the Delco site.
- Posts
- 83,232
- Location
- Embasinga stocæ
I stand corrected
- Posts
- 83,232
- Location
- Embasinga stocæ
this might be useful too.
