discodrivercumbria
Well-Known Member
- Posts
- 3,317
- Location
- South lakes
Disco 2 code faults
- Thread starter discodrivercumbria
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
AIG3191
New Member
- Posts
- 3
- Location
- south west scotland
Hi i think you are using a Hawkeye? if it is. you should have a DTC look up section on the menu.
In user menu section1 OBD DTC lookup use the left/right keys under the required DTC character then using the up/down keys to change the characters as required
press the (tick) key to confirm the DTC if it has the code in the memory it will give a short description of the problem. eg P0100 - mass or volume air flow A circuit
Press (x) to return to the menu (Sorry i do not have a list of fault codes but i have used a hawkeye)
hope this is a help good luck JIm
In user menu section1 OBD DTC lookup use the left/right keys under the required DTC character then using the up/down keys to change the characters as required
press the (tick) key to confirm the DTC if it has the code in the memory it will give a short description of the problem. eg P0100 - mass or volume air flow A circuit
Press (x) to return to the menu (Sorry i do not have a list of fault codes but i have used a hawkeye)
hope this is a help good luck JIm
discodrivercumbria
Well-Known Member
- Posts
- 3,317
- Location
- South lakes
i never knew that! but have never had any real faults with the other cars, cheers
sierrafery
Well-Known Member
- Posts
- 17,129
- Location
- Arad/Romania
You can forget about those obd2 codes retrieved with a generic scanner... most of them are false, youn can't diagnoe a Td5 withn obd2 scanners even if the vehicle is listed, period
discodrivercumbria
Well-Known Member
- Posts
- 3,317
- Location
- South lakes
so what does that mean
sierrafery
Well-Known Member
- Posts
- 17,129
- Location
- Arad/Romania

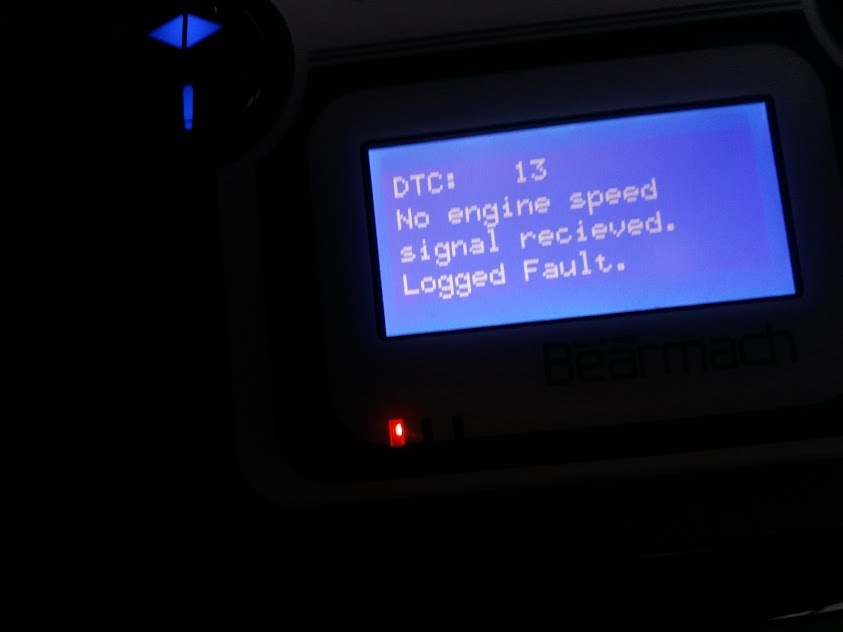

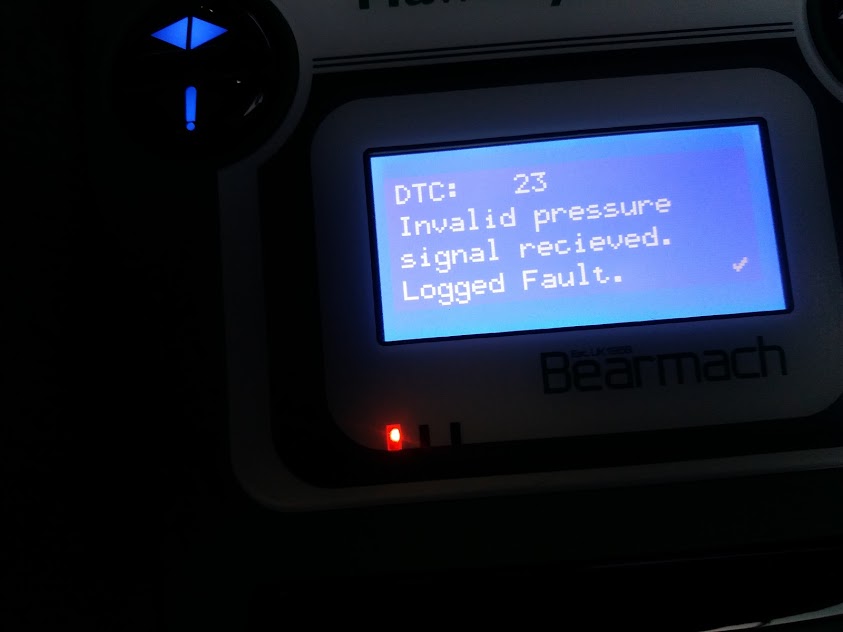

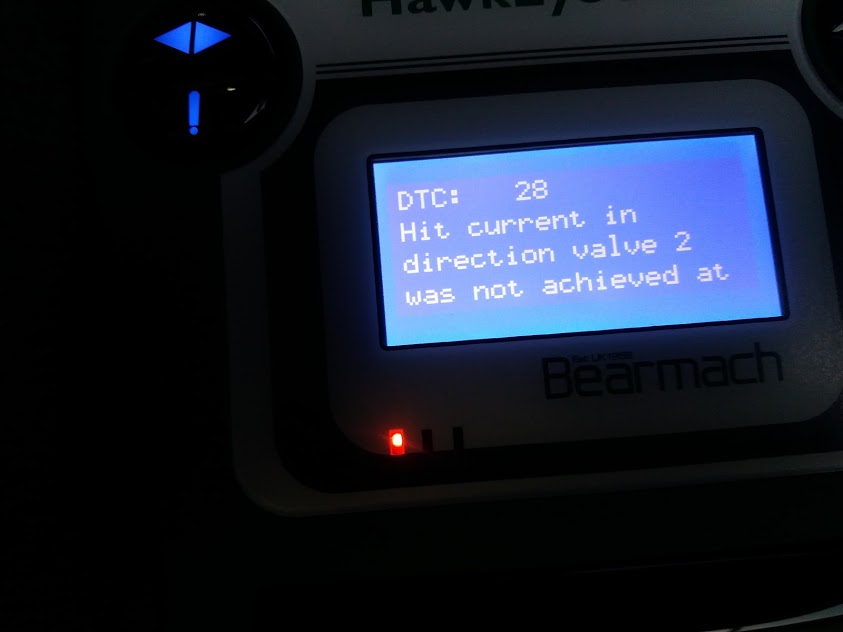

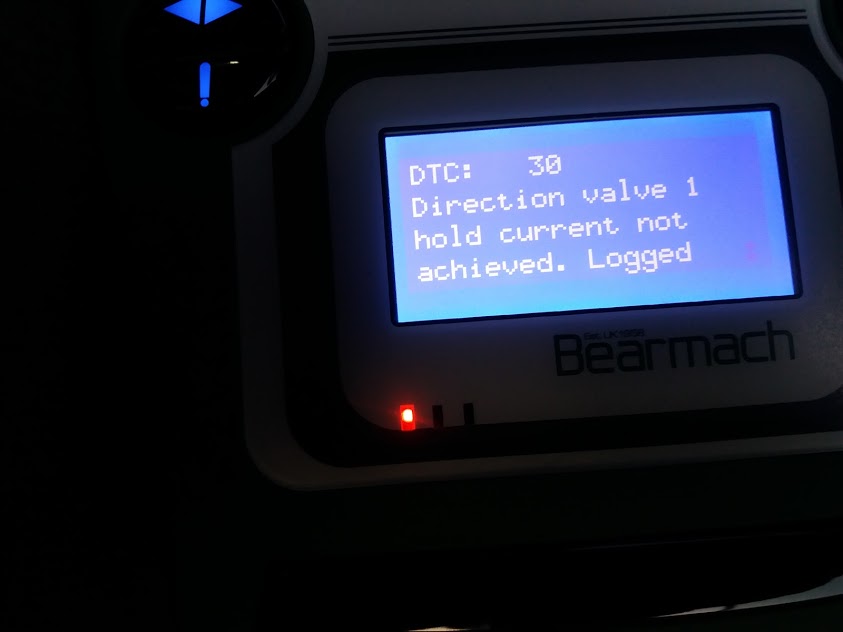

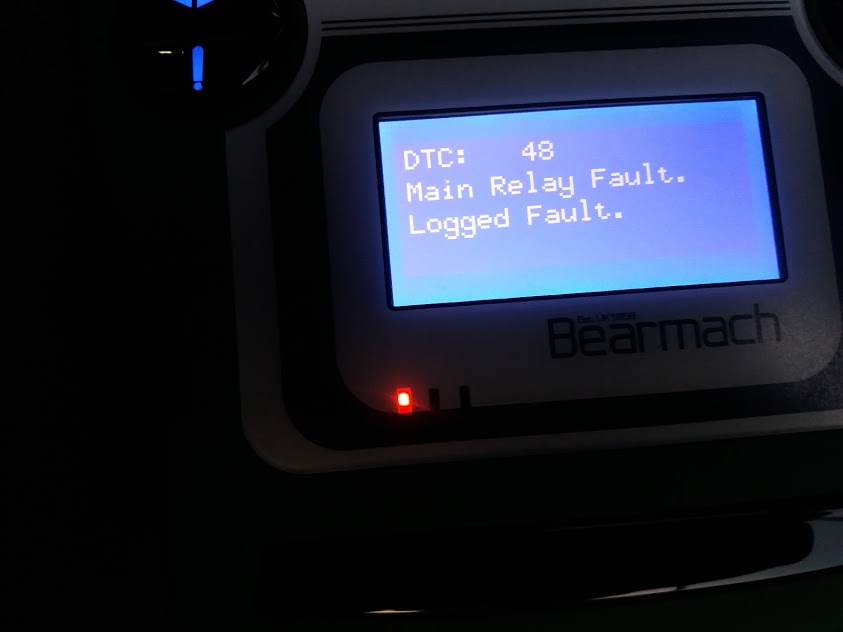

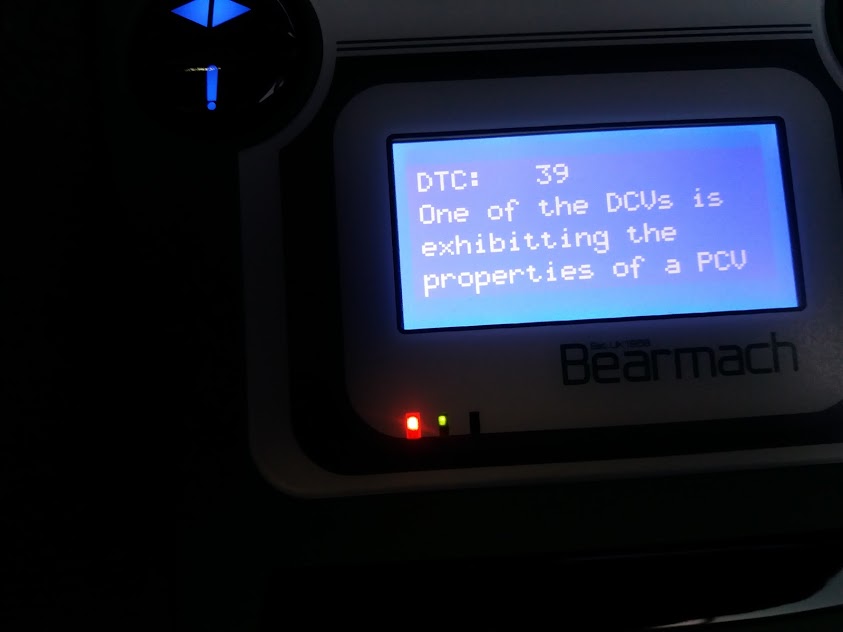

Sorry i missed that it's about hawkeye total cos the snapshots are a bit dark.. all those codes are about ACE...did you clear them, went for a drive then read again to get rid of hystorical codes ?, if all those codes are current then first step would be to replace the ACE relay R14 to rule it out
discodrivercumbria
Well-Known Member
- Posts
- 3,317
- Location
- South lakes
thanks, i will give it a spin tomoz, 1st gonna try to see why the rear wiper and fuel flap dont work ,plus no oil light comes on, it does witrh hawkeye
sierrafery
Well-Known Member
- Posts
- 17,129
- Location
- Arad/Romania
For the oil light check the wiring back from the switch untill you can reach, if it's well connected unplug it and give earth with a wire into the plug(white/brown witre) then you'll have to see the light which means the switch is gone and if no light with earth into the plug it's a wiring issue
