Series 2 Clutch pedal not returning

Discussion in 'Series Land Rovers' started by Trench Rat, Apr 6, 2021.

< Previous Thread | Next Thread >
  1. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    Hi guys and gals

    Tried taking my 2a out but the clutch pedal won’t return. So I ordered replacement springs from craddocks. Their 2a clutch return springs.

    still won’t return and the springs feel less powerful than the old one so I figure it’s not a spring issue.

    any advice?

  2. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island


    That's with the new spring. Still not right.

  3. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    Okay so I’ve had someone tell me that this is symptomatic of either a clogged or “on its way out” clutch master or slave cylinder. He’s said it’s an easy enough job.
    Opinions? Advice? I’ve found the master but couldn’t find the slave in the time I was out there looking.

  4. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current
    Mine did this exact same thing the other day, was slave cylinder seizing up from lack of use.
    Pop underneath with a large screwdriver and lever the slave pushrod/arm back up, then work the pedal a few times, it will get you going for now.

  5. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    Nice, thanks, i'll try that first before i go buying ****. That's next sunday planned :)

    Really hasn't had much use at all due to the whole covid thing. Would make sense that something had seized up a little.

    Thanks!

  6. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current
    My little mind went into over drive thinking the worst, clutch cover broken, shaft seized, shaft connector pin/s seized, engine out bollacks bollacks, then thought act/think rational you **** and take alook, 2 mins later and we are driving down the road!

  7. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    Lucky! Here's to hoping then.

    lynall likes this.
  8. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,200
    Likes Received:
    1,446
    Location:
    west wales coast
    Most likely a hydraulic issue. When I had this issue it was seals in the master braking up and little bits blocking the fluid passage ways.

  9. doglandroverman

    doglandroverman New Member

    Joined:
    Mar 29, 2009
    Posts:
    2
    Likes Received:
    0
    Location:
    North somerset
    I had a problem like that on my S111 it turn out to be the rubber flex pipe. Inside the pipe a flap of rubber was acting as a one way valve and not letting the fluid return. easy to repair new pipe.

  10. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,200
    Likes Received:
    1,446
    Location:
    west wales coast
    For the the price of the parts I would renew master, flexi and slave.

  11. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,916
    Likes Received:
    559
    Location:
    Tyneside
    It could simply be the pivot of the pedal if you look at the side of pedal box under bonnet there is a bolt in the pivot shaft remove and squirt some oil into the hole. I removed my bolt and fitted a 1/4UNF angled grease nipple.

    tottot and Turboman like this.
  12. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    2,063
    Likes Received:
    551
    Location:
    monkeyhangerland
    Check master cylinder bolted on properly and you’ve not lost a nut

  13. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    any pointers on where to look? Followed the hose from the pedal box and found a pivoting arm way under by the oil drain plug.

    this the sucker? Really stiff


    Attached Files:

  14. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    Would this be easier by taking the floor off? Also which side would the slave cylinder be? I’m struggling to squeeze under

  15. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,200
    Likes Received:
    1,446
    Location:
    west wales coast
    Take driver side floor out.

  16. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current

    That looks like it, see if you can lever it back up at the pushrod end, mine popped back up with minimal effort, if you have resistance you need to figure out if that resistance is mechanical or fluid.
    If ii is solid there is a chance the tube pins may have snapped in the cross shaft, and that is why the slave is at max extension

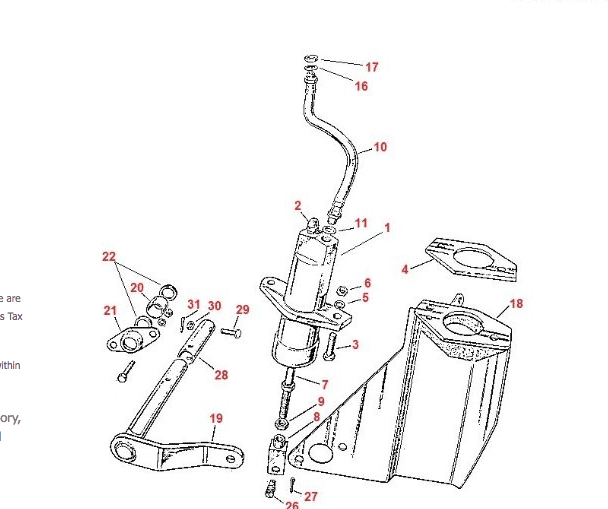

    Item 29, part number 536803

    Screen Shot 2021-04-15 at 17.41.11.png

  17. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,827
    Likes Received:
    2,200
    Location:
    Hayling Island
    thanks for the diagram. i'm going to go and try to pull up the floor now. Any tips on how to work out if the resistance is mechanical or fluid? I soaked it in WD40 last week, maybe that's helped free it up if it was gunky.

  18. Haggisfrog

    Haggisfrog Member

    Joined:
    Apr 25, 2021
    Posts:
    18
    Likes Received:
    12
    Location:
    France
    Try pulling on the pedal. If it’s a stiff pull, it could be as someone suggested above. The pedal is fixed to the pedal box on a shaft. That shaft is pinned through a collar on the pedal box which is a bitch to get out. That shaft goes through the pedal and through the other side of the box. As it’s pinned to the box, it’s does not move. The pedal has 2 brass bushes pressed into it. In my case, the brass bushes were seized/crudded onto the steel shaft. If it’s not a hydraulic issue and it’s mechanical, I would advise to whip off the pedal box (to be able to work on it freely, especially for getting that pin out) and take out the shaft, clean properly, regrease and refit.

    steve2286w likes this.
