Check my head

RodneyA · Dec 30, 2014

I've taken my head off and was wondering if you can have a peek at the gasket and see if it looks ok

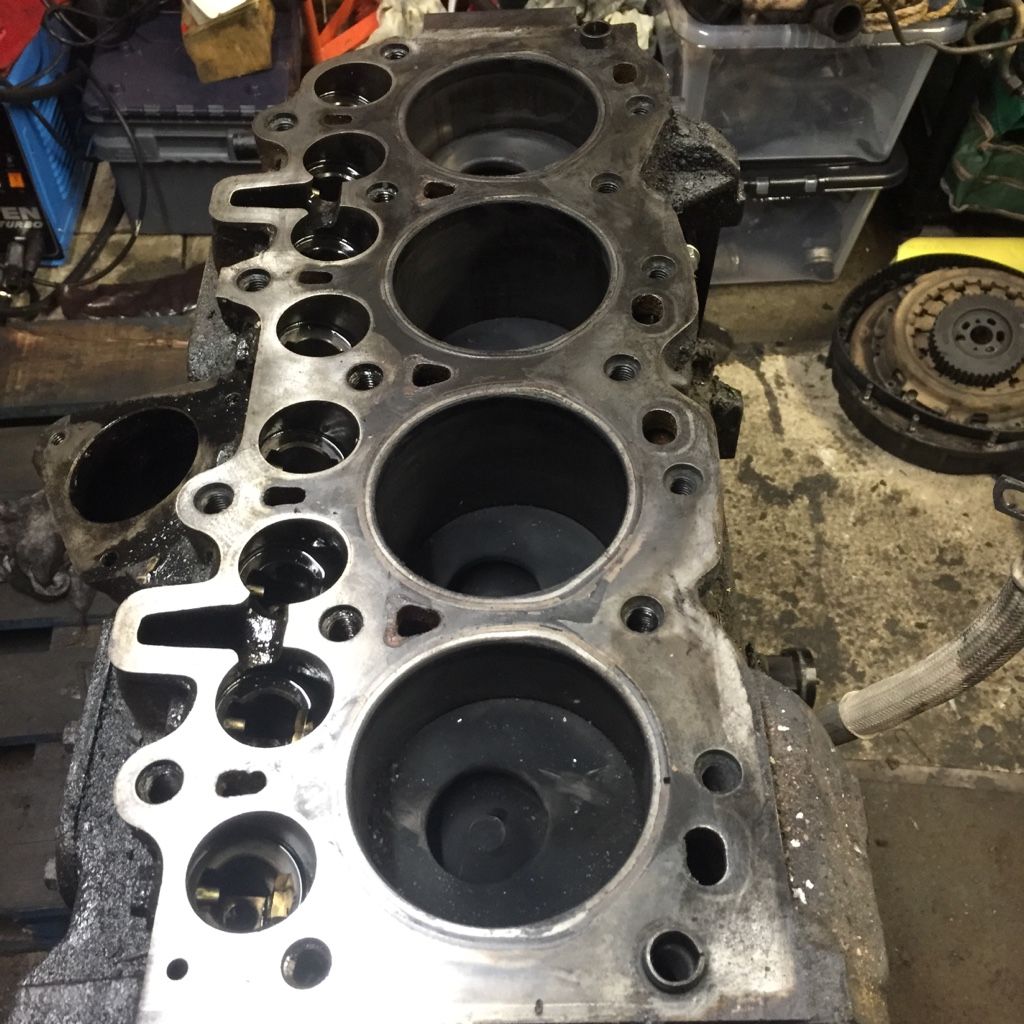

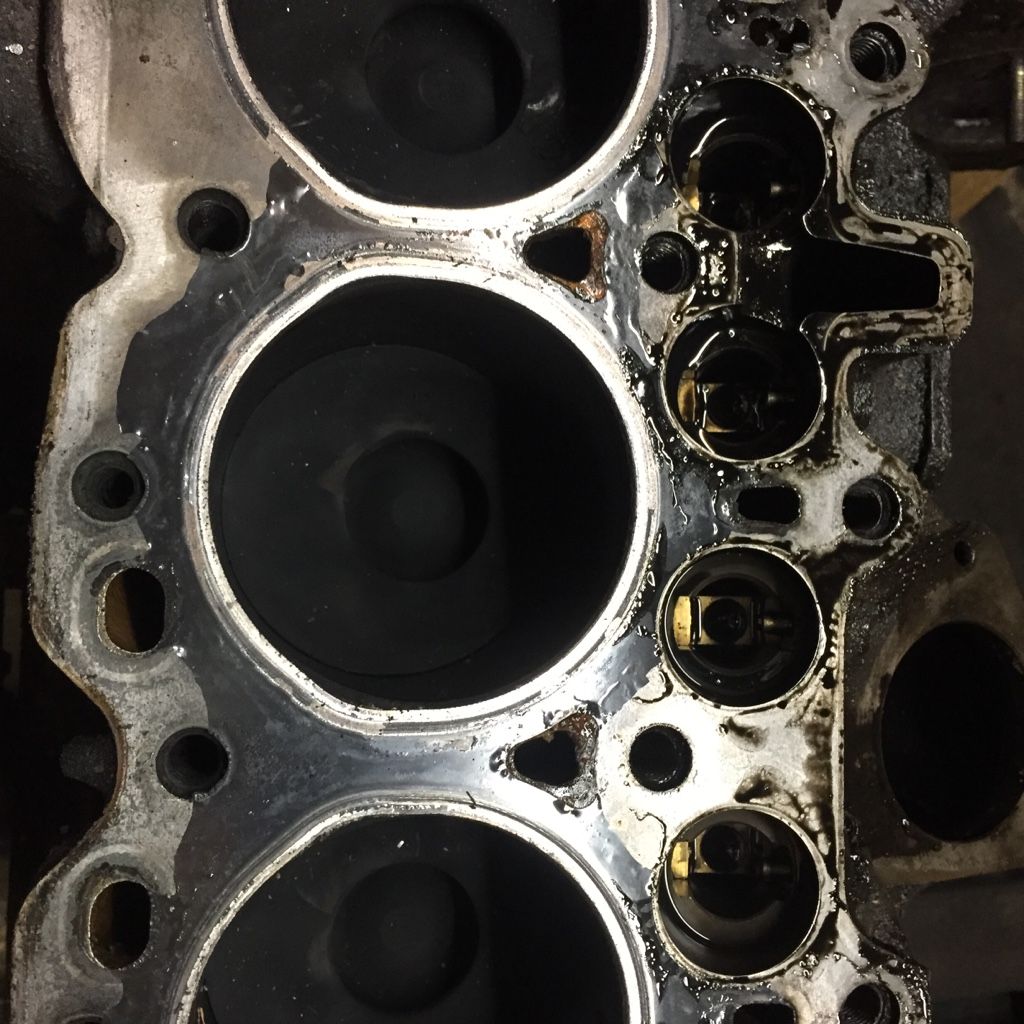

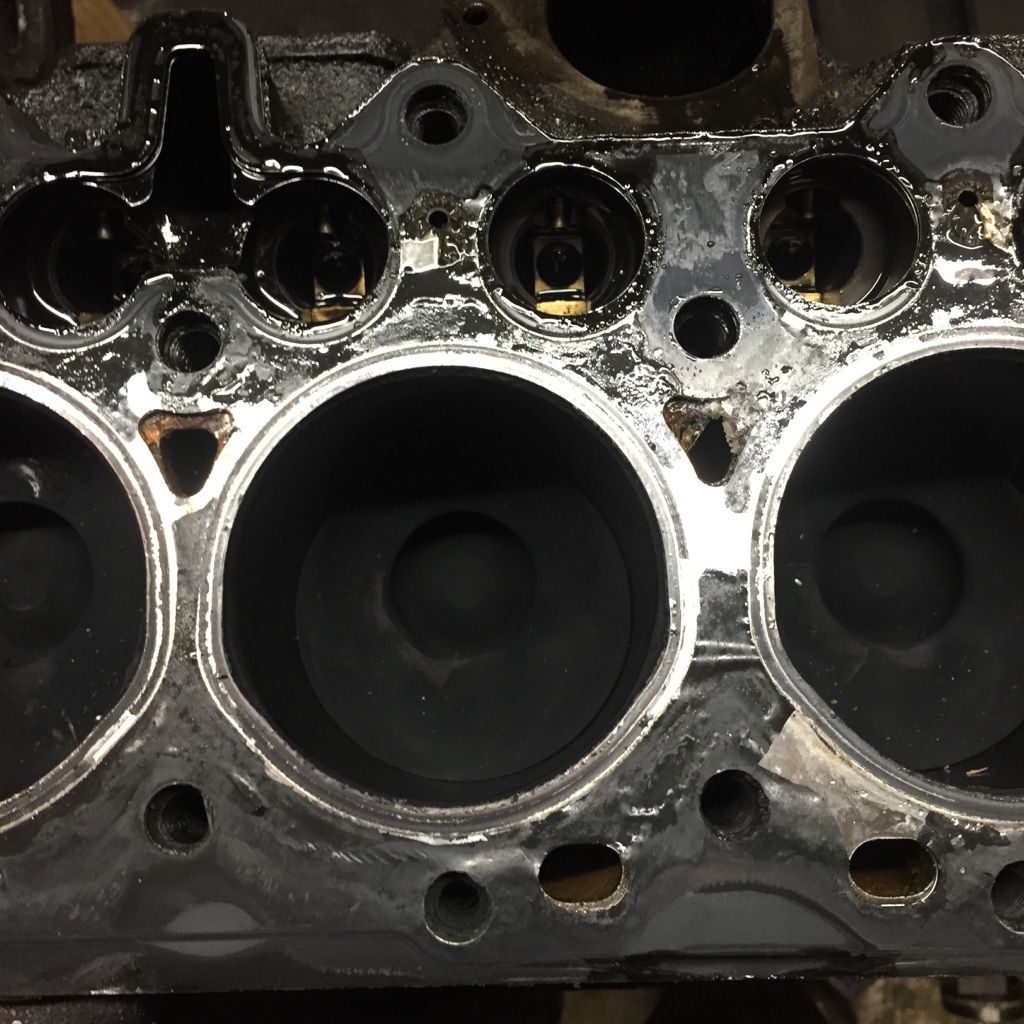

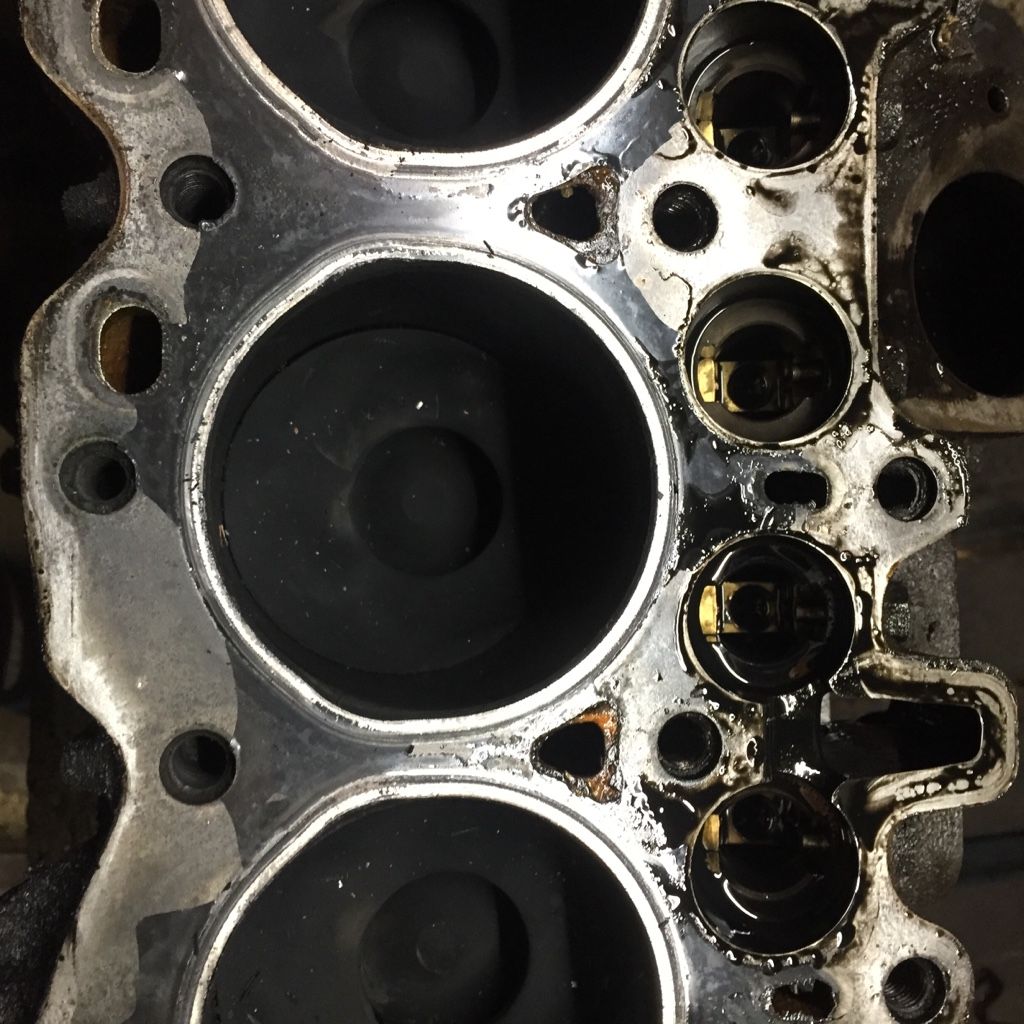

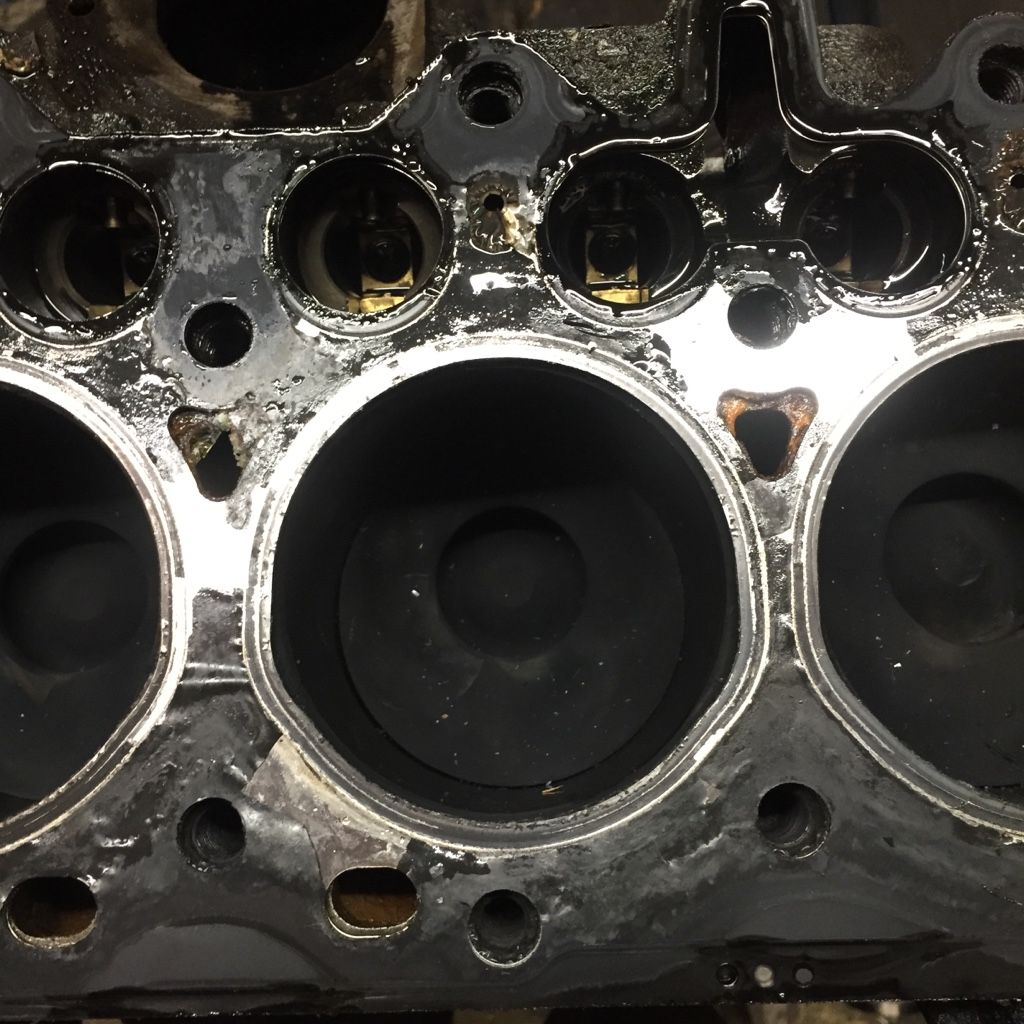

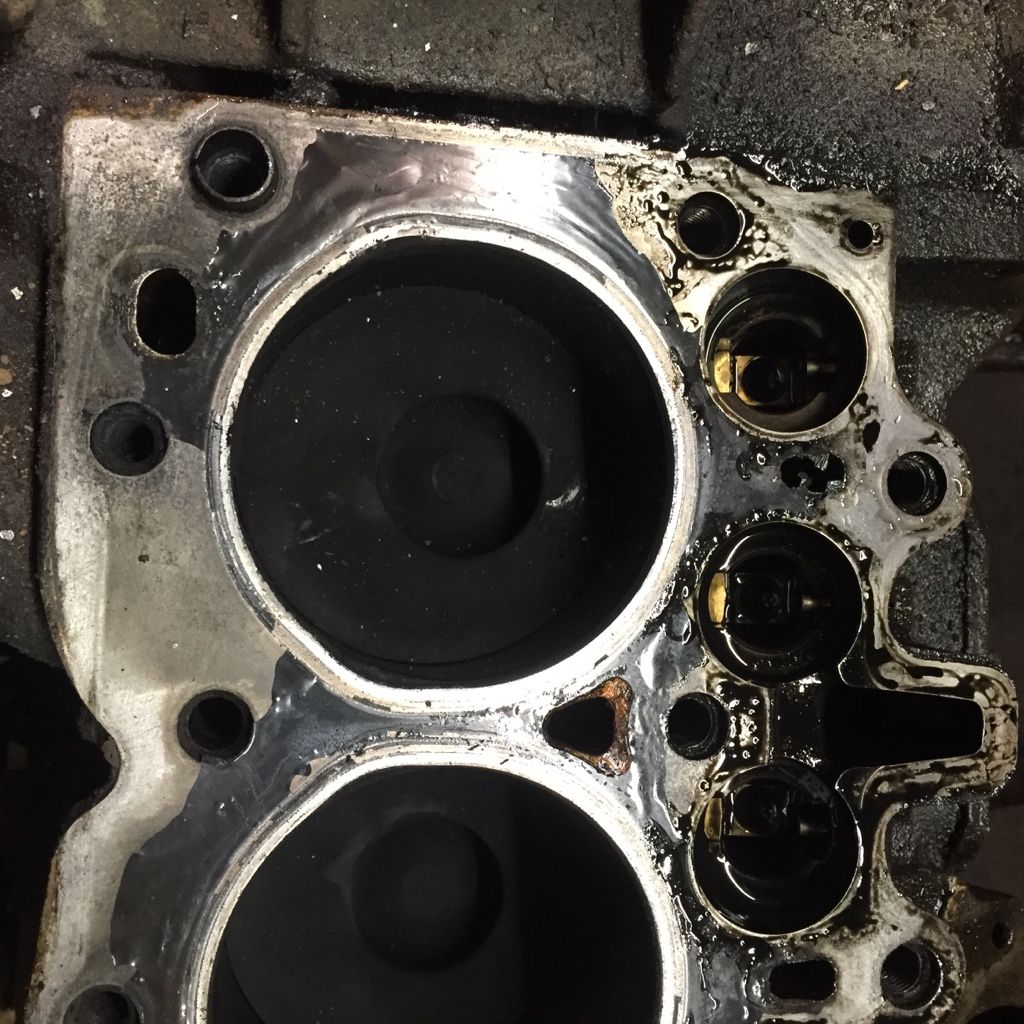

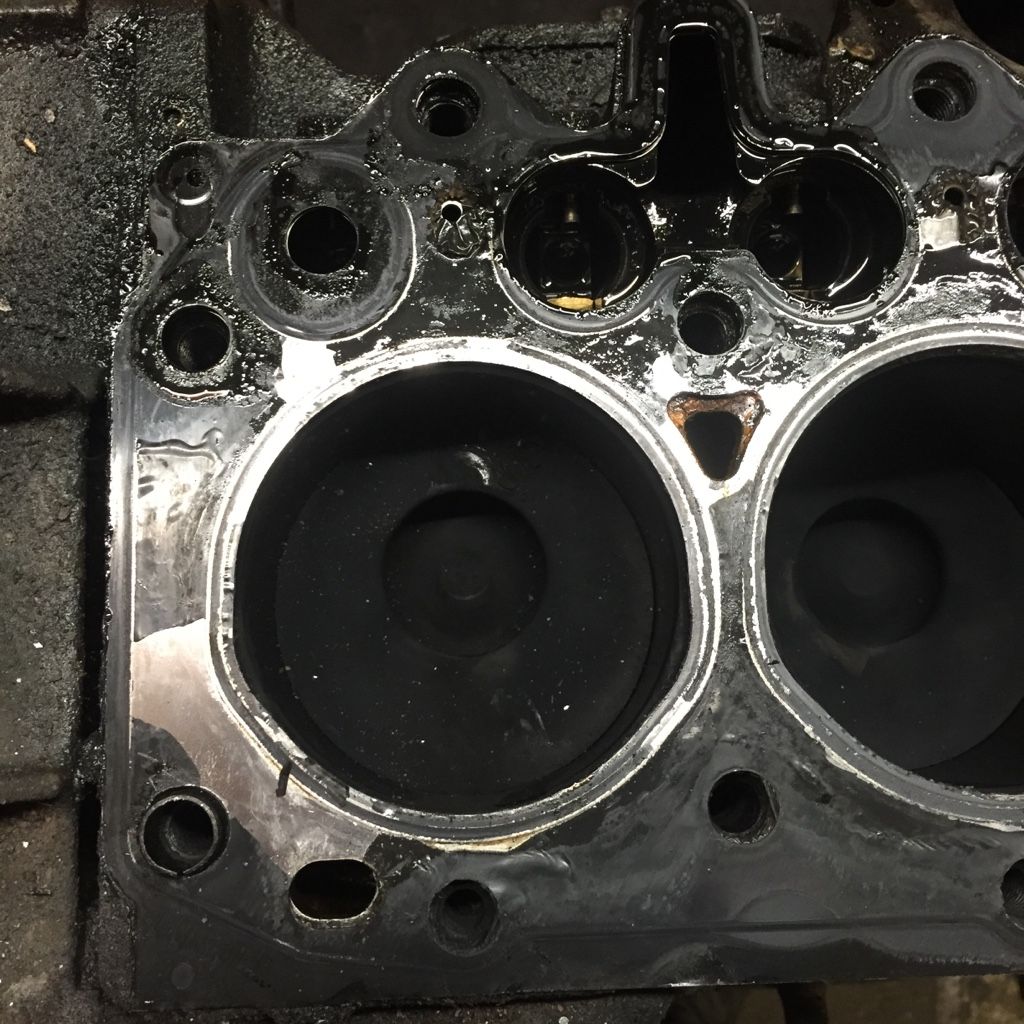

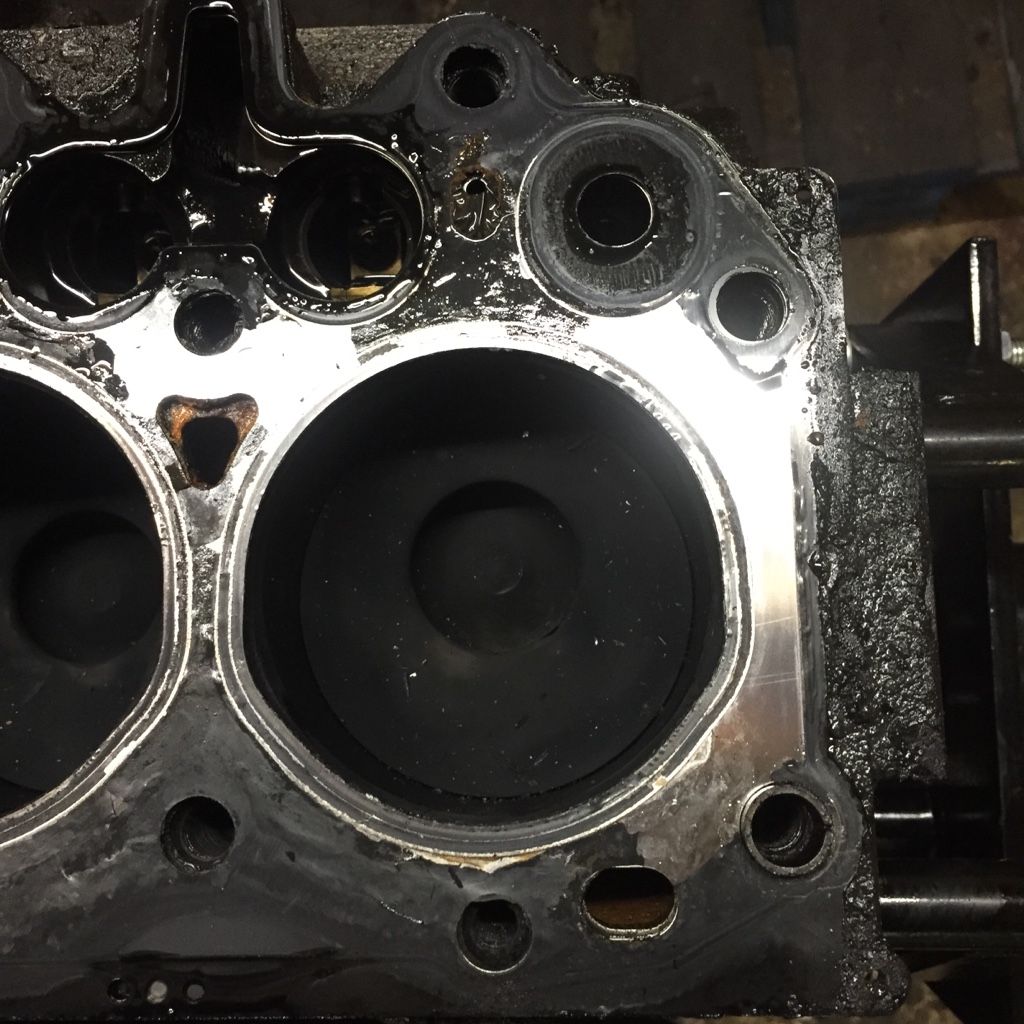

First 4 pictures are the gasket and last 4 are the gasket off.

I also can't seem to see these holes that tell me what thickness of gasket I need.









jamesmartin · Dec 30, 2014

err5263 composite gasket, also its getting more fuel than air enough to burn it

RodneyA · Dec 30, 2014

Ah. I meant to say it seems like 2 gaskets when I took it off.

jamesmartin · Dec 30, 2014

its 1 gasket just not secured together anymore

RodneyA · Dec 30, 2014

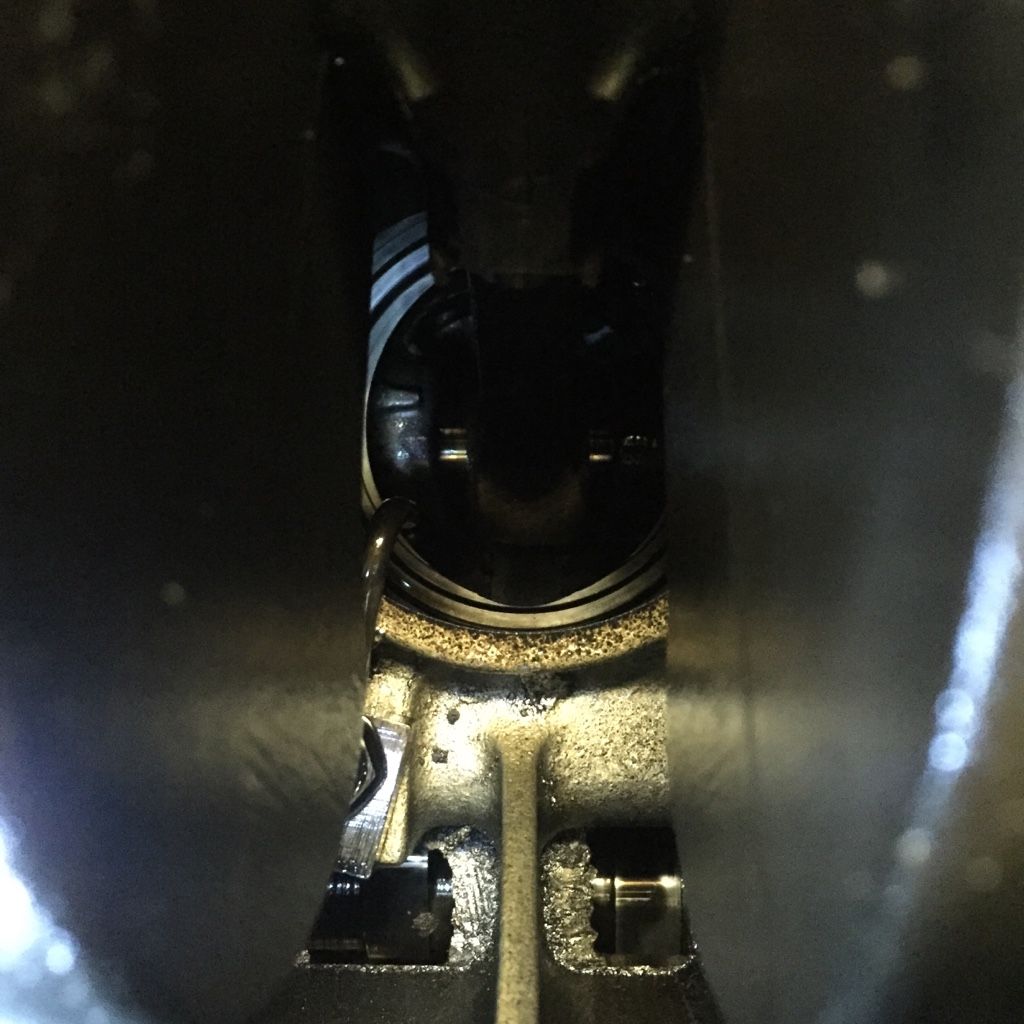

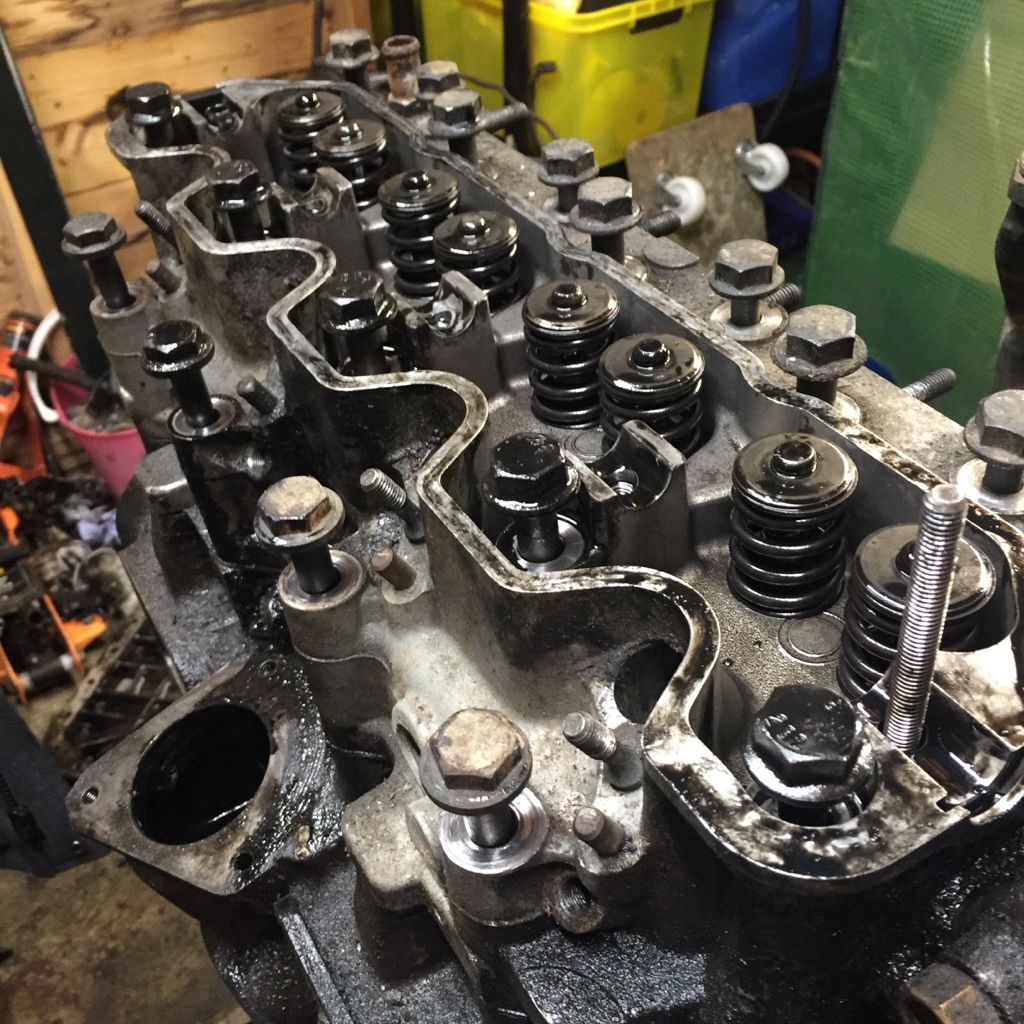

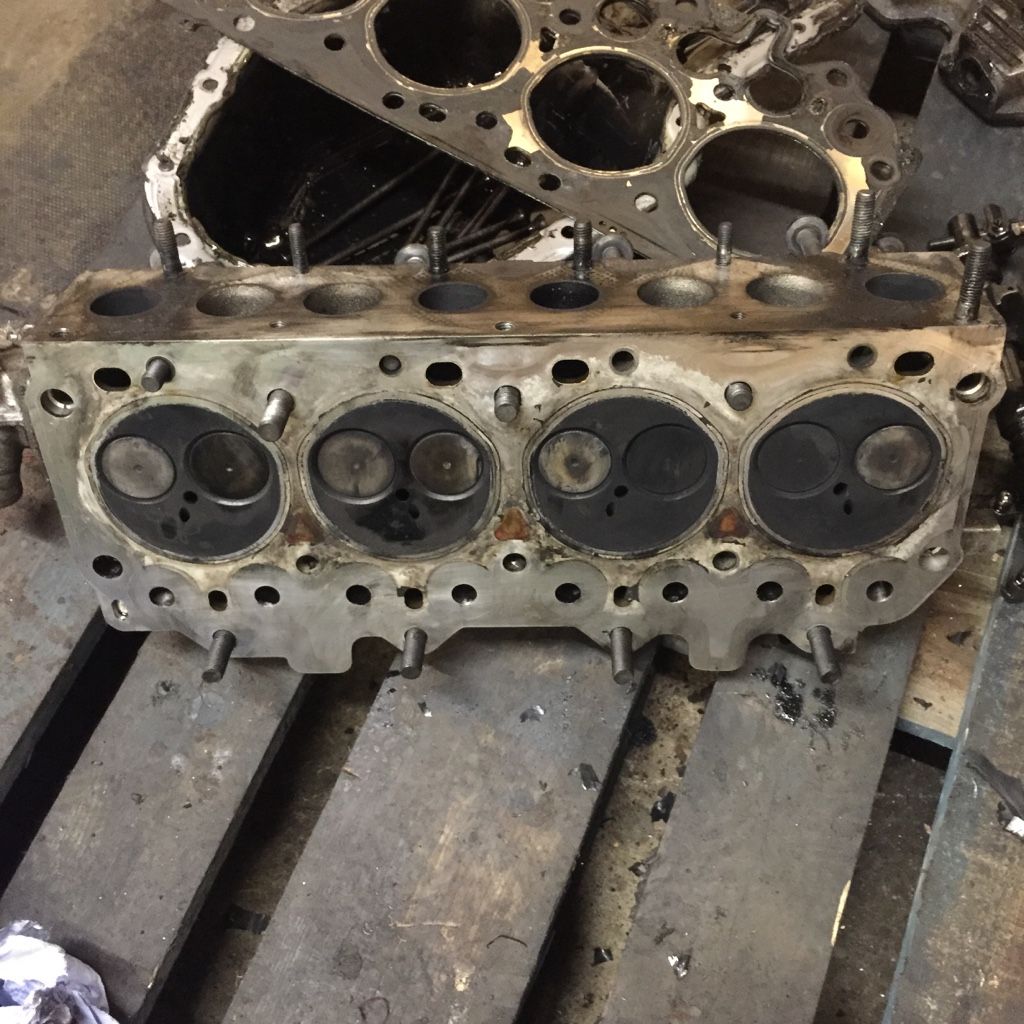

Does the bits seem ok? the bores seem good. Maybe a teeney wee bit rough right at the top but no lip as such. Will pop some pictures of the head on soon.

RodneyA · Dec 30, 2014





RodneyA · Dec 30, 2014

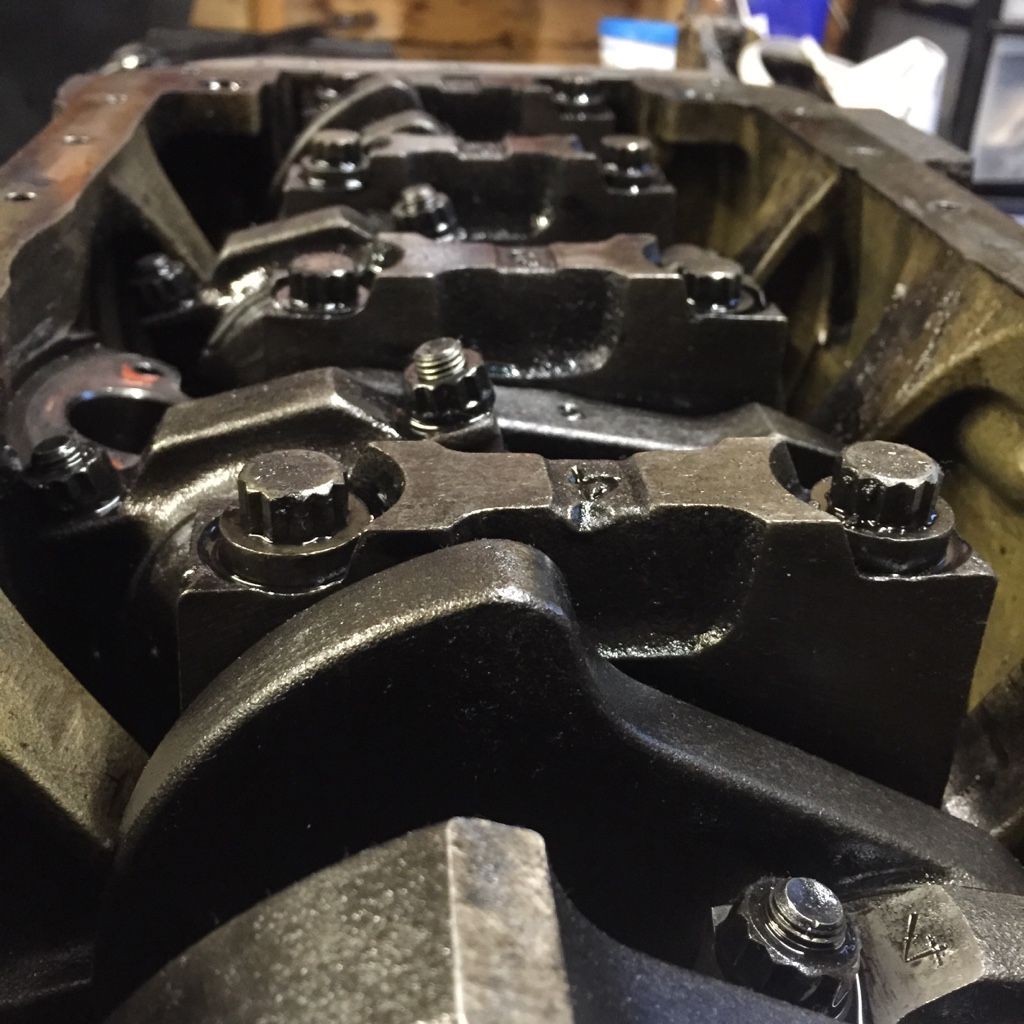

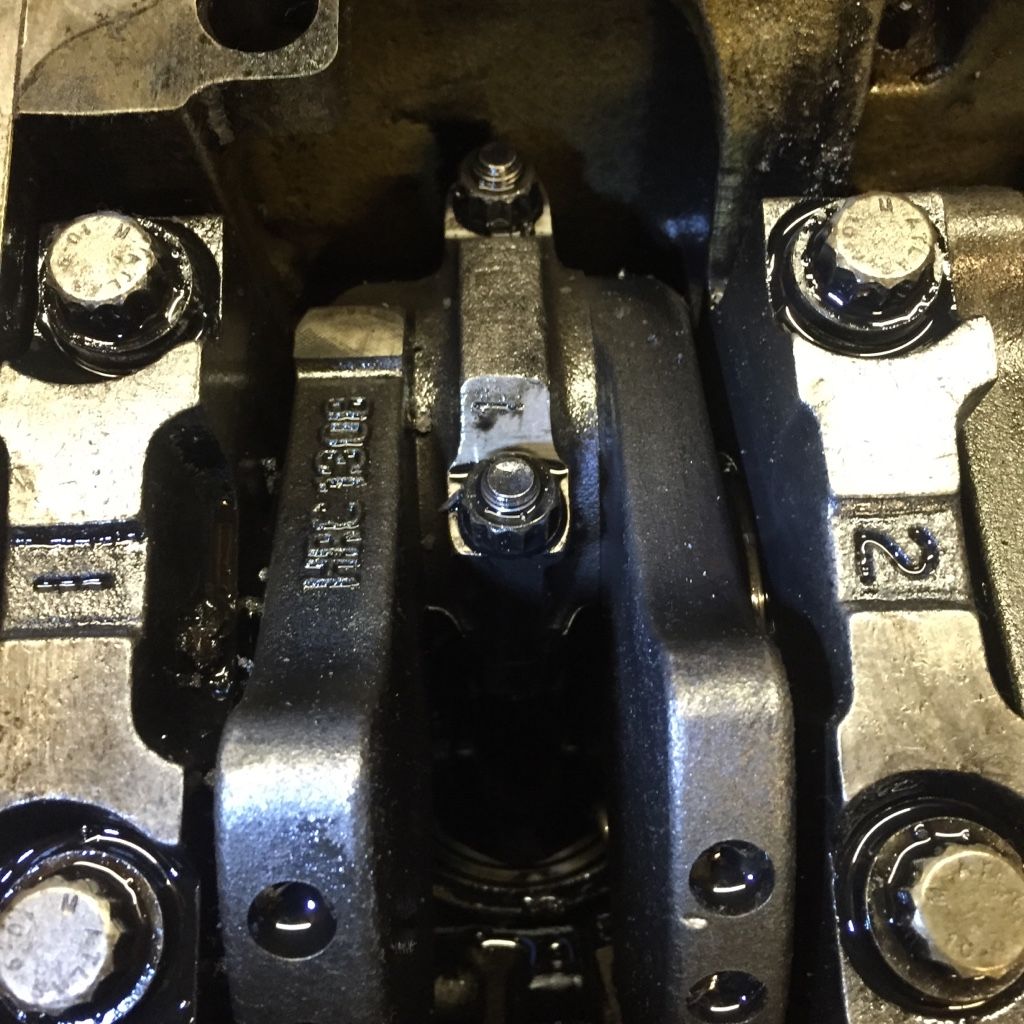

The internals are for somebody else to work on. I'm too scared to touch them

Tho from what I can see they seem in good nick.





jamesmartin · Dec 30, 2014

check heads flat especially in the center

lynall · Dec 30, 2014

Main thing I have personally seen on a few 200 heads is cracking between the valve seats, doesnt seem to effect anything, just looks bad!
