Chassis identification

oldslap · Nov 18, 2019

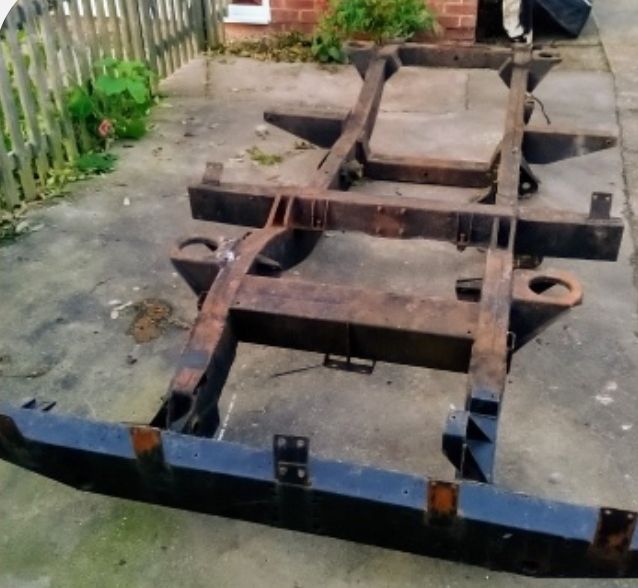

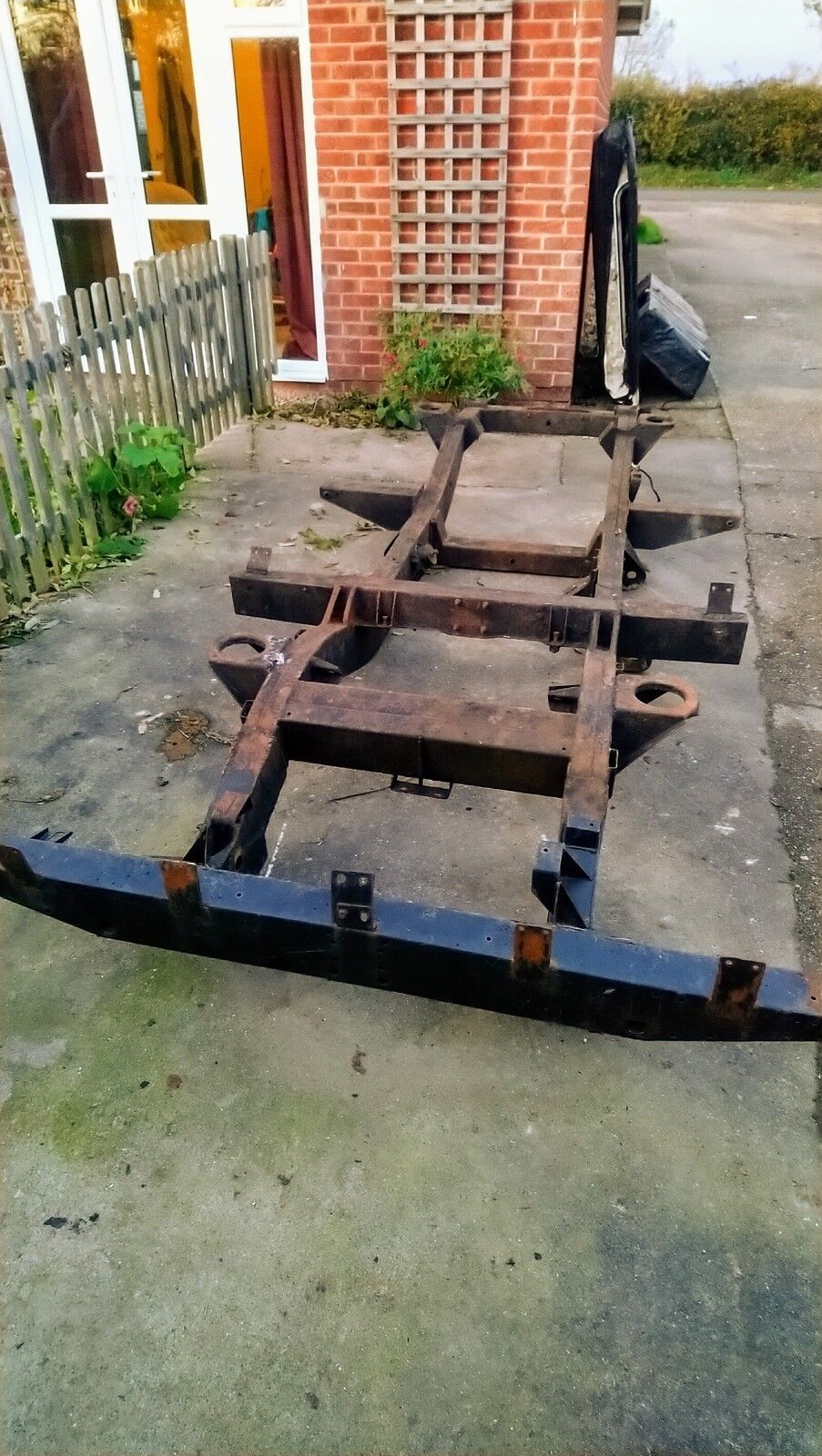

I've bought this chassis as part of a job lot & wondered if anyone can advise me regarding what Land Rover it's from? I believe it to be from a 90? Also, where would I find the chassis number?

Flossie · Nov 18, 2019

Looks like a 90.
Number is stamped on the vertical face of the front off side chassis rail around where the steering box would bolt on.

tottot · Nov 18, 2019

Does look like a 90 chassis. Number should be on front O/S chassis leg [ outer plate] near where the bumper mounts. [ that is if it has not corroded away.]

Litch · Nov 19, 2019

Something strange about it, looks more to be a hybrid chassis (i.e. an old RR chassis converted to take a Defender body)?

Tabs on the rear crossmember look very tall.
Front outriggers look to be Series items.
Rear outriggers are rectangular whereas they should be tubular, once again look to be Series items.
The crossmember behind the rear spring seats.

neilly · Nov 19, 2019

Have you measured the wheel base? ctr front to rear springs?

Cheers

oldslap · Nov 19, 2019

neilly said:
Have you measured the wheel base? ctr front to rear springs?

Cheers

Yeah, I measured - it's about 90inches. I need to move it on as it takes up a lot of room, but I need to identify it first. It does seem to be some sort of hybrid. It's a good solid chassis. Not sure what it's worth?

Gmacz · Nov 19, 2019

Looks to be hybrid off road type chassis.
Rear bit looks like 110 as springs are close to cross member, maybe a half chassis welded in.
Put it on ebay and let the buyers decide what it is.

Rougharse Racing · Nov 19, 2019

Shortened Range Rover / Discovery Chassis with Land Rover outriggers.
