Changing wiper motor..is it hard?

Fatrover · Feb 22, 2020

my original ‘76 motor has given up, I reckon I can replace it myself, but I wondered if there are any pitfalls? .....

wireman · Feb 22, 2020

before you buy another motor, consider swapping the brushes in it:

https://www.ebay.co.uk/itm/BRAND-NE...831291?hash=item469e512efb:g:2oMAAOSw~HRdkdKV

non genuine brushes are cheaper.

As for getting the motor out, the screws holding the dash board cover box will be rusted, they will round off, the edge of the cover will also be rusty and crumble before re assembly!

tottot · Feb 22, 2020

Once you have the outer cover off the motor itself is only held to the bulkhead by one bolt through a clamp, before you undo it free off the big nut that holds the wire drive outer to the motor. Then you have to turn the unit around and remove the rear cover plate [ small bolts ] to release the drive wire. Give the earth point on the bulkhead a good clean before refitting.

Fatrover · Feb 22, 2020

Ah excellent, so,I can leave the wire drive in situ and literally replace just the motor? That’s what I was wondering about

rob1miles · Feb 22, 2020

They are usuallly just dry and need oiling. The motor bushes are oilite to you soak them in a pan of hot oil then let it cool to suck the oil in.

Fatrover · Feb 22, 2020

It’s a Lucas motor, and I read somewhere they’re pretty indestructible. I’ll disconnect it all and see. Quite optimistic now !

Bobsticle · Feb 22, 2020

Look above the list of threads in the technical bit.

Fatrover · Feb 22, 2020

Ah ok will have a look, don’t think this search things working

rob1miles · Feb 22, 2020

These are easy to get going, but, take your time as its easy to damage the brushes, and be very carefull with the wiring and park switch, get anything wrong and its a dead short.

Fatrover · Feb 22, 2020

Excellent, OK, I’ll give it a go, have a new park switch ready to go in!

tottot · Feb 22, 2020

They are tough, when mine stopped working I found the motor can half full of rusty dirty water. After a good clean up and dry out and oiling it worked on for many more years. Must have got in when I got in some deep water some months before.
You know you are in deep when you have to stand hunched over in the cab to save getting your arse wet.

Fatrover · Feb 23, 2020

I reckon that might be the problem with mine! Will get it out today and have a look ! Thanks!

Fatrover · Feb 23, 2020

It’s weird this, but the motor is a Lucas one and I can’t undo the back panel to get the wire drive out as it’s completely sealed, no screws. So, looks like I might have to take the whole wire drive out and replace it along with a new motor, question is, do I have to take the dash top off ? Not looking forward to that....

jamesmartin · Feb 23, 2020

Fatrover said:
It’s weird this, but the motor is a Lucas one and I can’t undo the back panel to get the wire drive out as it’s completely sealed, no screws. So, looks like I might have to take the whole wire drive out and replace it along with a new motor, question is, do I have to take the dash top off ? Not looking forward to that....

take the wiper arms off and rack will pull out

Fatrover · Feb 23, 2020

Ok, ideal! I take it the new one just gets pushed up where the old one came out ?

minecab · Feb 23, 2020

as you push the cable back into the tube you may have to turn the wheelbox spline to help it to go through

Fatrover · Feb 23, 2020

Ah ok. I think it might be dash top off then !

jamesmartin · Feb 23, 2020

Fatrover said:
Ah ok. I think it might be dash top off then !

no need,you turn the spindle were wiper arm attaches

Fatrover · Feb 23, 2020

I was wondering that. Thanks a lot ! All the years I’ve had series and this is the first time I’ve had any windscreen wiper issues.

Fatrover · Feb 24, 2020

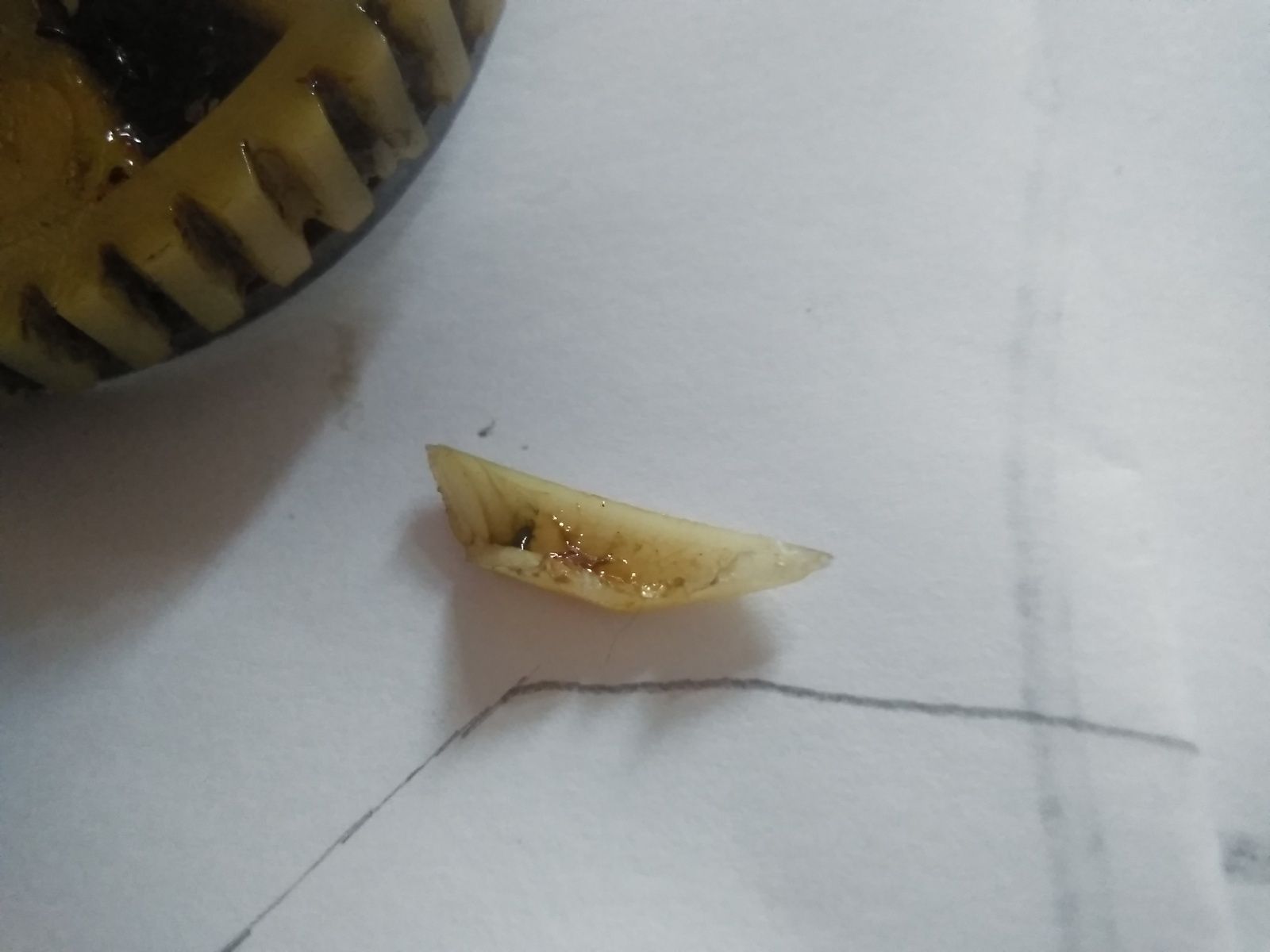

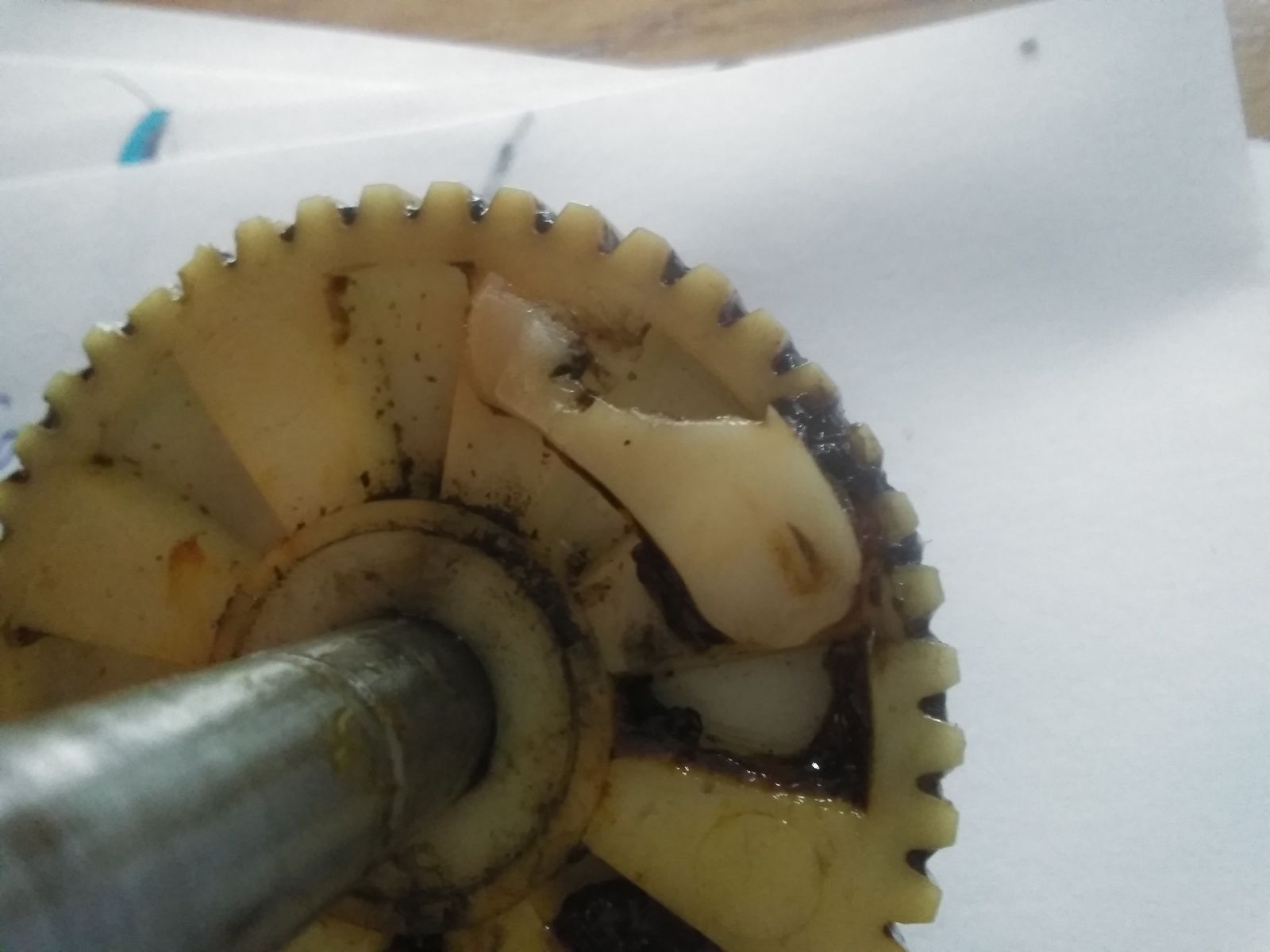

well i managed to take the motor to bits...turns out a wee bit of the shim on the gear wheel had snapped off and was jammed against the motor spindle. wired up the motor without the gear and its going great. New gear wheel ordered for a princely 7 quid !
